Kramer DigiTOOLS 6809HD Manuale utente

Kramer Electronics, Ltd.

PRELIMINARY

USER MANUAL







Model:

6809HD

HD/SD-SDI AES Embedder

Contents

Introduction 1

Getting Started 1

2.1

Quick Start 1

Overview 3

Your 6809HD HD/SD-SDI AES Embedder 4

Connecting the 6809HD HD/SD-SDI AES Embedder 5

5.1

Setting the GROUP SELECT Dipswitches 6

Cascading 6809HD machines 7

Technical Specifications 9

Figures

Figure 1: 6809HD HD/SD-SDI AES Embedder 4

Figure 2: Connecting a 6809HD SDI-AES Embedder 5

Figure 3: 6809HD Dipswitches 6

Figure 4: Cascading Four 6809HD SDI-AES Embedder Units 8

Tables

Table 1: 6809HD HD/SD-SDI AES Embedder Features 4

Table 2: GROUP SELECT Dipswitch Settings 6

Table 3: Technical specifications of the 6809HD SDI-AES Embedder 9

Introduction

1 Introduction

Welcome to Kramer Electronics (since 1981): a world of unique, creative and

affordable solutions to the infinite range of problems that confront the video,

audio and presentation professional on a daily basis. In recent years, we have

redesigned and upgraded most of our line, making the best even better! Our

500-plus different models now appear in 8 Groups

, which are clearly defined

by function.

Congratulations on purchasing your Kramer DigiTOOLS 6809HD

HD/SD-SDI AES Embedder, which is ideal for broadcast and production

studios, as well as digital / analog audio video authoring.

The package includes the following items:

6809HD HD/SD-SDI AES Embedder

Power adapter (12V DC Input)

This user manual

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Use Kramer high performance high resolution cables

2.1 Quick Start

This quick start chart summarizes the basic setup and operation steps.

1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:

Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;

GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors

2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com

3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Getting Started

Overview

3 Overview

The Kramer 6809HD HD

/ SD

-SDI AES Embedder is a broadcast quality

audio embedder for serial digital video.

The 6809HD:

Accepts a standard definition/high definition SDI source (270Mbps/1.5Gbps)

Has an equalized and reclocked SDI output, and embeds the audio to the

SDI stream

Embeds up to four audio signals (two stereo inputs) of AES/EBU audio

Auto-detects SD/HD

video formats

Can be controlled via the group select dipswitches, letting you select the

audio group to which you want to embed

Has LEDs that indicate when an SDI signal is being received and when

audio is being embedded to the video stream

Is 12VDC fed

To achieve the best performance:

Connect only good quality connection cables, thus avoiding interference,

deterioration in signal quality due to poor matching, and elevated noise

levels (often associated with low quality cables)

Avoid interference from neighboring electrical appliances that may

adversely influence signal quality and position your Kramer DigiTOOLS

6809HD away from moisture, excessive sunlight and dust

Caution – No operator-serviceable parts inside unit.

Warning – Use only the Kramer Electronics input power

wall adapter that is provided with this unit

Warning – Disconnect power and unplug unit from wall

before installing or removing device or servicing unit.

1 High Definition (HD) means a video format, consisting of 720 active lines of progressive video or 1080 lines of progressive

or interlaced video

2 Standard Definition (SD) means an NTSC or PAL compatible video format, consisting of 480 (for NTSC) or 576 (for PAL)

lines of interlaced video

3 The VIDEO LED lights in green when an SD signal is detected and in blue when an HD signal is detected

4 For example: model number AD2512C, part number 2535-000251

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your 6809HD HD/SD-SDI AES Embedder

4 Your 6809HD HD/SD-SDI AES Embedder

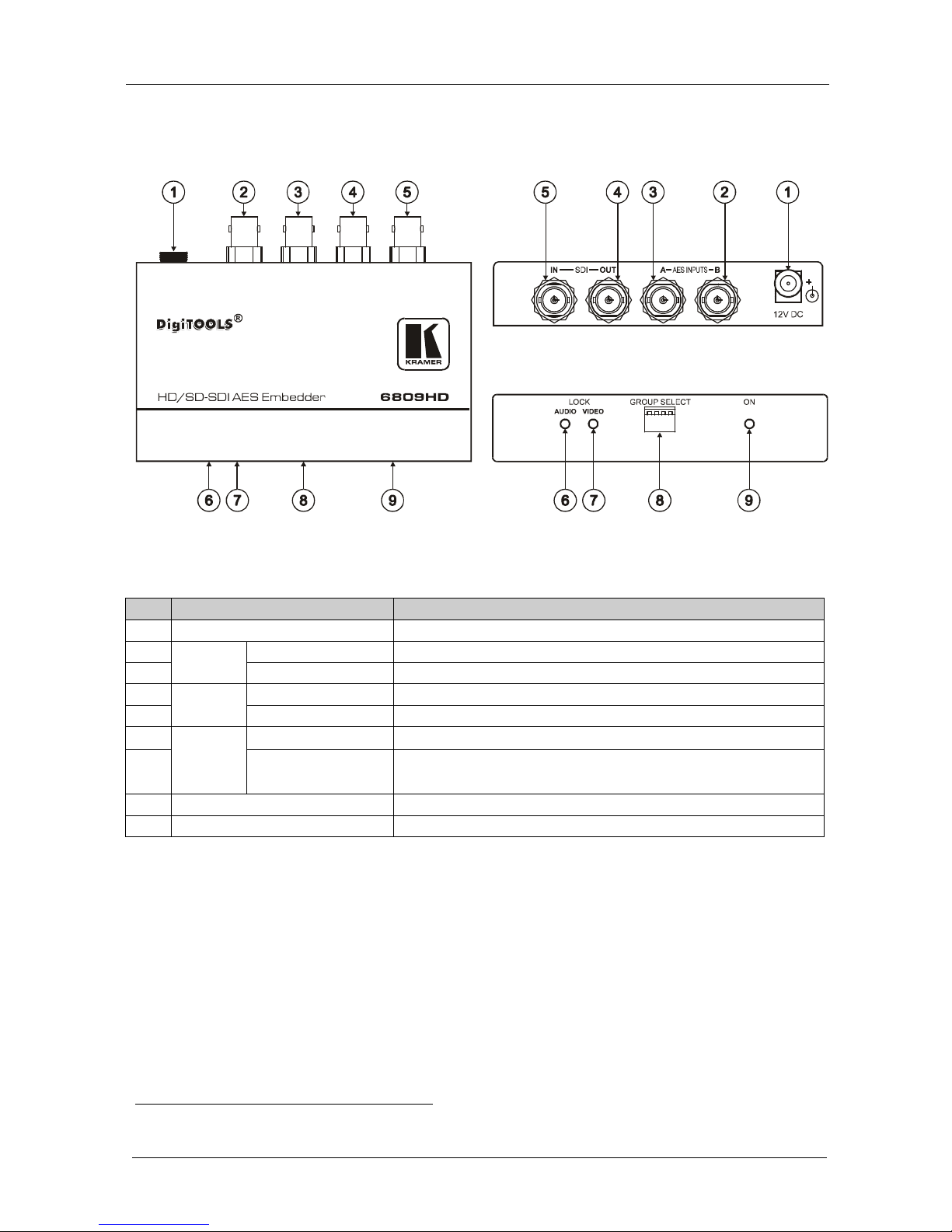

Figure 1 and Table 1 define the 6809HD HD/SD-SDI AES Embedder:

Figure 1: 6809HD HD/SD-SDI AES Embedder

Table 1: 6809HD HD/SD-SDI AES Embedder Features

# Feature Function

1 12V DC +12V DC connector for powering the unit

2 BBNC Connector Connects to the digital audio source (for channels 3 and 4)

AES

INPUTS ABNC Connector Connects to the digital audio source (for channels 1 and 2)

4 OUT BNC Connector

Connects to the SDI acceptor

SDI

IN BNC Connector Connects to the SDI source

6 AUDIO LED Lights when embedding audio to the video stream

LOCK

VIDEO LED Lights in green when receiving an SD signal

Lights in blue when receiving an HD signal

8 GROUP SELECT Dipswitches Select the audio group

9 ON LED Lights when receiving power

1 In accordance with the standard, the audio digital stream contains 2 audio channels

Connecting the 6809HD HD/SD-SDI AES Embedder

5 Connecting the 6809HD HD/SD-SDI AES Embedder

To connect the 6809HD HD/SD-SDI AES Embedder, as illustrated in the

example in Figure 2, do the following

1. Connect an SDI source (for example, an HD/SD digital video player) to

the SDI IN BNC connector.

2. Connect the SDI OUT BNC connector to an SDI and AES/EBU

acceptor.

3. Connect an AES digital audio source (for example, DAT-Player A) to the

AES INPUT A BNC connector (for channels 1-2).

4. Connect an AES digital audio source (for example, DAT-Player B) to the

AES INPUT B BNC connector (for channels 3-4).

5. Set the GROUP SELECT dipswitches to choose the audio group (see

section 5.1).

6. Connect the 12V DC power adapter to the power socket and connect the

adapter to the mains electricity (not shown in Figure 2).

Figure 2: Connecting a 6809HD SDI-AES Embedder

1 Switch OFF the power on each device before connecting it to your 6809HD. After connecting your 6809HD, switch on its

power and then switch on the power on each device. Switching on the 6809HD, recalls the last status prior to powering down

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Connecting the 6809HD HD/SD-SDI AES Embedder

5.1 Setting the GROUP SELECT Dipswitches

Figure 3 shows the 6809HD GROUP SELECT dipswitches (by default, the

dipswitches are set to "audio group 1"):

OFF

ON 2 3 4

Figure 3: 6809HD Dipswitches

Each group includes four audio channels (or two stereo audio channels).

These channels can be assigned to a group. You can set the GROUP SELECT

dipswitches to choose the audio group. For example, to choose audio group 3,

set DIP 3 OFF. Table 2 defines the GROUP SELECT dipswitches.

Table 2: GROUP SELECT Dipswitch Settings

DIP set to OFF: Description

1 Selects audio group 1

2 Selects audio group 2

3 Selects audio group 3

4 Selects audio group 4

The highest number DIP takes priority. For example, if DIP 2 and DIP 3 are

both OFF, audio group 3 is chosen; if all DIPs are OFF, audio group 4 is

chosen.

Cascading 6809HD machines

6 Cascading 6809HD machines

You can cascade up to four interconnected 6809HD SDI-AES Embedder units

to create four streams of AES, each stream containing two digital audio

channels (see Figure 4).

To cascade four 6809HD units, do the following:

1. On each 6809HD unit, connect the A and B AES INPUTS.

2. Connect an SDI source to the SDI IN BNC connector on the 6809HD

unit # 1 and interconnect

the four 6809HD units.

3. Connect the SDI OUT BNC connector on the 6809HD unit # 4 to an

SDI+AES/EBU acceptor.

4. On each 6809HD unit, set the GROUP SELECT dipswitches to choose

the audio group (see section 5.1).

5. On each 6809HD unit, connect a 12V DC power adapter to the power

socket and connect the adapter to the mains electricity.

1 Connect the SDI OUT BNC connector on unit # 1 to the SDI IN BNC connector on unit # 2; connect the SDI OUT BNC

connector on unit # 2 to the SDI IN BNC connector on unit # 3; and connect the SDI OUT BNC connector on unit # 3 to the

SDI IN BNC connector on unit # 4

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Cascading 6809HD machines

DAT Player A1

DAT Player A2

DAT Player A3

DAT Player A4

DAT Player B1

DAT Player B2

DAT Player B3

DAT Player B4

To SDI+AES/EBU Acceptor

HD/SD Digital Video Player

OFF

ON 2 3 4

OFF

ON 2 3 4

OFF

ON 2 3 4

OFF

ON 2 3 4

Figure 4: Cascading Four 6809HD SDI-AES Embedder Units
