Kraus KPF-1602 Manuale utente

Single Lever Pull Out

Kitchen Faucet

INSTALLATION MANUAL

KPF-1602

Congratulations on your new Kraus purchase!

We would like to take this opportunity to thank you for your business with Kraus USA.

It is our sincere hope that you are completely satised with your Kraus experience.

We welcome any questions or comments you may have, and look forward to assisting

you in the future.

For more information about Kraus products, please visit our website at:

www.kraususa.com.

In order to allow us to serve you better, we recommend registering your new Kraus

product at: www.kraususa.com/product-registration

Sincerely,

Kraus Customer Service Department

Prior to Installation

• Make sure that the cold and hot water lines are turned o

• Wrap all threaded connections with Teon tape. Always wrap in a clockwise

direction

• Cover your drain to avoid losing parts

• Do not disassemble the main faucet body, as it has been installed & commissioned

correctly & precisely before delivery from the factory

• To keep the faucet from jamming, ush the water pipe before installation

• Using condition: Working pressure at 0.05-1.0MPa (including cold & hot water

pressure) with applicable water temperature: 4C-90C

• The minimum distance between the faucet hole and the wall/backsplash is 3.5”

• The faucet hole size must be between 1-3/8” and 1-1/2”

• Check to make sure you have all included parts (page 2)

• Do not assemble parts 9 -12 until step 4

279

10 31/32”

Minimum distance 90mm

~3.5”

Less than 90mm

Cold Water

Hot Water

Ø35~Ø38

12 13

Hexagon Nut

Hot

Water

Cold

Water

2 3

Ø1 3/8”~Ø1 1/2”

32 3/32”

815

194

7 5/8”

Ø1 3/8~Ø1 1/2”

30˚

10 11

Open Left

Hot Water

Push

25˚ 90˚

Ø35~Ø38

Max35

217

8 17/32”

Max1 3/8”

12 15

279

10 31/32”

Minimum distance 90mm

~3.5”

Less than 90mm

Cold Water

Hot Water

Ø35~Ø38

12 13

Hexagon Nut

Hot

Water

Cold

Water

2 3

Ø1 3/8”~Ø1 1/2”

32 3/32”

815

194

7 5/8”

Ø1 3/8~Ø1 1/2”

30˚

10 11

Open Left

Hot Water

Push

25˚ 90˚

Ø35~Ø38

Max35

217

8 17/32”

Max1 3/8”

12 15

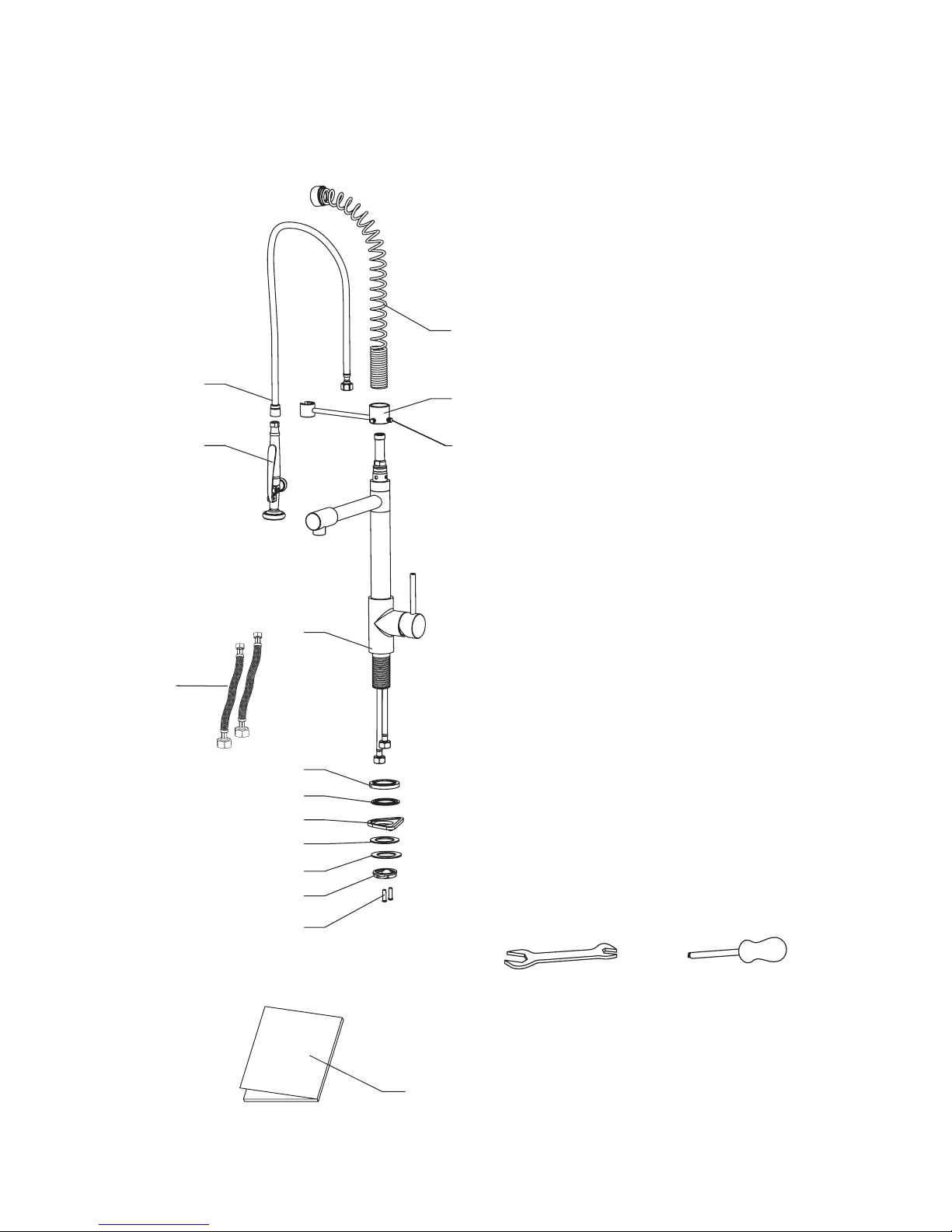

Included Parts:

1. Faucet Body

2. Base

3. Base O-Ring

4. Plastic Washer - Optional

(Top Mount Sinks Only)

5. Rubber Washer

6. Metal Washer

7. Mounting Nut

8. Mounting Screws (2)

9. Spray Head

10. Spray Hose

11. Spring

12. Sprayer Holder

13. Thumb Screws (2)

14. Hot and Cold Waterlines

15. Manual

Wrench Phillips Screwdriver

Tools you will need:

279

10 31/32”

Minimum distance 90mm

~3.5”

Less than 90mm

Cold Water

Hot Water

Ø35~Ø38

12 13

Hexagon Nut

Hot

Water

Cold

Water

2 3

Ø1 3/8”~Ø1 1/2”

32 3/32”

815

194

7 5/8”

Ø1 3/8~Ø1 1/2”

30˚

10 11

Open Left

Hot Water

Push

25˚ 90˚

Ø35~Ø38

Max35

217

8 17/32”

Max1 3/8”

12 15

279

10 31/32”

Minimum distance 90mm

~3.5”

Less than 90mm

Cold Water

Hot Water

Ø35~Ø38

12 13

Hexagon Nut

Hot

Water

Cold

Water

2 3

Ø1 3/8”~Ø1 1/2”

32 3/32”

815

194

7 5/8”

Ø1 3/8~Ø1 1/2”

30˚

10 11

Open Left

Hot Water

Push

25˚ 90˚

Ø35~Ø38

Max35

217

8 17/32”

Max1 3/8”

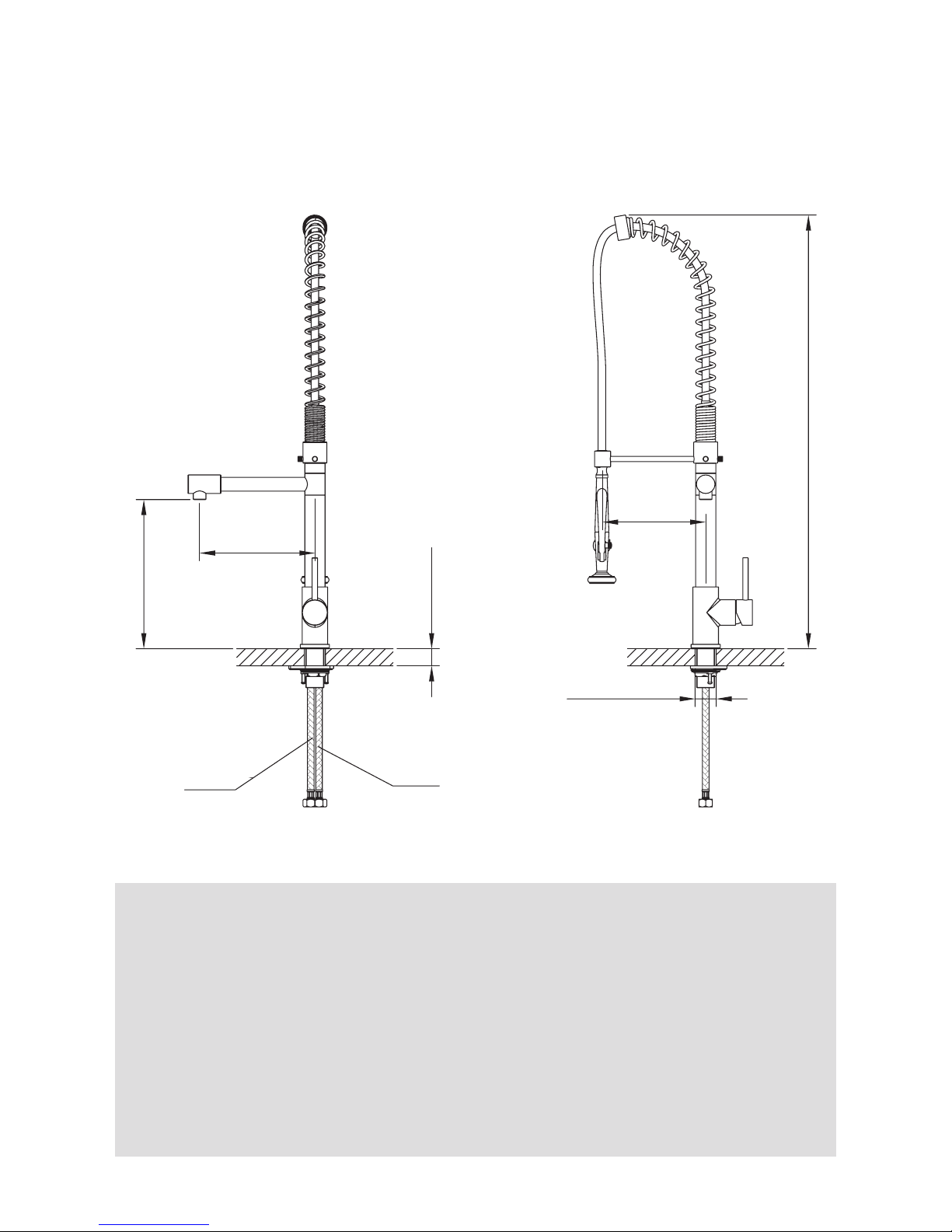

KPF-1602 Diagram and Parts List

Dimension Drawings

279

10 31/32”

Minimum distance 90mm

~3.5”

Less than 90mm

Cold Water

Hot Water

Ø35~Ø38

12 13

Hexagon Nut

Hot

Water

Cold

Water

2 3

Ø1 3/8”~Ø1 1/2”

32 3/32”

815

194

7 5/8”

Ø1 3/8~Ø1 1/2”

30˚

10 11

Open Left

Hot Water

Push

25˚ 90˚

Ø35~Ø38

Max35

217

8 17/32”

Max1 3/8”

12 15

Safety Tips

• If soldering the water connections when installing the faucet, remove the O-rings,

cartridges, and washers before applying any heat

• Protect your eyes with safety glasses when cutting or soldering

• Do not overtighten xing screws/nuts. Tighten nger-tight, then use a wrench/

screwdriver to tighten the xing screw/nut until snug

279

10 31/32”

Minimum distance 90mm

~3.5”

Less than 90mm

Cold Water

Hot Water

Ø35~Ø38

12 13

Hexagon Nut

Hot

Water

Cold

Water

2 3

Ø1 3/8”~Ø1 1/2”

32 3/32”

815

194

7 5/8”

Ø1 3/8~Ø1 1/2”

30˚

10 11

Open Left

Hot Water

Push

25˚ 90˚

Ø35~Ø38

Max35

217

8 17/32”

Max1 3/8”

12 15

279

10 31/32”

Minimum distance 90mm

~3.5”

Less than 90mm

Cold Water

Hot Water

Ø35~Ø38

12 13

Hexagon Nut

Hot

Water

Cold

Water

2 3

Ø1 3/8”~Ø1 1/2”

32 3/32”

815

194

7 5/8”

Ø1 3/8~Ø1 1/2”

30˚

10 11

Open Left

Hot Water

Push

25˚ 90˚

Ø35~Ø38

Max35

217

8 17/32”

Max1 3/8”

12 15

279

10 31/32”

Minimum distance 90mm

~3.5”

Less than 90mm

Cold Water

Hot Water

Ø35~Ø38

12 13

Hexagon Nut

Hot

Water

Cold

Water

2 3

Ø1 3/8”~Ø1 1/2”

32 3/32”

815

194

7 5/8”

Ø1 3/8~Ø1 1/2”

30˚

10 11

Open Left

Hot Water

Push

25˚ 90˚

Ø35~Ø38

Max35

217

8 17/32”

Max1 3/8”

12 15

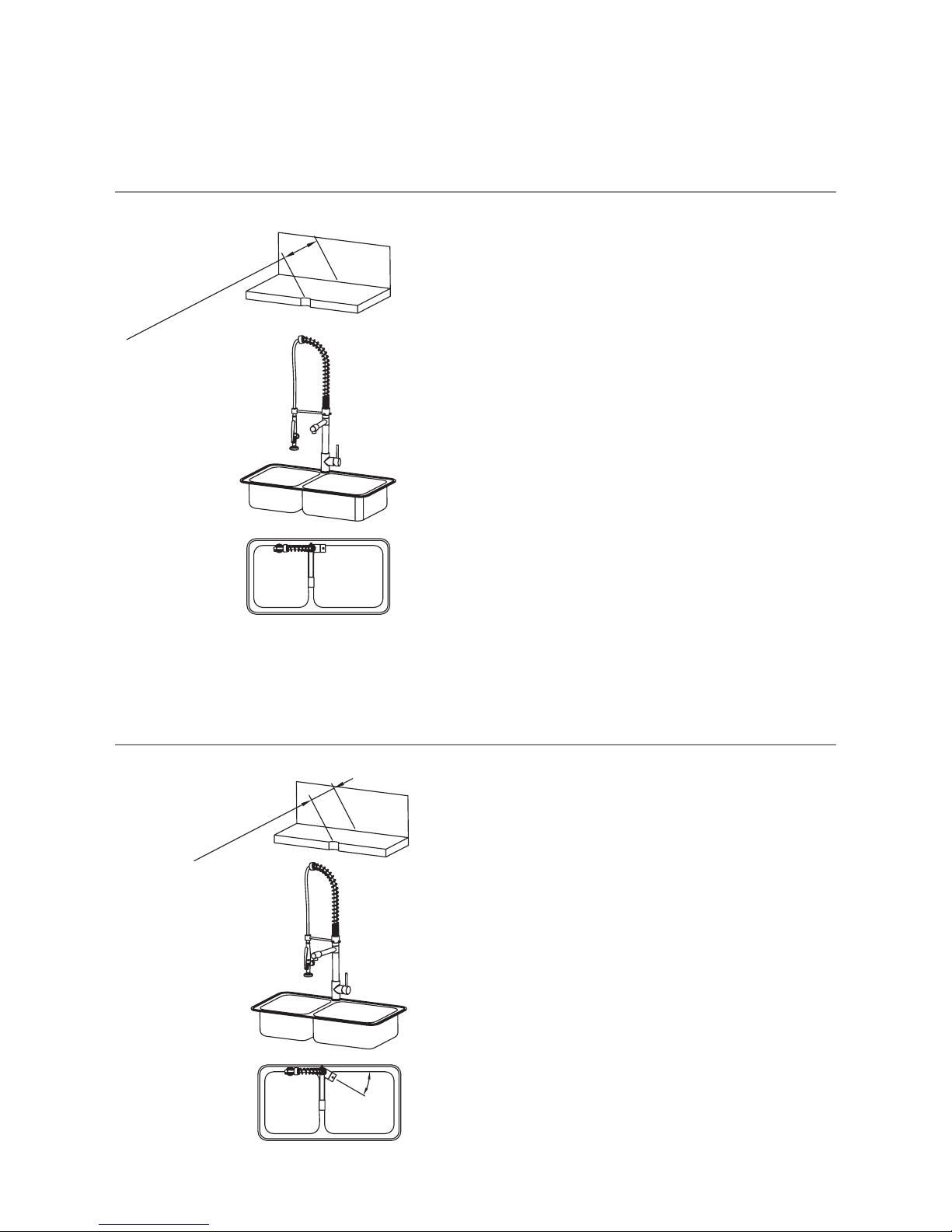

Installation Method 1

Installation Method 2 (optional)

When possible, the minimum

distance between the faucet hole

and the wall should be 3.5”.

If circumstances require the

distance between the faucet hole

and the wall to be less than 3.5,”

position the faucet lever 30˚ to

90˚ o the wall to allow for full

operation.

Faucet Installation Procedures

279

10 31/32”

Minimum distance 90mm

~3.5”

Less than 90mm

Cold Water

Hot Water

Ø35~Ø38

12 13

Hexagon Nut

Hot

Water

Cold

Water

2 3

Ø1 3/8”~Ø1 1/2”

32 3/32”

815

194

7 5/8”

Ø1 3/8~Ø1 1/2”

30˚

10 11

Open Left

Hot Water

Push

25˚ 90˚

Ø35~Ø38

Max35

217

8 17/32”

Max1 3/8”

12 15

279

10 31/32”

Minimum distance 90mm

~3.5”

Less than 90mm

Cold Water

Hot Water

Ø35~Ø38

12 13

Hexagon Nut

Hot

Water

Cold

Water

2 3

Ø1 3/8”~Ø1 1/2”

32 3/32”

815

194

7 5/8”

Ø1 3/8~Ø1 1/2”

30˚

10 11

Open Left

Hot Water

Push

25˚ 90˚

Ø35~Ø38

Max35

217

8 17/32”

Max1 3/8”

12 15

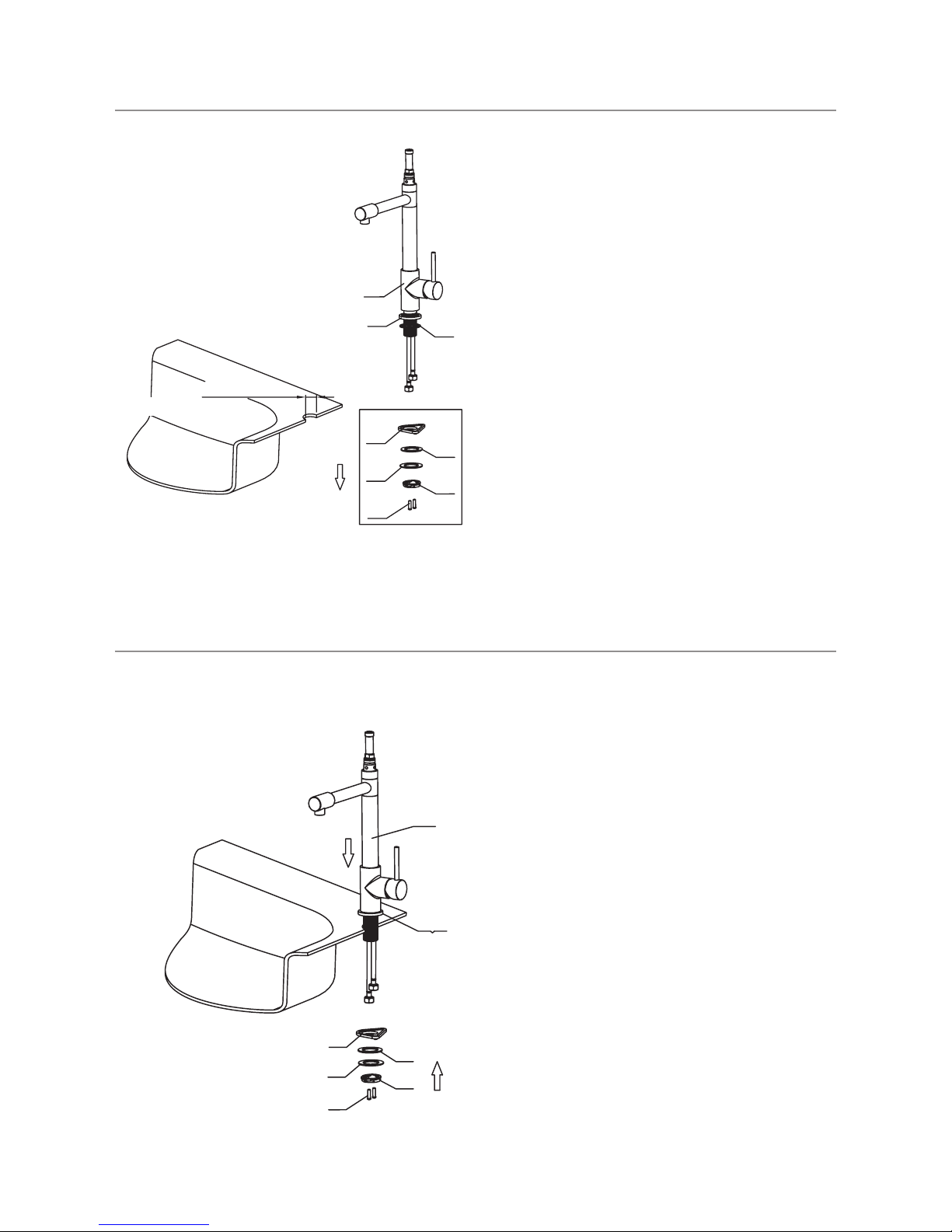

Step 1

Step 2

Remove the mounting screws

(8), mounting nut (7), metal

washer (6), rubber washer (5),

and plastic washer (4) from

the main faucet (1). The base

(2) and base O-ring (3) should

remain on the faucet body.

Insert faucet body into the hole

on the deck with the base (2)

and base O-ring (3) attached,

then install plastic washer

(4), rubber washer (5), metal

washer (6), mounting nut (7),

and mounting screws (8) from

underneath the sink.

279

10 31/32”

Minimum distance 90mm

~3.5”

Less than 90mm

Cold Water

Hot Water

Ø35~Ø38

12 13

Hexagon Nut

Hot

Water

Cold

Water

2 3

Ø1 3/8”~Ø1 1/2”

32 3/32”

815

194

7 5/8”

Ø1 3/8~Ø1 1/2”

30˚

10 11

Open Left

Hot Water

Push

25˚ 90˚

Ø35~Ø38

Max35

217

8 17/32”

Max1 3/8”

12 15

279

10 31/32”

Minimum distance 90mm

~3.5”

Less than 90mm

Cold Water

Hot Water

Ø35~Ø38

12 13

Hexagon Nut

Hot

Water

Cold

Water

2 3

Ø1 3/8”~Ø1 1/2”

32 3/32”

815

194

7 5/8”

Ø1 3/8~Ø1 1/2”

30˚

10 11

Open Left

Hot Water

Push

25˚ 90˚

Ø35~Ø38

Max35

217

8 17/32”

Max1 3/8”

12 15

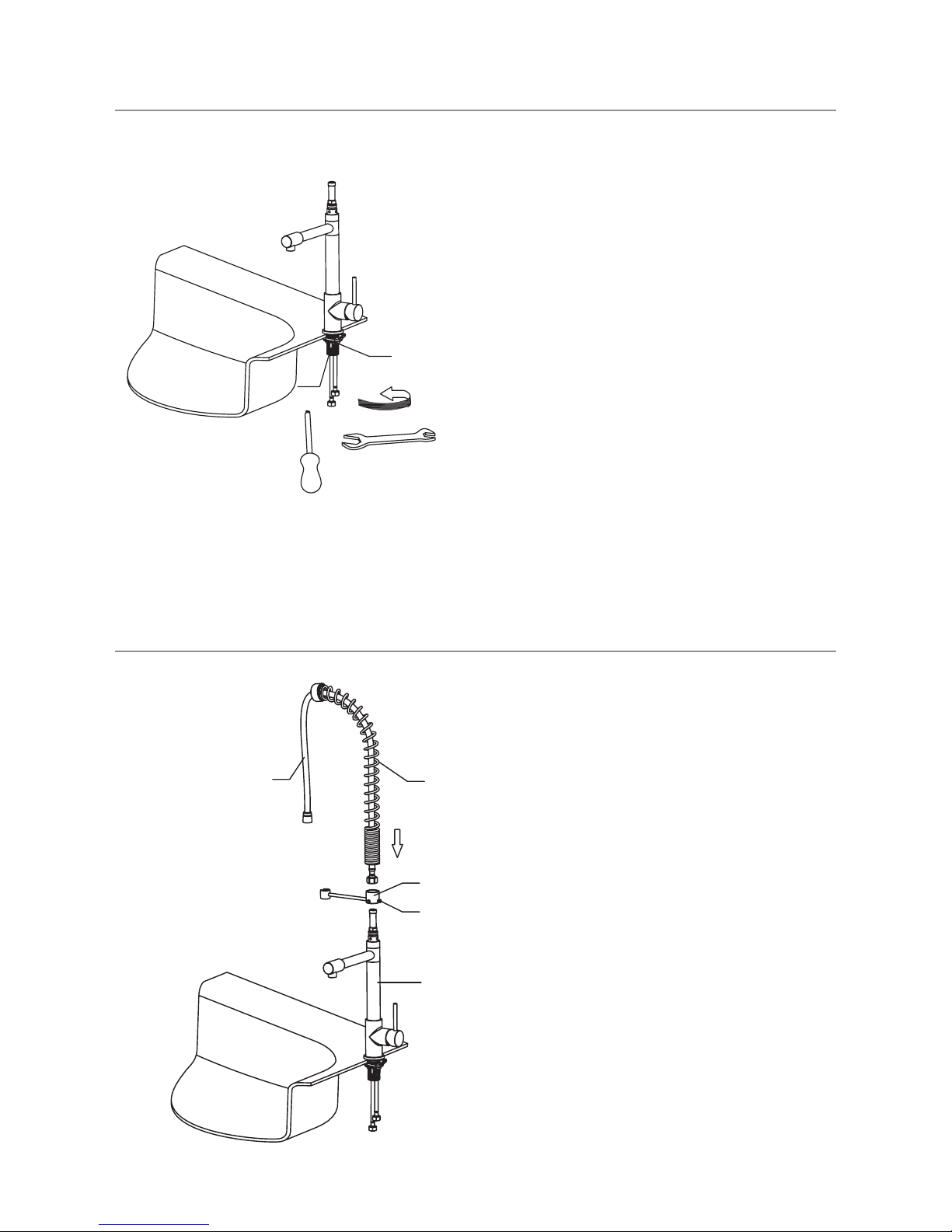

Step 3

Step 4

After adjusting the direction

of the faucet body (1), tighten

the mounting nut (7) until snug

and tighten the mounting

screws (8) to the nut with a

Phillips head screwdriver until

snug.

Situate the sprayer holder (12)

onto the faucet body (1), then

connect the sprayer hose (10) to

the faucet body (1) and nger

tighten.

Step 6

279

10 31/32”

Minimum distance 90mm

~3.5”

Less than 90mm

Cold Water

Hot Water

Ø35~Ø38

12 13

Hexagon Nut

Hot

Water

Cold

Water

2 3

Ø1 3/8”~Ø1 1/2”

32 3/32”

815

194

7 5/8”

Ø1 3/8~Ø1 1/2”

30˚

10 11

Open Left

Hot Water

Push

25˚ 90˚

Ø35~Ø38

Max35

217

8 17/32”

Max1 3/8”

12 15

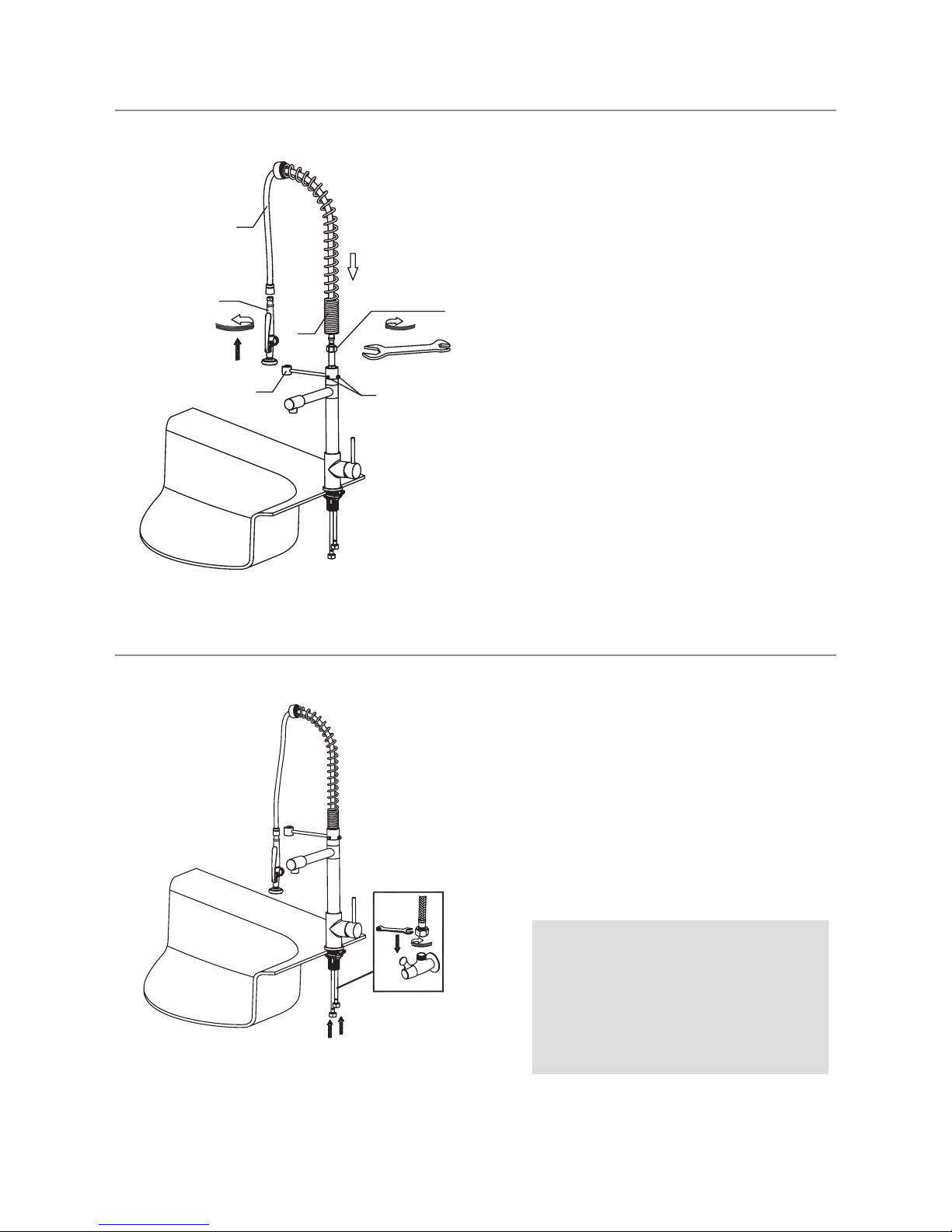

Connect and tighten hot and

cold waterlines (14) to the

angle stops and tighten with a

wrench until snug. Turn on the

water supplies and check for

leaks.

Installer Tip

If facing faucet, the hot water

connector is to the left & cold

water connector is to the right.

279

10 31/32”

Minimum distance 90mm

~3.5”

Less than 90mm

Cold Water

Hot Water

Ø35~Ø38

12 13

Hexagon Nut

Hot

Water

Cold

Water

2 3

Ø1 3/8”~Ø1 1/2”

32 3/32”

815

194

7 5/8”

Ø1 3/8~Ø1 1/2”

30˚

10 11

Open Left

Hot Water

Push

25˚ 90˚

Ø35~Ø38

Max35

217

8 17/32”

Max1 3/8”

12 15

Step 5

Tighten the hexagon nut of

sprayer hose (10) with a wrench

until snug. Insert the spring

(11) into sprayer holder (12).

After adjusting the direction

of sprayer holder (12) to the

desired location, tighten

thumb screws (13). Connect

sprayer (9) to the sprayer

hose (10); nger-tighten, then

tighten with wrench until snug.

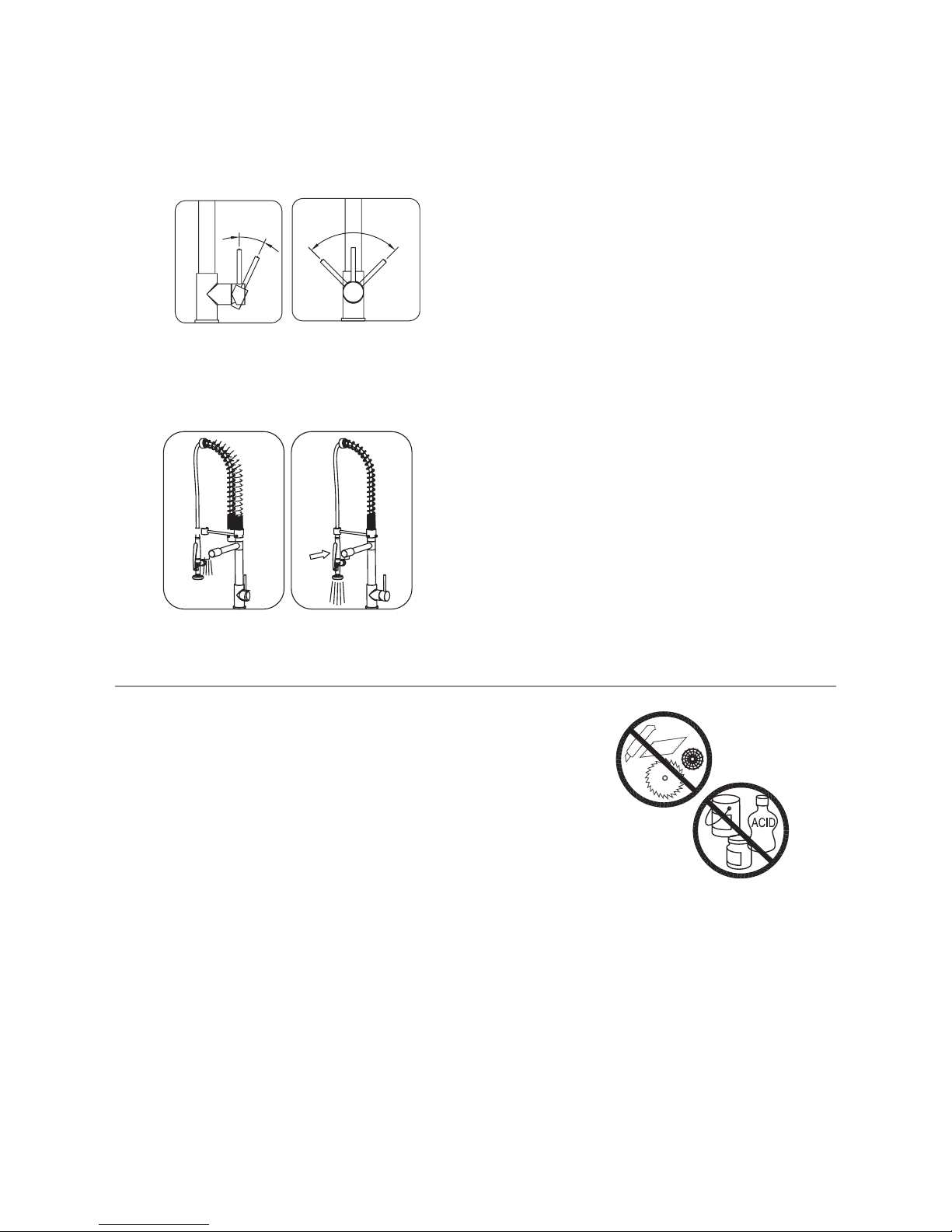

Usage

Sprayer:

How to operate the handle:

1. Raise the lever handle to turn on

the water. Push down to turn o.

2. Turn the lever handle to the left

to increase hot water ow, turn

to the right to increase cold ow.

1. To activate sprayer, turn on

water with lever and squeeze

sprayer.

Care & Maintenance

*To keep the product clean & shining, follow the

steps below:

1. Rinse with clean water & dry with a soft cloth

2. Do not clean with soaps, acid, polish, abrasives, or harsh cleaners

3. Do not use a cloth with a coarse surface

4. Unscrew the aerator and clean when necessary

*This installation manual is subject to change without further notice.

279

10 31/32”

Minimum distance 90mm

~3.5”

Less than 90mm

Cold Water

Hot Water

Ø35~Ø38

12 13

Hexagon Nut

Hot

Water

Cold

Water

2 3

Ø1 3/8”~Ø1 1/2”

32 3/32”

815

194

7 5/8”

Ø1 3/8~Ø1 1/2”

30˚

10 11

Open Left

Hot Water

Push

25˚ 90˚

Ø35~Ø38

Max35

217

8 17/32”

Max1 3/8”

12 15

279

10 31/32”

Minimum distance 90mm

~3.5”

Less than 90mm

Cold Water

Hot Water

Ø35~Ø38

12 13

Hexagon Nut

Hot

Water

Cold

Water

2 3

Ø1 3/8”~Ø1 1/2”

32 3/32”

815

194

7 5/8”

Ø1 3/8~Ø1 1/2”

30˚

10 11

Open Left

Hot Water

Push

25˚ 90˚

Ø35~Ø38

Max35

217

8 17/32”

Max1 3/8”

12 15

279

10 31/32”

Minimum distance 90mm

~3.5”

Less than 90mm

Cold Water

Hot Water

Ø35~Ø38

12 13

Hexagon Nut

Hot

Water

Cold

Water

2 3

Ø1 3/8”~Ø1 1/2”

32 3/32”

815

194

7 5/8”

Ø1 3/8~Ø1 1/2”

30˚

10 11

Open Left

Hot Water

Push

25˚ 90˚

Ø35~Ø38

Max35

217

8 17/32”

Max1 3/8”

12 15

Trouble - Shooting

If you have followed the instructions carefully and your faucet still does not

work properly, take the following corrective steps:

PROBLEM CAUSE ACTION

Leakage under the

handle

Locking nut has come

loose

Unscrew the lever on

the handle by hand.

Loosen set screw

with a hex wrench.

Remove the handle and

unscrew trim cap by

hand. Tighten locking

nut with an adjustable

wrench

Aerator drips or has

inconsistent water flow

pattern

Aerator is dirty or not

seated properly

Unscrew aerator by

hand and clean out

debris

Water will not shut off

completely

Cartridge may be

defective

Unscrew the lever on

the handle by hand.

Loosen set screw with

a hex wrench (2.5 mm).

Remove the handle

and unscrew trim cap

by hand. Unscrew the

locking nut with an

adjustable wrench.

Remove ceramic disc

cartridge. Check for

cracks

Leaking between hose

and faucet body or

spray head

Hose may be loose or

washers are not seated

correctly in the hose

connections

Tighten the hexagon

nut with a wrench and

make sure the washers

are seated correctly

Indice

Altri manuali Kraus Accessori per cucina e bagno

Kraus

Kraus Oletto KPF-2620 Manuale utente

Kraus

Kraus Sellette KPF-1680 Manuale utente

Kraus

Kraus KCC-1400 Manuale utente

Kraus

Kraus KPF-1621 Manuale utente

Kraus

Kraus Sellette KPF-1682 Manuale utente

Kraus

Kraus Allyn KPF-4101 Manuale utente

Kraus

Kraus KWU100-23 Manuale utente

Kraus

Kraus Artec Pro KPF-1603MB Manuale utente

Kraus

Kraus Indy KVF-1400 Manuale utente

Kraus

Kraus Kore KWT311-15/316 Manuale utente

Kraus

Kraus KPF-1612 Manuale utente

Kraus

Kraus Sellette KPF-1680SFS-KSD80SFS Manuale utente

Kraus

Kraus KPF-1603CH Manuale utente

Kraus

Kraus KHU100-26 Manuale utente

Kraus

Kraus KHU100-26 Manuale utente

Kraus

Kraus Turino KFR1-33GWH Manuale utente

Kraus

Kraus KBU14E Manuale utente

Kraus

Kraus Britt KSF-1691 Manuale utente

Kraus

Kraus Urbix KPF-3125-FF-101BG Manuale utente

Kraus

Kraus Bolden KPF-1610S Manuale utente

Kraus

Kraus FVS-1007 Manuale utente

Kraus

Kraus Mateo KPF-2610 Manuale utente

Kraus

Kraus Allyn KPF-4103 Manuale utente

Kraus

Kraus KPF-1691BB Manuale utente

Manuali Accessori per cucina e bagno popolari di altre marche

Grohe

Grohe BRIDGEFORD 33 870 Manuale utente

Hans Grohe

Hans Grohe Zenio Metro 31811000 Manuale utente

Gröne

Gröne Zedra 32 555 Manuale utente

Transform

Transform QL045 Manuale utente

Sanela

Sanela SLU 09PTB Manuale utente

Glacier bay

Glacier bay FP4A0052BNV Istruzioni per il montaggio

Lefroy Brooks

Lefroy Brooks C1-1400 Istruzioni per il montaggio

Grohe

Grohe Rapido E Manuale utente

Danze

Danze D302455 Manuale utente

Waterworks

Waterworks CEKM30 Foglio di istruzioni

Helvex

Helvex Omega TV-298 Manuale utente

Tribata.

Tribata. GEORGIAN G5393 Manuale utente

Alpha Bidet

Alpha Bidet Alpha One Manuale utente

InSinkErator

InSinkErator H/HC3300 Manuale di installazione

Clou

Clou Xo type 1 Manuale utente

Kohler

Kohler Contra 26448T-4 Manuale utente

Grohe

Grohe Bridgeford 20 158 Manuale utente

Hans Grohe

Hans Grohe Croma Select S 180 Showerpipe EcoSmart... Manuale utente
