en Index

Safety instructions 4. . . . . . . . . . . . .

Getting to know your appliance 6. .

Water softener 7. . . . . . . . . . . . . . . .

Filling the special salt container 8. .

Filling the rinse-aid container 9. . . .

Unsuitable dishes 10. . . . . . . . . . . . .

Arranging crockery, glasses,

etc. in the dishwasher 11. . . . . . . . . .

Detergents 15. . . . . . . . . . . . . . . . . . .

auto 3in1 16. . . . . . . . . . . . . . . . . . . . .

Programme overview 18. . . . . . . . . .

Washing dishes 19. . . . . . . . . . . . . . .

Additional functions * 21. . . . . . . . . . .

Maintenance and care 22. . . . . . . . . .

Fault finding 24. . . . . . . . . . . . . . . . . .

Customer Service 26. . . . . . . . . . . . .

Information 27. . . . . . . . . . . . . . . . . . .

Installation 28. . . . . . . . . . . . . . . . . . . .

Safety instructions

Delivery

Immediately check the packaging and

dishwasher for any damage which may

have been caused in transit. Do not use

a damaged appliance, but consult your

supplier.

Please dispose of packaging material

properly.

The corrugated cardboard consists

mainly of waste paper.

The polystyrene moulded parts have

been foamed without any CFCs.

The polyethylene film (PE) consists

partly of secondary raw material.

The wooden frames (if fitted) are made

of residual wood and are untreated.

The hoops (if fitted) consist of

polypropylene (PP).

Installation

Install and connect the appliance

according to the installation and

assembly instructions.

The dishwasher must NOT be

connected to the power supply during

installation.

Ensure that the protective conductor

system of the domestic electricity

supply has been installed correctly.

Electrical connection conditions must

correspond with the specifications on

the rating plate of the dishwasher.

Built-under and built-in appliances

should always be installed under a

continuous work surface which is

attached to the adjacent cupboards, in

order to ensure that the appliance is

entirely stable.

After the appliance has been installed,

the mains plug should still be easily

accessible.

Not on all models:

The plastic housing on the water input

contains an electrically operated valve.

The connecting wires are inside the

inlet hose. Do not cut through this hose

and do not immerse the plastic housing

in water.

Warning

For safety reasons, if the appliance is not

fitted in a recess, thereby making a side

wall accessible, the door hinge area

should be covered at the side.

(Risk of injury)

Covers are available as optional

accessories from customer services or

specialist stores.

In daily use

Warning

Knives and other utensils with sharp points

must be placed in the baskets either flat or

with the points downwards.

Use the dishwasher only in the

household and only for its designed

purpose, i.e. for washing domestic

dishes.

Do not lean or sit on the open door.

The appliance could tip.

The water in the appliance is not

drinking water.

Do not add any solvents to the washing

chamber. Danger of explosion!

Open the door carefully when the

programme is still running. Water could

spray out of the appliance.

Read and observe the safety

information and instructions for use on

the packaging for cleaning and rinsing

agents.

Children in the household

Do not let infants play or operate the

dishwasher.

Keep cleaning and rinsing agents out of

the reach of infants.

Keep infants away from the open

dishwasher. It could contain residue of

the cleaning agent.

Child lock *

* on applicable models

Please refer to the drawings enclosed in

the envelope

40 Engaging the child lock

41 Opening the door with the child lock

engaged

42 Disengaging the child lock



To prevent injuries, e.g. caused by

stumbling, open the dishwasher only

briefly in order to load and unload the

dishwasher.

If a fault occurs

Repairs or other work on the

dishwasher should only be carried out

by a qualified specialist.

The dishwasher must be disconnected

from the electricity supply before any

repairs or other work are started. Pull

the mains plug out of the wall socket or

switch off at the fuse box. Grasp the

plug to remove it from the socket; do

not tug on the cable. Turn the water off

at the tap.

When disposing of old

appliances

Appliances that have reached the end

of their service life should be rendered

inoperable in order to exclude the

possibility of subsequent accidents. Pull

the mains plug out of the wall socket,

cut through the connecting cable and

disable the door lock.

Take the appliance to a designated

waste disposal centre.

Warning

Children could get locked in the appliance

(risk of suffocation) or get stuck in other

positions.

Therefore: Remove the mains plug, cut the

mains wire and set aside. Damage the

door lock so that the door can no longer

be closed.

Getting to know your

appliance

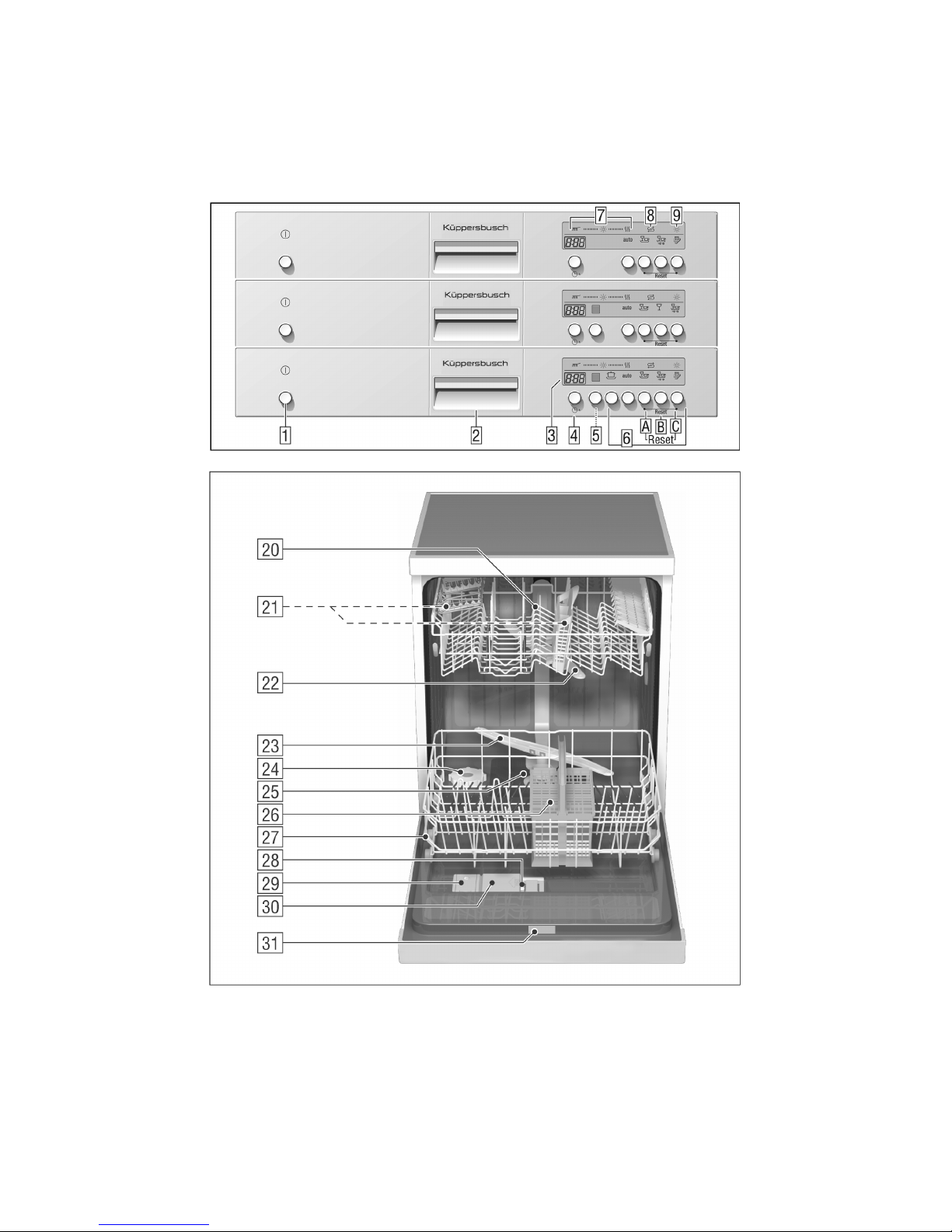

Diagrams of the control panel and the

interior of the appliance can be found

in the envelope at the front.

Individual positions are referred to in

the text.

Control panel

1Main switch

2Door opener

3Digital display

4Time delay

5Additional options *

6Programme buttons

7Programme sequence indicator

8Salt refill indicator

9Rinse-aid refill indicator

Appliance interior

20 Upper basket with 2-tiered cup rack

21 Additional cutlery basket for the top

basket *

22 Upper spray arm

23 Lower spray arm

24 Container for special salt with level

indicator *

25 Filters

26 Cutlery basket

27 Lower basket

28 Locking mechanism

29 Container for rinse-aid, with level

indicator

30 Detergent compartment

31 Nameplate

* not on all models

You will need to purchase the

following before using the

dishwasher for the first time:

– special salt for use in dishwashers

– detergent

– rinse-aid

Only use products, which are suitable for

dishwashers.

Water softener

In order to rinse dishes and glasses

satisfactorily, the dishwasher requires soft

water, i.e. containing little or no lime,

otherwise water stains will be left behind

on crockery and glasses, etc.

If the tap water exceeds a certain level of

hardness, it must be softened, i.e.

decalcified, so that it can be used in the

dishwasher.

This is achieved by adding a special salt

to the water softener inside the

dishwasher.

The water softener, that is the required

amount of salt, is set up according to how

hard the tap water is.

Setting up the water softener

Determine the level of hardness of your

tap water. Your local water company or

service agent can help you with this.

Identify setting from the following water

hardness table.

Water hardness table

Close the door.

Hold down programme button Band

press 1main switch until the digital

display illuminates, then release the

buttons.

The LED for button Bflashes and

the digital display displays the factory

setting .

To change the setting,

press programme button B .

Each time the button is pressed, the set

value increases by 1; after , the

setting goes back to .

Switch off the main switch 1. The

chosen setting has now been stored.

Filling the special salt

container

How the salt works

While washing is taking place, salt is

automatically rinsed out of the salt

container into the water softener where it

dissolves the lime in the water.

The dissolved lime is pumped out of the

dishwasher. The water softening system is

then ready for the next load.

This process of regeneration can only

function when the salt is dissolved in

water.

Unscrew the lid on the salt container 24 .

Before you use the dishwasher for the first

time, pour approx. 1 litre of water into the

salt container.

Use the enclosed salt filler.

Refill with salt (do not use edible salt)

until the salt dispenser is full (max. 1.5 kg).

When the salt dispenser is being refilled,

water is displaced and drains away.

Therefore always refill the salt dispenser

immediately before switching on the

dishwasher (to prevent corrosion). As a

result, the overflowing salt solution will be

immediately diluted and rinsed out. Then

remove salt residue from the filler area and

screw on the dispenser cover, ensuring

that it is not fitted askew.

The LOW SALT indicator 8on the front

panel will light up initially but will extinguish

again after a short period when the salt

solution has become sufficiently

concentrated.

Note

When the control is set to , it

is not necessary to fill up with salt

as none will be consumed while

the dishwasher is operating. The

LOW SALT indicator is switched

off. If the control is set between

and , then salt must

be added to the dispenser.

Do not pour detergent into the

container for special salt. This

would destroy the water

softener.

Salt refill indicator

As soon as the salt refill indicator 8is lit

on the control panel, refill with salt

immediately before the next rinse cycle.

Filling the rinse-aid

container

The purpose of a rinse-aid is to prevent

the formation of water marks on tableware

and utensils, and to ensure that glasses

are clean and sparkling. The rinse-aid is

consumed during the washing process.

Fold back the lid on the rinse-aid

container 29 .

To open the lid, press the mark on

the rinse-aid lid and simultaneously lift

the lid off the lug .

Pour the rinse-aid into the filler hole

until the level indicator turns dark.

Close the lid, ensuring that you hear it

snap closed.

Note

Use only rinse aid for domestic

dishwashers. Spilt rinse aid

may result in excessive foam

formation in the next rinse

cycle. Therefore, remove any

spilt rinse aid with a cloth.

Adjusting the amount of

rinse-aid

The amount of rinse-aid added to the

water can be varied by adjusting the

stepless control. The rinse-aid control has

been set to ”4” in the factory.

Do not alter the setting of the rinse-aid

control unless streaks (turn knob towards

”–”) or water marks (turn knob towards ”+”)

are left on the dishes.

rinse–aid control

Low rinse-aid indicator

As long as the rinse-aid refill indicator on

the panel 9(on applicable models) or

dispenser 29 has not illuminated, there is

sufficient rinse-aid in the dishwasher.

LOW RINSE-AID indicator

Switching the rinse-aid

indicator on or off

You can switch the rinse-aid indicator 9

on or off. This function can be changed as

follows:

Close the door.

Hold down programme button 4and

press main switch 1until the digital

display illuminates, then release the

buttons.

On the digital display 3is

indicated (rinse-aid indicator on).

By pressing the programme button 4

you can switch the rinse-aid indicator

off or on .

Switch off the main switch 1; the

chosen setting has now been stored.

Note

Do not switch off the rinse-aid

indicator unless you are using

detergent products with an

integrated rinse-aid!

Unsuitable dishes

You should not clean the

following items in your

dishwasher:

Cutlery and dishes made of wood. They

will leach out and become unsightly; the

utilised adhesives are also not suitable

for the dishwasher temperatures.

Delicate décor glasses, craft dishes and

vases, special antique or irreplaceable

dishes. These décor items are not

dishwasher-safe.

Plastic parts, copper and tin dishes

sensitive to hot water are not suitable

either. Overglazed patterns, aluminium

and silver parts tend to become

discoloured and fade during the rinsing

cycle. Even some types of glass (e.g.

crystal glass objects) may become cloudy

after many rinse cycles. Completely

absorbent materials, such as sponges and

cloths must not be cleaned in the

dishwasher either.

Recommendation:

In future buy only dishes which are

identified as dishwasher-safe.

Note

Dishes which are soiled with

ash, wax, lubricating grease or

ink must not be cleaned in the

dishwasher.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Kuppersbusch Lavastoviglie

Kuppersbusch

Kuppersbusch IGV6610 Manuale utente

Kuppersbusch

Kuppersbusch EDW 1001 Series Manuale utente

Kuppersbusch

Kuppersbusch IG 447.0 Manuale utente

Kuppersbusch

Kuppersbusch New Structure ITRONIC HL Manuale utente

Kuppersbusch

Kuppersbusch IGVS6509.5 Manuale utente

Kuppersbusch

Kuppersbusch IG 634 Manuale utente

Kuppersbusch

Kuppersbusch IG 6507.1 E Manuale utente

Kuppersbusch

Kuppersbusch IG 658.1 W Manuale utente

Kuppersbusch

Kuppersbusch IGVS669 Manuale utente

Kuppersbusch

Kuppersbusch IGVE6610 2 Series Manuale utente

Kuppersbusch

Kuppersbusch IGV 699 Manuale utente

Kuppersbusch

Kuppersbusch IG 659 Manuale utente

Kuppersbusch

Kuppersbusch 634 Series Manuale utente

Kuppersbusch

Kuppersbusch IG 6407.0 Manuale utente

Kuppersbusch

Kuppersbusch IG 643.3 Manuale utente

Kuppersbusch

Kuppersbusch IGVS 6808.0 Manuale utente

Kuppersbusch

Kuppersbusch IGVS 6609 Manuale utente

Kuppersbusch

Kuppersbusch 450 Series Manuale utente

Kuppersbusch

Kuppersbusch GSV 4500 Manuale utente

Kuppersbusch

Kuppersbusch IG459.3 Manuale utente

Kuppersbusch

Kuppersbusch IGV 6508 Manuale utente

Kuppersbusch

Kuppersbusch GSV 4500 Manuale utente

Kuppersbusch

Kuppersbusch IG 458.1 W Manuale utente

Kuppersbusch

Kuppersbusch IG 455.1 Manuale utente

Manuali Lavastoviglie popolari di altre marche

Electrolux

Electrolux ESI5211LOX Manuale utente

KitchenAid

KitchenAid KUDB230B Manuale utente

Brandt

Brandt BDJ424DB Manuale utente

Asko

Asko DSD767UXXL.AU Manuale utente

Beko

Beko DFN26210W Manuale utente

NEFF

NEFF S153ITX00E Scheda tecnica

Midea

Midea SV 4.45 wi Manuale utente

LG LDF7932 Manuale utente

Gorenje

Gorenje GV63214 Manuale utente

Hotpoint

Hotpoint HDA1100ZWH Manuale di servizio

Blomberg

Blomberg LDFN2240W Manuale utente

AEG

AEG FFB83836PM Manuale utente

Cylinda

Cylinda DM3220RFD Manuale utente

Atag

Atag DW8214MB Manuale utente

GE GLD8000 Series Manuale utente

Siemens

Siemens SN23HI02KE Scheda tecnica

Omega

Omega ODW717X Manuale utente

BORETTI

BORETTI BVW-683 Manuale utente
