OWNER’S MANUAL

Congratulations on the purchase of your new Kustom® Deep End® Series bass amplier. This model

utilizes an exclusive preamp design that combines a 12AX7 tube, known for its robust tonal qualities,

with solid-state circuitry that provides consistency of performance and reliability. The result is rich,

dynamic tone that is perfect for a wide variety of playing styles and environments. Inside this manual

you’ll nd details about your Deep End® Series model. Everyone at Kustom wishes you many years of

enjoyment with your new amplier!

kustom.com

DE50

FCC Statements

1. Caution: Changes or modications to this unit not expressly approved by the party

responsible for compliance could void the user’s authority to operate the equipment.

2. Note: This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules.These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

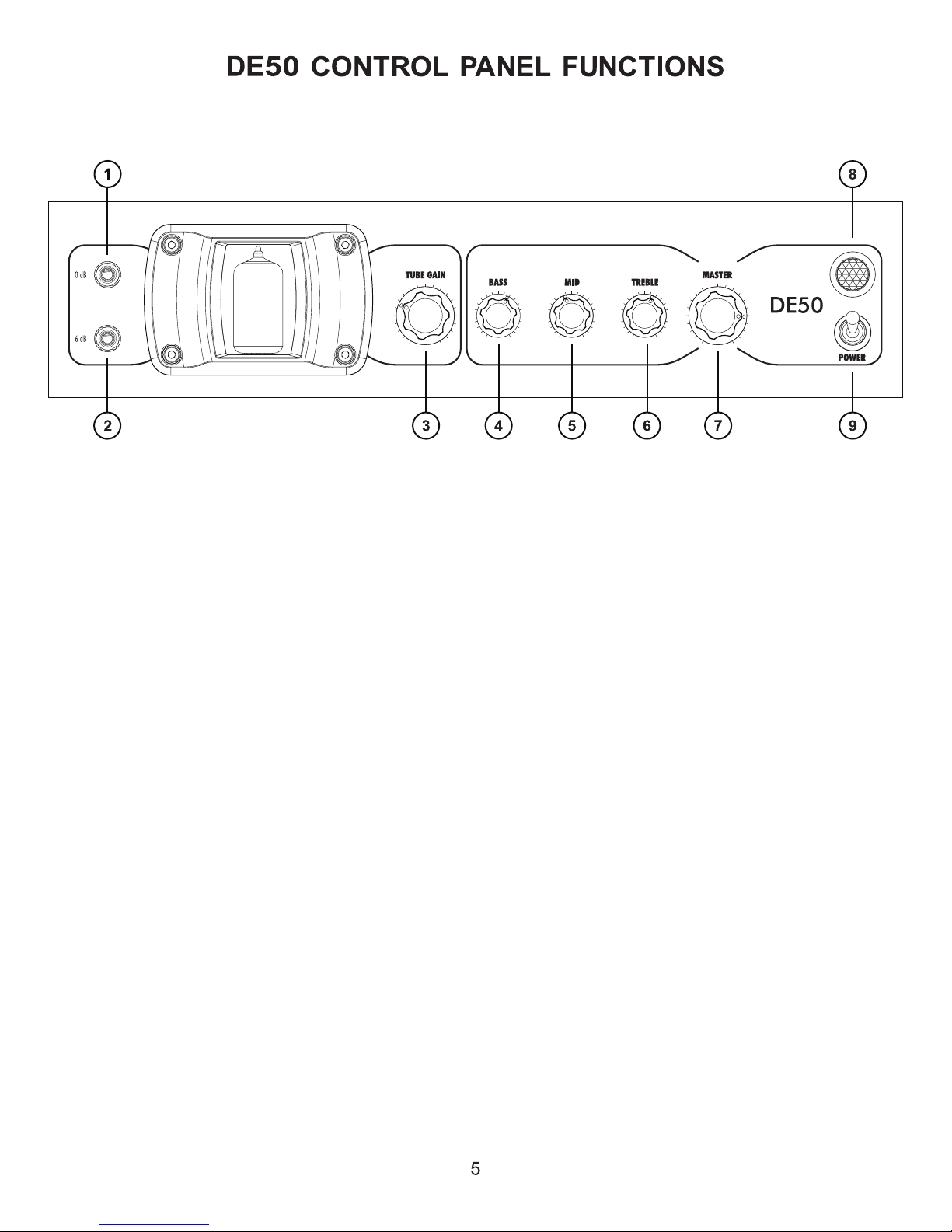

1.) Passive Bass Input - this is a 1/4-inch, 2-conductor input jack for plugging in your instrument. It is

intended for bass guitars, but will accept other instruments as well.

2.) Active Bass Input - this is a 1/4-inch, 2-conductor input jack for instruments with active electronics

or high output.

3.) Tube Gain - adjust this control clockwise to increase the amount of gain. Set this control in its lower

ranges to achieve the cleanest tones. As this control is turned clockwise, you’ll begin to hear the grit

and growl of a classic overdriven tube amp. At maximum settings, thicker, more aggressive tones

are produced. Note: Gain is applied to the tube stage before the tone controls.

4.) Bass - this passive EQ adjusts the low frequency equalization of the amplier.

5.) Mid - this passive EQ adjusts the mid-range frequency equalization of the amplier.

6.) Treble - this passive EQ adjusts the high frequency equalization of the amplier.

7.) Master- this controls the overall volume level of the amplier. Note: Your DE50 features an

exclusive Kustom® circuit called Organic Clipping™. When the Master volume level is turned up to

its higher ranges, this power amp circuit reacts like an all-tube amp, generating lower order, musical

harmonics and natural clipping characteristics like the best all-tube designs. It provides the classic

power amp “growl” that bass players know and love, with a smooth transition from clean to grind.

8.) Jewel Light - when lit, this jewel light lets you know that the amplier is on.

9.) Power - this switch turns the AC power to the amplier On and Off.

1.) External Speaker - this is a 2-conductor, 1/4-inch speaker output jack. Rating is 8 Ohms minimum.

For full power, use an 8-Ohm speaker load. Higher impedance loads will result in lower power levels to

the speaker. The signal path to the internal speaker is disconnected when using this jack.

2.) Headphones - this is a 3-conductor, 1/8-inch, stereo jack. The amplier’s internal speaker is

disconnected when this jack is used.

3.) AUX In - this is a 3-conductor, 1/8-inch, stereo jack that allows playback from a Compact Disc, MP3

player, or other audio device. The volume is controlled by the device that is plugged into this jack.

4.) Balanced Line Out - this XLR jack is used to connect the amplier to a mixer or other line level

amplier. The output for this jack is pre EQ, so only the gain setting will be reected on this output.

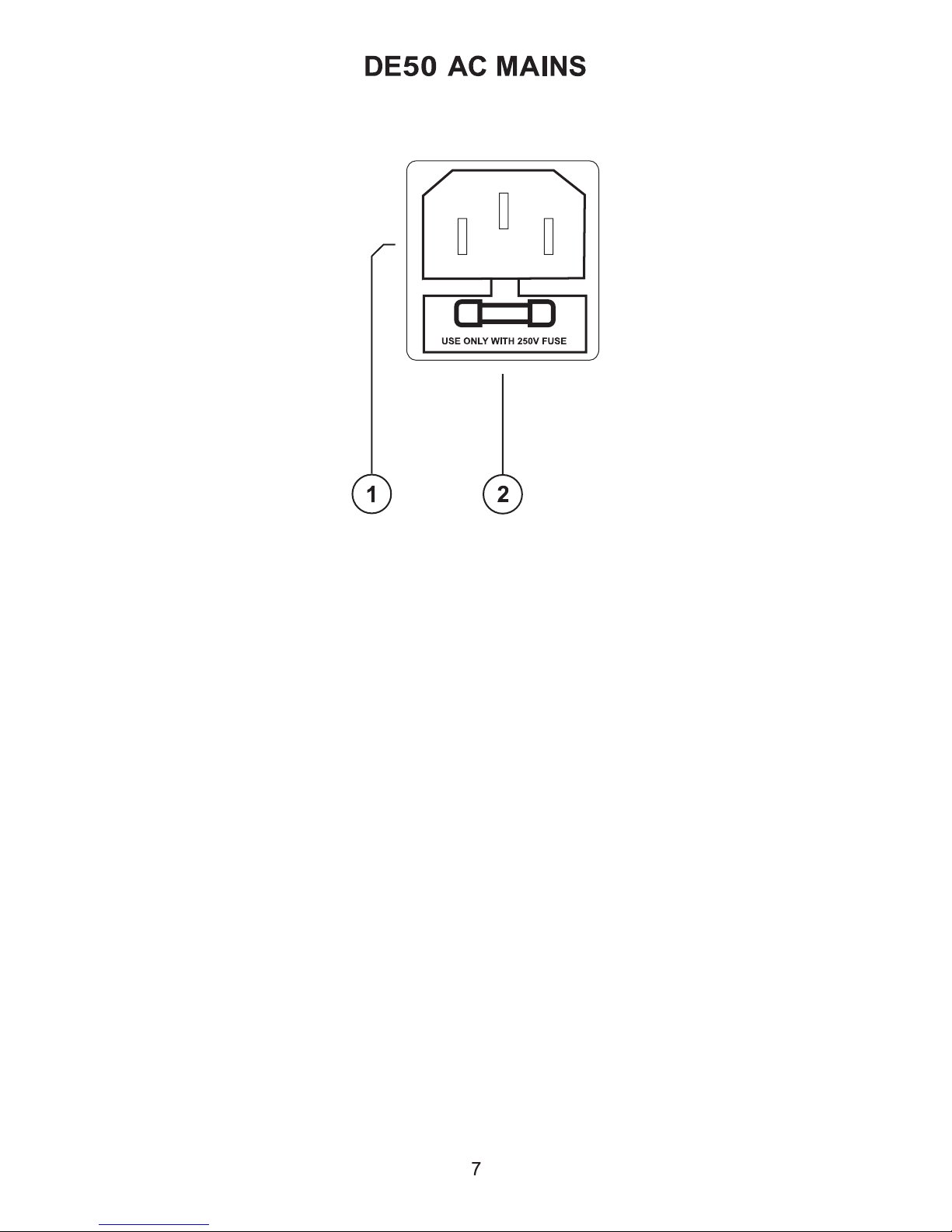

1.) AC Power Cord Receptacle - AC power cord can be removed for easy storage and replacement

if damaged. Insert the AC cord (provided) rmly into the AC receptacle. NOTE: Replace the AC power

cord if protective jacket is damaged or ground pin is damaged or removed.

2.) Fuse - The fuse is located in a fuse tray just below the receptacle. Replace only with same type

and size. For your convenience, a spare fuse is located inside the fuse tray toward the front. To replace

fuse, remove AC power cord. Remove fuse tray by pulling the tab located above the fuse symbol away

from the receptacle.

Speaker

Input Impedance

Auxilliary Input

Signal to Noise Ratio

Gain

Tube

Dimensions / Weight

Headphones Output

Power Requirements

DirectOutput

Output Power

Input

80 dB typical

71dB

Preamp

Dual

1 X 10 Inch

50 Watts, RMS

Electronically balanced XLR

Stereo 1/8-inch high impedance input

Stereo 1/8-inch jack

Bass

Treble

Mid

Inches / Pounds

cm / kg

USA /Canada

Europe

Australia

Japan

18dB range @ 450Hz

23dB range @ 8kHz

28dB range @ 40Hz

48.3 (H) x 42.0 (W) x 29.8 (D), 17.0 kg.

19.0 (H) x 16.5 (W) x 11.75 (D), 37.5 lbs.

100VAC / 50- 60Hz,

120 120VAC / 60Hz, W nominal

240VAC / 50Hz,

30VAC / 50Hz,2

(all controls @ max)

1-12A X7

0dB: 1 Meg Ohm, -6dB: 100K Ohm

8 Ohms @ 5% THD

Kustom Deep End

Amplifier Tone

Controls

120W nominal
