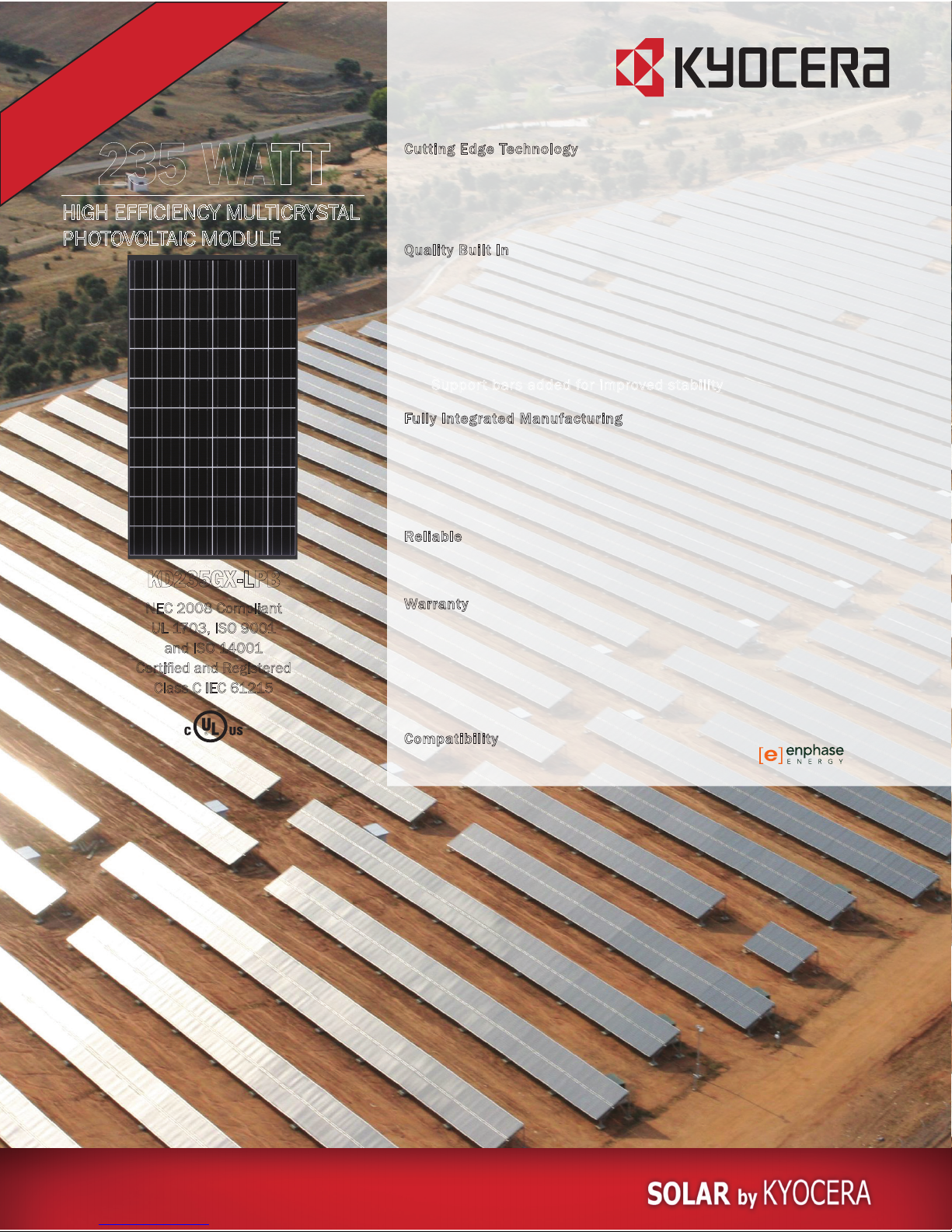

Cutting Edge Technology
As a pioneer with 35 years in solar, Kyocera demonstrates leadership in
the development of solar energy products. Kyocera’s
Kaizen
Philosophy,
commitment to continuous improvement, is shown by repeatedly achieving
world record cell efficiencies.
Quality Built In
- UV stabilized, aesthetically pleasing black anodized frame
- Supported by major mounting structure manufacturers
- Easily accessible grounding points on all four corners for
fast installation
- Proven junction box technology with PV wire to work with
transformerless inverters
- Quality locking plug-in connectors to provide safe & quick connections
-
Support bars added for improved stability
Fully Integrated Manufacturing
Kyocera manufactures and assembles solar cells and modules at its own
worldwide production sites using a true vertical integration process. This
superior approach gives Kyocera complete control over every step of the
manufacturing process, producing modules with promising high quality
and efficiency.
Reliable
- Superior built-in quality
- Proven superior field performance
Warranty
- Kyocera standard 20 year power output warranty and 5 year
workmanship warranty applies in USA
- Extended warranties available per project requirements
- Kyocera standard 20 year power output warranty and 2 year
workmanship warranty applies outside of USA
- Refer to Kyocera warranty policy for details
Compatibility
- Compatible with Enphase Energy microinverters
NEC 2008 Compliant
UL 1703, ISO 9001
and ISO 14001
Certied and Registered
Class C IEC 61215
HIGH EFFICIENCY MULTICRYSTAL
PHOTOVOLTAIC MODULE
KD235GX-LPB
235 WATT
New Release
0410
*New length on PV wire may require additional module interconnect for landscape installation with non-PV wire module.
ISO 9001 and ISO 14001 Certified and Registered
Kyocera reserves the right to modify these specifications without notice.
www.kyocerasolar.com
800-223-9580 toll free 800-523-2329 fax
Unidad : mm (pulg.)
S
pecifications
Electrical Performance under Standard Test Conditions (*STC)
Maximum Power (Pmax) 235W (+5% / -3%)
Maximum Power Voltage (Vmpp) 29.8V
Maximum Power Current (Impp)
Open Circuit Voltage (Voc)
7.89A
36.9V
Short Circuit Current (Isc) 8.55A
Max System Voltage 600V
*STC : Irradiance 1000W/m
2
, AM1.5 spectrum, cell temperature 25°C
Module Characteristics
Junction Box Characteristics
Others
Length × Width × Depth
Length × Width × Depth
IP Code
*Operating Temperature
Maximum Fuse
Weight
Cable
Cells
Number per Module 60
21.0kg (46.3 lbs)
IP65
-40 °C ~ 90 °C
15A
105mm(4.1in) x 108mm(4.3in) x 20mm(0.8in)
(+) 750mm(37.4in), (-) 750mm(29.5in)
1662mm (65.4 in) x 990mm (39.0 in) x 46mm (1.8 in)
*This Temperature is based on cell
KD205GX-LP
Temperature Coefficient of Voc
Temperature Coefficient of Isc
-1.33x10 V/C
5.13x10 A/C
Electrical Performance at 800W/m2, *NOCT, AM1.5
Maximum Power (Pmax) 166W
Maximum Power Voltage (Vmpp) 26.4V
Maximum Power Current (Impp)
Open Circuit Voltage (Voc)
6.31A
33.3V
Short Circuit Current (Isc) 6.93A
*NOCT (Nominal Operating Cell temperature): 47.9°C
KD235GX-LPB
1662 (65.43in.)
990 (38.98in.)

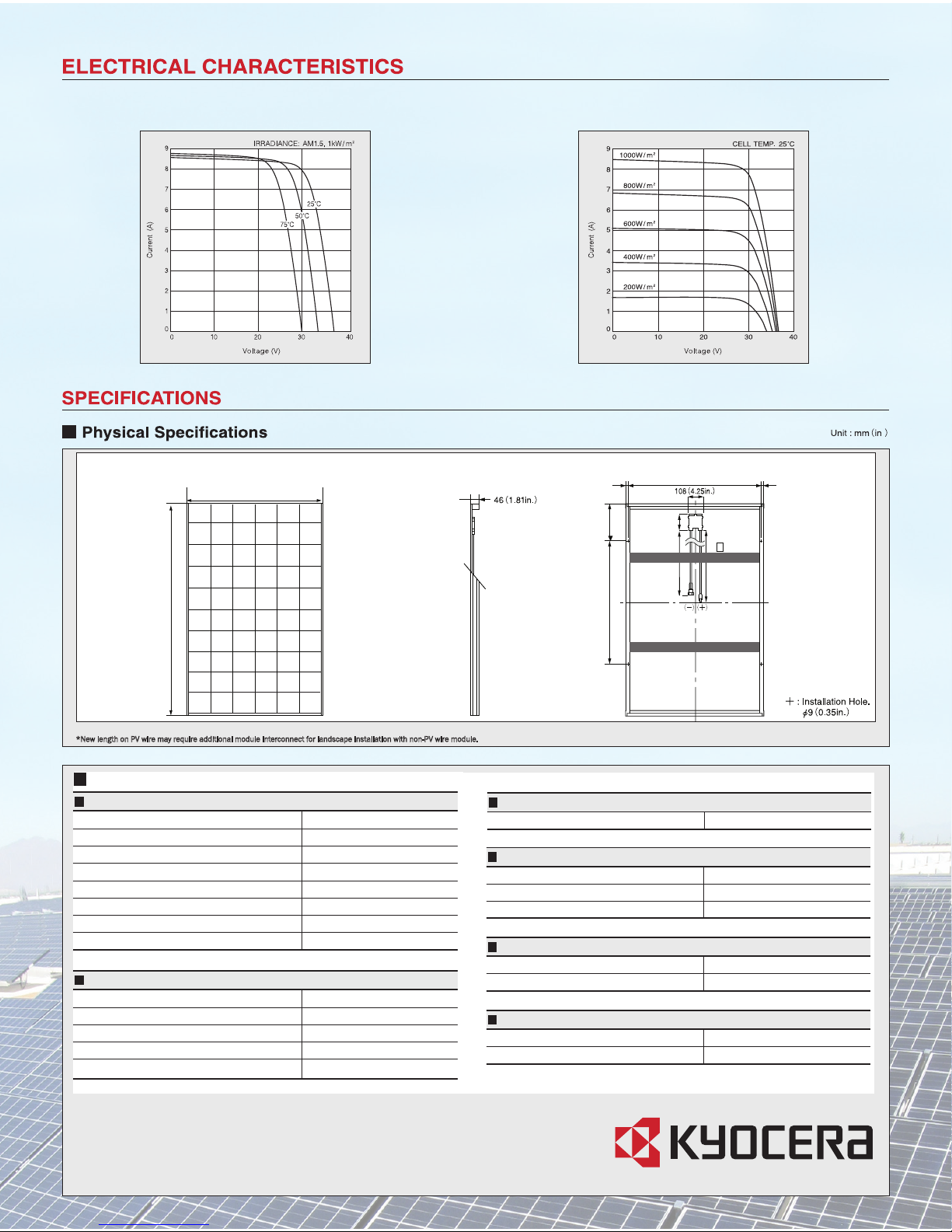

Current-Voltage characteristics of Photovoltaic
Module KD235GX-LPB at various cell temperatures
Current-Voltage characteristics of Photovoltaic
Module KD235GX-LPB at various irradiance levels
1100 (43.31in.)
281
(11.06in.)
12.5 (0.49in.) 12.5 (0.49in.)
965 (37.99in.)
830
(32.68 in.)
1030
(40.55in.)
105
(4.13 in.)
(+)1030mm (40.55in),(-)830mm (32.68in)
1662mm (65.43in) x 900mm (38.98in) x 46mm (1.81in)
105mm (4.13in) x 108mm (4.25in) x 20mm (0.79in)
