PRODUCT OVERVIEW
The EQX20 is a professional two channel 3 band
Parametric Equaliser that may also be configured as a
mono 6 band unit.
Each band offers variable frequency and 15dB cut and
boost. Additional control is derived from a variable Q
(bandwidth) control on each band.
Each channel is also equipped with a high pass filter
switch to remove subsonics and a Bypass switch.
APPLICATIONS
Uses for the TCX20 include -
PA Equalisation
Suppressing Feedback and Ringing
Removing damaging subsonics
Creating 'space' for solo instruments/vocals
Adding sparkle and reducing boom
Special effects
Dual 3 Band / Mono 6 Band Variable Q Parametric EQ
In keeping with our policy of continuous improvement LA Audio reserves the right to alter specifications without prior notice.
Manufactured in the UK by LA Audio, 6-24 Southgate Road, London, N1 3JJ.
Tel: +44 (0)207 923 7447, FAX: +44 (0)207 241 3644. Web: www.laaudio.co.uk. email: sales@laaudio.co.uk
An SCV International Group Company
SPECIFICATIONS
ELECTRICAL
Operating Levels:
Frequency response:
Input impedance:
Output impedance:
Maximum input level:
Maximum output level:
Peak indicator:
Noise:
THD:
Filter Gain range:
Filter ranges:
Bandwidth (Q):
High Pass Filter:
Power Consumption:
PHYSICAL
Input connectors:
Output connectors:
Power Connection:
Dimensions:
Weight:
Shipping weight:
-10dBu on TRS jack
+4dBV on XLR
±1dB, 20Hz to 20kHz
20k balanced
<100R ground sensing
+20dBu
+20dBu
3dB before clipping
<-86dBu
< 0.01%
±15dB
LF: 20Hz to 1kHz
MF: 200Hz to 8kHz
HF: 500Hz to 20kHz
1/12th to 3 Octaves
75Hz, -12dB/Octave
7VA, 115/230VAC, 50/60Hz
3 pin XLR (Pin 2 hot)
º" TRS jack (Tip hot)
3 pin XLR (Pin 2 hot)
º" TRS jack (Tip hot)
Detachable Lead, 3 pin IEC
socket
483mm (19")W
150mm (6")D
44mm (1.75")H
2.2kg
2.85kg
British
Originals
Dual 3 Band / Mono 6 Band Variable Q Parametric EQ
In keeping with our policy of continuous improvement LA Audio reserves the right to alter specifications without prior notice.
Manufactured in the UK by LA Audio, 6-24 Southgate Road, London, N1 3JJ.
Tel: +44 (0)207 923 7447, FAX: +44 (0)207 241 3644. Web: www.laaudio.co.uk. email: sales@laaudio.co.uk
An SCV International Group Company
A U DI O Dual Parametric EQ
CHANNEL 1CHANNEL 1
POWER
MONO CLIPCLIP
BYPASS
LF
0
+15
-15 dB
-10 +10
+5-5
MF
0
+15
-15 dB
-10 +10
+5-5
HFFREQQ Q
0
+15
-15 dB
-10 +10
+5-5
FREQFREQ Q
12
40.5
0.3 12
40.5
0.3
20
100 160
1k HzHz 200
1k8 3k
8k Hz
12
40.5
0.3 500
2k4 4k
20k
75Hz
CHANNEL 2CHANNEL 2
BYPASS
LF
0
+15
-15 dB
-10 +10
+5-5
MF
0
+15
-15 dB
-10 +10
+5-5
HFFREQQ Q
0
+15
-15 dB
-10 +10
+5-5
FREQFREQ Q
12
40.5
0.3 12
40.5
0.3
20
100 160
1k HzHz 200
1k8 3k
8k
12
40.5
0.3 500
2k4 4k
20k
75Hz
150.0
44.0
483.0
EQX2 - 4
-10dBV
2 1
OUTPUT
+4dBu
-10dBV
OUTPUT
MODE
+4dBu
-10dBV
INPUT
+4dBu
-10dBV
INPUT
+4dBu
MONO
MONO Jacks
T = Hot
R = Cold
S = GND
XLRs
1 = GND
2 = Hot
3 = Cold
3 Band Stereo
6 Band Mono
230V 50Hz
FUSE T50mA
~SERIAL No:
Manufactured in the UK by LA Audio
a division of SCV Electronics Ltd
No user serviceable parts inside
Disconnect from mains before removing cover
This equipment must be earthed
Audio
input
High pass
filter
Audio
output
Clip
Equaliser
Bypass Bypass

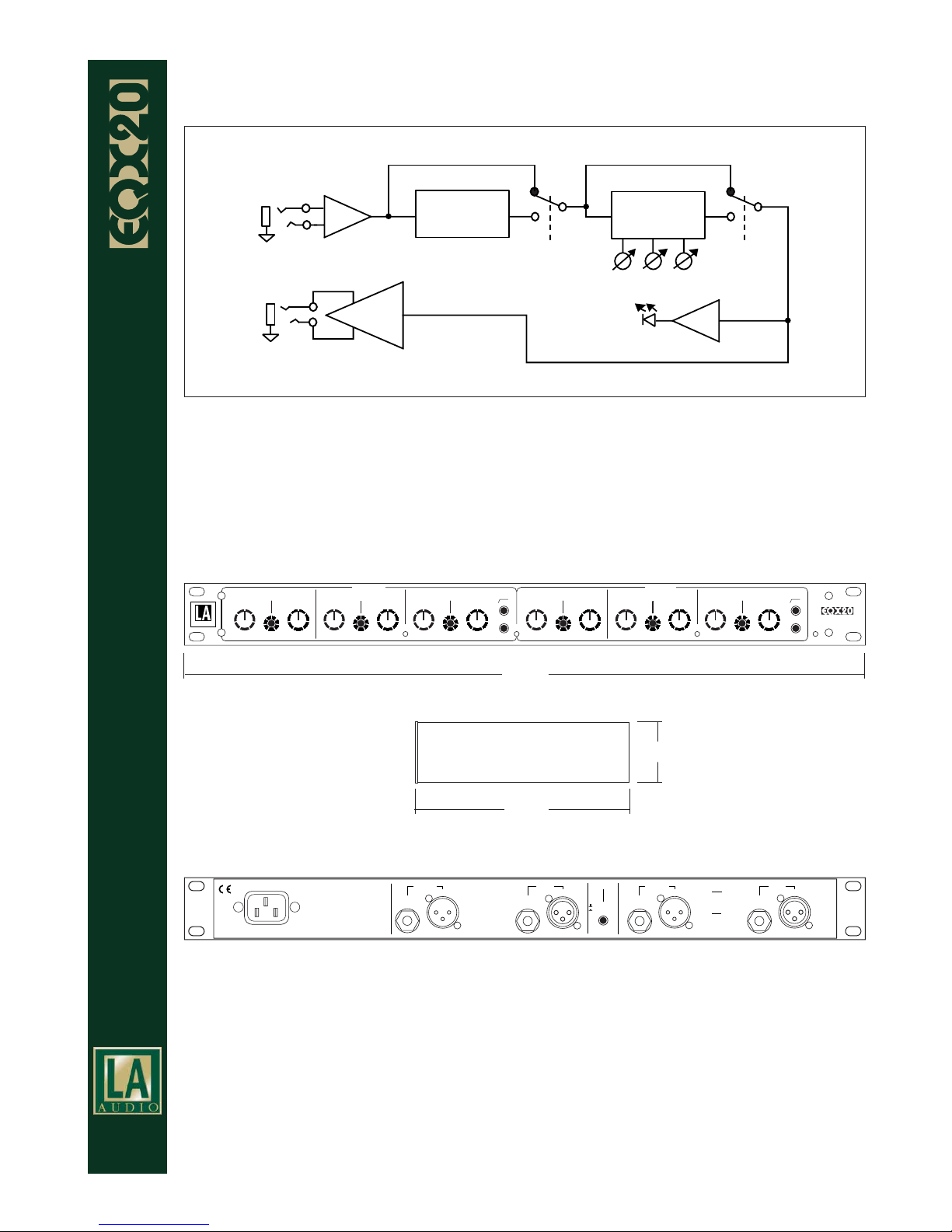

BLOCK DIAGRAM
DIMENSIONS
