La Crosse Technology TX10U Manuale utente

TX10U Rain Sensor

The TX10U rain sensor is used in conjunction with the TX15U wind

sensor and TX8U temperature/ humidity sensor to gather and transmit

information to the wireless weather station. The TX15U wind sensor

measures the wind speed and direction and sends the information to

the TX8U temperature/ humidity sensor. This sensor then transmits all

outdoor weather information from the three outdoor sensors to the

display indoors.

INVENTORY OF CONTENTS

1. TX10U rain sensor

2. Mounting hardware

3. Instruction manual and warranty card

SETTING UP

BATTERY INSTALLATION

The first step to powering up the weather station is to insert the

connector (RJ11) at the end of the wire attached to the wind speed

sensor to the remote temperature/humidity sensor. Please ensure

when doing this that the connector is inserted with the proper

orientation. When seated properly you will hear the connector ‘click’ in

place.

A. REMOTE TEMPERATURE/HUMIDITY

1. Remove the mounting bracket and humidity hood.

2. Remove the battery cover by sliding the cover down.

3. Observing the correct polarity install 2 AA batteries.

The batteries will fit tightly (to avoid start-up problems

make sure they do not spring free).

4. Replace the battery cover by sliding upwards. Be

sure battery cover is on securely.

5. Replace the humidity hood.

B. INDOOR WEATHER STATION

1. Remove the battery cover. To do this, insert a solid

object in the space provided at the lower-central

position of the battery cover, then push up and pull

out on the battery cover.

2. Observe the correct polarity, and install 3 AA

batteries.

3. Replace the battery cover.

C. RAINFALL SENSOR (optional)

The optional Rain Sensor does not need batteries to operate. Simply

insert the telephone plug (RJ-11) of the rain sensor into the receptacle

on the remote temperature/humidity sensor.

Important: To avoid operating problems, please take note of

battery polarity if inserting any batteries. Also do not

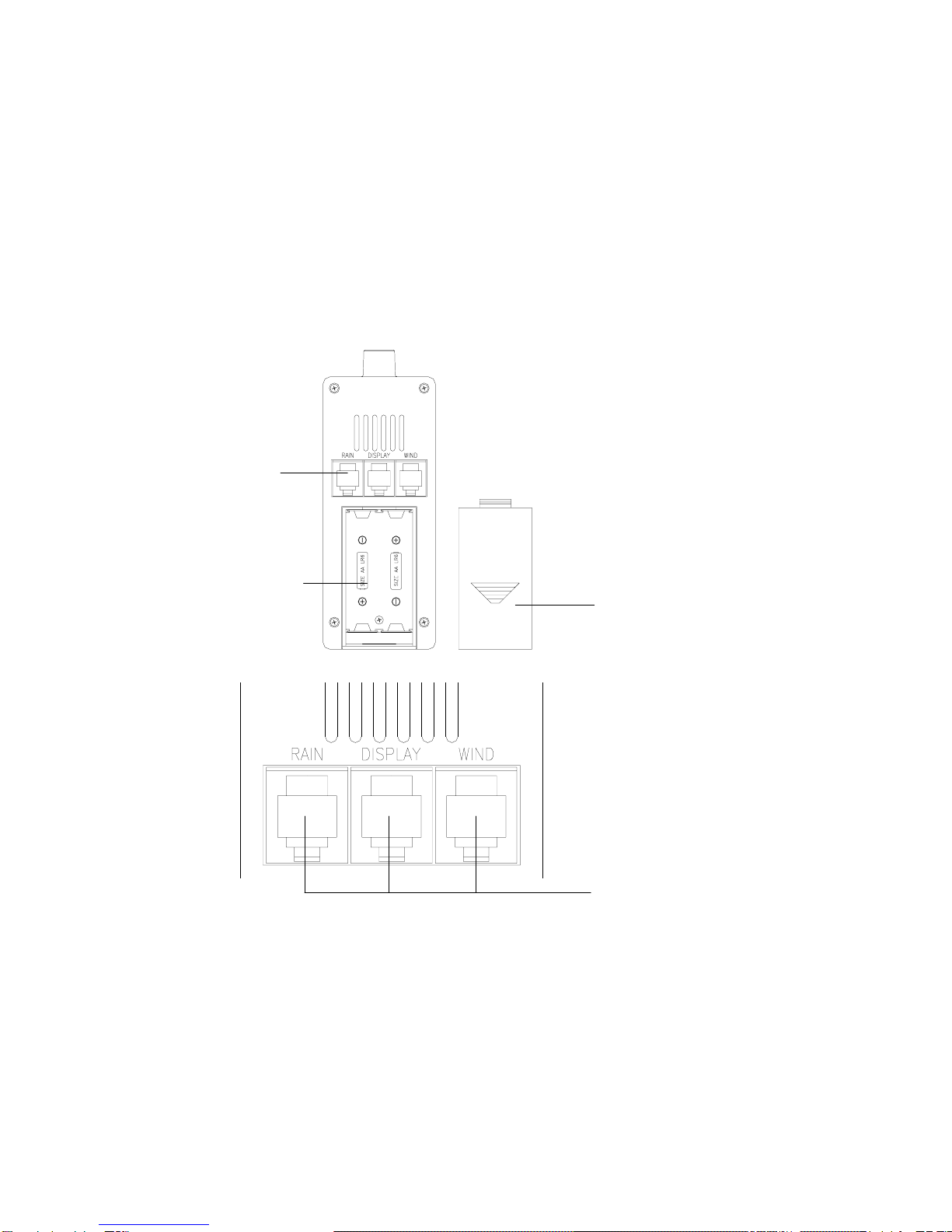

Sensor

sockets

Thermo-Hygro

Sensor

Battery

Cover

Battery

Compartment

Sensor

sockets

press any buttons after start up until all sensor

information has been displayed and the radio controlled

time has set. Doing so may interrupt communication

between the sensors and display or interrupt the

WWVB time reception.

1) Pull away the rain cover of the thermo-hygro

sensor to reveal the three sockets (for the wind

sensor, rain sensor and the base station)

2) Connect the attached cables of wind and rain

sensors to the corresponding sockets of the

thermo-hygro sensor by clicking them into place

3) Open the battery cover of the thermo-hygro sensor

located below the three sockets and insert 2 x AA,

IEC LR6, 1.5V batteries and close the cover

4) Open the base station’s battery cover located at

the back of the unit and insert 3 x AA, IEC LR6,

1.5V batteries into the battery compartment and

close the battery cover

Every time the thermo-hygro sensor is powered up (for example after a

change of batteries), a random security code is transmitted and this

code must be synchronized with the base station to receive weather

data.

NOTE FOR WWVB RADIO CONTROLLED TIME:

The time and date display is based on the signal provided by the highly

accurate government operated atomic clock in Ft. Collins, Colorado.

This radio-controlled clock does not only provide for the weather

station’s time and date display but also functions as the time and date

source for all of this weather station’s memory values using time and

date information.

MOUNTING THE RAIN SENSOR

For accurate results, the rain sensor should be securely mounted onto

a horizontal surface about 2-3ft above the ground and in an open area

away from trees or other coverings where rainfall may be reduced

causing inaccurate readings.

When securing into place, check that rain excess will not collect and

store at the base of the unit but can flow out between the base and the

mounting surface (test by pouring clean water).

After mounting the rain sensor, connect the cable to the thermo-hygro

sensor at the corresponding socket so power supply can be received

and data be transmitted to the base station

Base

portion

Funnel

ortion

The rain sensor is now operable. For testing purposes, very slowly

pour a small amount of clean water into the rain sensor funnel. The

water will act as rainfall and will be received and displayed at the base

station after about 2 minutes delay i.e. when the reading interval is

reached.

MAINTENANCE AND CARE

1. Extreme temperatures, vibrations, and shock should be avoided

to prevent damage to the units

2. Clean displays and units with a soft, damp cloth. Do not use

solvents or scouring agents, they may mark the displays and

casings

3. Do not submerge in water.

4. Do not subject the units to unnecessary heat or cold by placing

them in the oven or freezer.

5. Opening the casings invalidates the warranty. Do not try to repair

the unit. Contact La Crosse Technology for repairs.

SPECIFICATIONS

Resolution .01 in

Cable Length 32 feet

Power source Supplied from

temperature/humidity sensor

Dimensions 5.51” x 2.75” x 5.39”

WARRANTY INFORMATION

La Crosse Technology, Ltd provides a 1-year limited warranty on this

product against manufacturing defects in materials and workmanship.

This limited warranty begins on the original date of purchase, is valid

only on products purchased and used in North America and only to the

original purchaser of this product. To receive warranty service, the

purchaser must contact La Crosse Technology, Ltd for problem

determination and service procedures. Warranty service can only be

performed by a La Crosse Technology, Ltd authorized service center.

The original dated bill of sale must be presented upon request as proof

of purchase to La Crosse Technology, Ltd or La Crosse Technology,

Ltd’s authorized service center.

La Crosse Technology, Ltd will repair or replace this product, at our

option and at no charge as stipulated herein, with new or reconditioned

parts or products if found to be defective during the limited warranty

period specified above. All replaced parts and products become the

property of La Crosse Technology, Ltd and must be returned to La

Crosse Technology, Ltd. Replacement parts and products assume the

remaining original warranty, or ninety (90) days, whichever is longer.

La Crosse Technology, Ltd will pay all expenses for labor and

materials for all repairs covered by this warranty. If necessary repairs

are not covered by this warranty, or if a product is examined which is

not in need or repair, you will be charged for the repairs or

examination. The owner must pay any shipping charges incurred in

getting your La Crosse Technology, Ltd product to a La Crosse

Technology, Ltd authorized service center. La Crosse Technology, Ltd

will pay reasonable return shipping charges to the owner of the

product.

Your La Crosse Technology, Ltd warranty covers all defects in material

and workmanship with the following specified exceptions: (1) damage

caused by accident, unreasonable use or neglect (including the lack of

reasonable and necessary maintenance); (2) damage occurring during

shipment (claims must be presented to the carrier); (3) damage to, or

deterioration of, any accessory or decorative surface; (4) damage

resulting from failure to follow instructions contained in your owner’s

manual; (5) damage resulting from the performance of repairs or

alterations by someone other than an authorized La Crosse

Technology, Ltd authorized service center; (6) units used for other than

home use (7) applications and uses that this product was not intended

or (8) the products inability to receive a signal due to any source of

interference. This warranty covers only actual defects within the

product itself, and does not cover the cost of installation or removal

from a fixed installation, normal set-up or adjustments, claims based

on misrepresentation by the seller or performance variations resulting

from installation-related circumstances.

LA CROSSE TECHNOLOGY, LTD WILL NOT ASSUME LIABILITY

FOR INCIDENTAL, CONSEQUENTIAL, PUNITIVE, OR OTHER

SIMILAR DAMAGES ASSOCIATED WITH THE OPERATION OR

MALFUNCTION OF THIS PRODUCT. THIS PRODUCT IS NOT TO

BE USED FOR MEDICAL PURPOSES OR FOR PUBLIC

INFORMATION. THIS PRODUCT IS NOT A TOY. KEEP OUT OF

CHILDREN’S REACH.

This warranty gives you specific legal rights. You may also have other

rights specific to your State. Some States do no allow the exclusion of

consequential or incidental damages therefore the above exclusion of

limitation may not apply to you.

For warranty work, technical support, or information contact:

La Crosse Technology, Ltd

190 Main Street

La Crescent, MN 55947

Phone: 507.895.7095

Fax: 507.895.2820

e-mail:

[email protected] (warranty work)

sales@lacrossetechnology.com (information on other products)

web:

www.lacrossetechnology.com

excerpts, or duplicated or processed using electronic, mechanical or chemical

procedures without written permission of the publisher.

This handbook may contain mistakes and printing errors. The information in this

handbook is regularly checked and corrections made in the next issue. We

accept no liability for technical mistakes or printing errors, or their consequences.

All trademarks and patents are acknowledged.
