La Crosse Technology 616-143v3v2 Manuale utente

616-143v3 www.lacrossetechnology.com/support Page |

Model: 616-143v3v2

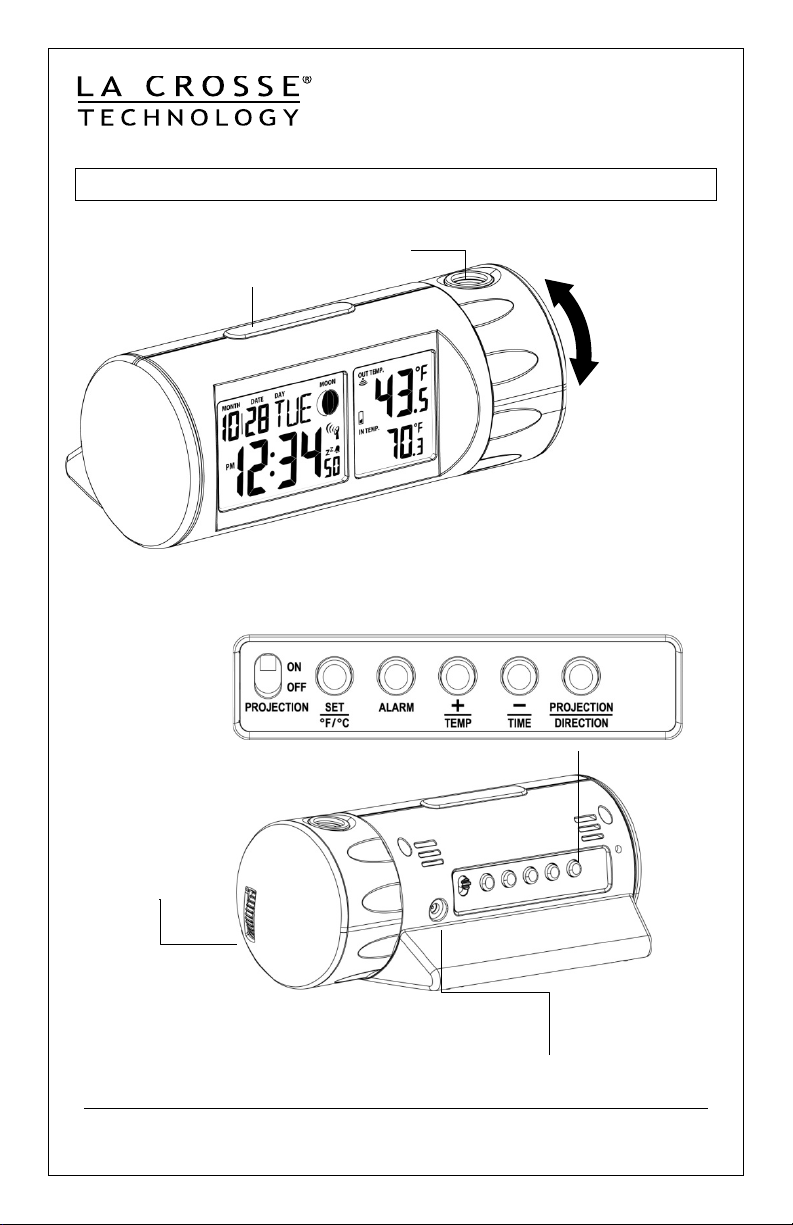

Quick Setup Guide

DC: 112618

Atomic Projection Alarm Clock

Projection Arm

Rotation

(Front and

Back)

Projection

Lens

Snooze/Backlight

Projection

Focus

Buttons

616-143v3 www.lacrossetechnology.com/support Page |

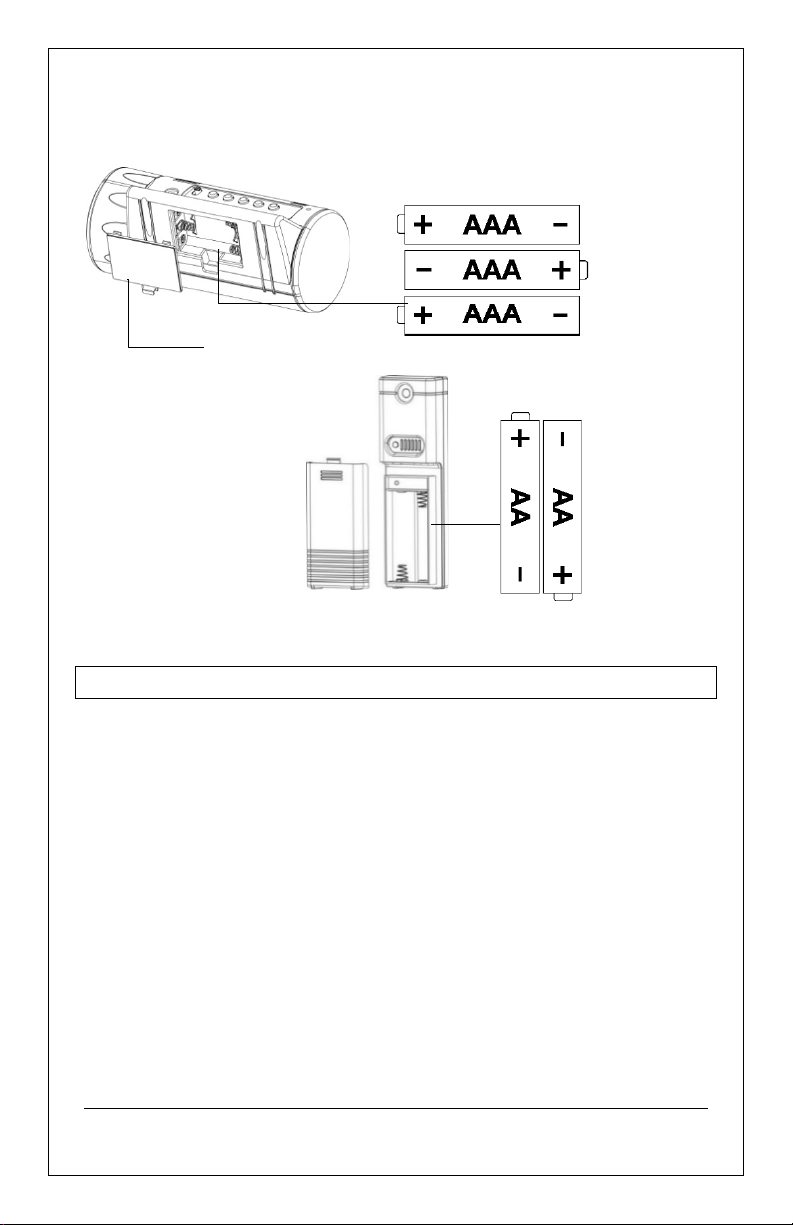

Get Started

1. Insert 2 new “AA” batteries (not included) into the TX141-BV3

sensor. Observe the correct polarity.

2. Insert the included 5-volt AC power adapter into projection alarm

and then into wall outlet.

3. Optional: Insert 3 new “AAA” batteries (not included) into the

projection alarm. Observe the correct polarity.

4. After 5 minutes, place the sensor outside in a shaded location.

Maximum range is 330 feet (100 meters) open air.

Tip:

If the outdoor temperature is not displayed after 3 minutes, Hold

the

+/TEMP

button to search for the sensor. Press the TX button on the

sensor to send a signal.

TX141-Bv3

Outdoor Sensor

5.0 VAC Power Jack

Battery Cover

616-143v3 www.lacrossetechnology.com/support Page |

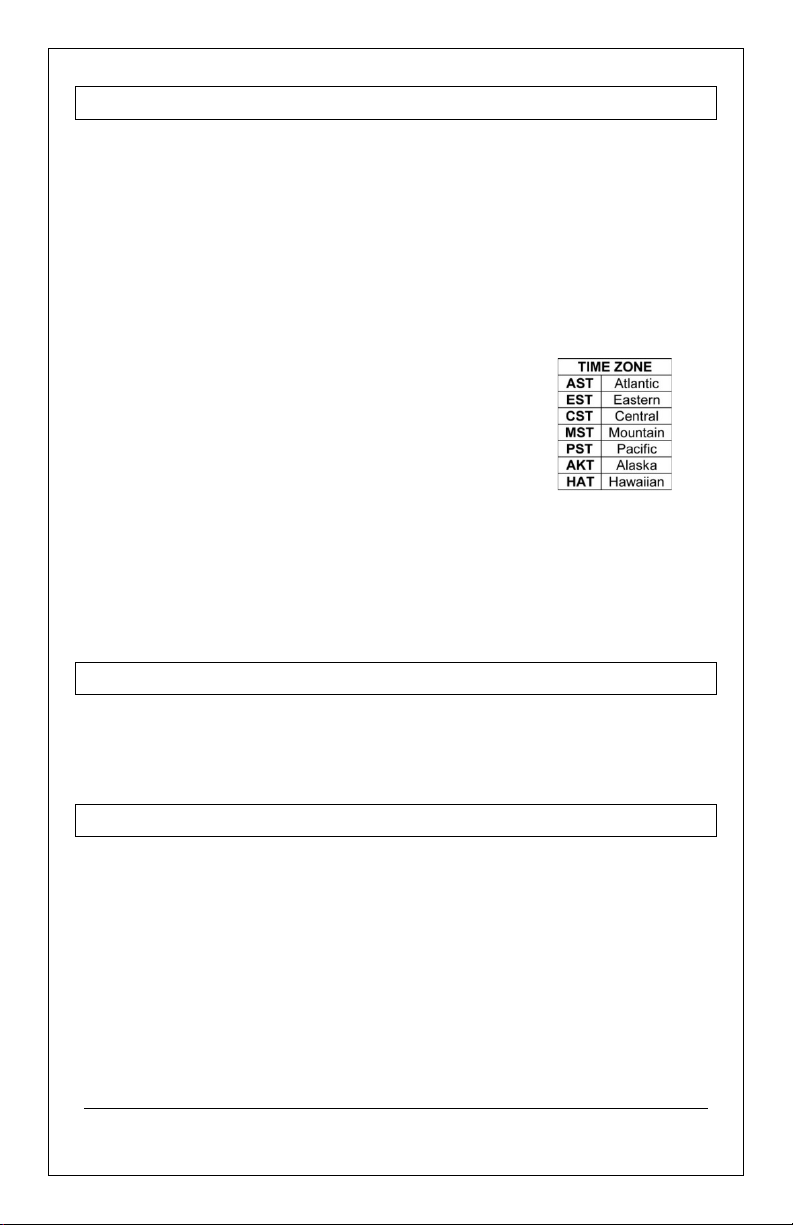

Set Time, Date, etc.

1. Hold the

SET/°F/°C

button to enter time set mode.

2. Use the

+/TEMP

-/TIME

buttons to adjust values.

Press and hold for fast adjustment.

3. Press the

SET/°F/°C

button to confirm adjustments and move to the

next item.

Time and Date setting order:

1. WWVB (ON/OFF)

2. Time Zone

3. DST Daylight Saving Time (ON/OFF)

4. 12/24 Hour Time Format

5. Hour

6. Minutes

7. Year

8. Month

9. Date

Press the

SET/°F/°C

button to exit, or wait 20 seconds without pressing

buttons to return to the normal time display.

Fahrenheit/Celsius

Press the

SET/°F/°C

button to select Fahrenheit or Celsius temperature

display.

Set Time Alarm

1. Hold the

ALARM

button to enter alarm time set mode.

2. Use the

+/TEMP

-/TIME

buttons to adjust values.

3. Press the

ALARM

button to confirm adjustments and move to the

next item.

Alarm Time setting order:

1. Hours

2. Minutes

616-143v3 www.lacrossetechnology.com/support Page |

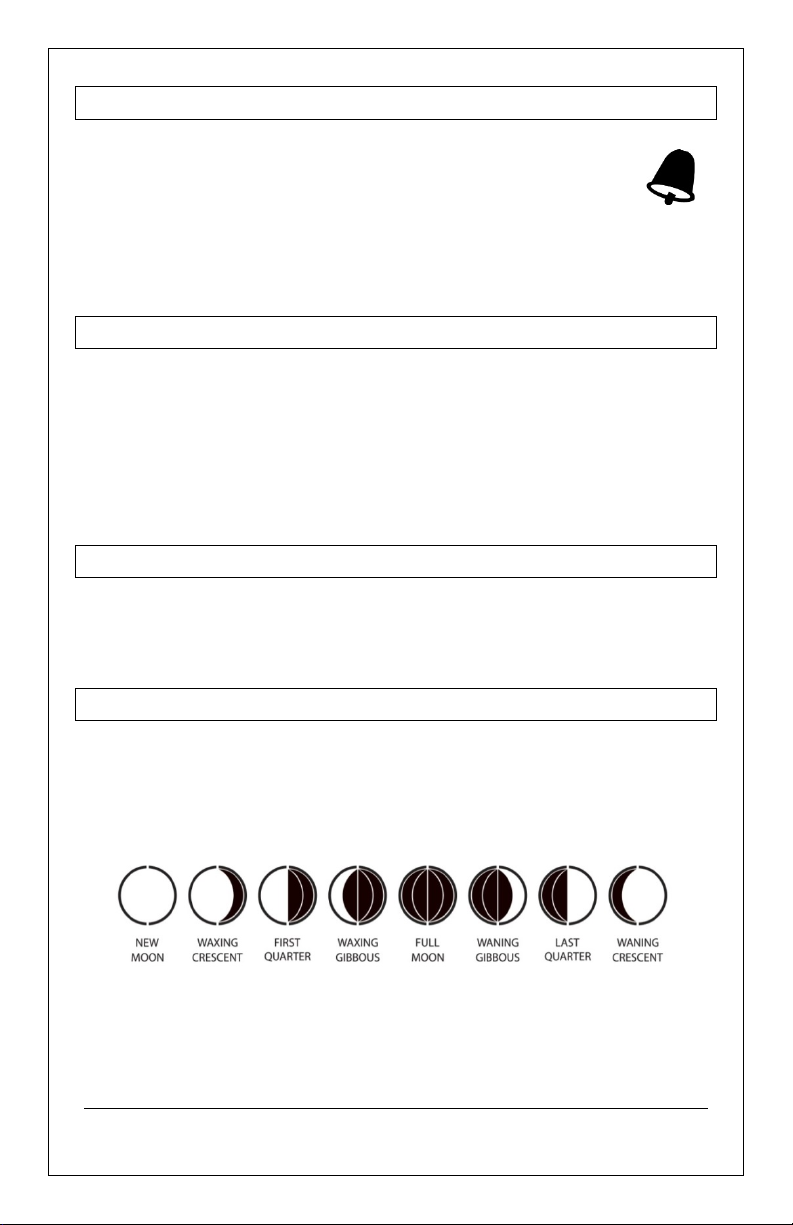

Activate/Deactivate Time Alarm

•Press the ALARM button once to view alarm time.

•Press the ALARM button again to activate the alarm.

Bell icon appears.

•Press the ALARM button again to deactivate the alarm.

The bell icon disappears.

Snooze

•Press the SNOOZE/LIGHT button to silence alarm for 10 minutes.

•Zz will show.

•When in snooze mode, press ALARM to stop alarm for one day.

Note: The alarm is crescendo sound. The alarm will sound for 2

minutes and then shut off completely.

Backlight

•Press the SNOOZE/LIGHT button to activate the backlight for 5

seconds. The backlight will not remain on constantly.

Moon Phase

The segments that are highlighted will portray the part of the moon that

is lit. For instance, the moon will be blank during a new moon and dark

during a full moon. This is how this product is designed to best view the

on the display, what you will see in the sky. This cannot be changed.

616-143v3 www.lacrossetechnology.com/support Page |

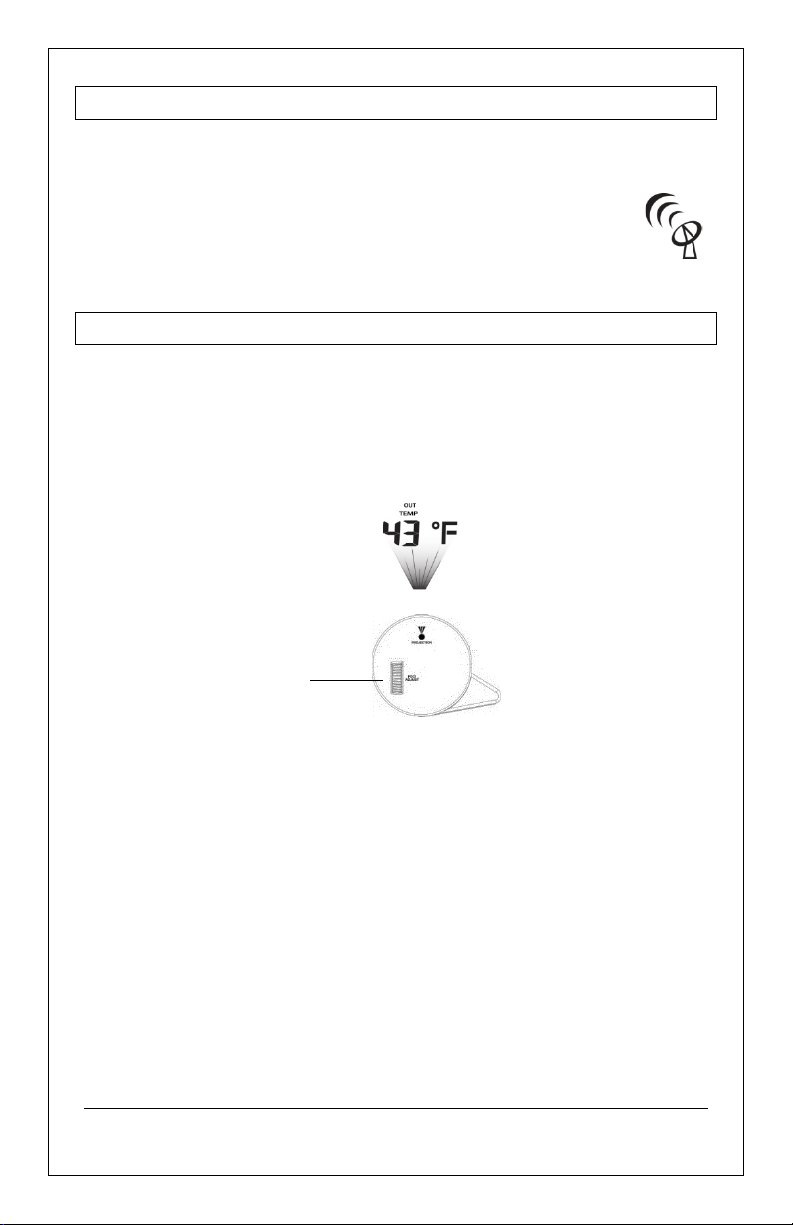

Atomic Time Signal Search

•Press the -/TIME button to start or stop a manual signal search.

WWVB Icon will flash

For information about WWVB visit:

www.nist.gov/pml/div688/grp40/wwvb.cfm

Projection (On/Off, rotate, focus)

•Projection ON/OFF button:Slide to turn the projection off or on

when operating on AC power.

•Projection Direction button:Press to rotate projection 180º.

•Focus Wheel:Use the Focus wheel to focus the projected image.

Time/Outdoor Temperature Projection: The projection will alternate

between time and outdoor temperature every 5 seconds. This is not

adjustable.

Note:

•On AC power the projection will be on constantly and alternate

between time and outdoor temperature (unless turned to OFF).

•Using battery power, the projection and backlight will come on for

10 seconds when SNOOZE/LIGHT is pressed.

Projection

Focus

SIDE VIEW

616-143v3 www.lacrossetechnology.com/support Page |

Position Outdoor Sensor

•Mount the outdoor sensor on a North-facing wall or in any well

shaded area. Under an eave or deck rail is preferred.

•The maximum transmitting range to the atomic projection alarm is

over 330-feet (100 meters) in open air, not including walls.

Search for Outdoor Sensor

•Hold the +/TEMP button for 3 seconds to search for the

outdoor sensor .

Position Projection Alarm

•The projection alarm has a wide base to sit on a desk or table.

•Choose a location 6 feet or more from electronics such as cordless

phones, wireless gaming systems, televisions, microwaves,

routers, baby monitors, etc., which can prevent signal reception.

•Position near an exterior wall that faces Ft. Collins Colorado for

WWVB time signal reception.

•Place within 330 ft. (100 meters) of the outdoor sensor.

•Obstacles such as walls, windows, stucco, concrete and large

metal objects can reduce the range.

•Be aware of electrical wires and plumbing within a wall. This will

interfere with RF (radio frequency) signal reception.

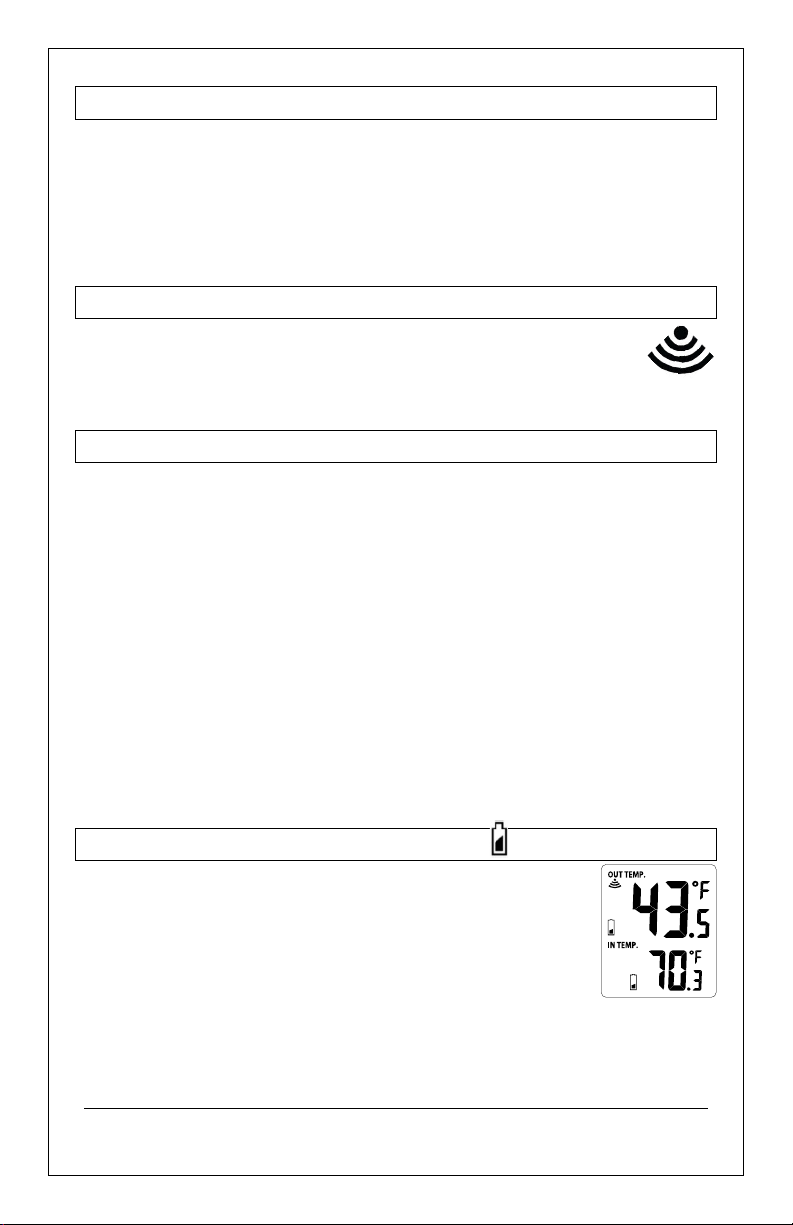

Low Battery Icon

When the low battery icon is displayed it warns to

replace batteries.

•If the icon is displayed in Outdoor Temperature

section, replace batteries in the outdoor sensor.

•If the icon is displayed in Indoor Temperature

section, replace batteries in the projection alarm.

616-143v3 www.lacrossetechnology.com/support Page |

Specifications

Indoor:

Temperature Range:

32°F to 122°F (0°C to 50°C)

Interval:

About every 30 seconds

Outdoor:

Temperature Range:

-40°F to 140°F (-40°C to 60°C)

Alkaline Batteries:

-20°F to 140°F (-28.8°C to 60°C)

Lithium Batteries:

-40°F to 140°F (-40°C to 60°C)

Distance:

Over 330 ft. (100 meters)

RF 433MHz (open air)

Interval:

About every 30 seconds

Power:

Projection Alarm

Primary Power:

AC6: GPU280500150WA00

5-volt AC power adapter

(included)

Optional/Battery Backup

Optional 3-AAA, IEC, LR3 batteries

(not included)

TX141-Bv3 Sensor :

2-AA, IEC, LR6 batteries

(not included)

Battery Life:

Projection Alarm

Battery Backup:

Battery life is over 12 months

when using the AC adapter for

primary power

TX141-Bv3 Sensor :

Battery life is over 24 months

when using reputable battery

brands

Dimensions:

Projection Alarm:

7.09" x 3.62" x 2.87"

(180 x 92 x 73mm)

TX141-Bv3 Sensor :

1.57" x 0.79" x 5.12"

(40 x 20 x 130mm)

616-143v3 www.lacrossetechnology.com/support Page |

Care and Maintenance

•Do not mix old and new batteries

•Do not mix Alkaline, Standard, Lithium, or Rechargeable Batteries

•Always purchase the correct size and grade of battery suitable for

the intended use.

•Replace all batteries of a set at the same time.

•Clean the battery contacts and also those of the device prior to

battery installation.

•Ensure the batteries are installed correctly in regard to polarity (+/-

•Remove batteries from equipment when it is not to be used for an

extended period.

•Promptly remove expired batteries.

•If the product is not working properly, change the batteries and/or

check the A/C cord connection.

Warranty and Support

La Crosse Technology, Ltd. provides a 1-year limited time warranty

(from date of purchase) on this product relating to manufacturing

defects in materials & workmanship.

Before returning a product, please contact our friendly customer

support with questions or visit our online help:

Phone: 1-608-782-1610

Online Product Support and Registration:

www.lacrossetechnology.com/support

616-143v3 www.lacrossetechnology.com/support Page |

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

This device must not be co-located or operating in conjunction with any other

antenna or transmitter.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including

interference that may cause undesired operation.

Caution!

The manufacturer is not responsible for any radio or TV interference caused by

unauthorized modifications to this equipment. Such modifications could void the user

authority to operate the equipment.

duplicated or processed using electronic, mechanical or chemical process without the

written permission of the publisher. This booklet may contain errors or misprints. The

information it contains is regularly checked and corrections are included in

subsequent editions. We disclaim any responsibility for any technical error or printing

error, or their consequences.

All trademarks and patents are recognized.

Altri manuali La Crosse Technology Sveglia

La Crosse Technology

La Crosse Technology 616-1410 Manuale utente

La Crosse Technology

La Crosse Technology 433 MHz RADIO CONTROLLED PROJECTIONALARM... Manuale utente

La Crosse Technology

La Crosse Technology C85135 Dimensioni

La Crosse Technology

La Crosse Technology 817-2410 Manuale utente

La Crosse Technology

La Crosse Technology 616-1950V2 Manuale utente

La Crosse Technology

La Crosse Technology W85923v3 Manuale operativo e di manutenzione

La Crosse Technology

La Crosse Technology WT-5120 Manuale utente

La Crosse Technology

La Crosse Technology Equity 31112 Manuale utente

La Crosse Technology

La Crosse Technology Radio-Controlled Travel Alarm Clock WT-2160 Manuale utente

La Crosse Technology

La Crosse Technology WS-8016U Manuale utente

La Crosse Technology

La Crosse Technology 616-1412V3 Dimensioni

La Crosse Technology

La Crosse Technology WT-2191A Manuale utente

La Crosse Technology

La Crosse Technology WT-2100 Manuale utente

La Crosse Technology

La Crosse Technology C89201 Manuale utente

La Crosse Technology

La Crosse Technology 617-148 Manuale utente

La Crosse Technology

La Crosse Technology 616-1412v3 Manuale utente

La Crosse Technology

La Crosse Technology WS8010 Manuale utente

La Crosse Technology

La Crosse Technology 616-143V2 Dimensioni

La Crosse Technology

La Crosse Technology WS-8054U Manuale utente

La Crosse Technology

La Crosse Technology 617-1270 Guida all'installazione

La Crosse Technology

La Crosse Technology WS-8115U-IT Manuale utente

La Crosse Technology

La Crosse Technology 817-2410B Manuale utente

La Crosse Technology

La Crosse Technology WS-8256U Manuale utente

La Crosse Technology

La Crosse Technology 617-1485W Manuale utente

Manuali Sveglia popolari di altre marche

Steren

Steren CLK-210 Manuale utente

COP-USA

COP-USA ALCDVR32-SL Manuale utente

Philips

Philips HF3505/70 Manuale tecnico

Casio

Casio PQ-70 Manuale utente

iHome

iHome IA63 Manuale utente

Coopers

Coopers 9765 Manuale utente

ANJANK

ANJANK AC-190 Guida

TFA

TFA 98.1075 Manuale utente

Sharper Image

Sharper Image 204050 Manuale utente

Lumie

Lumie Zest Manuale utente

Dexford

Dexford RCT200 Manuale utente

Philips

Philips AJL303/37B Manuale utente

RST

RST Q754 Manuale utente

iHome

iHome iKT50 Manuale utente

Sony

Sony dash HID-B7 Manuale utente

SVINZ

SVINZ SCC009 Manuale utente

Clas Ohlson

Clas Ohlson 918863 Manuale utente

IKEA

IKEA FNURRA Manuale utente
