La Crosse Technology C84428 Manuale utente

PROFESSIONAL

REMOTE MONITORING WEATHER STATION

QUICK SETUP GUIDE

Model No. C84428

DC: 072617

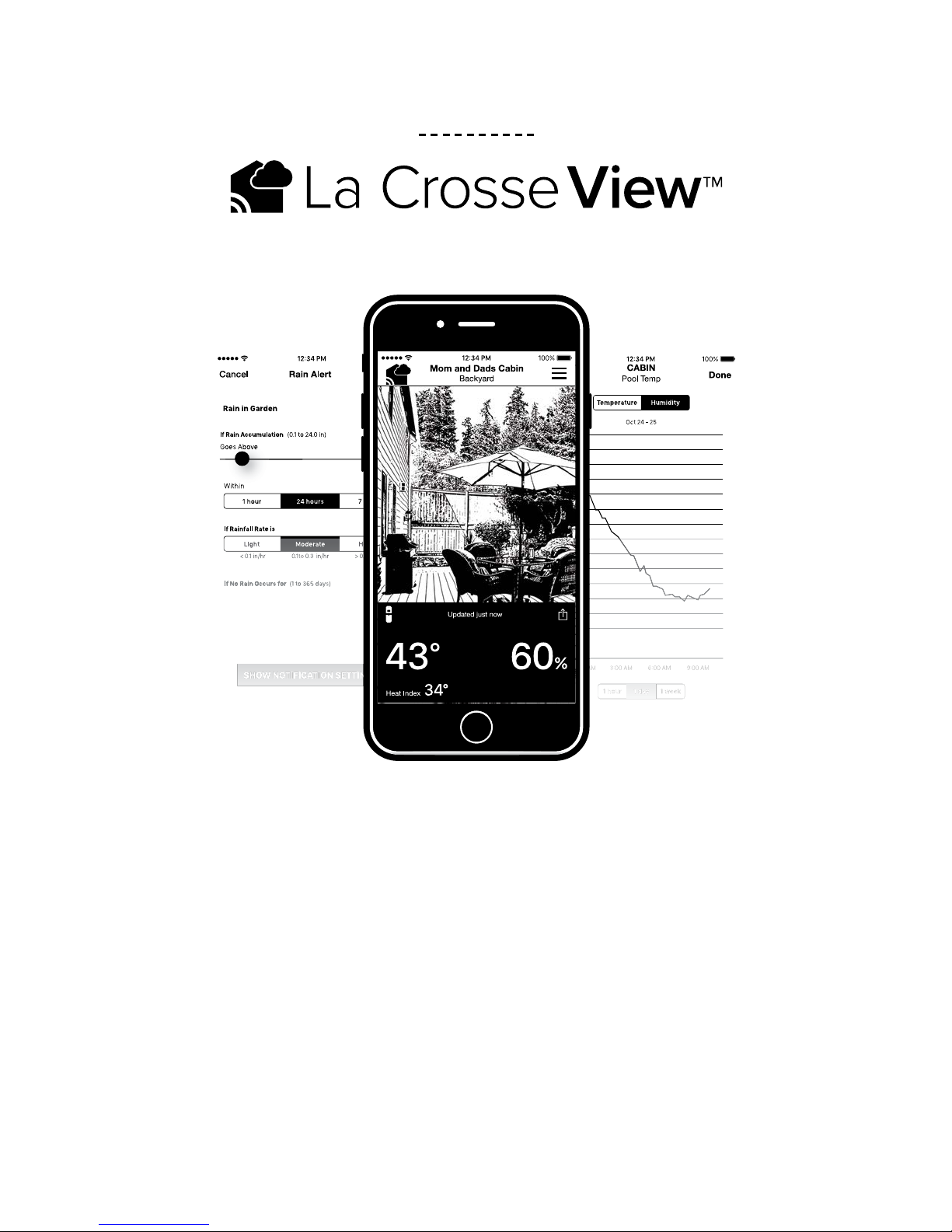

ON-THE-GO

HOME MONITORING

Check Current Indoor/Outdoor

Readings, View History Charts,

and More

ENHANCED

DISPLAY FEATURES

Receive Local National Weather Service

(NWS) such as Forecast & Precipitation

on Your Color Display

SUPERIOR

APP EXPERIENCE

Use Your Own Photos and Receive Free

Push Notifications on the New,

Easy-to-Navigate App

FRIENDS & FAMILY

SHARED ACCOUNTS

No Need to Share Logins or Passwords!

Invite Friends & Family to Download the

App & Monitor Your Home’s Data

INTRODUCING

Connecting You to Your Home Anytime, Anywhere.

TAKE YOUR STATION TO THE NEXT LEVEL!

Color LCD Display Wind Sensor &

Mounting Bracket

Bonus DisplayRain Sensor

Thermo-Hygro

Sensor

QUICK SETUP GUIDE

AC POWER ADAPTER FOR COLOR DISPLAY

ALL BATTERIES REQUIRED (7“AA”, 2“C”, & 2“AAA”)

Congratulations on your new Weather Station and welcome to the

La Crosse Technology® family! This quick setup guide will walk you

through the basics and introduce you to the new La Crosse View™

app. For our full manual, please visit: www.lacrossetechnology.com/

C84428... or scan the QR code below.

WELCOME!

STEP 1: POWER UP

Install the included batteries into your sensors & display in any order.

Plug the included AC Adapter into an outlet and then into the station.

AC power is required at all times.

Note: For detailed instructions on how to power up your station & sensor,

please review the full manual.

LET’S GET STARTED

WHAT’S IN THE BOX

STEP 2: STATION OPTIONS

HOW DO YOU WANT TO USE YOUR STATION?

Not Interested in Connecting to La Crosse View™? No Problem!

These enhanced features are optional & your weather station will

function as a standalone unit without connecting to the app.

Make Sure Your Station is Ready to Connect

When connecting to the app, ensure the Wi-Fi Indicator

icon is blinking. If it is not, perform a Wi-Fi search by

pressing & holding the + & - buttons together.

DOWNLOAD

Visit the App Store or Google Play Store

to download the free La Crosse View™

app on your mobile device.

CHECK YOUR NETWORK

Conﬁrm that your mobile device is

connected to a 2.4GHz Wi-Fi Network

before you connect your station

LAUNCH

Open the app on your iOS or

Android device.

FOLLOW INSTRUCTIONS

The La Crosse View™ app will walk

you through creating an account

and automatically sets your time &

local forecast.

OPTION 1

STATION SETUP

To enter the setup menu,

hold the SET button.

Press and release the - or + buttons

to make adjustments.

Push the SET button to confirm.

SETUP ORDER

*Note: This prompt is a reminder that the app is

necessary to connect (optional).

Beep

(ON/OFF)

Minutes

Date

12/24 Hour

Time Format

Year

Temperature

(°F/°C)

Hour

Month

Connection

Prompt*

OPTION 2

CAN I CONNECT LATER?

Of course! You can always connect

your station to the app. See the full

manual for more details.

CONNECT TO LA CROSSE VIEW™ STANDALONE STATION

*Only When Connected

STATION OVERVIEW

IMPORTANT ICONS & HELPFUL TIPS

NOTE: Basic button functions are printed on the back of the station.

This icon measures

your Wi-Fi connection

strength

Press and hold the +& -buttons

together to look for the Wi-Fi Signal.

Press and hold RAIN & LIGHT buttons

together to start over

When this appears,

you’re now receiving

enhanced NWS info

Individual station/sensor

indicators let you know

which batteries to replace

The bars let you know

the station & sensors

are connected

LCD ICONS

BUTTONS LOCATED ON TOP OF STATION

WIFI SEARCH FACTORY RESET

NWS FORECAST* LOW BATTERY SENSOR CONNECTIONWiFiINDICATOR*

THERMO-HYGRO

Keep out of direct sunlight

& ensure the sensor is

well-ventilated.

We recommend mounting

under a deck or eave

facing north.

RAIN

Mount in an open area,

preferably o the ground on

a level platform.

Clean out the bucket regularly

to avoid debris; this can aect

readings.

WIND

Ensure the sensor is mounted

vertically–an unobstructed

rooftop is ideal.

Your wind sensor should be

the tallest object in the area to

avoid any obstructions.

GET THE MOST ACCURATE READINGS POSSIBLE

STEP 3: MOUNTING BASICS

At this time, all of your sensor information should be displayed on your station.

Here are a few quick tips for mounting your sensors:

Note: For detailed mounting instructions, please review the full manual.

TIP: Press the SET/IN-OUT button to toggle between indoor & outdoor information

BONUS DISPLAY: BASIC SETUP

12/24 Hour Time Format

Hour

Minutes

Temperature (ºF/ºC)

SETUP ORDER

To enter the setup menu, hold the

SET/IN-OUT button.

Press and release the +/SEARCH

button to make adjustments.

Push the SET/IN-OUT button

to confirm.

GET EVEN MORE OUT OF YOUR SYSTEM!

CONNECTING YOUR STATION TO YOUR WIFI NETWORK

HOW IT WORKS

Your mobile device is used

to establish the connection

between your Wi-Fi network

and your weather station.

After your weather station is

connected, you may choose a

different Wi-Fi frequency or

network for your phone.

DURING SETUP AFTER SETUP

2.4GHz Home

Network

2.4GHz Home

Network

WIFI NETWORK REQUIREMENTS

·Broadcast Frequency: 2.4GHz (802.11 b/g/n)

·Network Name/Password: Must Not Exceed 45 Characters

·Network Speed: Must Be Greater than 1 Mbps

Note: If you have a multiple band router, be sure your mobile device is

connected to the 2.4 GHz frequency when setting up the app.

iOS REQUIREMENTS

·iOS 9.0 or higher with cellular or Wi-Fi service

ANDROID REQUIREMENTS

·Android OS 5.0 or higher with cellular or Wi-Fi service

STATION &SENSOR SPECS

STATION DISPLAYS (C84428 & LTV-D1)

·Indoor Temperature Range: 32°F to 122°F (0°C to 50°C)

·Indoor Humidity Range: 10% to 99%RH

·C84428 Power Requirements: 5.0V AC Adapter + 3 “AA” Batteries

·LTV-D1 Power Requirements: 2 “AAA” Batteries

WIND (LTV-W1)

·Wind Speed Range:

0 to 111 MPH (0 to 178 KMH)

·Power Requirements: 2 “C” Batteries

THERMOHYGRO (LTV-TH2)

·Outdoor Temperature Range: -40°F to 140°F (-40°C to 60°C)

·Outdoor Humidity Range: 10% to 99%RH

·Power Requirements: 2 “AA” Batteries

SENSOR TRANSMISSION RANGE: 400 Feet (121.92 Meters)

RAIN (LTV-R2)

·Rainfall Range:

0-393.6 inches (0-9999 mm)

·Power Requirements: 2 “AA” Batteries

FIND FULL MANUALS & SUPPORT

www.lacrossetechnology.com/C84428

JOIN THE CONVERSATION

Ask questions, watch detailed setup videos, and

provide feedback on our social media outlets!

NEED MORE HELP?

If you require additional support, call our friendly

customer support representatives based out of our

oce in La Crosse, Wisconsin.

Phone: 1.844.200.8752

Our knowledgeable customer support team is

available Monday-Friday, 8am-6pm CST.

WE’RE HERE TO HELP!

CARE + MAINTENANCE

LA CROSSE TECHNOLOGY™

PATENTS

Do not mix old and new batteries.

Do not mix Alkaline, Lithium, standard, or rechargeable batteries.

Always purchase the correct size and grade of battery most suitable

for intended use; Clean the battery contacts and also those of the device

prior to battery installation; Ensure the batteries are installed with correct

polarity (+ and -); Remove batteries from equipment that will not to be used

for an extended period.

Visit www.lacrossetechnology.com/patents

for patent information.

WARRANTY INFO

La Crosse Technology, Ltd. provides a 1-year limited time warranty

(from date of purchase) on this product relating to manufacturing defects

in materials & workmanship.

Before returning this product, please contact our friendly

customer support team with questions or visit our online support site.

Phone: 1.844.200.8752

For Full Warranty Details, Visit:

www.lacrossetechnology.com/support

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

• Increase separation between equipment & receiver.

• Consult the dealer or an experienced radio/TV technician for help.

This device must not be co-located or operating in conjunction with any other antenna or

transmitter.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may

cause undesired operation.

Caution!

The manufacturer is not responsible for any radio or TV interference caused by

unauthorized changes or modifications to this equipment. Such changes or modifications

could void the user authority to operate the equipment.

or processed using electronic, mechanical or chemical process without the written permission of

the publisher.

This booklet may contain errors or misprints. The information it contains is regularly checked and

corrections are included in subsequent editions.

We disclaim any responsibility for any technical error or printing error, or their consequences.

All trademarks and patents are recognized.

Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries.

App Store is a service mark of Apple Inc.

Google Play and the Google Play logo are trademarks of Google Inc.

FCC STATEMENT

Altri manuali per C84428

Indice

Altri manuali La Crosse Technology Stazione meteorologica

La Crosse Technology

La Crosse Technology TX5U Manuale utente

La Crosse Technology

La Crosse Technology V16 Manuale utente

La Crosse Technology

La Crosse Technology Wireless Temperature Station WS-7013TWC Manuale utente

La Crosse Technology

La Crosse Technology WS-7208U Manuale utente

La Crosse Technology

La Crosse Technology WS-2800 Manuale utente

La Crosse Technology

La Crosse Technology WS-7090U Manuale utente

La Crosse Technology

La Crosse Technology Family Weather Station Manuale utente

La Crosse Technology

La Crosse Technology The Weather Channel WS-9005TWC Manuale utente

La Crosse Technology

La Crosse Technology 513-149V2 Dimensioni

La Crosse Technology

La Crosse Technology C84428 Manuale utente

La Crosse Technology

La Crosse Technology T83646v2 Manuale utente

La Crosse Technology

La Crosse Technology WS7059 Manuale utente

La Crosse Technology

La Crosse Technology CA76669 Manuale utente

La Crosse Technology

La Crosse Technology WS-2801-IT Manuale utente

La Crosse Technology

La Crosse Technology WS-7394U Manuale utente

La Crosse Technology

La Crosse Technology C79790V2 Manuale utente

La Crosse Technology

La Crosse Technology Wireless Weather Station Manuale utente

La Crosse Technology

La Crosse Technology 308-1417 Manuale utente

La Crosse Technology

La Crosse Technology WEATHER DIRECT WD-3103U Manuale utente

La Crosse Technology

La Crosse Technology WS-7025TWC Manuale utente

La Crosse Technology

La Crosse Technology WS-9049 Manuale utente

La Crosse Technology

La Crosse Technology TX31U-IT Scheda tecnica

La Crosse Technology

La Crosse Technology WW85777 Manuale operativo e di manutenzione

La Crosse Technology

La Crosse Technology S81120 Dimensioni

Manuali Stazione meteorologica popolari di altre marche

Auriol

Auriol AHFL 433 A1 Manuale utente

NexSens

NexSens G2-HYDROMET Manuale utente

Hyundai

Hyundai WS 2202 Manuale utente

IROX

IROX HBVR761 UV-X Manuale utente

ADE

ADE WS 1711 Manuale utente

Auriol

Auriol z29592 Manuale utente

Auriol

Auriol 296289 Manuale utente

Hyundai

Hyundai WS 2266 Manuale utente

Ventus

Ventus W177 Manuale utente

National Geographic

National Geographic VA Colour RC Manuale utente

Renkforce

Renkforce 1208067 Manuale utente

Levenhuk

Levenhuk Discovery Report WA40 Manuale utente

Instant Transmission

Instant Transmission MA 10410 Manuale utente

Lutron Electronics

Lutron Electronics PHB-318 Manuale utente

WAREMA

WAREMA EWFS Weather station eco Manuale utente

TFA

TFA 30.3013.IT Manuale utente

Alecto

Alecto WS-1200 Manuale utente

Oregon Scientific

Oregon Scientific RMR966PA Manuale utente
