La Crosse Technology SW404 Manuale utente

P. 1

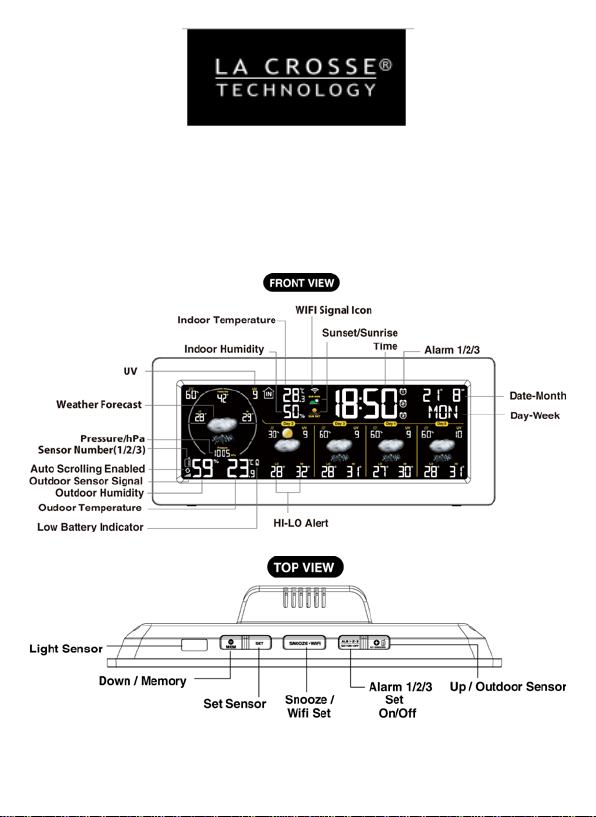

INSTRUCTION MANUAL – SW404

WI-FI COLOR WEATHER FORECAST with 5 DAYS

FORECAST

P. 2

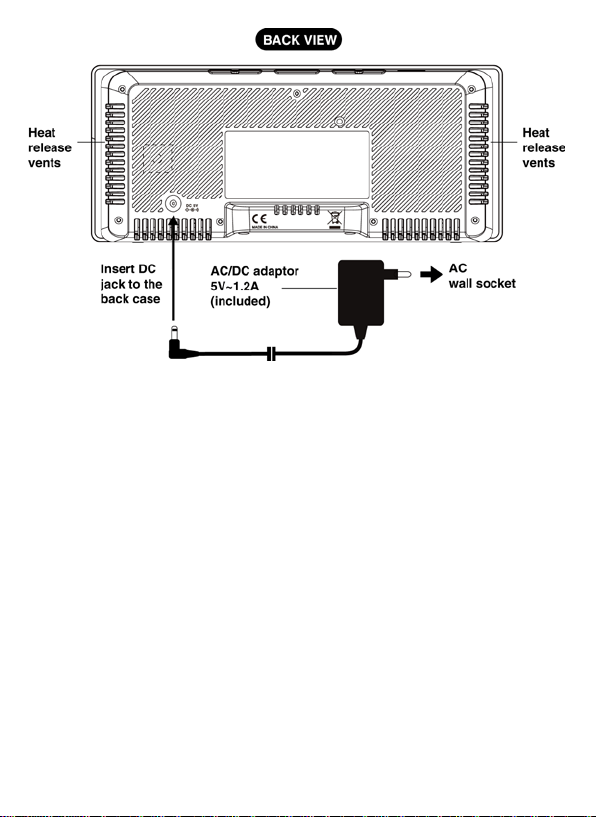

POWER UP THE WI-FI WEATHER STATION

Insert the 5V 1.2A AC/DC adaptor (included) to an AC wall outlet and then

the DC jack to the back of your clock to power your clock.

Remark: make sure 5V~ adaptor is being connected. Using adaptors with

higher voltage (e.g. 6V - 9V) will damage your clock

INSTALL THE WIRELESS OUTDOOR TRANSMITTER

After you install batteries to the wireless outdoor transmitter, your weather

station will receive outdoor temperature from it in few seconds. Then place

your outdoor transmitter in a dry and shaded area outdoor.

P. 3

The temperatures readings will get stable and become more accurate after

the unit is powered up for around 30 minutes.

REMARKS:

Keep in mind that your outdoor transmitter has a 50-meter open air

transmission with no obstructions.

Actual transmission range will vary depending on what is in the path of the

signal. Each obstruction (roof, walls, floors, ceilings, thick trees, etc.) will

effectively cut signal range in half.

P. 4

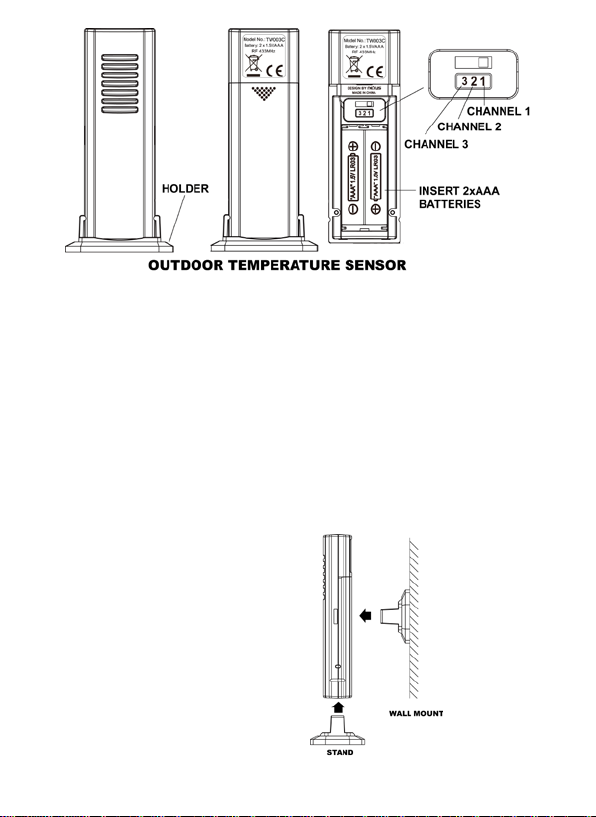

Insert the holder to the bottom of the outdoor transmitter for desktop or

insert it to the back of the transmitter for wall mount purpose.

CONNECT MOBILE APP WITH THE WI-FI WEATHER

STATION

Download Tuya Smart App:

According to the mobile phone brand, search for graffiti through the IOS

APP Store or Android Google Play, find the APP with the icon below, and

download the APP. At the same time, register an account, open the APP,

log in to the account, and at the same time log in to the hotspot that the

weather station needs to connect to, as a preparation for device pairing.

P. 5

Quick Setup

1. Slide open the battery cover at the back of your wireless outdoor

transmitter, then insert 2 x AAA new alkaline batteries to the battery

compartment. Make sure the Channel selector switch is at 1 position.

Replace the battery cover.

Make sure (Channel 1) is displayed under the outdoor temperature. You could

press to select Channel 1.

2. Then plug the DC jack to the back of your weather station

3. Pair the weather station with WIFI and server information according to

the APP prompts, see WIFI pairing instructions for details.

4. Configure basic settings, set time/date format and units, etc.

5. Move the remote sensor to outdoor or other location after 5 minutes

WIFI pairing

After the weather station is started, it will automatically enter the pairing

mode, and the WIFI icon “”will flash.

Open the Tuya APP, click the “”icon in the upper right corner of

the screen, and select Add Device，The APP interface is converted to add

devices, and the window for discovering devices will automatically pop up,

click Add，After converting the interface, click “ ” according to the

prompts

Then follow the APP prompts, step 4: set the WIFI name and password,

step 5: pairing process, wait for the screen to change to step 6, click Finish,

switch to the main interface of step 7, indicating that the pairing is complete.

P. 6

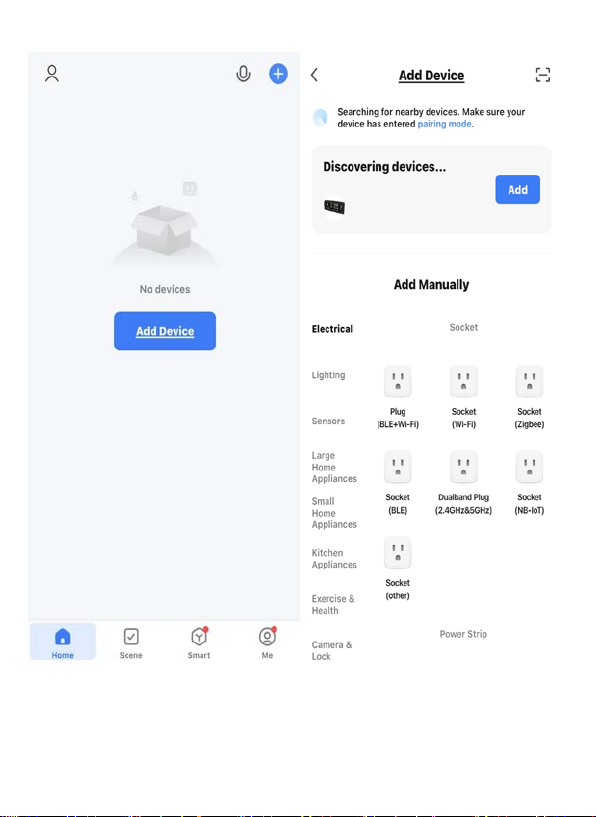

Step 1 Step 2

P. 7

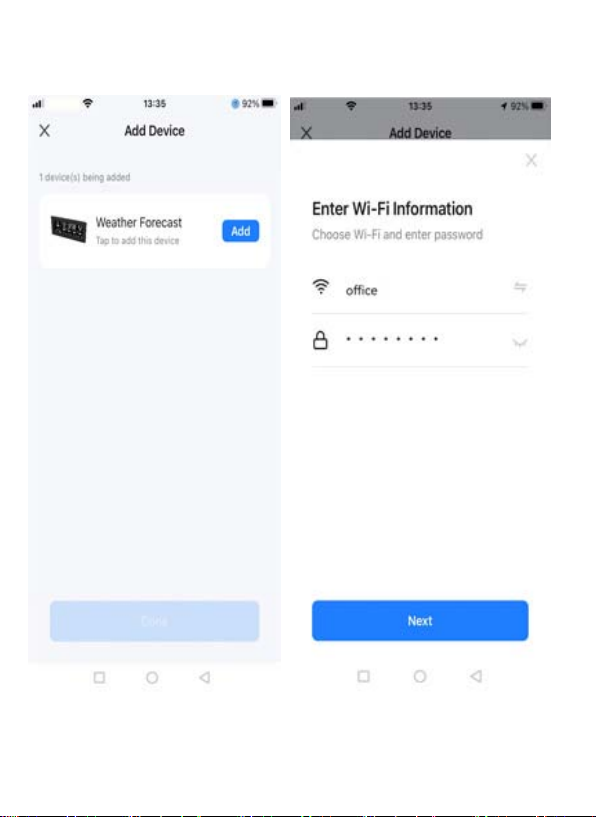

Step 3 Step 4

P. 8

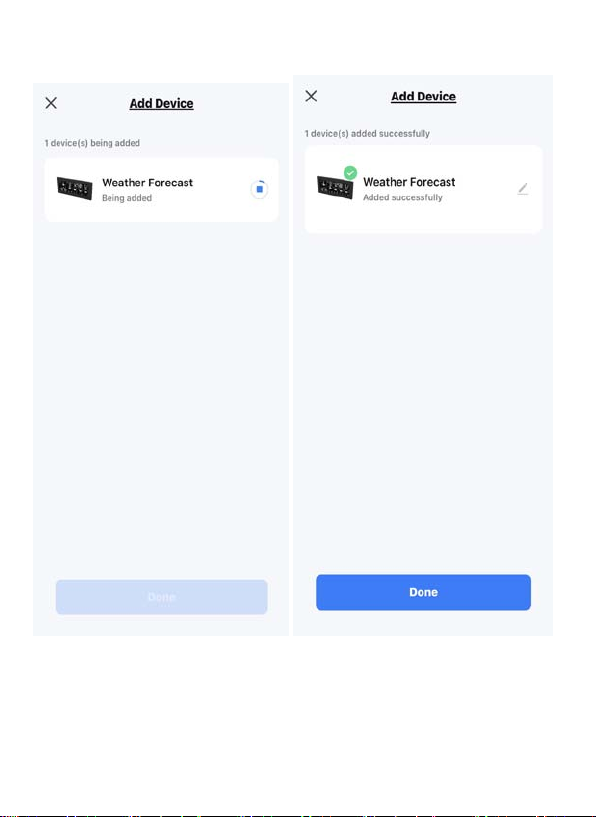

Step 5 Step 6

P. 9

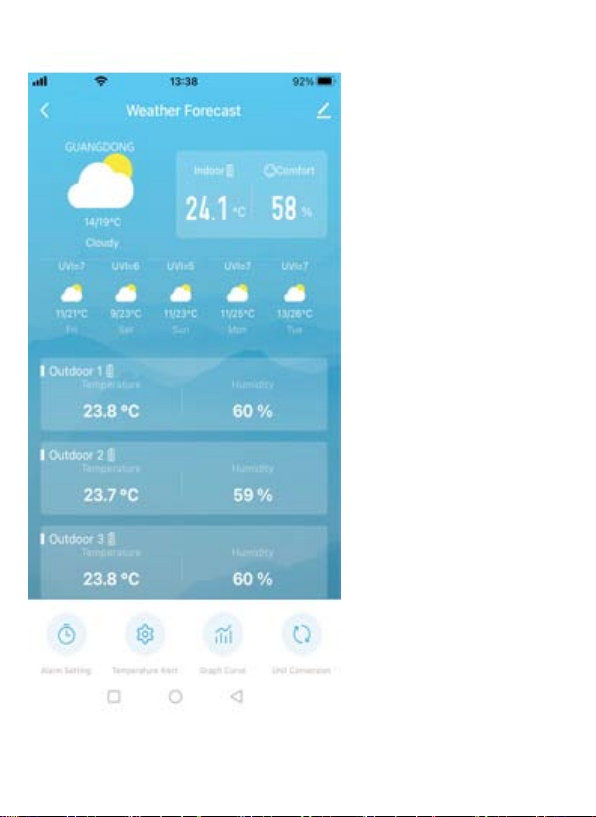

Step 7

P. 10

Note: The paired WIFI hotspot must be 2.4GHz, this

product only supports 2.4GHz wireless network

□If the product does not automatically enter the pairing

mode when powered on for the first time, you can press and

hold the WIFI button for more than 3 seconds to enter the

pairing mode manually, and the “”in the WIFI signal

icon will flash.

Note : if you need more help concerning Wifi connection, we

invite you to contact our technical department at the

03.88.40.75.36

Temperature Unit

The temperature unit can be set through the APP, as shown

in the legend below, Click “Unit Conversion” in the main

interface, jump to the second interface, click the temperature

unit menu, jump to the third interface, click to select the unit

to be set, and then click "Confirm" to complete the setting.
