La Crosse WT521IT Manuale utente

WT521IT

915 MHz

Projection Alarm Clock

Instruction Manual

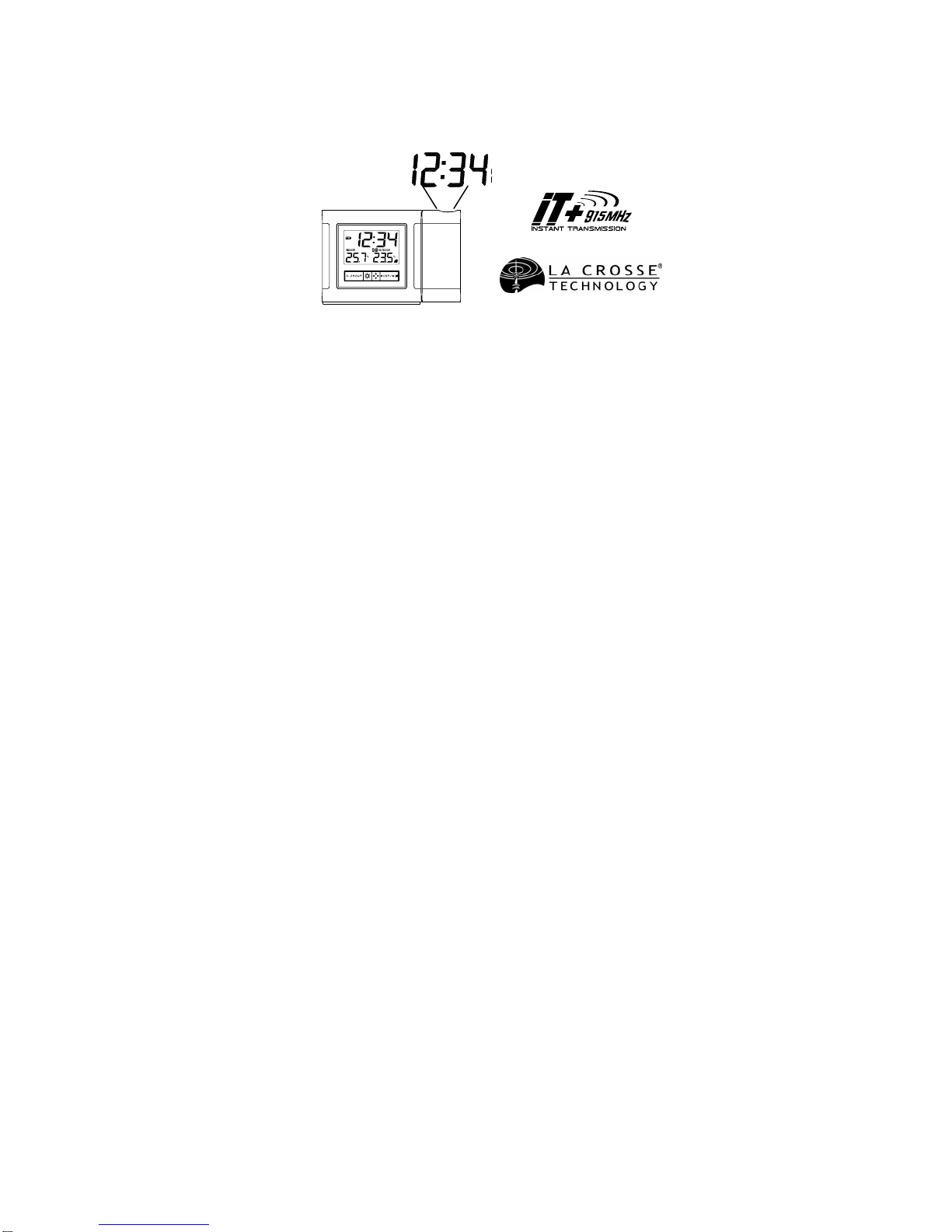

PROJECTION ALARM CLOCK

Model WT521IT

Instruction Manual

INTRODUCTION:

Congratulations on purchasing this compact 915 MHz Projection Alarm Clock which displays time,

indoor temperature and outdoor temperature readings. With only four keys, easy to use, this product

is ideal for use in the home or office.

« Instant Transmission+» is the up and coming state-of-the-art new wireless

transmission technology, exclusively designed and developed by LA CROSSE

TECHNOLOGY.

“IT +” offers you an immediate update of all your outdoor data measured from

the transmitters: follow your climatic variations in real-time!

PROJECTION ALARM CLOCK

FEATURES

Manual setting option

12/24 hours time display (hour, minutes, seconds)

Time projection (hour and minute)

Projection with adjustable brightness and projection orientation possible

Calendar display

Alarm setting with snooze function

Time zone setting ±12hours

Temperature display in ºC or ºF

Indoor and outdoor temperature display

Battery

compartment

Stand

daptor socket

Function

keys

LCD

Display

E.L. back-light

Wireless transmission at 915 MHz

Signal reception intervals at 4 seconds

Low battery indicator

TEMPERATURE TRANSMITTER:

Remote transmission of outdoor temperature to weather station

by 915 MHz signal

Wall mounting case

Mount in a sheltered place. Avoid direct rain and sunshine

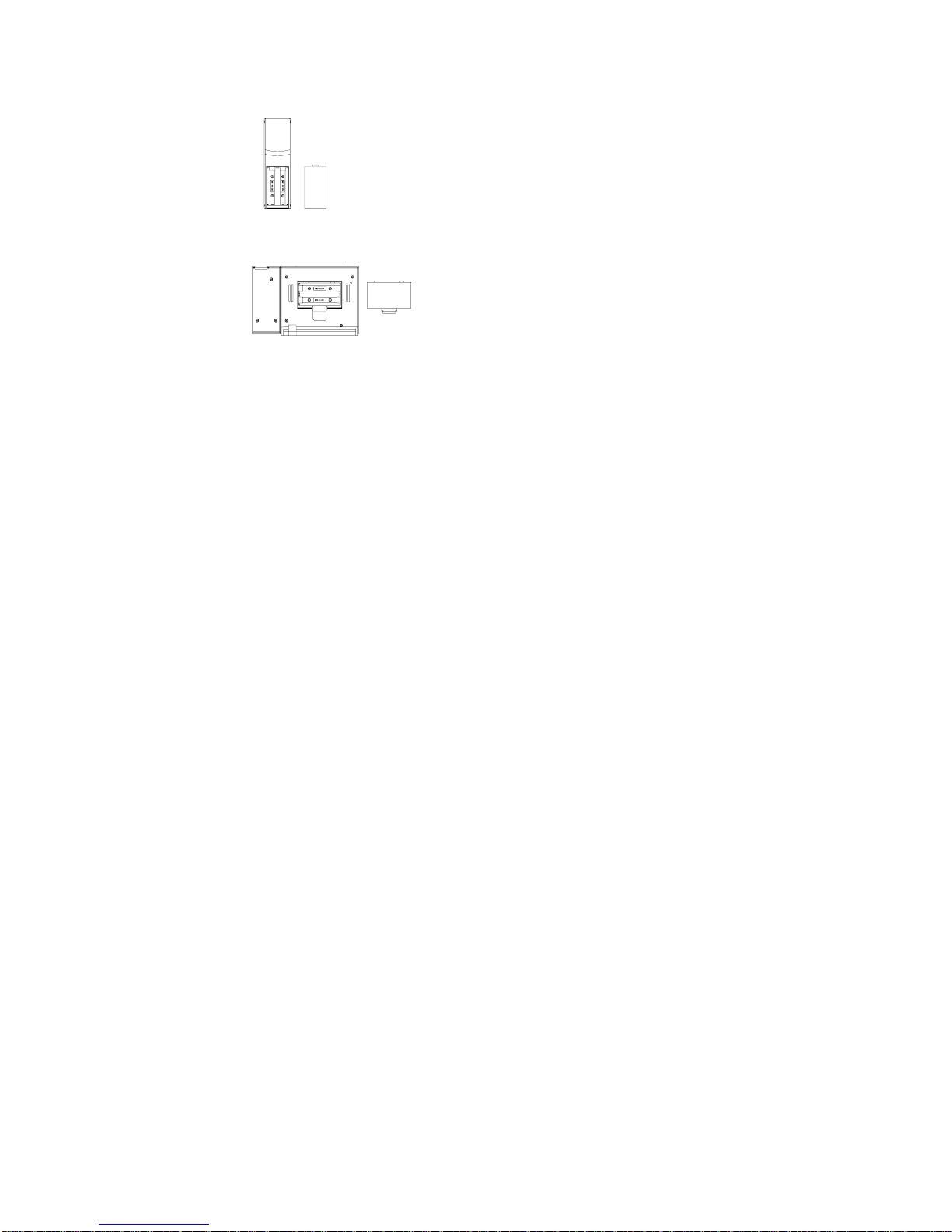

TO INSTALL AND REPLACE BATTERIES IN THE TEMPERATURE

TRANSMITTER

The Temperature Transmitter uses 2 x AA, IEC, LR6, 1.5V batteries. To install and replace

the batteries, please follow the steps below:

1. Remove the cover.

2. Insert the batteries, observing the correct polarity (see marking).

3. Replace the battery cover on the unit.

Note:

In the event of changing batteries in any of the units, all units need to be

reset by following the setting up procedures. This is because a random

security code is assigned by the transmitter at start-up and this code must

be received and stored by the Projection alarm clock in the first three

minutes of power being supplied to it.

TO INSTALL AND REPLACE BATTERIES INTO THE PROJECTION CLOCK

The Projection Clock uses 2 x AA, IEC LR6, 1.5V batteries. To install and replace the

batteries, please follow the steps below:

1. Insert finger or other solid object in the space at

the bottom centre of the battery compartment and

lift up to remove the cover.

2. Insert batteries observing the correct polarity (see

marking).

3. Replace compartment cover.

In addition or instead of inserting batteries, the AC adaptor can be used:

1. Connect the power adaptor to a wall socket

2. Insert the adaptor into the

jack at the bottom of the

clock

Important!

Use only the adaptor provided with

the projection clock and make sure

that your household voltage is

appropriate to the working voltage

of the transformer. Otherwise your

Projection clock may be damaged.

POWER SUPPLIED BY BATTERIES AND AC/DC ADAPTOR

If the Projection clock is first powered by batteries and the power adaptor is subsequently

used for extended period of time, the main power source of the Projection clock will switch to

AC/DC power. The batteries will then act as a backup power source in case of power failure.

SETTING UP

The Projection clock can be battery operated or powered by the provided AC/DC

adaptor.

1. First, insert 2 x AA, IEC LR6, 1.5V batteries into the transmitter.

2. Within 1 minute of activating the remote transmitter, insert 2 x AA, IEC LR6, 1.5V

batteries into the projection clock (or use the A/C adaptor to power up). Once the

batteries are in place, all segments of the LCD will light up briefly. Then the indoor

temperature, the time as 12:00, will be displayed. If the indoor temperature is not

displayed after a few seconds, remove the batteries and wait for at least 30 seconds

before reinserting them. Once the indoor data is displayed proceed to step 3.

3. After a few seconds of inserting the batteries into the transmitter, the projection clock

will start receiving data from the transmitter. The remote temperature will then be

displayed on the clock. If this does not happen after 2 minutes, the batteries will need

to be removed from both units and reset from step 1.

4. In order to ensure sufficient 915 MHz transmission however, the distance between the

Projection clock and the transmitter should not be more than 100 metres (330 feet)

(see notes on “Positioning” and “915 MHz Reception”).

Note:

Should the total time of inserting the batteries into the transmitter take longer than 1-1/2

minutes from the time of inserting the batteries into the projection clock then temperature

reception problems may occur. If the temperature is not being received, then see "915MHZ

RECEPTION", before resetting the units.

In the event of changing batteries to the transmitter, the projection clock needs to be reset.

(See RESETTING THE PROJECTION CLOCK)

5. Press the SET key to manually enter a time initially.

RESETTING THE PROJECTION CLOCK

To reset the Projection clock to the factory default setting or in case of a malfunction or

changing batteries to transmitter, please remove all batteries from the unit and unplug the

AC/DC adaptor from any power source. With power disconnected, press any button 20

times. Wait at least for 3 minutes before powering up the Projection clock again.

BATTERY CHANGE:

It is recommended to replace the batteries in all units regularly to ensure optimum accuracy

of these units (Battery life See Specifications below).

Please participate in the preservation of the environment. Return used

batteries to an authorized depot.

PROJECTION OF TIME / OUTDOOR TEMPERATURE

Note:

The projection is a red light, not harmful under normal usage, yet care should be taken to

avoid looking directly into the light.

1. When plugged into an AC outlet, the projection alarm can continuously project the time

and the outdoor temperature

2. When operating on batteries alone, the projection alarm will only project when the

SNOOZE button is pressed or the alarm is sounding.

3. The projection will auto-focus for display from about 1.7 to 2.0 metres (5.5 to 6.5 feet)

away. A dark surrounding will be necessary to clearly see the projection.

The direction of the display can also be rotated 360 in 90 increments by pressing the

Projection Direction button. The projector case can be rotated 180 to further help orient

the projected display.

Note:

If the Projection clock is powered through the adaptor, the projection will be constantly ON at

the highest brightness level unless the brightness level is manually changed to a lower

brightness level afterwards. And the brightness of the projection can be change accordingly

to enhance the clarity of the projected time by pressing the key. Press and release the

key slowly to also turn off.

If the Projection clock is battery operated, the projection will be ON at the highest brightness

level only when the SNOOZE key is pressed. The intensity of the brightness level of the

projection cannot be changed. If the SNOOZE is released, the projection will be turned OFF.

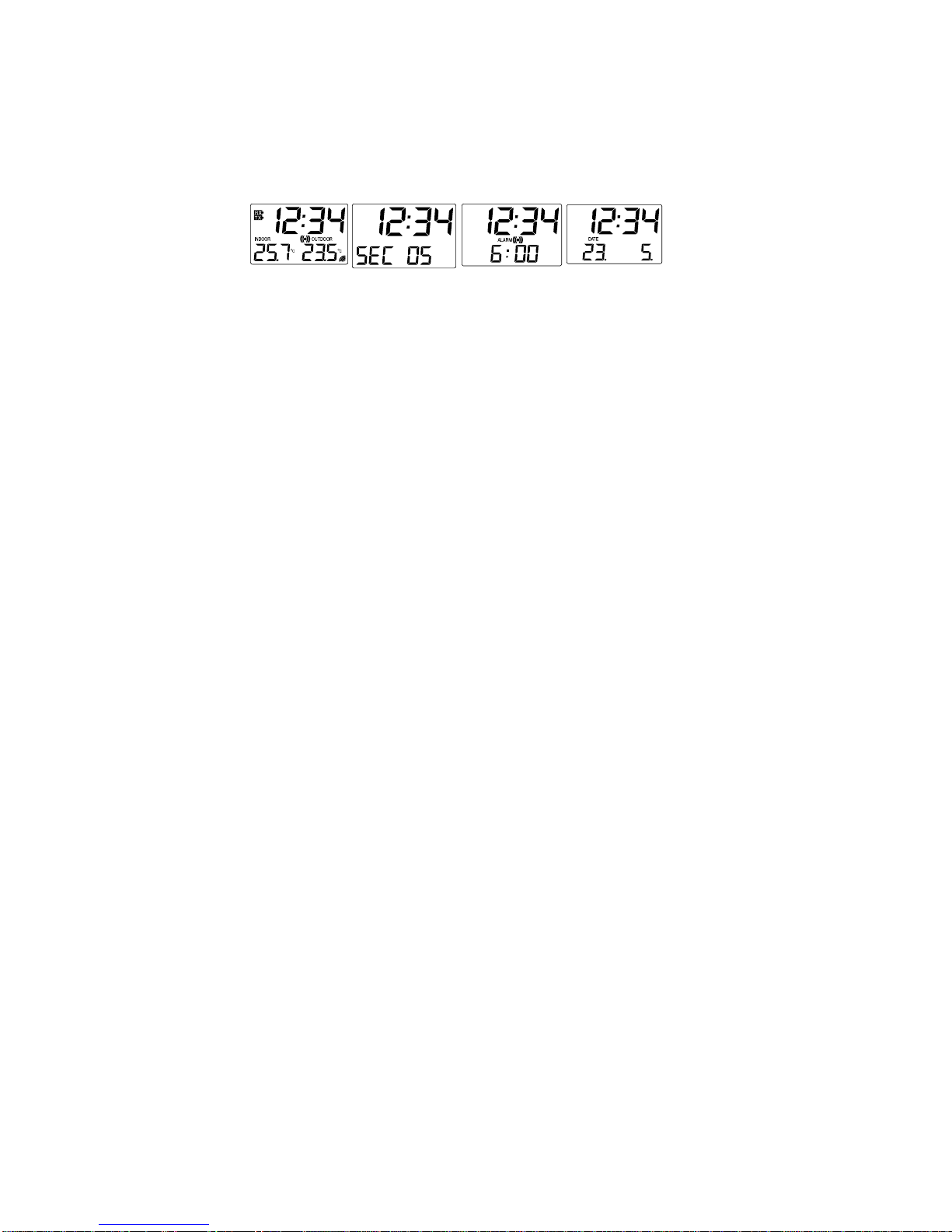

TOGGLE BETWEEN THE DISPLAY OF TEMPERATURES, SECONDS,

PRESET ALARM TIME AND CALENDAR

With a short press of the MODE/MIN key, you will toggle between the following displays:

1. Indoor and outdoor temperature

2. Seconds

3. Preset alarm time

4. Day and Month
