Lab.gruppen FP+ Series FP 13000 Manuale utente

Item no. CDTD_FP13000_V4

Current Draw and Thermal Dissipation

FP+ Series: Dedicated Touring Ampliﬁers

FP 13000

Lab.gruppen ab •Sweden

internationaL contact • info@Labgruppen.com | uS contact • info@tcuS.com

www.labgruppen.com

-10dB

-inf 0

-10dB

-inf 0

Bchannel

channel

FP SERIES

VHF

TEM

VHF

TEM

channel A

-20 -15 -10 -4 VPL CPL

channel B

-20 -15 -10 -4 VPL CPL

BRIDGE A+B

SIG

PWR

P A L

NOMAD

LINK

MUTE

CLIP

HI-IMP

FP13000

P O W

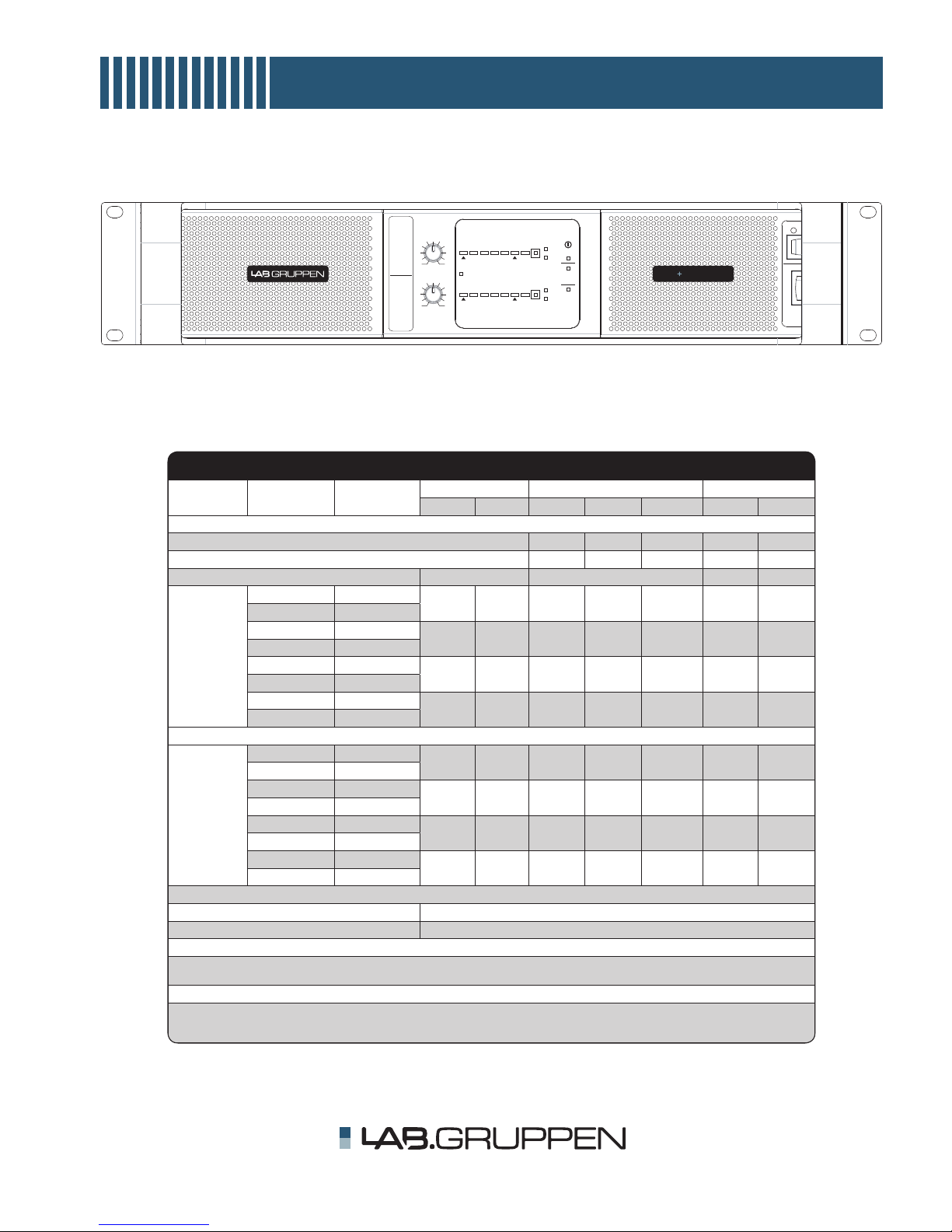

The following tables contain information on measured current consumption as well as calculated heat dissipation during normal operation

(1/8 rated power); and during extreme heavy duty operation (1/4 rated power).

FP 13000

Level Load Rated Power Line Current *2) Watt *1) Thermal Dissipation

115 VAC 230 VAC In Out Dissipated BTU/hr kCal/hr

Standby, with remote power off via NomadLink 0 0 0 0 0

Powered on, idling 129 0129 440 111

Amp (I) Watt

Pink noise (1/8

rated power)

16 Ω/ Ch. 1200 x 2

10.6 5.3 678 300 378 1289 325

32 Ω/ Bridged 2400 x 1

8 Ω/ Ch. 2350 x 2

16.2 8.1 1083 588 495 1690 426

16 Ω/ Bridged 4700 x 1

4 Ω/ Ch. 4400 x 2

26.5 13.2 1856 1100 756 2578 650

8 Ω/ Bridged 8800 x 1

2 Ω/ Ch. 6500 x 2

37.8 18.9 2536 1625 911 3109 783

4 Ω/ Bridged 13000 x 1

Pink noise (1/4

rated power)

*3)

16 Ω/ Ch. 1200 x 2

16.0 8.0 1037 800 237 807 203

32 Ω/ Bridged 2400 x 1

8 Ω/ Ch. 2350 x 2

27.2 13.6 1840 1567 273 933 235

16 Ω/ Bridged 4700 x 1

4 Ω/ Ch. 4400 x 2

48.3 24.1 3419 2933 486 1659 418

8 Ω/ Bridged 8800 x 1

2 Ω/ Ch. 6500 x 2

58.0 29.0 4243 3250 993 3390 854

4 Ω/ Bridged 13000 x 1

Mains connector, 230 V CE version 16 A, CEE7

Mains connector, 115 V ETL version 30 A, Nema L5-30P Twist lock

*1) The ampliﬁer’s PSU operates as a non-resistive load, so the calculation “Volts x Amps = Watts” would not be correct. Instead, measured and

speciﬁed here is what is known as the “Active Power” of the ampliﬁer providing useful, real-world values of power consumption and heat dissipation.

*2) Current draw ﬁgures measured at 230 V. 115 V ﬁgures are 230 V ﬁgures multiplied by two.

*3) Figures measured at maximum power before ampliﬁer protection and limiter features are engaged. Typically this is between 1/4 and 1/3 of rated

power. Note that the max. power condition is very extreme and will not occur during normal operation. Also note that the mains breaker will not be

tripped even if operation is in excess of max. ratings.
