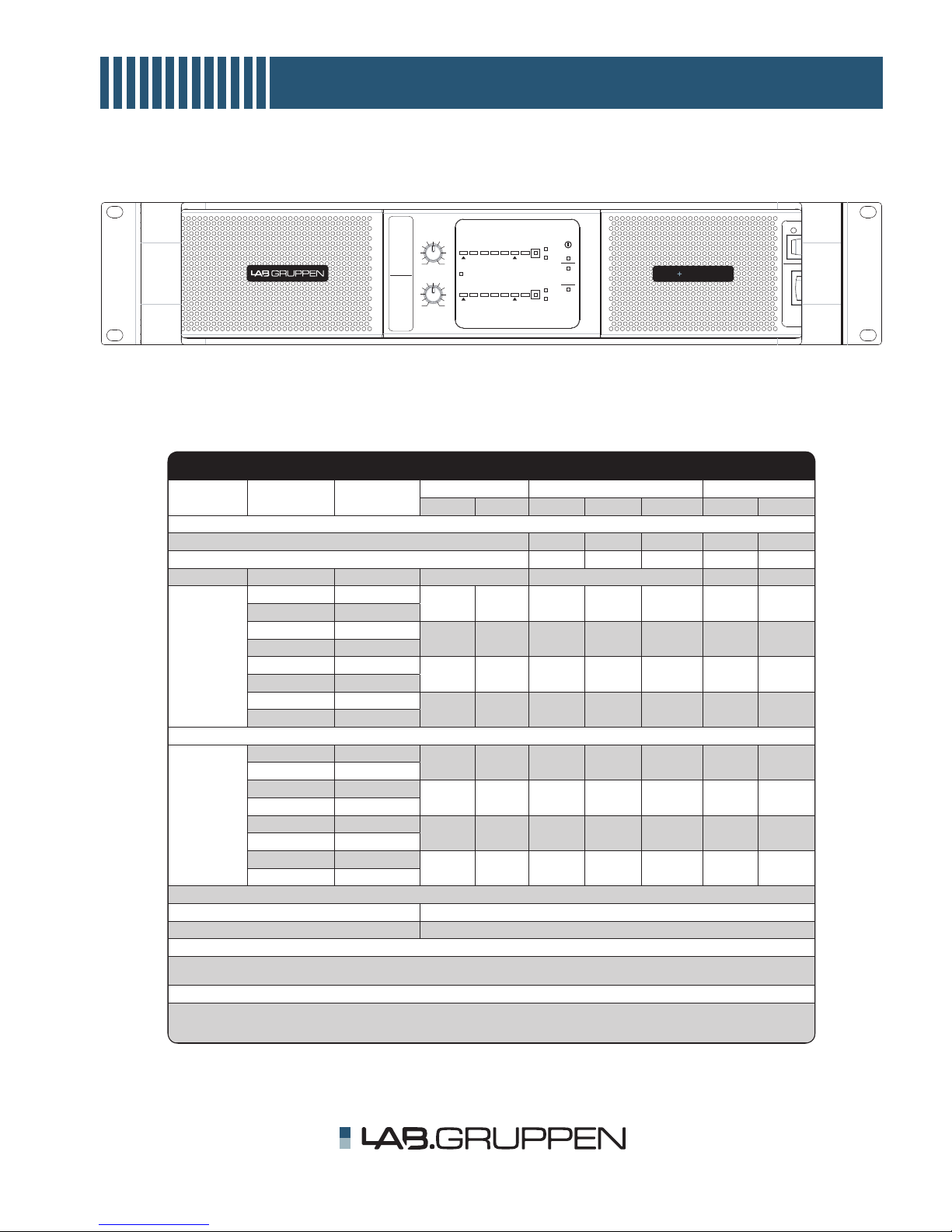

Lab.gruppen FP+ Series FP 7000 Manuale utente

Item no. CDTD_FP7000_V4

Lab.gruppen ab •Sweden

internationaL contact • info@Labgruppen.com | uS contact • info@tcuS.com

www.labgruppen.com

-10dB

-inf 0

-10dB

-inf 0

Bchannel

channel

FP SERIES

VHF

TEM

VHF

TEM

channel A

-20 -15 -10 -4 VPL CPL

channel B

-20 -15 -10 -4 VPL CPL

BRIDGE A+B

SIG

PWR

P A L

NOMAD

LINK

MUTE

CLIP

HI-IMP

FP7000

P O W

The following tables contain information on measured current consumption as well as calculated heat dissipation during normal operation

(1/8 rated power); and during extreme heavy duty operation (1/4 rated power).

Current Draw and Thermal Dissipation

FP+ Series: Dedicated Touring Ampliﬁers

FP 7000

Level Load Rated Power Line Current *2) Watt *1) Thermal Dissipation

115 VAC 230 VAC In Out Dissipated BTU/hr kCal/hr

Standby, with remote power off via NomadLink 0 0 0 0 0

Powered on, idling 92 092 316 80

Amp (I) Watt

Pink noise (1/8

rated power)

16 Ω/ Ch. 730 x 2

6.8 3.4 411 183 229 781 197

32 Ω/ Bridged 1460 x 1

8 Ω/ Ch. 1450 x 2

10.8 5.4 692 363 329 112 3 283

16 Ω/ Bridged 2900 x 1

4 Ω/ Ch. 2800 x 2

17.4 8.7 1176 700 476 1625 409

8 Ω/ Bridged 5600 x 1

2 Ω/ Ch. 3500 x 2

22.0 11.0 1518 875 643 2195 553

4 Ω/ Bridged 7000 x 1

Pink noise (1/4

rated power)

*3)

16 Ω/ Ch. 730 x 2

19.6 9.8 800 487 313 1070 270

32 Ω/ Bridged 1460 x 1

8 Ω/ Ch. 1450 x 2

33.3 16.6 1455 967 489 1667 420

16 Ω/ Bridged 2900 x 1

4 Ω/ Ch. 2800 x 2

39.4 19.7 2705 1867 838 2860 721

8 Ω/ Bridged 5600 x 1

2 Ω/ Ch. 3500 x 2

39.4 19.7 3088 2333 754 2574 649

4 Ω/ Bridged 7000 x 1

Mains connector, 230 V CE version 16 A, CEE7

Mains connector, 115 V ETL version 30 A, Nema L5 -30P Twist lock

*1) The ampliﬁer’s PSU operates as a non-resistive load, so the calculation “Volts x Amps = Watts” would not be correct. Instead, measured and

speciﬁed here is what is known as the “Active Power” of the ampliﬁer providing useful, real-world values of power consumption and heat dissipation.

*2) Current draw ﬁgures measured at 230 V. 115 V ﬁgures are 230 V ﬁgures multiplied by two.

*3) Figures measured at maximum power before ampliﬁer protection and limiter features are engaged. Typically this is between 1/4 and 1/3 of rated

power. Note that the max. power condition is very extreme and will not occur during normal operation. Also note that the mains breaker will not be

tripped even if operation is in excess of max. ratings.
