LABHG100 Wideband Digital Aerial

Labgear

•Tilting mast clamp for easy adjustment

•Easy dipole assembly

•Electronic 75Ω balun

•Connection: F type

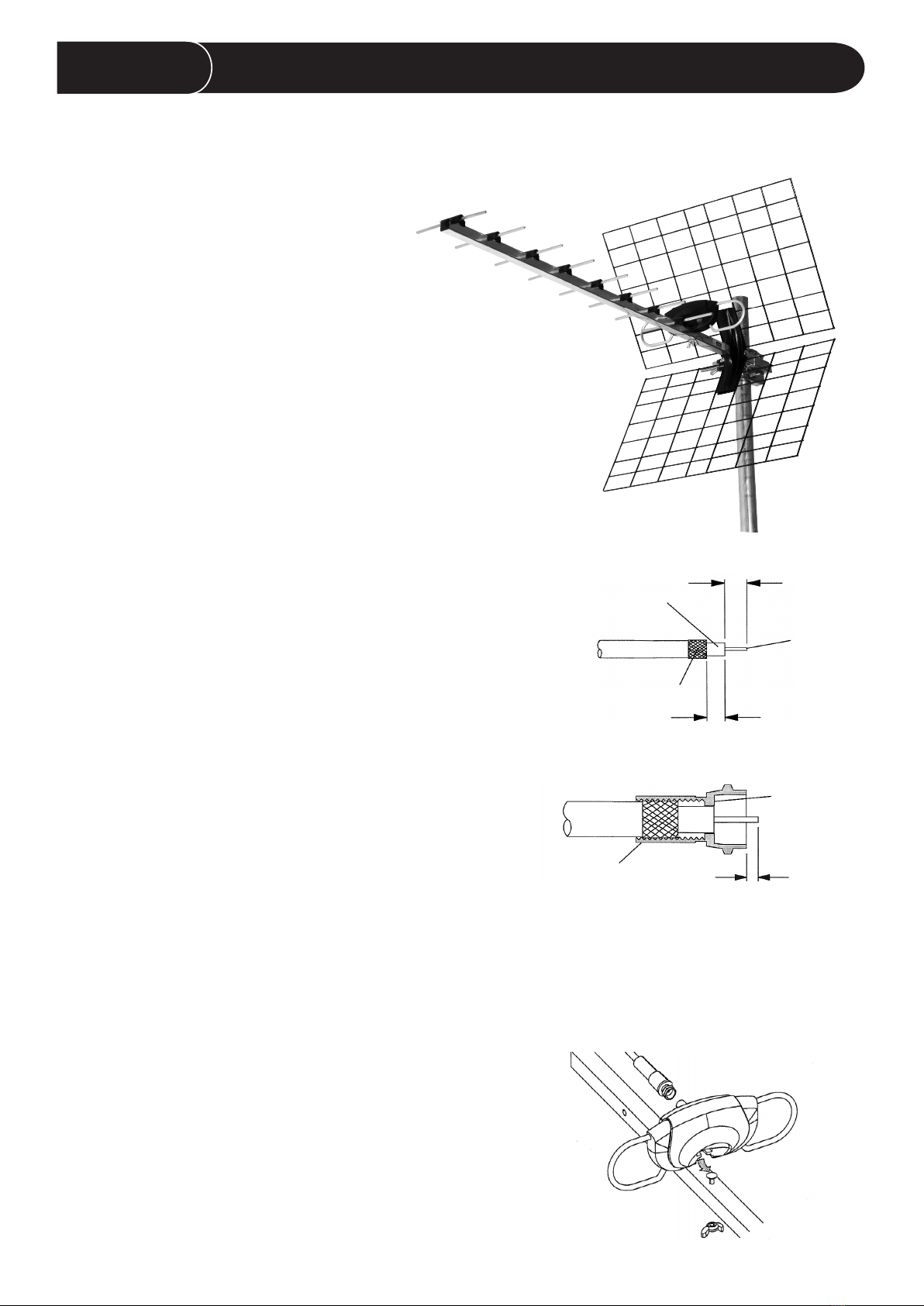

Installation Instructions

Congratulations on the purchase of your high gain digital aerial. The aerial is ideal for

the reception of all available signals in strong signal areas.

For optimum results install the aerial using double screened CAI

approved digital coax cable and screened coax outlets.You will need

to ﬁt the coax cable with an F type connector to connect to the

aerial balun.

1. Prepare the Coax Cable: Firstly fit the rubber weather boot

provided, to the aerial end of the cable. Strip the end of the

cable as shown in Fig. 1. Once you have stripped the cable,

twist the braid and pull it back on itself, make sure that no

braid is touching the copper core, this will cause a short on

the cable and you will not get any signal.

2. Fitting the F connector (not supplied): Now, simply twist

on an F connector and trim the central conductor.

Aerial Assembly

Loosen the coach bolt and wing nut located towards the

back of the boom and slide the dipole assembly moulding

under the head of the coach bolt as far as it will go, then

tighten the wing nut to secure the dipole in place.

Note:- F socket outlet must face the rear of the aerial.

fold braid back

over sheath

8mm

inner

wire

cut or tear

away foil

6.5mm

Fig. 1

screw connector

body onto cable

2mm approx.

end of

insulation

should be

flush with

this face

Fig. 2

Troubleshooting

No picture: Check all connections from aerial to TV.

Poor picture: Check all connections from aerial to TV.

Check aerial is properly aligned to the correct

transmitter.

If the aerial has been loft mounted try mounting outside.

Make sure new digital coax cable has been used

throughout the installation.

Check the transmitter signal is not obstructed by nearby

trees or buildings.

If in a very weak signal area or for long cable runs,

installing a masthead amplifier will improve the signal.

If in a strong signal area the signal strength may need

to be reduced by fitting an attenuator.

Customer Careline: 08457 573 479

Local rate UK number, Monday to Friday 9am-5pm

E-mail Support: [email protected]

Other Useful Websites for Digital Advice:

*To conﬁrm that your home is in a coverage area, to ﬁnd out

what DTT channels should be available locally and to ﬁnd

out where your nearest transmitter is (distance and compass

bearing) visit: www.dtg.org.uk/retailer/coverage.html

Caution

When mounting the assembled aerial, always observe

safety precautions and use the correct equipment.

Unless you are competent in the use of ladders and other

access equipment,do not work outdoors at roof height.

If in any doubt, refer to a qualiﬁed aerial installer.

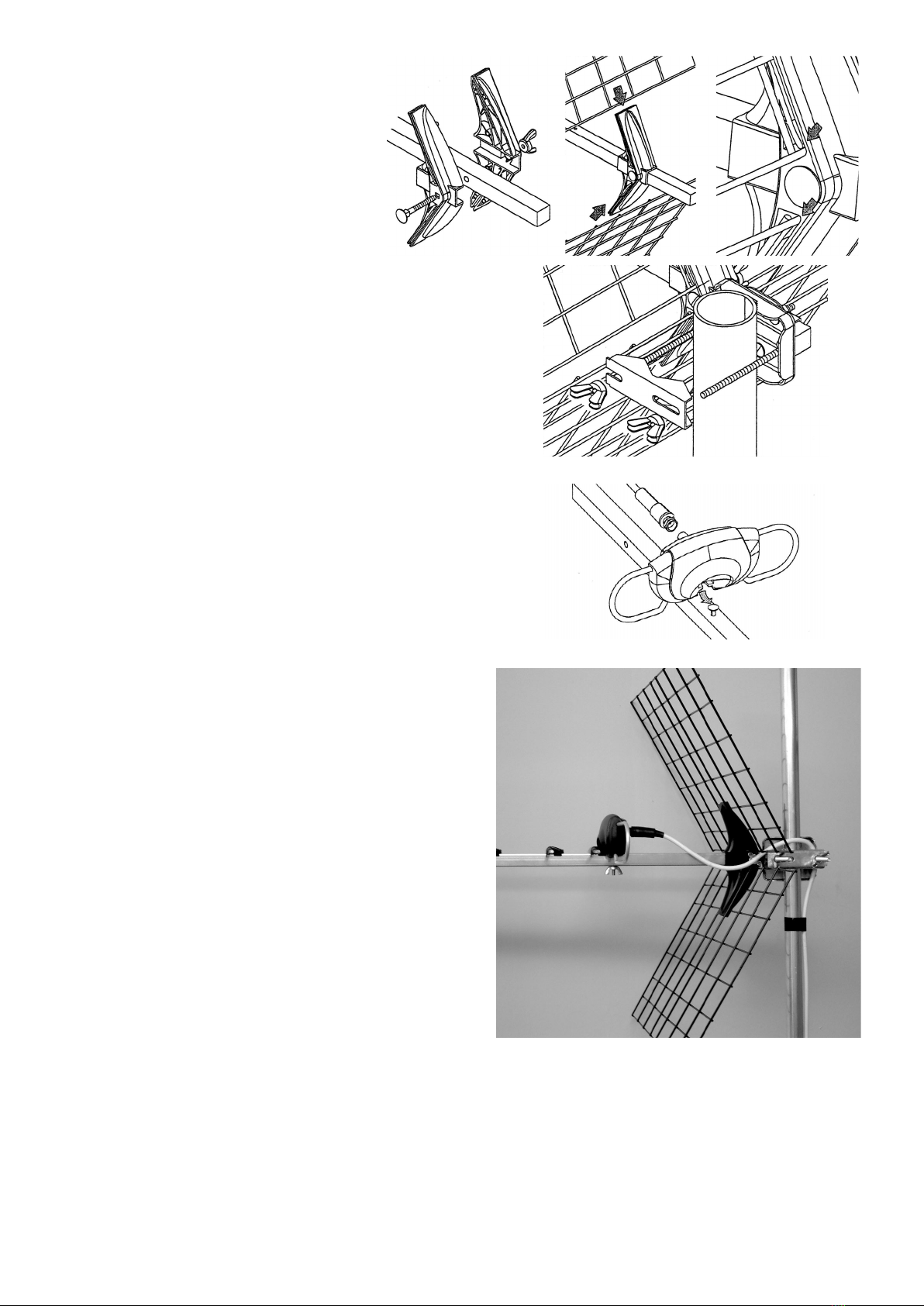

Assemble the two reﬂector clamps to the

boom and secure with the coach bolt and

wing nut provided. Slide one reﬂector panel

into the slot until it clicks into place and can

not be pulled out.

Note:- Ensure panel is centrally mounted.

Repeat the same procedure for the second

reﬂector panel.

Fit the assembled aerial onto the mast using the mast

clamp provided with the aerial, the mast clamp is suitable

for mounting on to 25 – 50mm diameter masts.

Using the tilting mechanism adjust the aerial to horizontal

and tighten hexagonal nuts.

Connect co-ax cable ﬁtted with F plug (co-ax cable and F

plug not supplied), to F socket outlet on dipole (be careful

not to over tighten the

F connector as this will damage the

balun)

. Ensure the weatherproof boot is ﬁtted to the cable

and pushed over the connection.

Using PVC insulating tape, tape the co-ax lead to the aerial

as shown opposite.

Do not allow the cable to touch the aerial boom at any

point.
