LaCie 5big Thunderbolt Series Manuale utente

LaCie 5big Thunderbolt™ Series User Manual 1

LACIE 5BIG THUNDERBOLT™ SERIES USER MANUAL

CLICK HERE TO ACCESS UP-TO-DATE ONLINE VERSION

of this document for the most recent content as well as for features such as expandable

illustrations, easier navigation, and search capability.

LaCie 5big Thunderbolt™ Series User Manual 2

INTRODUCTION

Welcome to the User Manual for the LaCie 5big Thunderbolt Series. With lightning-fast speeds

through the Thunderbolt interface, this product is perfect for high-bandwidth applications

such as HD video editing and workstation backup. Thanks to its five hard disks, you can

configure the LaCie 5big into a range of RAID modes suitable for a variety of uses.

These pages will guide you through the process of connecting your LaCie product and will explain its features. If

this manual doesn't answer your questions or if you are having trouble, consult the Getting Help page.

BOX CONTENT

Your box contains the following:

LaCie 5big Thunderbolt Series

■

External power supply (12V/12.5A)

■

Thunderbolt cable

■

2-in-1 RAID mode change and drive removal tool

■

CD with User Manual and software

■

Cable management clasp

■

Quick Install Guide

■

Important info: Please save your packaging. In the event that the product should need to be repaired or

serviced, it must be returned in its original packaging.

MINIMUM SYSTEM REQUIREMENTS

Your system must meet certain requirements in order for your LaCie product to function properly. For a list of

these requirements, please refer to the product packaging or consult the product support web page at

www.lacie.com/support/.

LaCie 5big Thunderbolt™ Series User Manual 3

VIEWS OF THE PRODUCT

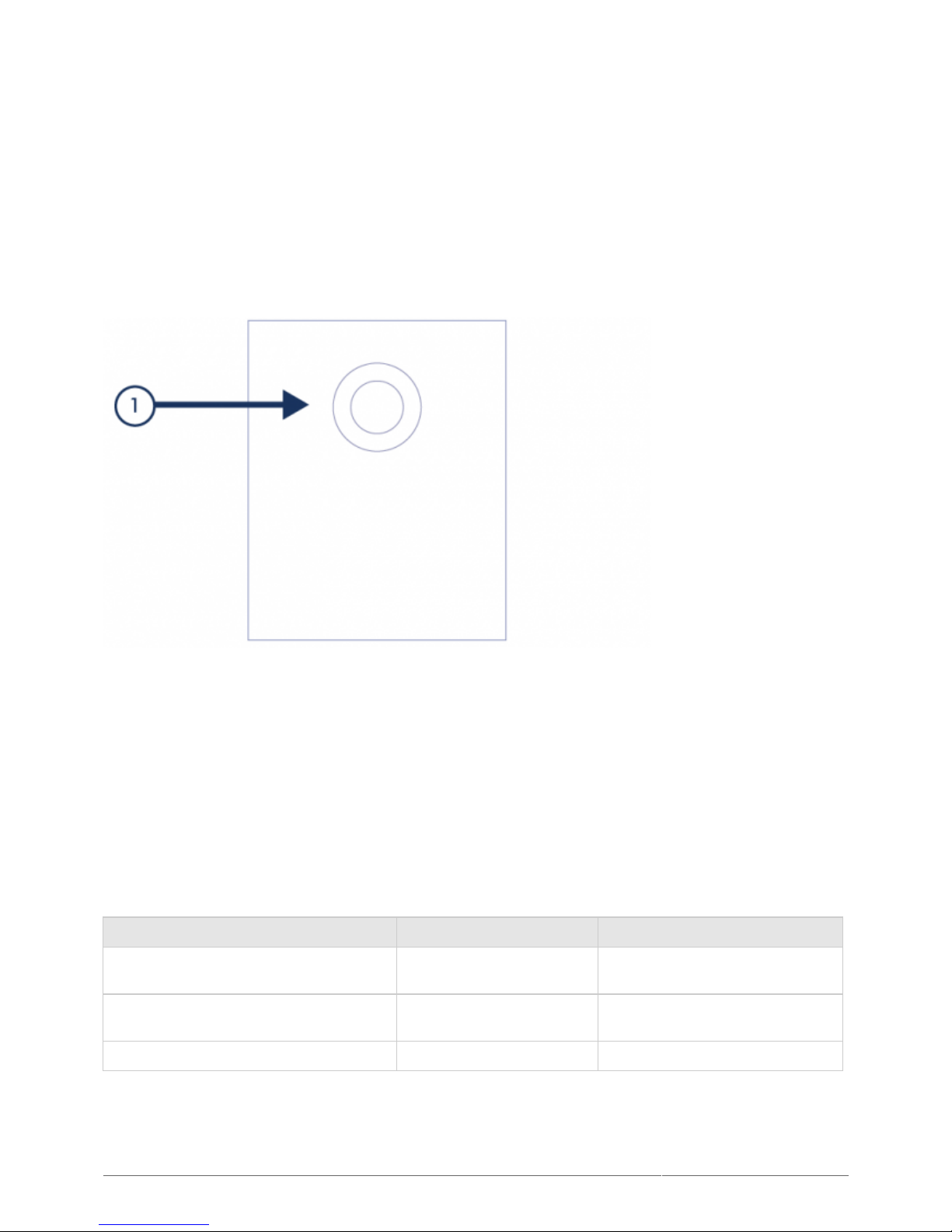

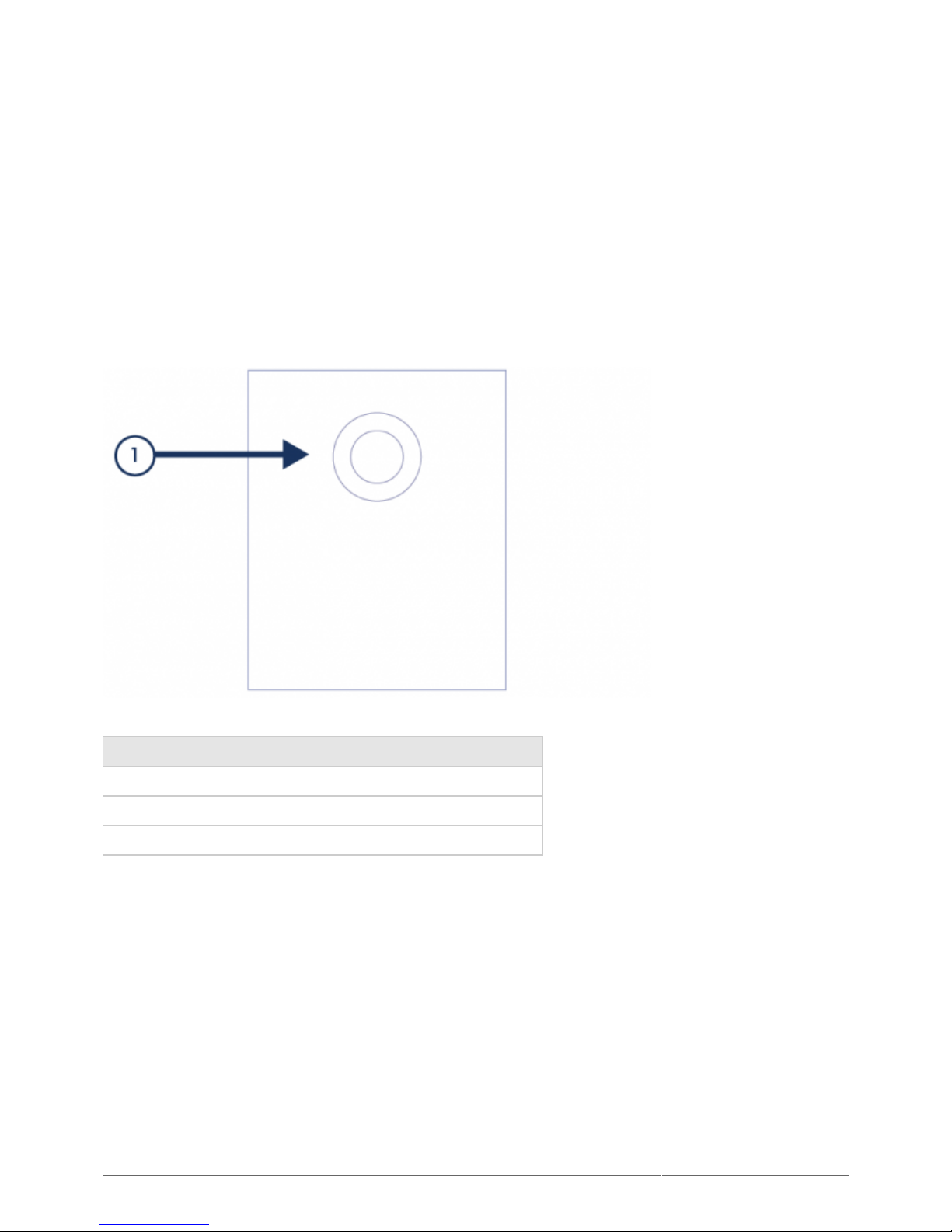

FRONT VIEW

Activity LED and button1.

Front Button Functions

The front LED is also a button. Consult the following table for front button functions. Note that Passive Mode

means that the product is on but the disks are idle. This allows you, for example, to daisy chain compatible

Thunderbolt devices to a host computer via the LaCie 5big, without causing the 5big's disks to spin up. This lets

you control energy usage and limit unnecessary wear and tear on the 5big's disks.

Product State Front Button Action Result

Product is turned on, connected to a host,

and disks are idle Press and release Disks spin up

Product is turned on, connected to a host,

and disks are spinning Press and hold for 5 seconds Enter passive mode

Passive mode Press and release Disks spin up (leave passive mode)

LaCie 5big Thunderbolt™ Series User Manual 4

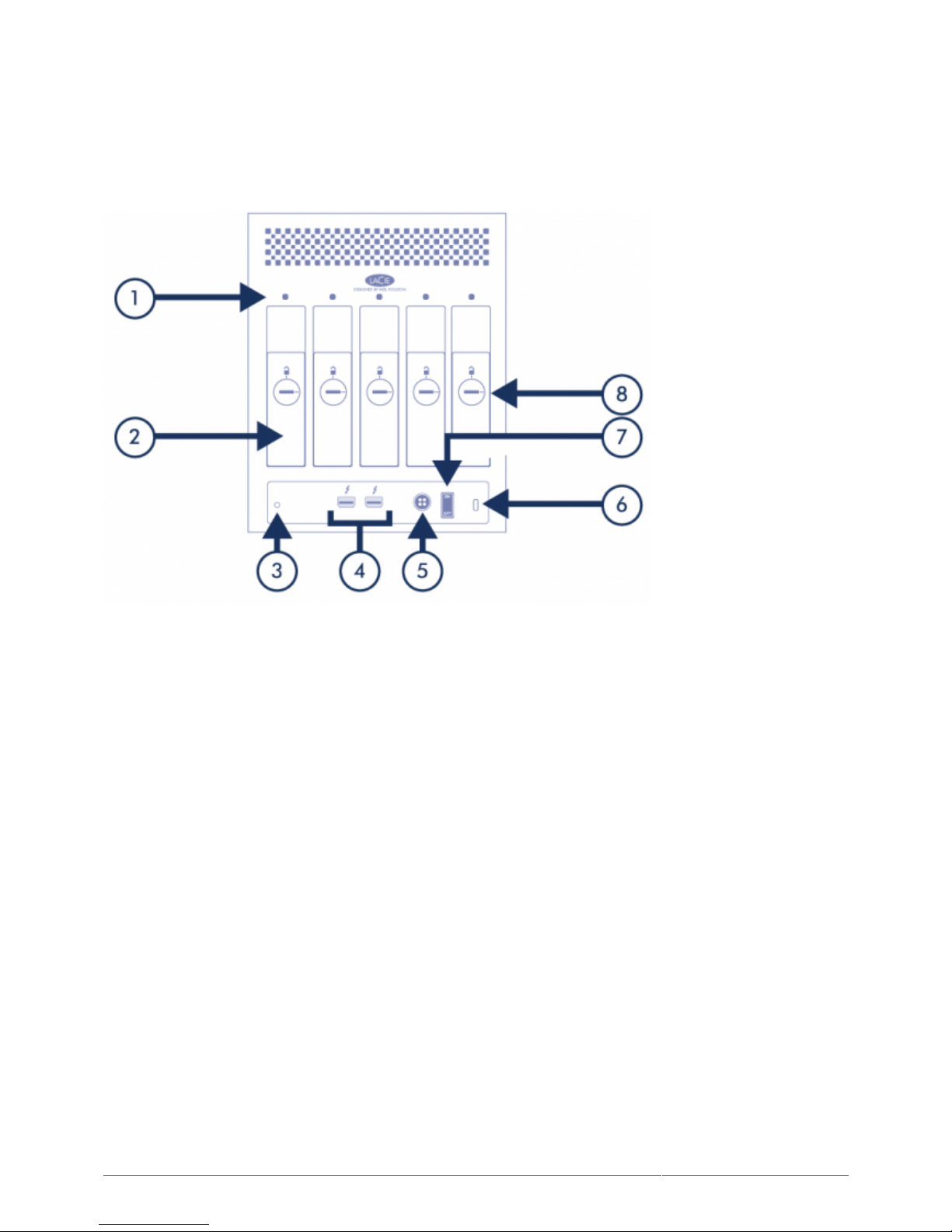

REAR VIEW

Drive status LEDs1.

Swappable disk trays2.

Cable management clasp port3.

Thunderbolt ports4.

Power supply5.

Kensington™ lock port6.

On/off7.

Disk tray lock8.

LaCie 5big Thunderbolt™ Series User Manual 5

CABLES AND CONNECTORS

THUNDERBOLT

Your LaCie product features Thunderbolt technology, the most flexible interface ever created. This exciting new

high-speed cable technology connects your computers and electronic devices together like never before.

Thunderbolt technology supports two 10Gb/s bi-directional channels from a single port, the fastest data

connection available on a personal computer. At 10Gb/s, a full-length HD movie can be transferred in less than

30 seconds.

Thanks to support for both data streams and mini DisplayPort video, you can connect either a storage peripheral

or a display to a Thunderbolt port. However, it's not possible to use a mini DisplayPort cable to connect a

storage peripheral to a Thunderbolt port. You must use a Thunderbolt cable.

For more information, see www.lacie.com

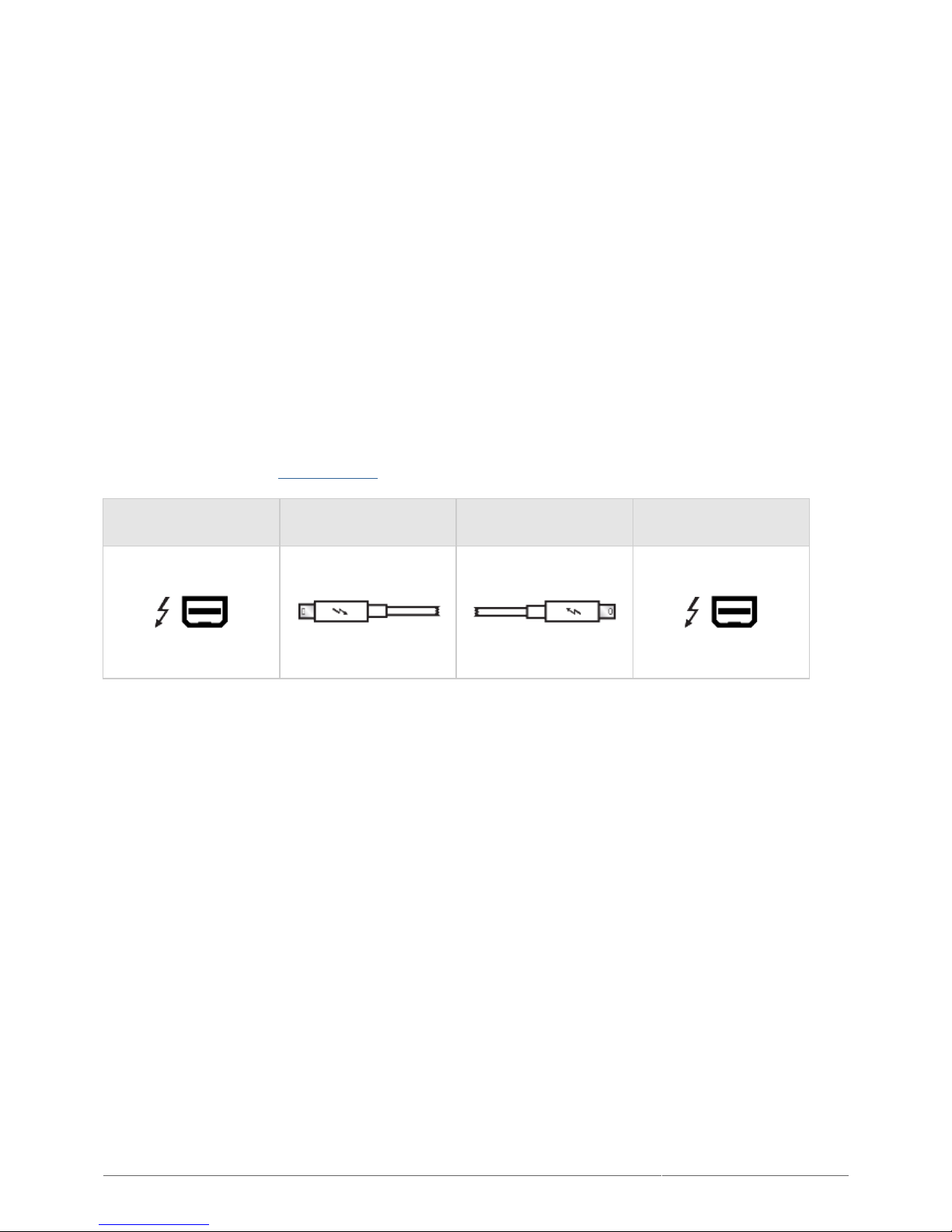

Connector Face

(to computer)

Cable End

(to computer)

Cable End

(to product)

Connector Face

(to product)

LaCie 5big Thunderbolt™ Series User Manual 6

CABLE MANAGEMENT

This product includes a cable lock, a small plastic clasp that prevents cords from accidentally disconnecting.

Important Info: It's impossible to disconnect the cable lock without destroying it.

To use the cable lock:

Insert the clasp's locking head into the lock slot.1.

Make sure that the interface cable is connected to the product.2.

String the interface cable through the open cable lock gate.3.

Close and snap in place the cable lock gate.4.

LaCie 5big Thunderbolt™ Series User Manual 7

LED & BUZZER

Your LaCie product features a multi-functional LED/button on the front, as well as five drive status LEDs on the

rear. It also features a temperature alert buzzer.

FRONT LED

State Indication

Off Product is turned off or power supply is disconnected

Solid blue Turned on

Solid red Fan disconnected or non-functional

LaCie 5big Thunderbolt™ Series User Manual 8

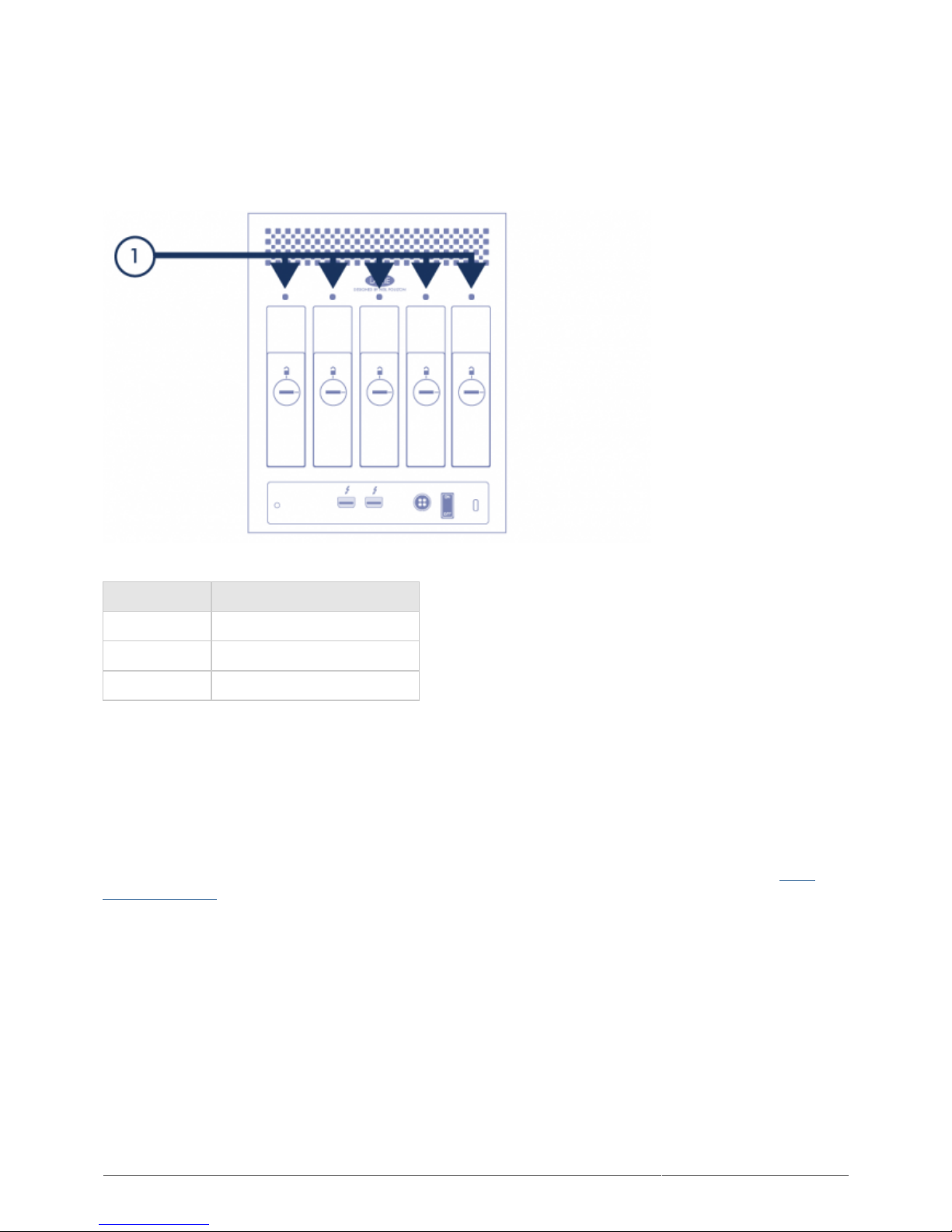

DISK LEDS

State Indication

Off No disk or non-functional disk

Solid blue Disk OK but not in use

Flickering blue Disk activity

BUZZER

A buzzer will sound to indicate a temperature alert. Simultaneously, the front LED will turn red.

You can turn off the buzzer by pressing the front button, but the LED will stay red.

In order to protect the hard disks from excessive heat, please discontinue use of the product. Contact LaCie

technical support.

LaCie 5big Thunderbolt™ Series User Manual 9

GET CONNECTED

Please follow the setup steps in the order they are given to ensure that your LaCie 5big's volumes mount

correctly on your computer.

STEP 1 - INSTALL DISKS

If your LaCie 5big shipped without disks, first install your own hard disks before continuing with these steps.

Refer to Install Disks for details.

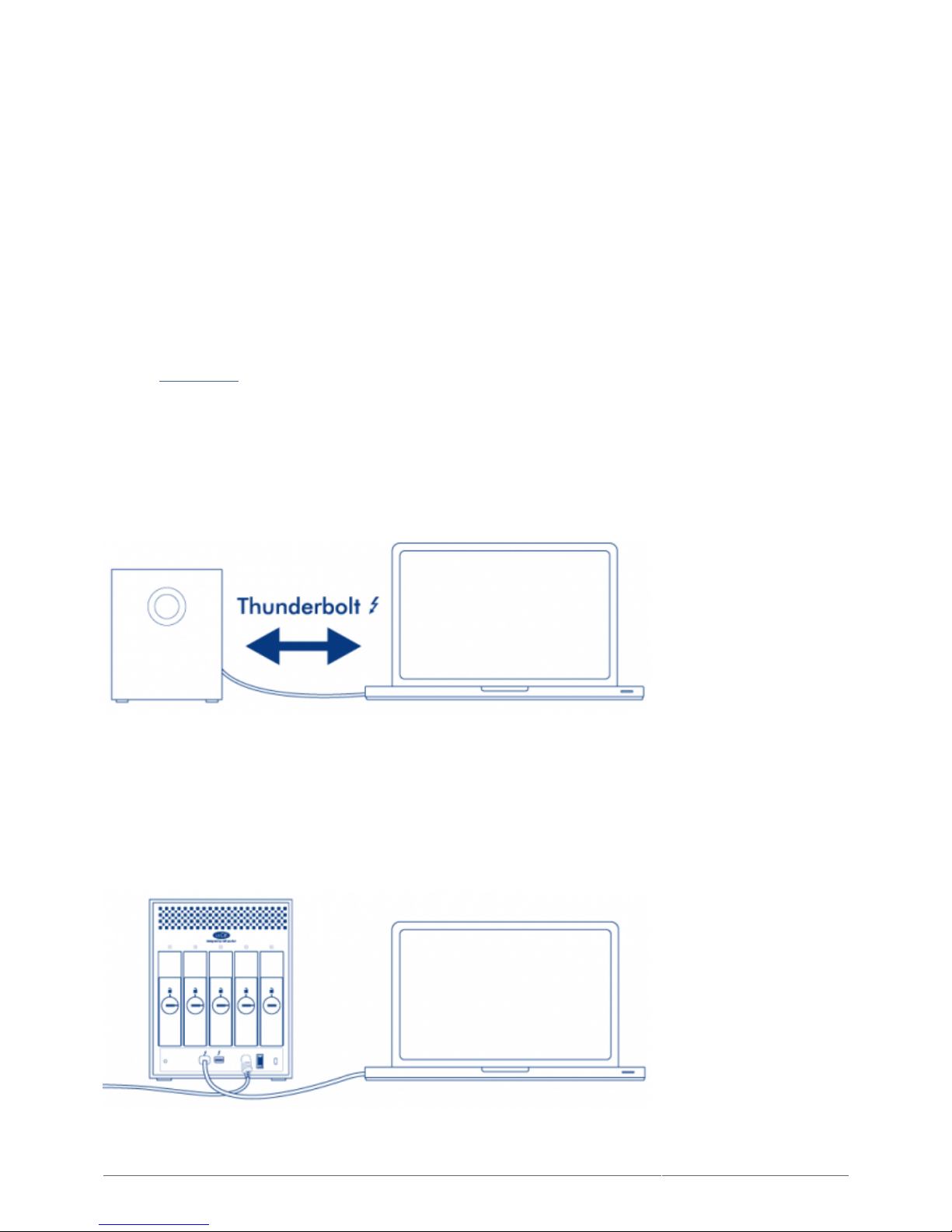

STEP 2 - CONNECT THE THUNDERBOLT CABLE

Connect the Thunderbolt cable from the LaCie 5big to the computer.

STEP 3 - CONNECT THE POWER CABLE

Connect the power supply to a wall outlet and to the LaCie 5big.

LaCie 5big Thunderbolt™ Series User Manual 10

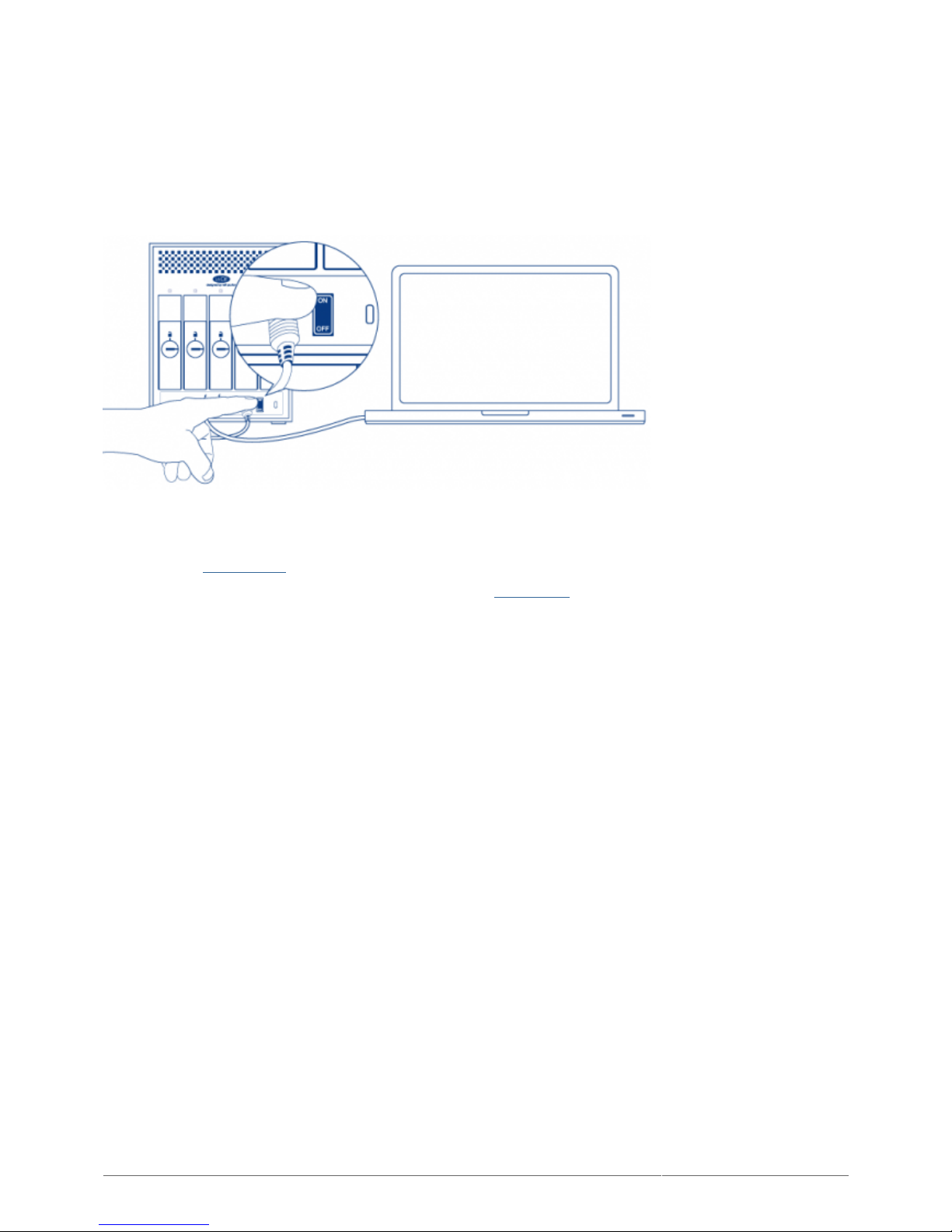

STEP 4 - TURN ON THE PRODUCT

Turn on the product using the power switch.

If your LaCie 5big shipped with disks, a single RAID 0 volume will mount on the desktop. If it shipped without

disks, since no RAID array has exists, a volume for each installed disk will mount on the Desktop. If nothing

mounts, check Getting Help.

For details on changing or setting up a RAID array, refer to About RAID.
