Quick Start Guide v1.0

This guide demonstrates how to install a Laird BL654 USB dongle (part# 451-00003) onto a Windows computer and how

to communicate with it.

The following equipment and utilities are required:

▪Laird BL654 USB BLE USB adapter, Part # 451-00003

▪FTDI USB-to-Serial drivers for the BL654 USB dongle (found at http://www.ftdichip.com/FTDrivers.htm)

▪UwTerminalX, provided by Laird at https://github.com/LairdCP/UwTerminalX

To install the BL654 dongle, follow these steps:

1. Connect the BL654 USB dongle (Figure 1) to a spare USB port on your computer or to a USB hub that can provide at

least 100 milliamps of power.

Figure 1: Laird BL654-US

Follow the on-screen prompts. Depending on your version of Windows, you may need to install the FTDI drivers.

When complete, the BL654 USB dongle appears in the Windows device manager as a USB serial port (Figure 2).

Make a note of the COM port number to use in step 6.

Figure 2: BL654 USB dongle as shown in Device Manager

2. Extract UwTerminalX to a selected folder and run the program (no installation is required).

3. From the Config tab in the Device drop-down menu, select BL65x to populate the baud, parity, stop bits, data bits,

and handshaking settings (Figure 3).

Embedded Wireless Solutions Support Center:

http://ews-support.lairdtech.com

www.lairdtech.com/bluetooth

Americas: +1-800-492-2320

Europe: +44-1628-858-940

Hong Kong: +852 2923 0610

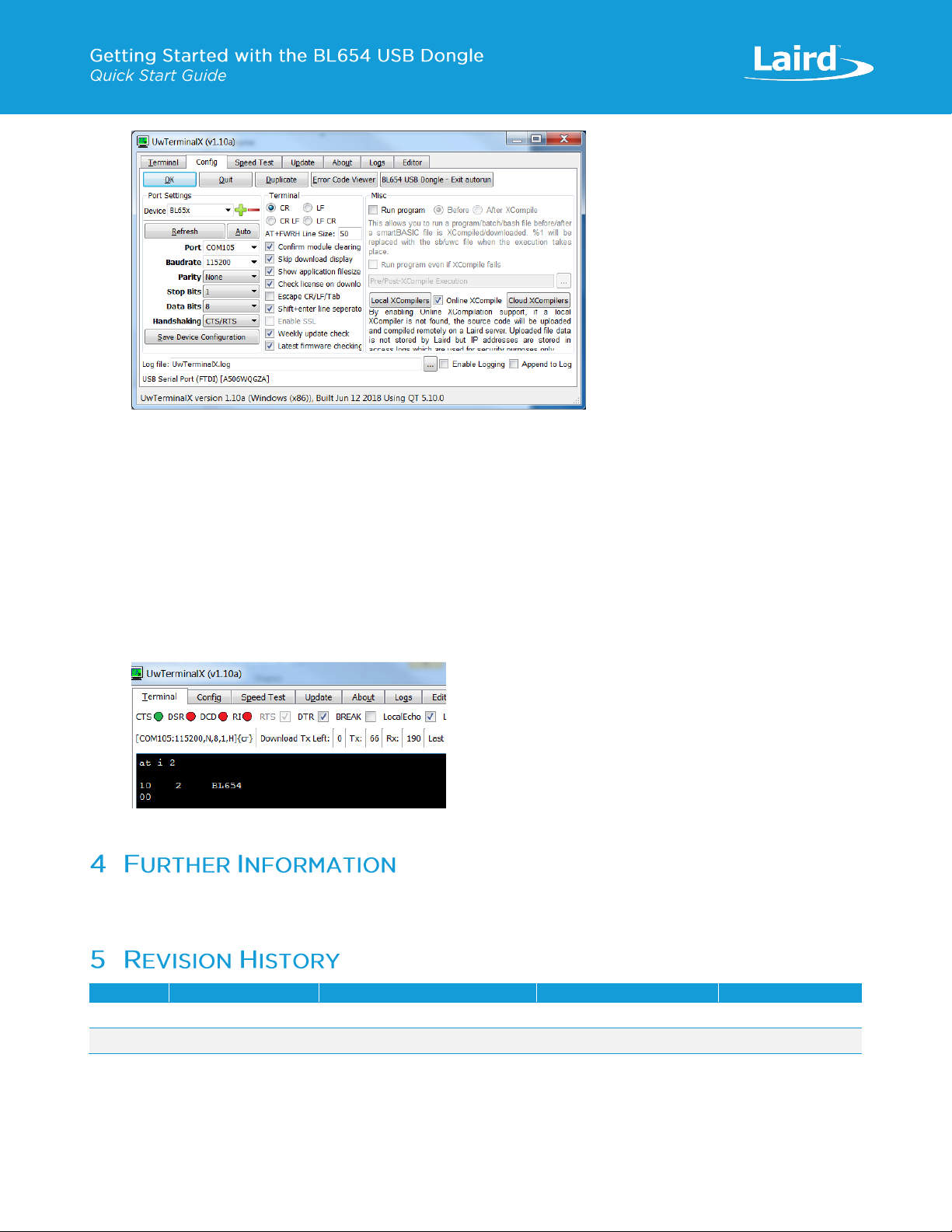

Figure 3: UwTerminalX configuration

4. If BL65x is not a selectable device, set the following:

▪Baudrate: 115200

▪Parity: None

▪Stop Bits: 1

▪Data Bits: 8

▪Handshaking: CTS/RTS

5. In the Port dropdown, select the COM port associated with your BL654 USB dongle.

6. At the top of the screen, click OK.

7. Open UwTerminalX and type at i 2 and press Enter to confirm you can communicate with the dongle on the

correct COM port (Figure 4).

Figure 4: Checking communication with the BL654 USB dongle

Further information relating to the BL654 USB dongle is available from the Laird BL654 product page:

https://www.lairdtech.com/products/bl654-ble-thread-nfc-modules

Version

Date

Notes

Contributor(s)

Approver

1.0

13 June 2018

Initial Release

Mahendra Tailor

Jonathan Kaye
