Lanex EtherCon TM-170.1 Manuale utente

IOA170-1A

January 2006

LANEX S.A.,8 Ceramiczna Street, 20-150 Lublin, Poland Service: Tel. 048 81 443 96 39

EtherCon

10/100Base-TX/E3 Converter TM-170.1

WITH SNMP AGENT

Operating Manual

10Base-T/100Base-TX/E3 Converter

Operating Manual

IOA170-1A I January 2006

Table of contents

GENERAL PROPERTIES ................................................................................................................ 1

1.1. Description and requirements....................................................................................................1

1.2. Examples of application .............................................................................................................2

1.3. Marking .........................................................................................................................................3

2. CONNECTORS AND DIODE INDICATORS...................................................................................... 4

2.1 Front panel........................................................................................................................................4

2.2 Rear panel.........................................................................................................................................5

2.3 Connector properties ......................................................................................................................6

3. FUNCTION DESCRIPTION ........................................................................................................... 7

3.1. Function properties ...........................................................................................................................7

3.2 Clock .................................................................................................................................................7

3.3 Diagnostic and signal indicating systems ....................................................................................7

3.4 Quality management........................................................................................................................8

3.5 Event Log..........................................................................................................................................9

4. INSTALLATION AND OPERATION .............................................................................................. 11

4.1 Introduction ....................................................................................................................................11

4.2 Operating conditions.....................................................................................................................11

4.3 Power source .................................................................................................................................11

4.4 Connecting cables .........................................................................................................................11

4.4.1 E3 Interface .............................................................................................................................11

4.4.2 Ethernet Interface....................................................................................................................11

4.4.3 RS-232 Interface .....................................................................................................................12

4.5 Ethernet interface configuration ..................................................................................................12

4.6 E3 interface configuration.............................................................................................................12

5. SNMP AGENT PROPERTIES ................................................................................................... 13

5.1. Software properties .........................................................................................................................13

5.2. MIB base description.......................................................................................................................14

5.3. Location of the TM-170.1 converter’s MIB base in the registration tree....................................15

5.4. Traps .................................................................................................................................................15

6. CONFIGURING THE CONVERTER USING LANWIN ..................................................................... 16

6.1 Global configuration......................................................................................................................16

6.1.2 New device..............................................................................................................................16

6.1.3 Date and time set up ...............................................................................................................17

6.1.4 Additional information..............................................................................................................17

6.2 Configuring the SNMP agent ........................................................................................................18

6.3 Management system statistics.....................................................................................................18

6.4 Interfaces ........................................................................................................................................20

6.4.1 E3 Interface .............................................................................................................................20

6.4.2 Ethernet Interface....................................................................................................................21

6.4.3 Tab – Global Clock Source .....................................................................................................23

6.5 Event Log........................................................................................................................................24

6.5.1 Tab – Event Log......................................................................................................................24

6.5.2 Tab – Log – Event log filters ...................................................................................................25

6.6 G.826 Statistics ..............................................................................................................................26

6.6.1 Tab - G.826 Statistics - Counters............................................................................................26

7. CONFIGURING THE CONVERTER USING THE VT-100 TERMINAL ............................................... 30

7.1. Launching the configuration and control program......................................................................30

7.2. Description of individual panels ....................................................................................................30

7.2.1. Main menu..................................................................................................................................31

7.3. Configuration ...................................................................................................................................32

7.3.1. System parameters ....................................................................................................................32

7.3.2. Clock configuration.....................................................................................................................33

7.3.3. IP Configuration.......................................................................................................................33

7.3.4. Access configuration from IP ..............................................................................................34

7.3.5. Ethernet interface parameters - Configuration........................................................................35

10Base-T/100Base-TX/E3 Converter

Operating Manual

IOA170-1A II January 2006

7.4. Monitoring ..................................................................................................................................36

7.4.1. Monitoring – E3 ......................................................................................................................36

7.4.2. Monitoring – Ethernet..............................................................................................................37

7.5. Event log.....................................................................................................................................38

7.6. G.826 Statistics..........................................................................................................................39

8. TECHNICAL SPECIFICATIONS .............................................................................................. 42

8.1. Electrical parameters ................................................................................................................42

8.1.1. E3 Line Interface .....................................................................................................................42

8.1.2. Ethernet Interface....................................................................................................................42

8.2. Mechanical parameters.............................................................................................................42

8.3. Environment requirements.......................................................................................................42

8.3.1. Operation.................................................................................................................................42

8.3.2. Transport .................................................................................................................................43

8.3.3. Storage....................................................................................................................................43

8.4. Electromagnetic compatibility .................................................................................................43

8.5. Power supply .............................................................................................................................43

9. PRODUCT ELEMENTS AND ACCESSORIES ............................................................................ 44

10Base-T/100Base-TX/E3 Converter

Operating Manual

IOA170-1A III January 2006

List of figures

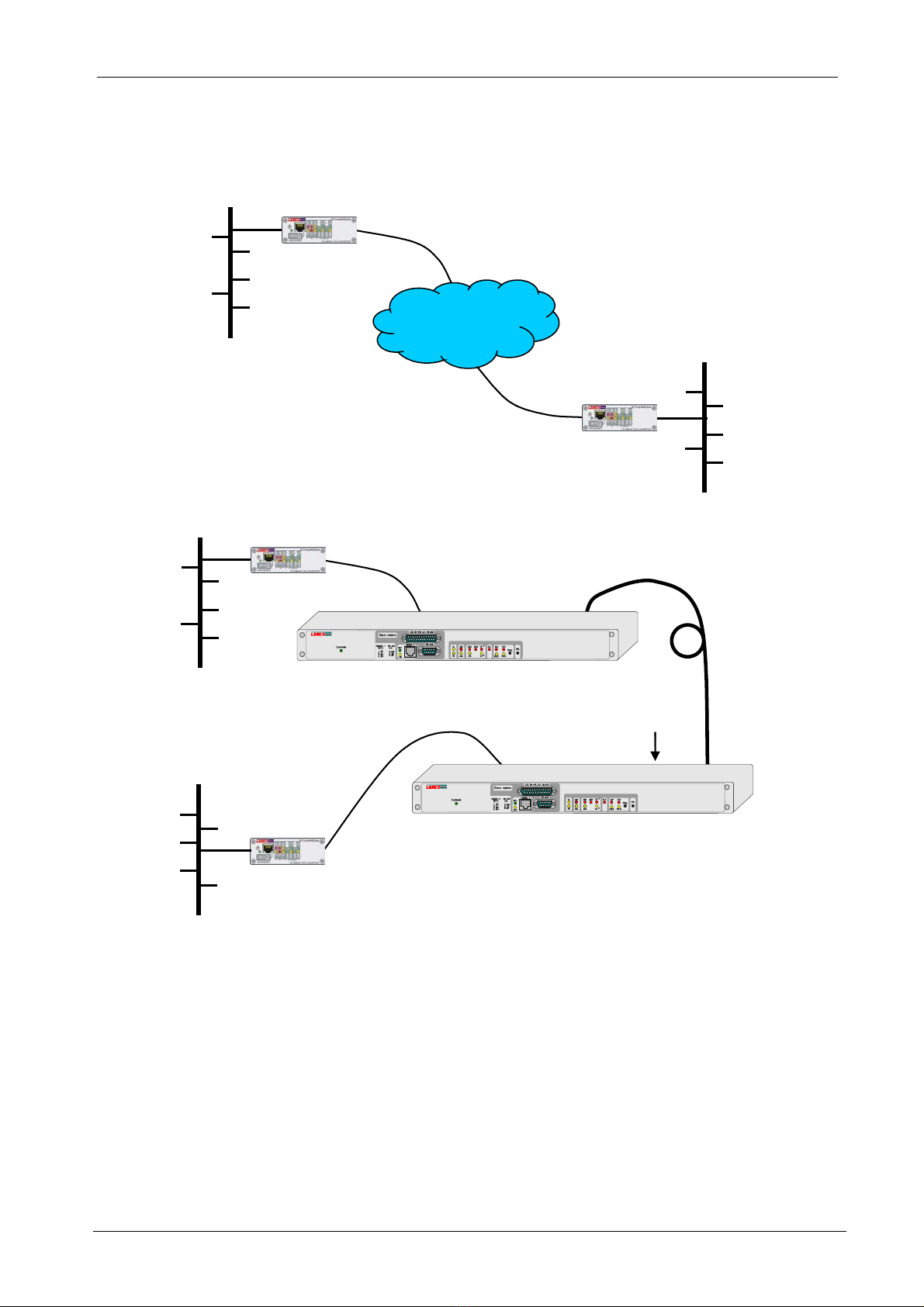

Fig. 1-1. Example of application I.............................................................................................................. 2

Fig. 1-2. Example of application II. ............................................................................................................ 2

Fig. 2-1. View and description of the front panel........................................................................................ 4

Fig. 2-2. View and description of the rear panel. ........................................................................................ 5

Fig. 2-3. RS-232 RJ-45 control connector .................................................................................................. 6

Fig. 2-4. Power interface connector. ........................................................................................................... 6

Fig. 2-5. Ethernet interface connector – port 1 and 2.................................................................................. 6

Fig. 2-6. E3 interface connectors. ............................................................................................................... 6

Fig. 3-1. Device unavailability.................................................................................................................... 9

Fig. 4-3. Ethernet interface RJ-45 connector pin. ..................................................................................... 11

Fig. 4-2. Description of crossed cable connection. ................................................................................... 12

Fig. 4-3. RS-232 cable with DB-9 RJ-45 pins. .................................................................................... 12

Fig. 5-4. TM-170.1 converter software block diagram ............................................................................. 13

Fig. 5-2. Identifiers of MIB-II objects....................................................................................................... 14

Fig. 5-3. Location of the TM-170.1 converter’s MIB base in the registration tree. .................................. 15

Fig. 6-1. Global configuration................................................................................................................... 16

Fig. 6-2. Device name. .............................................................................................................................. 16

Fig. 6-3. Date and time set up ................................................................................................................... 17

Fig. 6-4. Additional Information. .............................................................................................................. 17

Fig. 6-5. SNMP tab. .................................................................................................................................. 18

Fig. 6-6. Configuring the SNMP agent. .................................................................................................... 18

Fig. 6-7. Management system statistics window....................................................................................... 19

Fig. 6-8. E3 tab - Monitoring. ................................................................................................................... 20

Fig. 6-9. Interfaces – Ethernet, Configuration........................................................................................... 21

Fig. 6-10. Interfaces– Ethernet, Monitoring.............................................................................................. 22

Fig. 6-11. E3 Tab - Configuration............................................................................................................. 23

Fig. 6-12. Log – Event log. ....................................................................................................................... 24

Fig. 6-13. Log – Event Log Filters............................................................................................................ 25

Fig. 6-14. G.826 Statistics – 15-minute counters. ..................................................................................... 27

Fig. 6-15. G.826 Statistics – 24-hour counters.......................................................................................... 27

Fig. 6-16. G.826 Statistics – time periods. ................................................................................................ 28

Fig. 6-17. Hour of launching the counter. ................................................................................................. 28

Fig. 6-18. Thresholds of setting the alarms on. ......................................................................................... 28

Fig. 6-19. Alarm hierarchy........................................................................................................................ 29

Fig. 7-1. Logging on. ................................................................................................................................ 31

Fig. 7-2. Main menu.................................................................................................................................. 31

Fig. 7-3. Configuration menu.................................................................................................................... 32

Fig. 7-4. System parameters...................................................................................................................... 32

Fig. 7-5. Configuration of E3 interface. .................................................................................................... 33

Fig. 7-6. IP Configuration. ........................................................................................................................ 33

Fig. 7-7. IP access configuration............................................................................................................... 34

Fig. 7-8. Ethernet interface configuration. ................................................................................................ 35

Fig. 7-9. Monitoring.................................................................................................................................. 36

Fig. 7-10. E3 monitoring........................................................................................................................... 36

Fig. 7-11. Monitoring Ethernet. ................................................................................................................ 37

Fig. 7-12. Event log................................................................................................................................... 38

Fig. 7-13. G.826 Menu.............................................................................................................................. 39

Fig. 7-14. Connecting alarms threshold configuration.............................................................................. 39

Fig. 7-15. Counting starting time. ............................................................................................................. 40

Fig. 7-16. 15-minute registers. .................................................................................................................. 40

Fig. 7-17. 24-hour registers....................................................................................................................... 41

Fig. 7-18. Time periods............................................................................................................................. 41

10Base-T/100Base-TX/E3 Converter

Operating Manual

IOA170-1A V January 2006

A list of used abbreviations

NUAL Non-urgent alarm

UAL Urgent alarm

ES Errored Seconds

ES15 ES 15-minute errored second counter

ES24 ES 24-hour errored second counter

HDLC High Level Data Link Control

IEEE Institute of Electrical and Electronics Engineers

ITU-T International Telecommunication Union – Telecommunication

Standardization Sector

LOS Loss Of Signal

LOL Loss Of Lock – loss of the recovered clock’s frequency stability

MDI Medium Dependent Interface

MII Medium Independent Interface

SES Severely Errored Seconds

SES15 SES – severely errored seconds during a 15-minute period

SES24 SES – severely errored seconds during a 24-hour period

10Base-T/100Base-TX/E3 Converter

Operating Manual

IOA170-1A VI January 2006

User’s safety

The TM-170 converter has been designed and tested for the operation and safety

in accordance with PN-EN-60950 standard. It complies with Class 1 safety requirements.

!Grounding terminal located on the rear panel of the device should be connected to

grounding.

!The device does not have a disconnecting system installed. The said system should be on

the outside of the device.

The Manufacturer is not responsible for the use of the device in a manner non-compliant

with the operating manual.

This Operating Manual is an integral part of the device delivered to the Users.

10Base-T/100Base-TX/E3 Converter

Operating Manual

IOA170-1A 1 January 2006

General Properties

1.1. Description and requirements

EtherCon TM-170.1 is a converter enabling the connection of independent Ethernet

10/100BASE – TX local network segments using the SDH or PDH telecom network based on an

E3 frameless signal at a transmission speed of 34368 kbit/s and with a ITU – T G.703

recommendation. The Ethernet interface data transmission speed may be limited to

• n x 64 kbit/s , n = 1 to 32.

• n x 1024 kbit/s, n = 3 to 32

Isolation network segment and increasing its output is possible thanks to an address filter.

Flow control pursuant to IEEE802.3x defines the method of transmitting frames in full duplex

manner in order to avoid overloading the converter.

The converter also transparently transmits longer than 1522 bite Ethernet frames which are

a part of the virtual networks in compliance with the IEEE 802.1Q standard or with the setting of

priorities IEEE 802.1p standard.

The converter is equipped with an SNMP agent. It is implemented with a version 1

(SNMPv1) SNMP and a TCP/IP set of protocols – TCP (Transmission Control Protocol, (UDP

(User Datagram Protocol), IP (Internet Protocol), ICMP (Internet Control message Protocol). The

converter also has TELNET service for remote configuration and monitoring.

With the aid of the built-in SNMP agent identification of the device on the SNMP

managed equipment networks with standard management platforms i.e. HP OpenView and it is

also possible to view the device’s MIB bases elements.

The unit’s MIB base is compliant with RFC 1213 requirements.

The converter also supports a proprietary LANWIN – LNMP as application management

protocol.

10Base-T/100Base-TX/E3 Converter

Operating Manual

IOA170-1A 2 January 2006

1.2. Examples of application

Fig. 1-1 and 1-2 show the connection of Ethernet computer networks using fiber optic lines, PDH

and SDH telecom network

E3/G.703

EtherCon

Ethernet

SDH, PDH

telecommunications

network

E3/G.703

Fig. 1-1. Example of application I.

E3/G.703

FIBER OPTIC MODEM

E3/G.703

Fiber optic cable

EtherCon

TM-61

MODEM ŚWIATŁOWODOWY

E3/G.703

TM-61

MODEM ŚWIATŁOWODOWY

E3/G.703

TM-61

Ethernet

Fig. 1-2. Example of application II.

10Base-T/100Base-TX/E3 Converter

Operating Manual

IOA170-1A 3 January 2006

1.3. Marking

Device:

TM-170.1

Telecommunication device

Type

Version

10Base-T/100Base-TX/E3 Converter

Operating Manual

IOA170-1A 4 January 2006

2. Connectors and diode indicators

2.1 Front panel

1 2 34

Fig. 2-1. View and description of the front panel.

1. Power status signaling diode

2. RS-232 monitoring and control connector

3. Group of panel light indicators signaling statuses detected by the E3 interface:

• LOS – Loss Of Signal

• LOL – Loss Of Lock – loss of the recovered clock’s frequency ability

• ERR – Error – higher bit error rate than 10-6 and 10-3

• TXD – Transmission of Data to WAN

• RXD – Receiving of Data from WAN

4. Group of panel light indicators signaling statuses detected by the Ethernet interfaces:

• LNK/ACT – loss of received signal/link activity; the indicator light on when there is no

loss of Ethernet signal, blinks when data is being transmitted

• 10/100 – 10BaseT/100BaseTX; diode lights for 100Base-TX

• FD/COL – full duplex/half duplex (collision signal); the indicator light on for full duplex

and blinks when a collision occurs

Indice

Altri manuali Lanex Convertitore multimediale

Lanex

Lanex TM-78 Manuale utente

Lanex

Lanex TR-55.1 Manuale utente

Manuali Convertitore multimediale popolari di altre marche

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuale utente

SPROLINK

SPROLINK VA1 Manuale utente

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuale utente

Nikon

Nikon AF-S TC-20E III Manuale utente

Axis

Axis AXIS Q7406 Manuale utente

Omega

Omega TAC80B-J Manuale utente

Zoom

Zoom Thunderbolt TAC-2R Manuale utente

OST

OST iConverter 10/100M Manuale utente

Vertiv

Vertiv Netsure Manuale utente

birddog

birddog MINI Manuale utente

Roland

Roland GI-10 Manuale utente

Wallenstein

Wallenstein WX310 Manuale utente

Pace

Pace MSS 200-1 Manuale utente

Solar Converters

Solar Converters EQ 12/24-50 Manuale utente

CYP

CYP EL-7400V Manuale utente

TIE

TIE MIDI 1i1o Manuale utente

DCS

DCS Vivaldi Upsampler Manuale utente

Westermo

Westermo MCW-211 SERIES Manuale utente
