Laney
Series monitors
USER MANUAL
MODEL : CP10
CP12
CP15
CM10
CM12
CM15
revision 1.1
Concept 1
IMPORTANT SAFETY INSTRUCTIONS
WARNING: When using electric products, basic cautions should always be followed, including the following.
1. Read all safety and operating instructions before using this product
2. All safety and operating instructions should be retained for future reference
3. Obey all cautions in the Operating instructions and on the back of the unit
4. All operating instructions should be followed
5. This product should not be used near water, i.e. a bathtub, sink, swimming pool, wet basement, etc.
6. This product should be located so that its position does not interfere with its proper ventilation. It should not be placed
flat against a wall or placed in a built up enclosure that will impede the flow of cooling air.
7. This product should not be placed near a source of heat such as stove, radiator, or another heat producing amplifier.
8. Connect only to a power supply of the type marker on the unit adjacent to the power supply cord.
9. Never break off the ground pin on a power supply cord.
10. Power supply cords should always be handled carefully. Never walk or place equipment on power supply cords.
Periodically check cords for cuts or signs of stress, especially at the plug and the point where the chord exits the unit.
11. The power supply cord should be unplugged when the unit is not in use and during lightning storms.
12. If this product is to be mounted in an equipment rack, rear support should be provided.
13. Metal parts can be cleaned with a damp cloth. The vinyl covering used on some units can be cleaned with a damp
cloth or ammonia based household cleaner if necessary. Disconnect the unit from the power supply before cleaning.
14. Care should be taken so that objects do not fall and liquids are not spilled into the unit through any ventilation holes or
openings. CAUTION - on no account place drinks on the unit.
15. A qualified service technician should check the unit if:
The power cord has been damaged
Anything has fallen or spilled into the unit
The unit does not appear to operate correctly
The unit has been dropped or the enclosure damaged.
16. The user should not attempt to service the equipment. All service work is done by a qualified service technician.
17. Exposure to extremely high noise levels may cause a permanent hearing gloss. Individuals very considerably in
susceptibility to noise induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense
noise for a sufficient time. The U.S. Government's Occupational Safety and Health Administration (OSHA) has
specified the following permissible noise level exposure.
Duration Per Day In Hours Sound Level dBA, slow response
8 90
6 92
4 95
3 97
2 100
1 ½ 102
1 105
½ 110
¼ or less 115
According to OSHA, any exposure in excess of the above permissible limits could result in some hearing loss. Ear plugs or
protectors in the ear canals or over the ears must be worn when operating this amplification system in order to prevent a
permanent hearing loss if exposure exceeds the limits set forth above. To ensure against potentially dangerous exposure to
high sound pressure levels it is recommended that all persons exposed to equipment capable of producing high sound
pressure levels such as this amplification system be protected by hearing protectors while this unit is in operation.
SAVE THESE INSTRUCTIONS
WARNING: To prevernt electrical shock or fire hazard, do not expose this appliance to rain or moisture. Before using this
appliance, read the operating guide for further warnings.
Caution: Risk of electrical shock - DO NOT OPEN!
Caution: To reduce the risk of electrical shock, do not remove cover. No user servicable parts inside. Refer servicing to
qualified service personnel.
Warning: This apparatus must be earthed
Intended to alert the user to the presence of uninstalled "dangerous voltage" within the product's enclosure
that may be of sufficient magnitude to constitute a risk of electric shock to persons.
Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in
the literature accompanying the product.
EMC warning
It is inherent in the design of a loudspeaker and in the design of guitar pickups that they should emit or be affected by electro magnetic fields. Loudspeaker enclosures should not
be used less than two meters away from equipment, which is likely to be affected by electro magnetic interference.
Likewise, guitar fitted with electro magnetic pickups should not be used less than two meters away from any source of emissions such as loudspeakers. Emissions from
loudspeakers are dependent on the frequency characteristics of the drive unit. Levels were measured direct from the driver of 30 dBuV. These levels are reduced to a safe level at
a distance of 1,27 meters from the drivers.
Concept
CP Manual
We at Laney are extremely pleased that you have decided to select a Concept product for
your sound requirements and we wish to reinforce your judgement by ensuring you get
off to a flying start by including this comprehensive user manual to assist you in getting to
know your equipment.
Before switching on please read this manual carefully since whilst you may well be an
experienced user no two brands are the same, and on reading this manual you will become
aware of the subtle advantageous differences that Concept offers over its competitors.
UNPACKING
On unpacking your Concept please check carefully for any signs of damage that may have
occurred whilst in transit from the Laney factory to your dealer. In the unlikely event that
there has been damage please repack your unit in its original carton and consult your
dealer.
We would strongly advise you to store away your original transit carton since in the
unlikely event that some time in the future your unit should develop a fault, you will be
able to return it to your dealer for rectification securely packed.
Your Concept powered monitors product should be fitted with a three pin 'grounded' (or
'earthed') plug. Please make sure that the mixer is powered from a 'grounded/earthed'
outlet.
If changing or fitting a plug yourself, ensure that the applicable wiring code is adhered to,
for example in the UK the cable colour code for connections are as follows:
The Concept product should never be exposed to moisture or wetness under any
circumstances since this would represent a possible shock or fire hazard, and may cause
expensive damage to your valuable possession.
In the unlikely event that a fuse should blow, it is imperative that you or your engineer, use
a correctly rated replacement.
Details of the fuse required is printed on the powered monitor, please take special care to
use a 'time delay' fuse wherever stated.
THANK YOU
IMPORTANT SAFETY INFORMATION
EARTH OR GROUND
NEUTRAL
LIVE
GREEN/YELLOW
BLUE
BROWN
2
8
1
4
MIC: Jack socket for connecting an
external Mic.
TREBLE: Adjusts the monitors HI
frequency response.
BASS: Adjusts the monitors LO frequency
response.
EXTERNAL SPEAKER: Output socket
for connect further un powered Laney
monitor such as CM10, CM12 or CM15.
POWER: Power On/Off switch.
LINE: Jack input socket for all line level
signals e.g.: Keyboard, mic or drum
machine.
LINK: Socket for connecting additional
power monitor or power amplifier.
VOLUME: Controls the overall listening
level of the monitor.
CP Manual
2
8
3
5
6
7
1
2
3
4
5
6
7
EXPLANATION OF TERMS
3
Concept
CP10
Maximum Power Consumption
130 Watts ~50/60 Hz
Maximum Power Consumption
130 Watts ~50/60 Hz
Designed in the United Kingdom
by BLT Industries Ltd.
Designed in the United Kingdom
by BLT Industries Ltd.
Warning - This equipment must be earthed.Warning - This equipment must be earthed.
Supply voltage
& fuse rating
Supply voltage
& fuse rating ~115V
~230V
~115V
~230V
T2A
T1A
T2A
T1A
Serial No:Serial No:
VolumeVolume
TrebleTreble
BassBass
LineLine
LinkLink
MicMic
Ext.
Speaker
Ext.
Speaker
8 Ohms Min8 Ohms Min
Caution - To reduce the risk of fire hazard
replace fuse with same type and rating only.
Caution - To reduce the risk of fire hazard
replace fuse with same type and rating only.
Caution - To reduce the risk of electric shock
do not remove covers. No user serviceable
parts inside.Refer servicing to qualified
personnel only.
Caution - To reduce the risk of electric shock
do not remove covers. No user serviceable
parts inside.Refer servicing to qualified
personnel only.
Warning - To reduce the risk of fire or electric
shock do not expose this appliance to rain
or moisture.
Warning - To reduce the risk of fire or electric
shock do not expose this appliance to rain
or moisture.
Made in ChinaMade in China
77
1199
33
1010
4466
00
55
88
22
22
22
44
44
44
44
22
22
55
55
11
11
11
11
55
55
- 0+- 0+
- 0+- 0+
33
33
33
33
CP10CP10
CAUTIONCAUTION
RISK OF ELECTRIC SHOCK DO NOT OPENRISK OF ELECTRIC SHOCK DO NOT OPEN
!!
CAUTIONCAUTION
RISK OF ELECTRIC SHOCK DO NOT OPENRISK OF ELECTRIC SHOCK DO NOT OPEN
!!
1100
1100

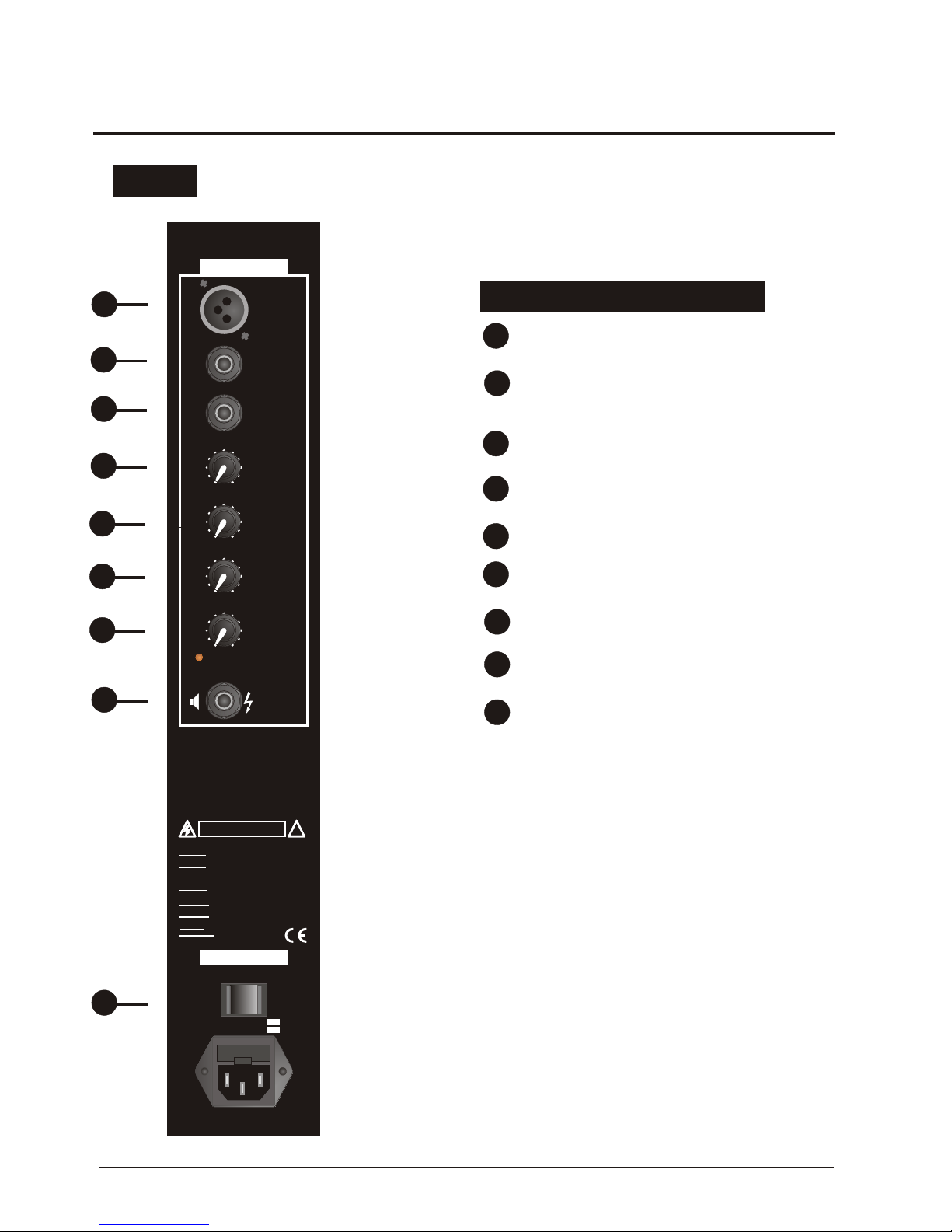

EXPLANATION OF TERMS
8
1
4
MIC: XLR iInput for LO impedance
microphones (200-600Ohm).
TREBLE: Adjusts the monitors HI
frequency response.
MIDDLE: Adjusts the monitors MID
frequency response.
BASS: Adjusts the monitors LO frequency
response.
EXTERNAL SPEAKER: Output socket
for connect further un powered Laney
monitor such as CM10, CM12 or CM15.
POWER: Power On/Off switch.
LINE: Jack input socket for all line level
signals e.g.: Keyboard, mic or drum
machine.
LINK: Socket for connecting additional
power monitor or power amplifier.
VOLUME: Controls the overall listening
level of the monitor.
CP Manual
2
9
3
5
6
7
1
2
3
4
5
6
7
89
Concept 4
CP12
Maximum Power Consumption
240 Watts ~50/60 Hz
Maximum Power Consumption
240 Watts ~50/60 Hz
Designed in the United Kingdom
by BLT Industries Ltd.
Designed in the United Kingdom
by BLT Industries Ltd.
Warning - This equipment must be earthed.Warning - This equipment must be earthed.
Supply voltage
& fuse rating
Supply voltage
& fuse rating ~115V
~230V
~115V
~230V
T2A
T1A
T2A
T1A
Serial No:Serial No:
VolumeVolume
TrebleTreble
MidMid
BassBass
PowerPower
LineLine
LinkLink
MicMic
Ext.
Speaker
Ext.
Speaker
8 Ohms Min8 Ohms Min
Caution - To reduce the risk of fire hazard
replace fuse with same type and rating only.
Caution - To reduce the risk of fire hazard
replace fuse with same type and rating only.
Caution - To reduce the risk of electric shock
do not remove covers. No user serviceable
parts inside.Refer servicing to qualified
personnel only.
Caution - To reduce the risk of electric shock
do not remove covers. No user serviceable
parts inside.Refer servicing to qualified
personnel only.
Warning - To reduce the risk of fire or electric
shock do not expose this appliance to rain
or moisture.
Warning - To reduce the risk of fire or electric
shock do not expose this appliance to rain
or moisture.
Attention - Debrancher le cordon d’alimentation
avant d’ouvrir l’appareil.
Attention - Debrancher le cordon d’alimentation
avant d’ouvrir l’appareil.
Attention - Remplacer le fusible par le
meme et le calibre.
Attention - Remplacer le fusible par le
meme et le calibre.
77
1199
33
1010
4466
00
55
88
22
22
22
22
44
44
44
44
44
44
22
22
22
55
55
55
11
11
11
11
11
11
55
55
55
- 0+- 0+
- 0+- 0+
- 0+- 0+
33
33
33
33
33
33
CP12CP12
Made In ChinaMade In China
CAUTIONCAUTION
RISK OF ELECTRIC SHOCK DO NOT OPENRISK OF ELECTRIC SHOCK DO NOT OPEN
!!
CAUTIONCAUTION
RISK OF ELECTRIC SHOCK DO NOT OPENRISK OF ELECTRIC SHOCK DO NOT OPEN
!!
1100
1100
EXPLANATION OF TERMS
8
1
4
MIC: XLR iInput for LO impedance
microphones (200-600Ohm).
TREBLE: Adjusts the monitors HI
frequency response.
MIDDLE: Adjusts the monitors MID
frequency response.
BASS: Adjusts the monitors LO frequency
response.
EXTERNAL SPEAKER: Output socket
for connect further un powered Laney
monitor such as CM10, CM12 or CM15.
POWER: Power On/Off switch.
LINE: Jack input socket for all line level
signals e.g.: Keyboard, mic or drum
machine.
LINK: Socket for connecting additional
power monitor or power amplifier.
VOLUME: Controls the overall listening
level of the monitor.
CP Manual
2
9
3
5
6
7
1
2
3
4
5
6
7
89
Concept 5
CP15
Maximum Power Consumption
300 Watts ~50/60 Hz
Maximum Power Consumption
300 Watts ~50/60 Hz
Designed in the United Kingdom
by BLT Industries Ltd.
Designed in the United Kingdom
by BLT Industries Ltd.
Warning - This equipment must be earthed.Warning - This equipment must be earthed.
Supply voltage
& fuse rating
Supply voltage
& fuse rating ~115V
~230V
~115V
~230V
T5A
T2A
T5A
T2A
Serial No:Serial No:
VolumeVolume
TrebleTreble
MidMid
BassBass
PowerPower
LineLine
LinkLink
MicMic
Ext.
Speaker
Ext.
Speaker
8 Ohms Min8 Ohms Min
Caution - To reduce the risk of fire hazard
replace fuse with same type and rating only.
Caution - To reduce the risk of fire hazard
replace fuse with same type and rating only.
Caution - To reduce the risk of electric shock
do not remove covers. No user serviceable
parts inside.Refer servicing to qualified
personnel only.
Caution - To reduce the risk of electric shock
do not remove covers. No user serviceable
parts inside.Refer servicing to qualified
personnel only.
Warning - To reduce the risk of fire or electric
shock do not expose this appliance to rain
or moisture.
Warning - To reduce the risk of fire or electric
shock do not expose this appliance to rain
or moisture.
Attention - Debrancher le cordon d’alimentation
avant d’ouvrir l’appareil.
Attention - Debrancher le cordon d’alimentation
avant d’ouvrir l’appareil.
Attention - Remplacer le fusible par le
meme et le calibre.
Attention - Remplacer le fusible par le
meme et le calibre.
77
1199
33
1010
4466
00
55
88
22
22
22
22
44
44
44
44
44
44
22
22
22
55
55
55
11
11
11
11
11
11
55
55
55
- 0+- 0+
- 0+- 0+
- 0+- 0+
33
33
33
33
33
33
CP15CP15
Made In ChinaMade In China
CAUTIONCAUTION
RISK OF ELECTRIC SHOCK DO NOT OPENRISK OF ELECTRIC SHOCK DO NOT OPEN
!!
CAUTIONCAUTION
RISK OF ELECTRIC SHOCK DO NOT OPENRISK OF ELECTRIC SHOCK DO NOT OPEN
!!
1100
1100
BLT Industries Ltd.,
Newlyn Road,
Cradley Heath,
West Midlands.
B64 6BE.
In the interest of continued product development BLT Industries Ltd. Reserves the
right to amend product specification without prior notification.
The Laney range of unpowered monitors, the CM10,CM12 & CM15 are designed to compliment
the CP range of products. Each CP monitor is capable of powering an unpowered monitor for
maximum power output and sound covereage.
Each CM monitor is supplied with an input jack and a link out jack. The input jack should be used
to recieve the signal from the External Speaker Socket on a CP10, CP12 or CP15, whilst the link out
jack should be used only when the monitors are being powered by a dedictaed monitor power
amplifier, for example when the mixing desk is sending a monitor signal to an additional power
amplifier.
Depending upon the specification of the power amplifier it may be possible to link together a
number of unpowered monitors to achieve the desired monitor spread. The impedance of each
unpowered monitor is 8 Ohms.
Concept 6
CP Specifications
Line In input impedance
Link Out
Mic input impedance
Nominal Line input level
Nominal Mic input level
Extension Loudspeaker
Speaker Nom Impedance
Speaker Size
Speaker rating
Output Power
Weight
Size (H*W*D)
CP10
10Kohms
Directly coupled to Line In
2Kohms Balanced
-10dBu
-20dBu
8 ohms minimum
8 ohms
10" + Piezo tweeter
65W
65W / 4 ohms
13Kg
350*460*250
CP12
10Kohms
Directly coupled to Line In
2Kohms Balanced
-10dBu
-20dBu
8 ohms minimum
8 ohms
12" + Piezo tweeter
120W
120W / 4 ohms
19Kg
437*585*300
CP15
10Kohms
Directly coupled to Line In
2Kohms Balanced
-10dBu
-20dBu
8 ohms minimum
8 ohms
15" + Piezo tweeter
150W
150W / 4 ohms
23Kg
467*655*325
Speaker Nom Impedance
Speaker Size
Speaker rating
Output Power
Weight
Size (H*W*D)
CM10
8 ohms
10" + Piezo tweeter
65W
65W / 4 ohms
12Kg
350*460*250
CM12
8 ohms
12" + Piezo tweeter
120W
120W / 4 ohms
18Kg
437*585*300
CP15
8 ohms
15" + Piezo tweeter
150W
150W / 4 ohms
21Kg
467*655*325
Unpowered Monitors
CM Specifications
Tel: (0044) (0)1384 633821
Fax: (0044) (0)1384 639186
Web site: http://www.laney.co.uk
Questo manuale è adatto per i seguenti modelli
5
Altri manuali Laney Monitor
