Laney LX10B Manuale utente

BASS AMPLIFIER

WELCOME

INTRODUCTION

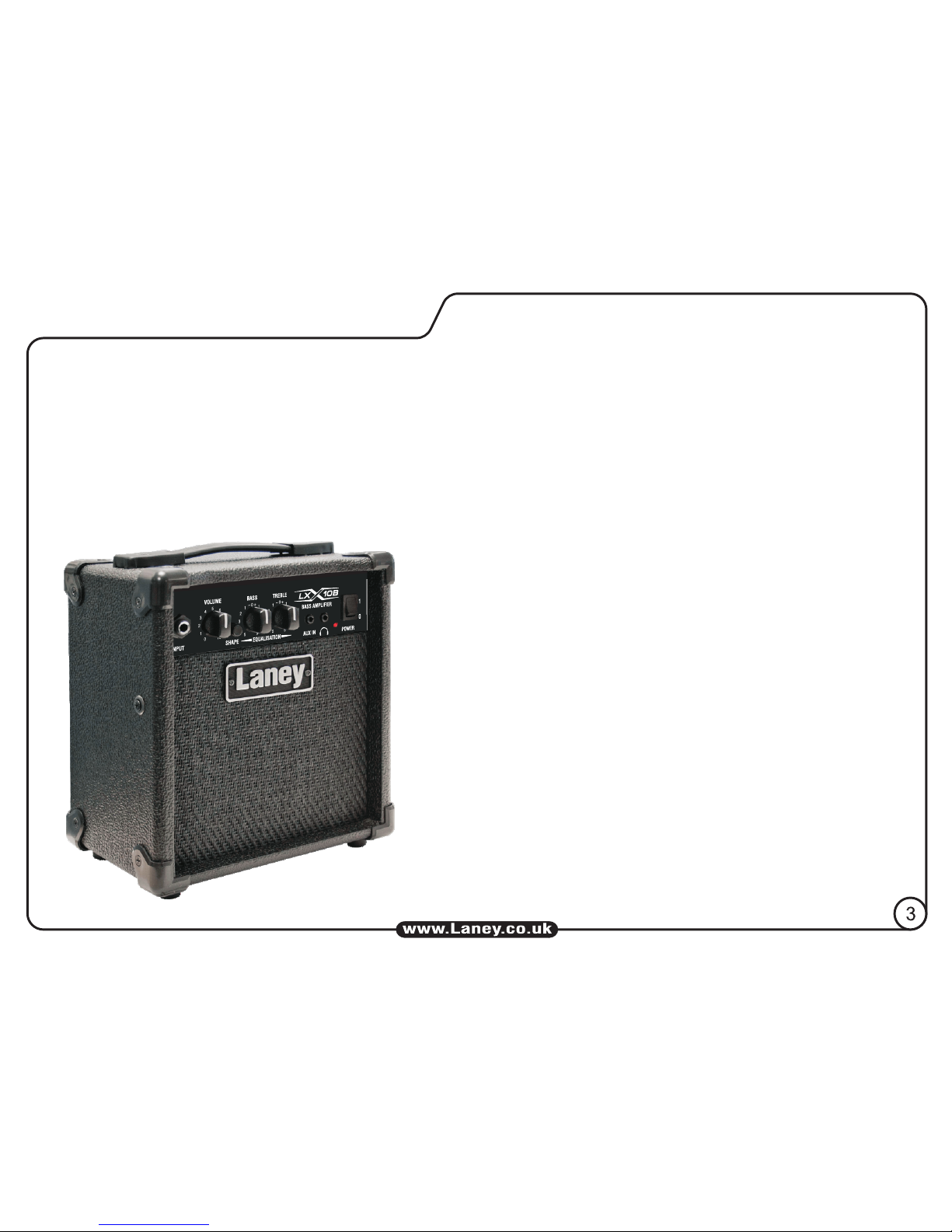

The LX10B offers great bass tones from a compact and portable amplifier.

The 10-Watt LX10B is capable of producing some solid bass tones. Housing a big sounding 5” driver

and 2 band EQ the LX10B produces a nice powerful lo end and hitting the on board SHAPE switch

allows you to kick in some serious high mid boost when a bit of slapping and popping is called for.

Plugging in some headphones means you can play

whenever you like, whatever time of the day or night and

if you connect an external device to the AUX IN socket

you can jam along with your favourite players!

Finished in the same décor as the bigger LX models the

LX10B is a great addition to the LX range.

All the features & controls are covered over the next few

pages, please take the time to read this manual fully as it

will allow you to get the very best from your amplifier,

read on, play and enjoy…

Input: This socket should be used for connecting your instrument to the amplifier. Only use a good

quality screened cable.

Volume: Sets the overall listening level of the amplifier.

Shape: Engages an EQ circuit to give a High Mid Boost

EQ Controls: Traditional Bass & Treble passive tone controls. Passive controls have the advantage of

always sounding musical at any of their settings, due to their unique interactive nature.This gives the player

a more natural set of tools to shape their ideal sound. Set these midway at (0) as a good starting point.

Aux In: A 3.5mm Stereo line input for connection of a CD or MP3 player as a backing track. Control the

level of the input using the volume control on your CD/MP3 player.

Phones: 3.5mm stereo jack socket for connecting headphones and when connected, the internal

loudspeaker is automatically switched off.

Power LED: This will illuminate when the power switch is operated, indicating the presence of mains

power within the amplifier.

Power Switch: Mains power switch for the unit.

FRONT PANEL CONTROLS

(ALWAYS SWITCH OFF AND DISCONNECT THE POWER CORD WHEN NOT IN USE)

REAR PANEL

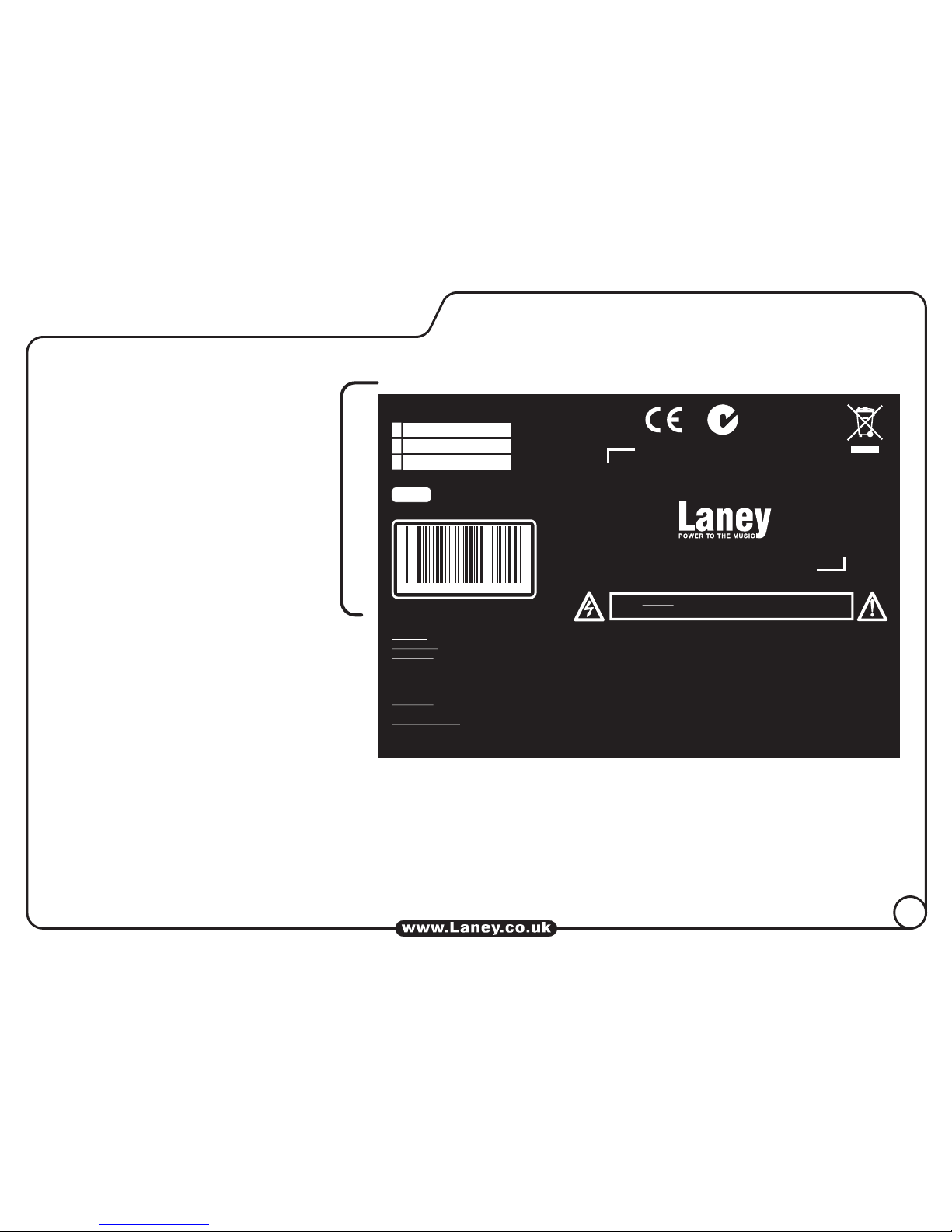

Information area relating to the

amplifier: Supply Voltage, Model,

Serial Number, etc.

A built in mains lead is provided

to connect to your power

source. Make sure the specified

voltage is correct for your

country!

SERIAL NUMBER:

DESIGNED IN THE UK BY LANEY

MODEL:

N15039

LX10B

MAXIMUM POWER CONSUMPTION

15 WATTS 50/60Hz

www.laney.co.uk

SUPPLY VOLTAGE:

~220V/~230V/~240V

~120V

~100V

CAUTION - RISK OF ELECTRIC SHOCK DO NOT OPEN

ATTENTION - RISQUE DE DÉCHARGE ÉLECTRIQUE, NE S'OUVRE PAS

CAUTION: TO REDUCE THE RISK OF FIRE REPLACE FUSE WITH SAME TYPE AND RATING.

ATTENTION: POUR RÉDUIRE LE RISQUE DU FEU REMPLACEZ AVEC LE MÊMES TYPE ET ESTIMATION.

WARNING: THIS APPARATUS MUST BE EARTHED.

AVERTISSEMENT: CET APPAREIL DOIT ÊTRE MIS À LA TERRE

LAITE ON LIITETTÄVÄSUOJAMAADOITUSKOSKETTIMILLA VARUSTETTUUN PISTORASIAAN

APPARATET MÅ TILKOPLES JORDET STIKKONTAKT

APPARATEN SKALL ANSLUTAS TILL JORDAT UTTAG

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DO

NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

AVERTISSEMENT: POUR RÉDUIRE LE RISQUE DU FEU OU DE DÉCHARGE ÉLECTRIQUE N'EXPOSEZ PAS CET APPAREIL À LA PLUIE

OU A L’HUMIDITÉ . NE PAS ENLEVER LA COUVERTURE. EN CAS DE PROBLEME RÉFÉREZ A UN PROFFESSIONEL.

MADE IN CHINA. FABRIQUE EN CHINE.

L Z B 1 2 3 4

CD/MP3

Headphones

Guitar

Options

General Notes

Amplifier connection: In order to avoid damage, it is advisable to establish and follow a pattern

for turning on and off your equipment. With all system parts connected, turn on source equipment,

MP3/CD players, etc. BEFORE turning on your guitar amplifier. Similarly when turning off your

system always turn down the Volume controls on your guitar amplifier and then turn off its power

before turning off other equipment.

Cables:

Servicing: The user should not attempt to service these products. Refer all servicing to qualified

service personnel.

Only use a good quality screened cable to connect your instrument to the amplifier.

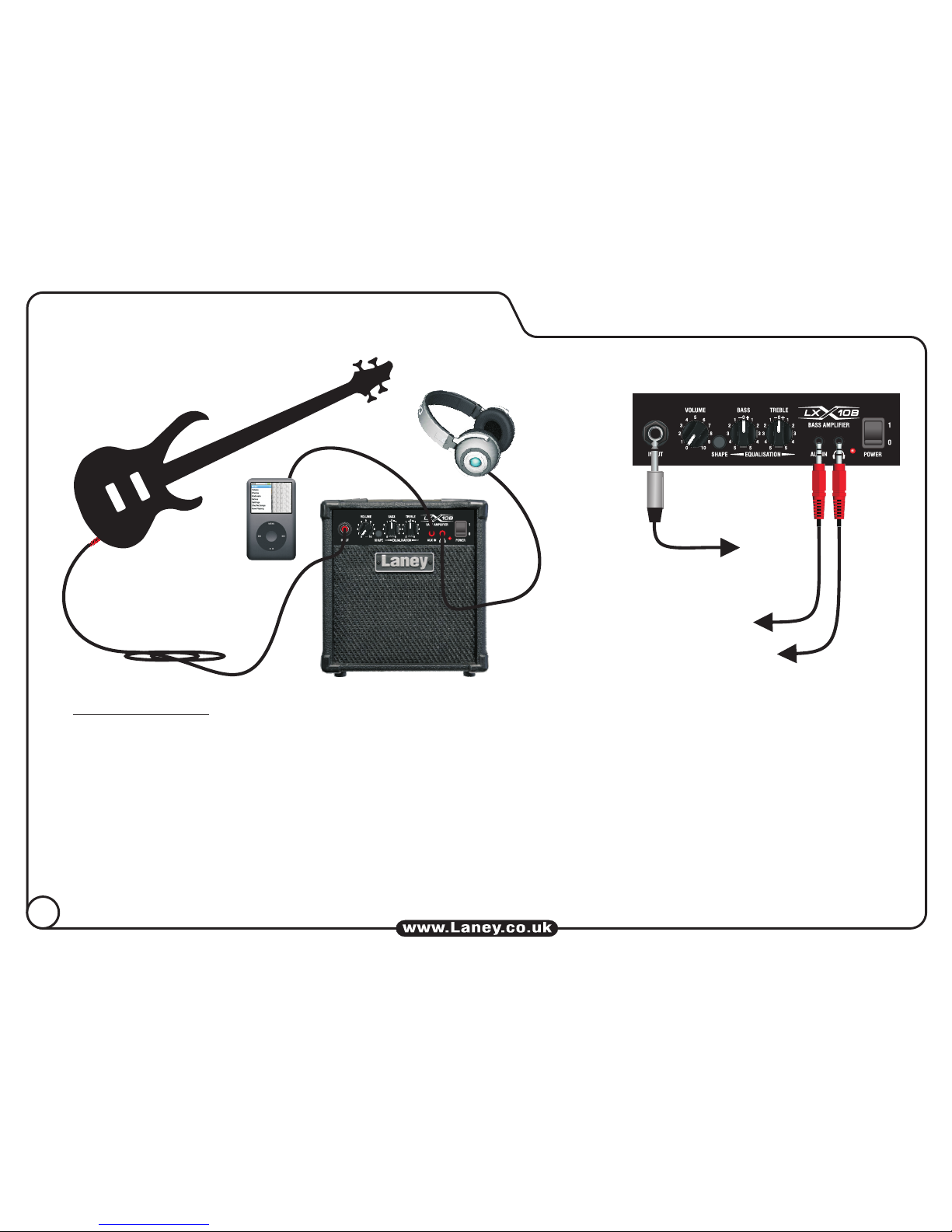

CONNECTIONS

Supply Voltage (Factory Preset) ~100V, ~120V, (~220V, > ~240V) 50/60Hz

Power Consumption 15W

Output Power Rating 10W

Loudspeaker 5” Custom Designed Bass Driver

Features Input Skt (6.3 Jack)

Shape EQ Circuit

Bass

Treble

Aux In (3.5 Stereo Jack)

Headphone Skt (3.5 Stereo Jack)

Master Volume

Size 245*216*146 (H*W*D)

Unit Weight 2.6Kg

Packing Weight 3.2Kg

SPECIFICATIONS

BLOCK DIAGRAM

This product conforms to the requirements of the

following European Regulations, Directives & Rules:

CE Mark (93/68/EEC),

Low Voltage (72/23/EEC),

EMC (2004/108/EEC),

RoHS (2011/65/EU),

WEEE (EU2002/96/EC).

In order to reduce environmental damage, at the

end of its useful life, this product must not be

disposed off along with normal household waste to

landfill sites. It must be taken to an

approved recycling centre according

to the recommendations of the

WEEE (Waste Electrical And

Electronic Equipment) Directive

applicable in your country.

HEADPHONES

INTERNAL

LOUDSPEAKER

SECTION

GUITAR INPUT

AUX IN

ON/OFF

BASS

TREBLE

MASTER VOLUME

In the interest of continued development, Laney

reserves the right to amend product specification

without prior notification.

SHAPE
