Lantech IWMR-3003 Manuale utente

IWMR-3003

Industrial Multifunction VPN Router w/up to 2x WiFi 11ac + up to 2

LTE 4G + 2/4 serial ports + 3 Gigabit Ethernet Switch

IMR-3003

Industrial Multifunction VPN Router w/up to 2 LTE 4G + 2/4 serial

ports + 3 Gigabit Ethernet Switch

IWAP-3003

Industrial Multifunction VPN Router w/up to 2x WiFi 11ac + 2/4

serial ports + 3 Gigabit Ethernet Switch

User Manual (Hardware)

Dec. 2021

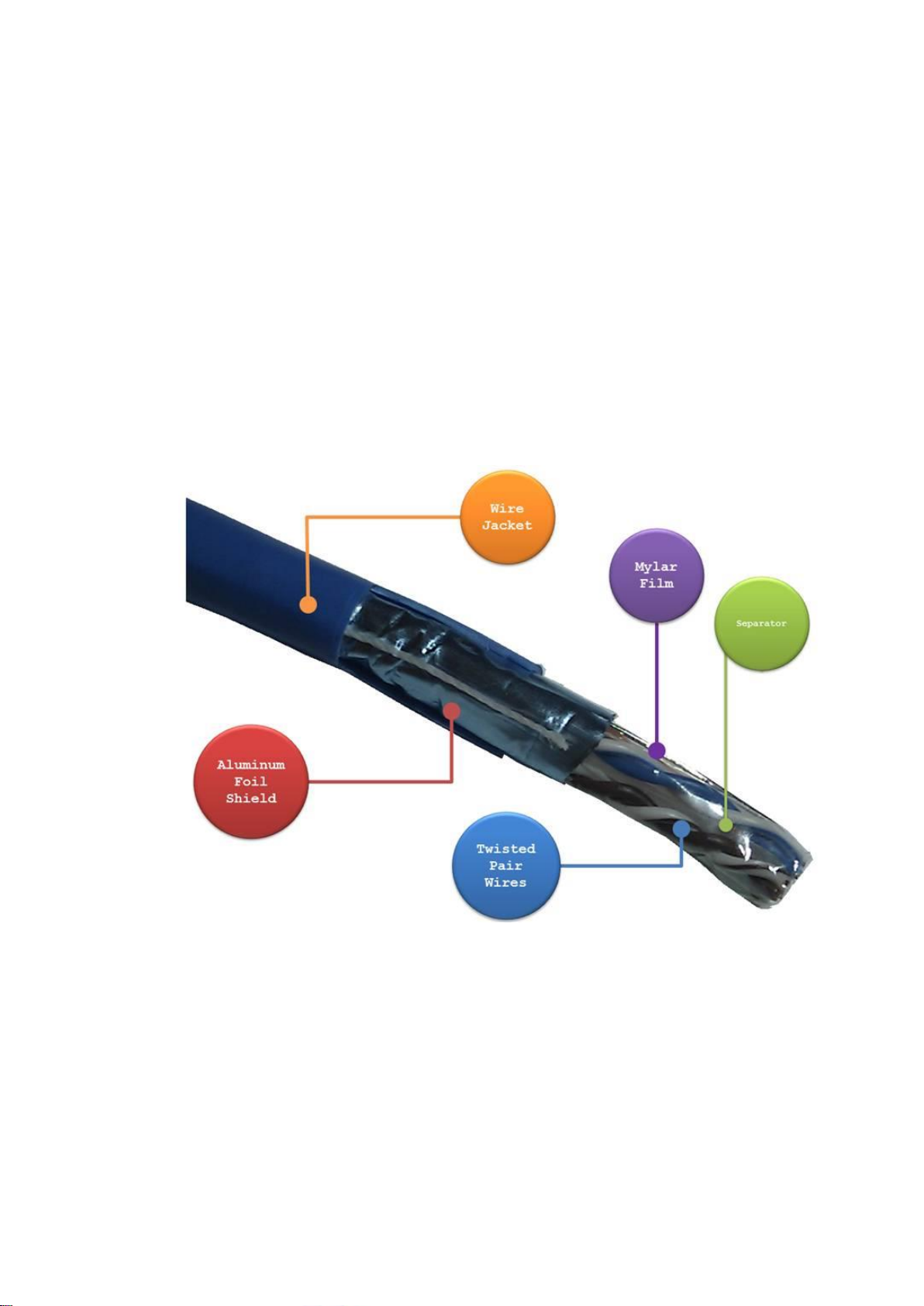

Recommendation for Shielded network

cables

STP cables have additional shielding material that is used to reduce external

interference. The shield also reduces the emission at any point in the path of the cable.

Our recommendation is to deploy an STP network cable in demanding electrical

environments. Examples of demanding indoor environments are where the network

cable is located in parallel with electrical mains supply cables or where large inductive

loads such as motors or contactors are in close vicinity to the camera or its cable. It is

also mandatory to use an STP cable where the power device (like IP camera) is used

outdoors or where the network cable is routed outdoors.

Important Notice

Lantech Communications Global, Inc. reserves the right to modify the

equipment, its specification or this manual without prior notice, in the

interest of improving performance, reliability, or servicing. At the time of

publication all data is correct for the operation of the equipment at the

voltage and/or temperature referred to. Performance data indicates typical

values related to the particular product.

No part of this documentation or information supplied may be divulged to

any third party without the express written consent of Lantech

Communications Global Inc. Products offered may contain software which

is proprietary to Lantech Communications Global Inc. The offer or supply of

these products and services does not include or infer any transfer of

ownership.

Interference Issues

This Equipment has been tested and found to comply with the limits for a

Class A digital device, pursuant to Part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful interference

in a commercial or industrial installation. This equipment generates, uses,

and can radiate radio frequency energy. It may cause harmful interference

to radio communications if the equipment is not installed and used in

accordance with the instructions.

FCC Warning

This Equipment has been tested and found to comply with the limits for a

Class-A digital device, pursuant to Part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses,

and can radiate radio frequency energy. It may cause harmful

interference to radio communications if the equipment is not installed and

used in accordance with the instructions. However, there is no guarantee

that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the

following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may

cause radio interference in which case the user may be required to take

adequate measures.

Content

1. Hardware Description ............................3

1.1. Physical Dimension..................................... 3

1.2. IP Protection................................................. 8

1.3. Front Panel ................................................. 11

1.4. LED Indicators............................................ 14

2. Hardware Installation –RJ45 Models.16

2.1. Hardware installation................................. 16

2.2. DIN-Rail Mounting...................................... 16

2.3. Wall Mount Plate Mounting....................... 18

2.4. Wiring the Power Inputs............................ 20

2.4.1. Steps to Insert the Power Wire ................... 20

2.4.2. Grounding .................................................... 21

2.5. Wiring the Fault Alarm Contact ................ 22

2.6. Cabling........................................................ 23

2.7. SIM............................................................... 23

2.8. Serial Ports................................................. 25

3. Hardware Installation –M12 Models...26

3.1. Hardware installation................................. 26

3.2. Wall Mount Plate Mounting....................... 27

3.3. Wiring the Power Inputs............................ 28

3.4. Wiring the Reset or USB............................ 30

3.5. Cabling........................................................ 31

3.6. SIM............................................................... 32

4. Console Management ..........................34

4.1. Connecting to the Console Port............... 34

4.1.1. RJ45 Models................................................. 34

4.1.2. M12 models.................................................. 35

4.2. Login in the Console Interface.................. 35

1.Hardware Description

Lantech IWMR-3003 / IMR-3003 / IWAP-3003 are next generation industrial multi-

function VPN routers.

In this paragraph, it will describe the Industrial multi-function VPN router’s hardware

spec, port, cabling information, and wiring installation.

1.1.Physical Dimension

IWMR-3003, RJ-45 model

Metal case. IP-30,

74 (W) x 114 (D) x 152 (H) mm (12V/24V model)

82 (W) x 172 (D) x 152 (H) mm (WV model)

IWMR-3003, M12 model

Metal case. IP-43,

74(W) x 122(D) X 152 (H) mm

IMR-3003, RJ-45 model

Metal case. IP-30,

74 (W) x 114 (D) x 152 (H) mm (12V/24V model)

82 (W) x 172 (D) x 152 (H) mm (WV model)

IMR-3003, M12 model

Metal case. IP-43,

74(W) x 122(D) X 152 (H) mm

IWAP-3003, RJ-45 model

Metal case. IP-30,

74 (W) x 114 (D) x 152 (H) mm (12V/24V model)
