Lanzar Mini Max MNX3000D Manuale utente
MNX OWNER'S MANUAL
MNX1800D
MNX3000D
MNX5000D
MNX1800D
MNX3000D
MNX5000D
SMD Digital Mono Block Amplifier
OWNER'S MANUAL
1. Contents
2. Introduction
3. Features
4. Specifications
5. Amplifier installation
6. 7. Features and controls
8. System wiring
9. 10. Troubleshooting
OWNER'S MANUAL - 1
Thank you for purchasing the Lanzar MNX Class-D amplifier. Rest assured you have purchased a quality
product
designed and engineered to give you many years of un compromised musical service.
The MNX Class-D amplifier has been designed using the latest in electronic technology available today.
This mono subwoofer amplifier is the result of advanced high speed switching technology that overcomes the
less-efficient class-D design. The MNX Class-D amplifier reflects your true appreciation for powerful bass
reproduction in the mobile environment.
This amplifier is designed for low-frequency information only and it is not capable of reproducing any
mid/high-frequency information.
This is due to the noise introduced into the signal by the switching speed of the power supply, which must be
filtered out of the audio signal.
The power supply incorporated into MNX amplifier is a DC to DC switching power supply designed to
have adequate headroom for even the most demanding peak and dynamic range found on today's cds
and recording.
OWNER'S MANUAL - 2
Low - frequency information for subwoofer only.
High efficient power
Stiffly regulated PWM power supplies.
MOSFET switches maintain rated power over a wide range of battery voltages.
Adjustable from 50Hz to 250Hz with a slope of 24dB per octave.
This allows for the adjustment of the upper point of the frequency bandwidth
and the respective subwoofer.
Adjustable from 15Hz to 45Hz with a slope of 24dB per octave.
This allows for the attenuation of frequencies that are mostly inaudible and
cause unnecessary strain on the amplifier.
CLASS-D DESIGN
POWER SUPPLIES
LOW PASS FILTER
Protection against thermal, Overload and short circuit conditions.
This amplifier come complete with a compact remote GAIN CONTROLLER
which can be conveniently mounted on or under the dashboard of your car.
PROTECTION CIRCUITRY
REMOTE DASH-MOUNT GAIN CONTROL
VARIABLE SUBSONIC FILTER
OWNER'S MANUAL - 3
80dB
10Hz to 250Hz
50Hz~250Hz
15Hz~45Hz
0~+18dB (45Hz F )IX
100mV to 4V
10K Ohm
100 Ohm
8.11" x 2.11" x 7.87"
30A x3
0 to 180
1950W MONO
3000W MONO
0.5%
MNX 3000D
1250W MONO
80dB
10Hz to 250Hz
50Hz~250Hz
15Hz~45Hz
0~+18dB (45Hz )IX
100mV to 4V
10K Ohm
100 Ohm
8.11" x 2.11" x 10.24"
30A x4
0 to 180
3500W MONO
5000W MONO
0.5%
MNX 5000D
2100W MONO
80dB
10Hz to 250Hz
50Hz~250Hz
15Hz~45Hz
0~+18dB (45Hz FIX)
100mV to 4V
10K Ohm
100 Ohm
8.11" x 2.11" x 6.3"
25A x2
0 to 180
1200W MONO
1800W MONO
0.5%
MNX 1800D
700W MONO
Signal-to-Noise Ratio (4Ohm)
Frequency Response
Variable LowPass Filter
Variable SubsonicFilter
Variable BassBoost
Phase Shift Control
Input Sensitivity
Input Impedance
Line Output Impedance
Dimensions(Inches) W xH x L
Fuse Rating
PEAK Power,INTO 2 Ohms
PEAK Power,INTO 1 Ohms
THD at 1Watt, 4 Ohm
PEAK Power,INTO 4 Ohms
OWNER'S MANUAL - 4
1. Find a suitable location in the vehicle to mount the amplifier.
2. Make sure there is sufficient air flow around the intended mounting location.
3. Bolt the amplifier to the mounting surface.
4. Connect the power ground terminal to the nearest point on the chassis of the car.
Keep this ground wire less than one meter (39") in length. Use 4 gauge or 0 gauge wire.
5. Connect the remote terminal to the remote output of the head unit using 14 gauge.
6. Connect an empty fuse holder within 300mm (12") of the battery and 4 gauge
or larger high quality cable from this fuse to the amplifier location.
7. Make sure there is no fuse in this fuse holder. Then make the connection to the "BATT"
connection on the amplifier.
8. If multiple amplifiers are being used, use cables (each with its own fuse at the battery)
or a #0 or a #2 cable from the fuse holder at the battery to a distribution block at or
near the amplifier's location.
9. Connect all line inputs and outputs using high-quality RCA-RCA cables.
10. Insert fuse(s) at the battery fuse holder(s).
11. Recheck all connections before powering up.
12. Set all level controls to their least sensitive positions and set all crossover controls, switches,
etc. to the desired frequency or position.
13. Once the system is powered up, set the volume control on the head unit to about the
2 o'clock position, and then set all the amplifiers' level controls for maximum output level.
14. Further fine tuning of the various controls may be necessary to obtain the desired results.
OWNER'S MANUAL - 5
MNX 1800D / 3000D / 5000D
1 2 3 4 5 7 86
910
OWNER'S MANUAL - 6
25A x2
30A x3
30A x4
MNX1800D
MNX3000D
MNX5000D
MODEL FUSES
1. Input RCA Jacks - These inputs are for signal cables from the source.
Always use high quality shielded RCA cables.
2. Line Out RCA Jacks - The LINE OUT allows you to build multiple amplifier systems
with out having to use splitter cords to distribute the signal. Now it is simple a matter of
bringing one set of RCAs into the first amplifier, then using the line out RCA jacks as the
feed to the next amplifier.
3. Level Control- Enables the matching of input levels to the output levels from
the head unit(or other signal source).
4.Variable Subsonic Filter- 15Hz~45Hz.
5.Variable Low Pass Filter- When Crossover Mode Selector is in Low Pass Mode, this control
limits the frequencies which will be distributed to the speakers to those below the value
to which this is set within the range50~250Hz.
6.Phase Shift control - Allows you to change the phase of your subwoofer from 0 to 180 degrees
to help compensate for timing differences between drivers.
7.Variable Bass Boost Control- 0~18dB(45Hz FIX).
8. Bass Boost Remote Control Input
9.Power & Protection Indicators- Provide instant information on status of amplifier,
including short-circuit and thermal overload alerts.
10.Speaker Terminal.
OWNER'S MANUAL - 7

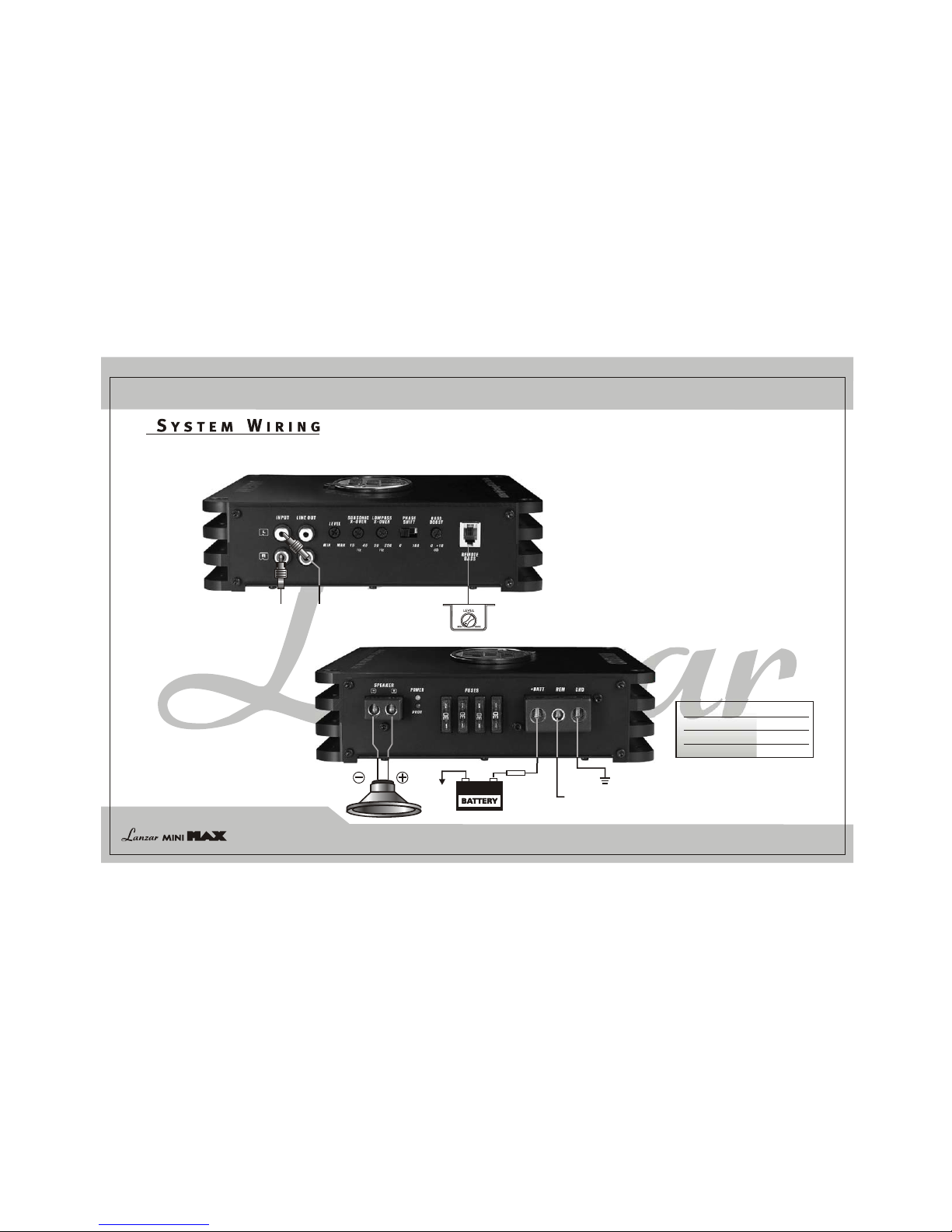

SUBWOOFER
SPEAKER IMPEDANCE
1~8 Ohm
TO REMOTE
GAIN CONTROLLER
TO OUTPUT FROM HEAD UNIT
TO CAR STEREO
AUTO ANTENNA
CHASSIS GROUND (BARE METAL)
FUSE
25A x2
30A x3
30A x4
MNX1800D
MNX3000D
MNX5000D
MODEL FUSES
OWNER'S MANUAL - 8
MNX 1800D / 3000D / 5000D
