lap RH60B-LED Istruzioni per il montaggio
Type: RH60B-LED Ref: 86524
The bulkhead light incorporates a PIR (Passive Infra Red) sensing device which continuously
scans a preset operating zone and immediately switches the lamp on when it detects movement
in that area.
This means that whenever movement is detected within the range of the sensor the lamp will
switch on automatically to illuminate pathways, steps, patios, porches, or whatever area you have
selected to light for reasons of safety, convenience or security.
While there is movement within range of the unit the lamp will remain on.
PARTS INCLUDED
- Luminaire c/w PIR Sensor unit.
- Instruction manual. Please keep safe for future reference.
- Accessory Pack.
TOOLS & PARTS NEEDED
- 3 core cable
- Electric/hand-held drill & bits
- Terminal or Electricians screwdriver
- Large slotted/philips screwdriver
- Wire cutters
To achieve best results, we suggest you take into account the following points:
■ Do not mount on vibrating surfaces.
■ Ideally the bulkhead light should be mounted 1.8 to 2.5 meters (6 to 8ft) above the area to be
scanned (refer Fig.1A).
appro.110°
1.8 to
2.5 meters
4M 8M 12M
■ Do not aim towards reflective surfaces such as smooth white walls, swimming pools, etc. The
PIR Sensor scanning specifications (approximately 12 meters at approx. 110°--horizontal) may
vary slightly depending on the mounting height and location. The detection range of the unit may
also alter with temperature change. Before selecting a place to install your global lamp you should
note that movement across the scan area is more effective than movement directly toward or away
from the sensor (refer Fig.1B). If movement is made walking directly towards or away from the
sensor and not across, the apparent detection range will be substantially reduced. (refer Fig. 1C)

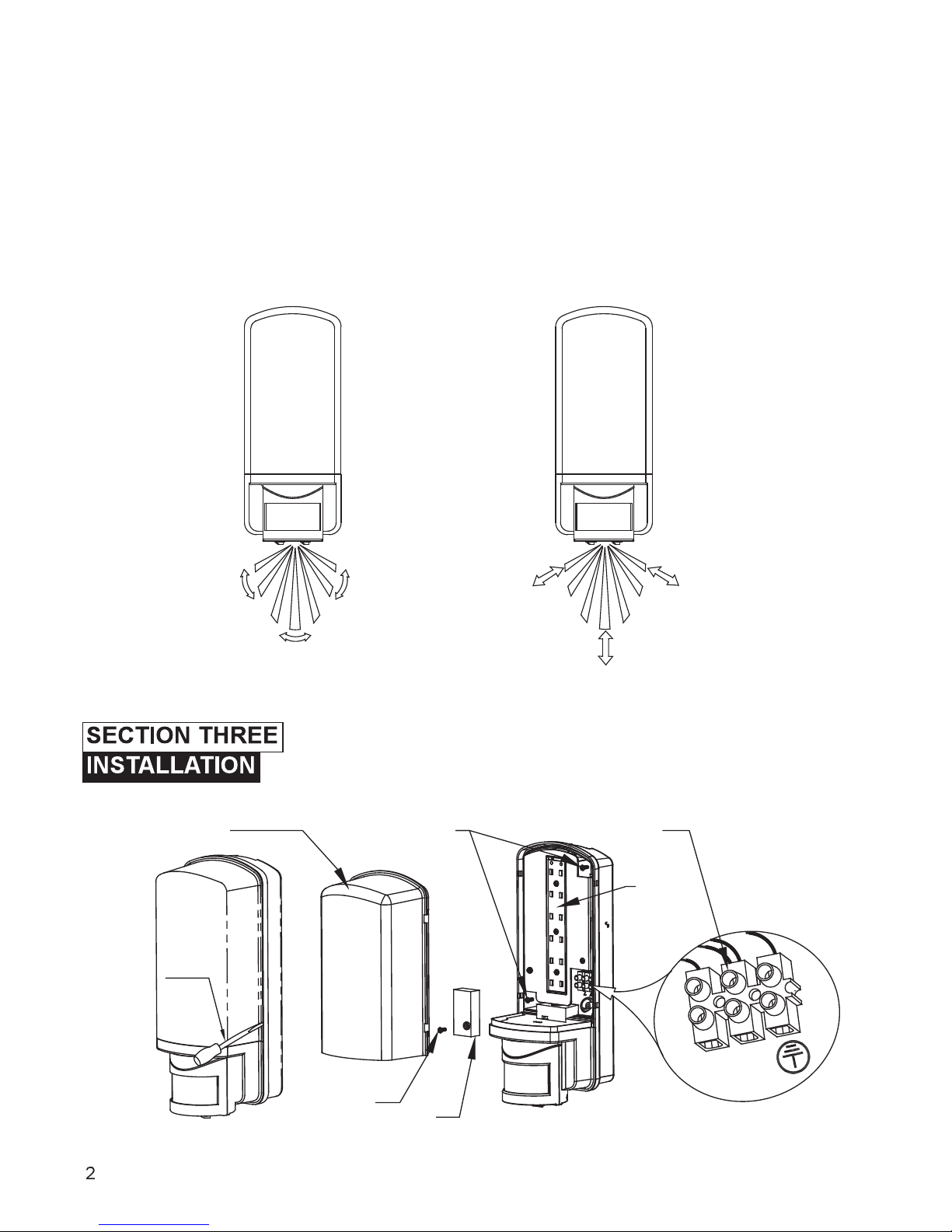

To install the bulkhead light, please refer to Fig.2.
Fig. 1(C) NOT GOODFig. 1(B) GOOD
Fig.2 Mounting and Wiring to Terminal
■ To avoid damage to unit-do not aim the sensor towards the sun.
■ To avoid nuisance triggering, the sensor should be directed away from heat sources such as
barbecues, Air-conditioners, other outside lighting, moving cars and flue vents.
■ To avoid nuisance triggering, keeping away from the area of strong electromagnetic disturbance.
L
N
Lampshade Mounting Scerws Terminal Block
Transparent Plate
Screw (A)
LED
Screwdriver
UNDERSTANDING THE CONTROLS ---- Referring to Fig. (3)
ADJUSTING THE DURATION TIME: The length of time that the light remains switched on after
activation can be adjusted from (10±5) seconds to (4±1) minutes. Rotating the TIME knob from (+)
to (-) will reduce the duration time.
Note: Once the light has been triggered by the PIR sensor any subsequent detection will start the
timed period again from the beginning.
ADJUSTING THE LUX CONTROL LEVEL: The Lux control module has a built-in sensing device
(photocell) that detects daylight and darkness. The ( ) position denotes that the bulkhead light
can work at day and night, and the ( ) position only work at night. You can set to operate the unit
at the desired level by adjusting the LUX knob.
1. Installation should be carried out by a licensed electrician and according to IEC wiring
Regulations.
2. Switch power off at the meter box and ensure that there is no power to the lamp.
3. Remove the Lampshade using a screwdriver, see fig 2
4. Unscrew the Screw (A) and remove the Transparent Plate.
5. Mark the mounting hole positions onto the wall. Drill and plug the wall at the marked positions.
Screw the lamp body to wall with suitable Mounting Screws (supplied)
6. Connect the main power wires (H05RN-F 3G 1.0mm2 ) to the Terminal Block (noting the correct
terminals in fig .2), the Cable must pass through the Wiring Rubber Gasket.
7. Re fit the Transparent Plate.
8. Re-fit the Lampshade by hand.
9. Once the bulkhead light has been installed, the detection area and PIR Sensor can be adjusted.
■ NOTES FOR ELECTRICIAN-- Installation by a licensed electrician
1) The Bulkhead Light should be wired to its own lamp switch. Do not interconnect with
other lights on the same switch.
2) Do not connect to Dimmer.
Fig. (3)
Important: To avoid dust build-up and ensure proper functioning of the global lamp, wipe
the sensor lens lightly with a damp cloth every 3 months. But never modify the unit, there
are no any user serviceable parts inside.
1. Put the Lux control knob to light ( ) position, turn the wall switch on and wait half a minute for
the control circuit to stabilize. At this stage ensure that the TIME control knob is set at minimum
duration time (-) position. The bulkhead light will now switch on and remain on for about 30
seconds (within 60 seconds).
2. Direct the sensor toward the desired area to be scanned by adjusting the PIR sensor.
3. Have another person move across the center of the area to be scanned and slowly adjust the
PIR sensor until the unit sensors the presence of the moving person, causing the lamp to switch
on. (refer Fig. 1B).
4. Adjust time control to required setting.
5.To set the lux level at which the lamp will automatically switch “on” at night, please turn the LUX
control knob from daylight to night. If the lamp is required to switch on earlier, e. g. Dusk, wait for
the desired environment light level, then slowly turn the LUX control knob towards the daylight
( ) while someone walks across the center of the area to be detected. When the lamp switches
on, release the LUX control knob. You may need to make further adjustments to achieve your
ideal light level setting.
220-240VAC 50Hz
9W (12X0.5W LEDs)
Approx.110º (horizontal), Max. 12 meters adjustable
and sensitivity adjustable
from (10±5) seconds to (4±1) minutes adjustable
from daylight to night adjustable
IP44
Voltage:
Wattage:
Detection range:
Duration time:
LUX control level:
Weatherproof:
PROBLEM POSSIBLE CAUSE SUGGESTED REMEDY
Lamp does not switch
on when there is
movement in the
detection area.
1. no mains voltage Check all connections, and
Fuses/switches
2. near by lighting is too
bright.
Redirect sensor or relocate
the unit
3. controls set incorrectly Readjust sensor angle or
control knob
4. sensor positioned in wrong
direction
Redirect sensor and/or adjust
Lamp switches on for
no apparent reason
(false trigger)
1. heat sources such as
air-con, Vents, heater flues,
barbecues, other outside
lighting, moving cars are
activating sensor.
Away from heat sources.
2. animals/birds e.g. possums
or domestic animals.
Redirecting sensor head may
help.
3. interference from on/off
switching of electric fans or
lights on the same circuit as
your security floodlight. (this
problem does not always
occur but a faulty switch or
noisy fluorescent light may
cause the security floodlight
to switch on.)
Should the false triggering
become, troublesome,
consider:
a) replacing a faulty switch.
b) Replacing noisy
fluorescent Tubes and/or
starters.
c) connecting the global lamp
to a separate circuit(in most
cases where one or more of
the above suggestions have
been carried out, false
triggering has been reduced.)
4. reflection from swimming
pool, or reflective surface.
Redirect sensor.
Light remains on. 1. continuously false
triggered
Redirecting sensor head may
help
2. time is set too long. Reduce time
Light switches on
during daylight hours.
LUX control knob is set to
daylight position.
Turn the LUX control knob to
desired light level setting.
When setting controls
in daylight the
detection distance
becomes shorter.
1.interference by sunlight Re-test at night.
Powersmith Ltd, BA22 8RT
Environmental Protection. Waste electrical
products should not be disposed of with
household waste. Please recycle where
facilities exist. Check with your Local
Authority or retailer for recycling advice.
