Larson Electronics EXP-LED-FX2-2M Guida

I. Installation & Operation - EXP-LED-FX2-2M

I. Operation

Momentary Mode:

Lightly press the top body switch for

momentary operation. Release the

switch to turn the light off.

Constant-On Mode:

Press the top body switch until it clicks and

then release for constant-on mode. Press

and release the top body switch again to turn

the light off.

Floodlight Mode:

Press the bottom body switch until it clicks

and then release for oodlight

mode. Press and release the bottom body

switch again to turn the light off.

Dual-Light Mode:

Dual-Light allows the user to turn on both the

ashlight and the oodlight, at the same time.

Press the top body switch until it clicks and

then release for constant-on mode ashlight

Mode. Next press and release the bottom

switch to activate the oodlight. Both the

ashlight and the oodlight are now running.

Press and release both the top and bottom

body switches to turn the lights off.

On/Off Button for

Flashlight

On/Off Button for

Floodlight

Belt Clip with

Magnet

II. Battery Replacement

I. Replacement

1. Loosen the locking screw located on the

side of the lens cap. NOTE: Do NOT attempt to

completely remove the locking screw. Doing so

is not necessary and may damage the threads.

The screw simply needs to be loosened enough

to allow the lens bezel to unscrew.

2. Unscrew the lens bezel from the housing in a

counter-clockwise direction.

3. Turn the light upside down and carefully

shake the light in order to remove the reector

/ battery carrier. Allow the reector / battery

carrier to slide into your hand. WARNING: Do

NOT touch the reector surface with your nger.

Doing so may damage the reector surface.

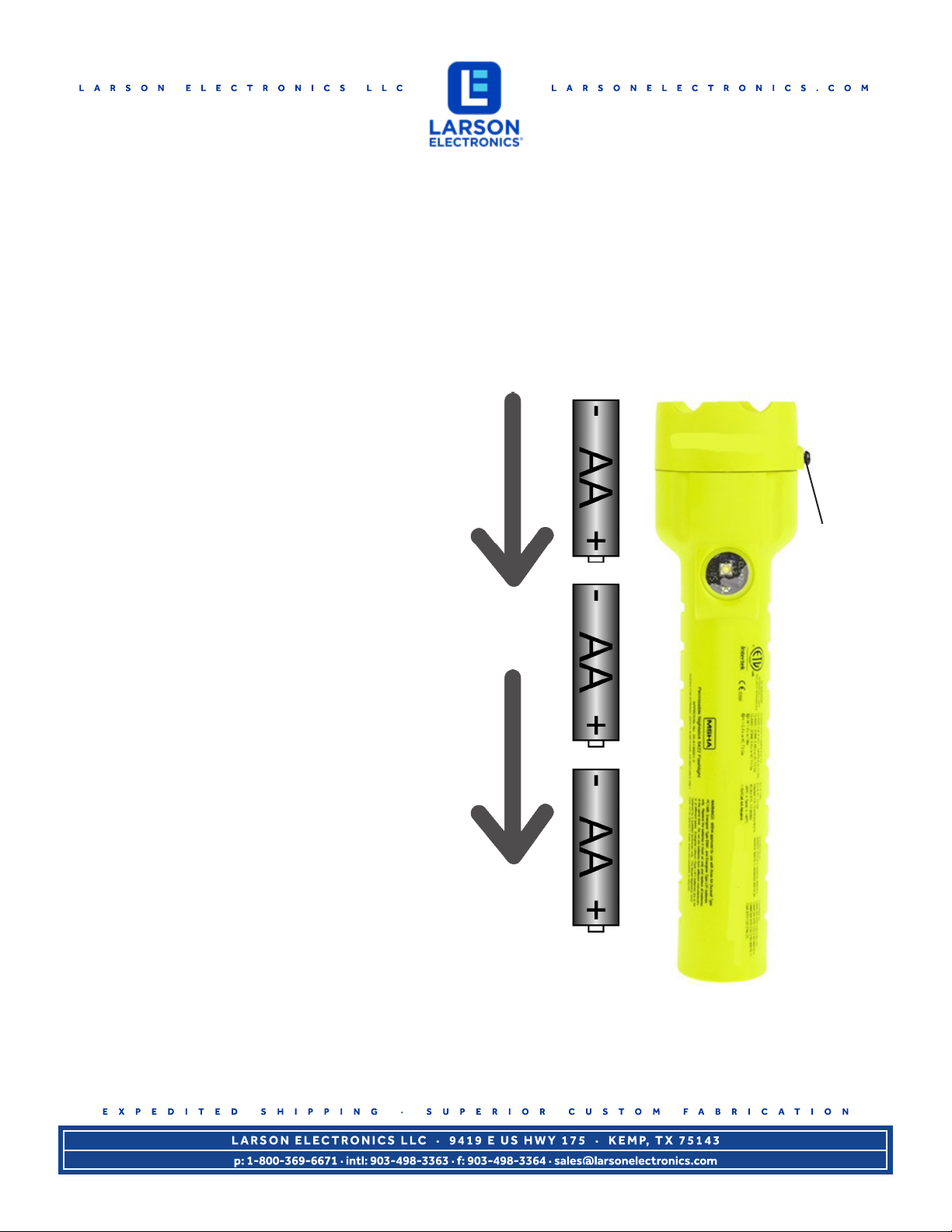

4. Using 3 – AA batteries (make sure that all

3 batteries are of the same model), install the

batteries in the carrier paying close attention to

the markings on the battery carrier for proper

battery terminal polarity alignment.

5. Align the reector / battery carrier so that

the switches on the carrier are aligned with the

switches on the housing. Carefully insert the

reector / battery carrier back into the ashlight

housing until it is fully seated in the housing.

WARNING: Be careful to not touch the reector

surface with your nger. Doing so may damage

the reector surface.

6. Replace the lens bezel by screwing it onto

the housing in a clockwise direction.

7. Tighten locking screw. CAUTION: Do NOT

over-tighten. Doing so may damage the threads

and impact the light’s Intrinsic Safety.

Locking Screw

II. Warnings and Safety Ratings

I. Warnings

Use only the approved non-rechargeable

batteries listed below.

Do NOT attempt to use rechargeable AA

batteries with this light.

To prevent ignition of hazardous atmosphere,

do not open the lens bezel in the hazardous

environment. This task must ONLY be

performed in an area known to be non-

hazardous.

To prevent ignition of a hazardous atmosphere,

the AA batteries must only be exchanged in an

area known to be non-hazardous.

To reduce the risk of explosion, do not

mix new non-rechargeable batteries with

used non-rechargeable batteries, or mix

non-rechargeable batteries from different

manufacturers.

Substitution of components may impair

intrinsic safety.

For personal safety, always conrm the

rating of any known hazardous or potentially

hazardous location where the light is to be

used.

DoNOTattempttouseanytypeofrechargeable

AA batteries with this light.

To prevent ignition of a hazardous atmosphere,

do NOT remove the lens bezel in the hazardous

environment. This task must ONLY be done in

an area known to be non-hazardous.

II. Ratings

Listed United States, Canada, IECEx, ATEX

Class I Division 1 Groups A, B, C and D

Class II Division 1 Groups E, F and G

Class III Division 1 Groups E, F and G

Class I, Zone 0, AEx ia IIC T3 Ga

Class I, Zone 0, Ex ia IIC T3 Ga

ATEX I M 1 Ex ia op is I Ma

ATEX II 1 G Ex ia op is IIC T3 Ga

IECEx Ex ia op is I MA

IECEx Ex ia op is IIC T3 Ga

T3 Temperature Ratings
