Larson Electronics EPEXC-1C-10.3-GFI-50C-BCE Manuale utente

EPEXC-1C-10.3-GFI-50C-BCE

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com 1of 3

Explosion Proof LED Paint Spray Booth Light

3rd Gen - Class 1 Div 1 - Class 2 Div 1

Instruction Manual

Thank you for your purchase of the Larson Electronics EPEXC-1C-10.3-GFI-50C-BCE.

WARNING:

READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.

CRITICAL SAFETY INSTRUCTIONS:

•INSTALLATION SHOULD ONLY BECONDUCTED BY A QUALIFIED ELECTRICIAN IN ACCORDANCE WITH NEC AND ANY

RELEVANT LOCAL BUILDING CODES.

•RISK OFFIRE OR ELECTRIC SHOCK. FIXTURE INSTALLATION REQUIRES KNOWLEDGE OF FIXTURE'S ELECTRICAL

SYSTEMS. IFNOTQUALIFIED, CONTACT A QUALIFIED ELECTRICIAN.

•BE CERTAIN ELECTRICAL POWER IS OFF BEFORE AND DURING INSTALLATION AND MAINTENANCE.

•MAKE SURE THE SUPPLY VOLTAGE IS THE SAME AS THE FIXTURE'S RATED VOLTAGE.

•TO PREVENT WIRING DAMAGE OR ABRASION, DO NOT EXPOSE WIRING TO EDGES OF SHEET METAL OR SHARP

OBJECTS. SUITABLE FOR DAMP LOCATIONS.

WARNING:

USER SHOULD BE TRAINED IN THE PROPER USE AND MAINTENANCE OFTHIS DEVICE. WHEN EXTENSION

CORD IS CONNECTED TO A POWER SOURCE IN HAZARDOUS AREA, PLUG AND MATCHING RECEPTACLE

MUST BE SUITABLE FOR HAZARDOUS LOCATION INVOLVED. IMPROPER USE OF THIS DEVICE, ASSOCIATED

PLUG, RECEPTACLE, AND CORD CAN LEAD TO SERIOUS INJURIES OR DEATH TO PERSONNEL.

PERIODIC INSPECTION OF THE RECEPTACLE AND CORD IS NECESSARY.

THE CORD MUST BE ROUTINELY CHECKED FOR CUTS, BREAKS, ORANY SEVERE ABRASIONS, AND IFANY

ARE FOUND, THE CORD MUST BEREPLACED BEFORE RESUMING USE OFTHE UNIT.

ELECTRICAL POWER SUPPLY MUST BE “OFF” BEFORE AND DURING INSTALLATION ANDMAINTENANCE.

INSTALLATION ANDMAINTENANCE PROCEDURE MUST BE PERFORMED BY A TRAINED AND COMPETENT

ELECTRICIAN.

IF ANY PARTS OF THE RECEPTACLE OR PLUG APPEAR TOBE MISSING, BROKEN, ORSHOW SIGNS OR

DAMAGE, DISCONTINUE USE IMMEDIATELY. REPLACE WITH THE PROPER REPLACEMENT PART(S) BEFORE

CONTINUING SERVICE.

The EPEXC-1C-10.3-GFI-50C-BCE Explosion Proof GFCI Cord Whip allows operators in flammable work sites to

extend power connections. This explosion proof accessory is compatible with 125V and comes with a 20-amp

continuous service rating. The cord features 10/3 SOOW properties, making it suitable for rugged, industrial

applications.

WIRING

Standard pigtail(flying leads) wiring

We strongly encourage a licensed electrician install this product,in all locations especially in outdoor areas

where weatherproofing may be required. Universal voltage driver permits operation at 125V AC.

Warning: Check product label for correct input voltage!

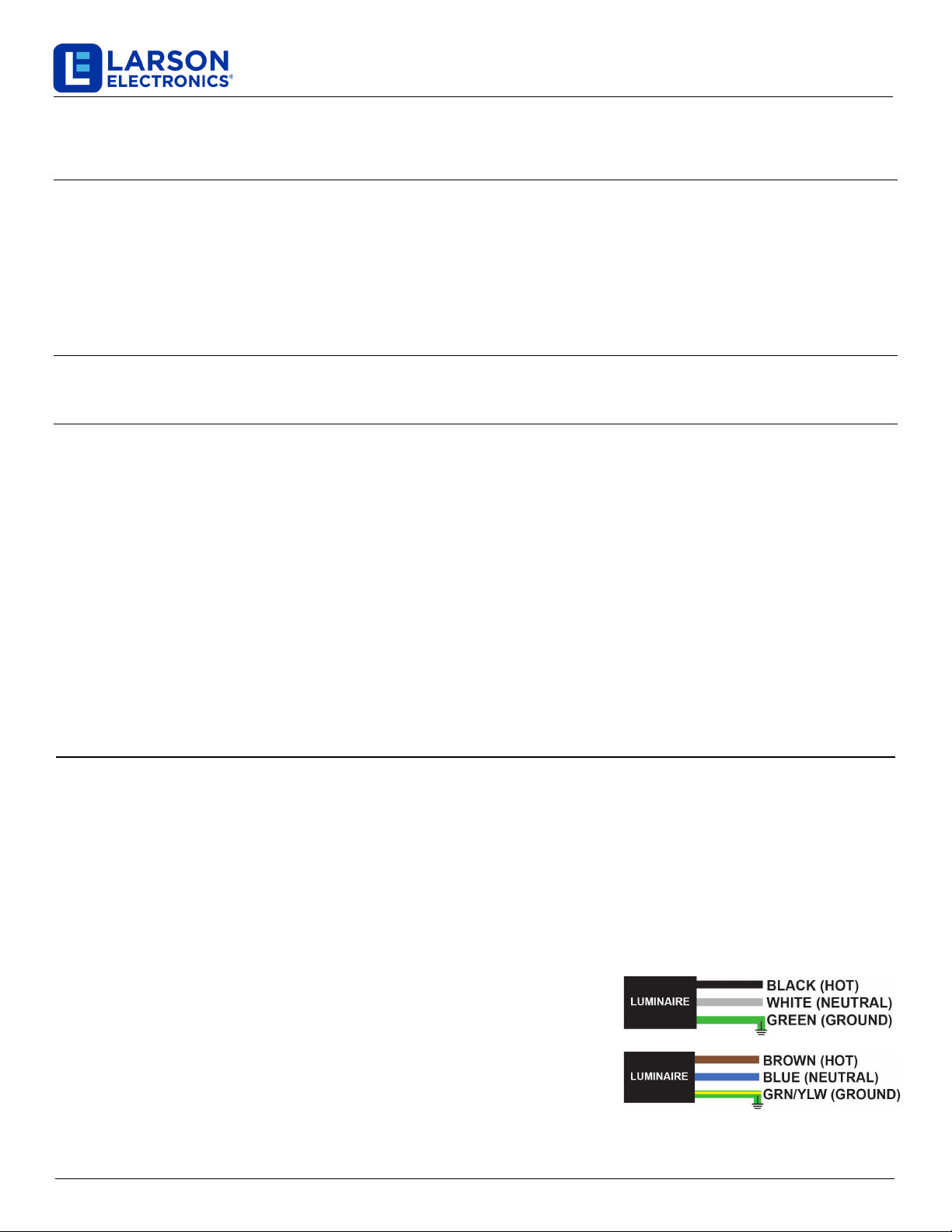

Attach supply line wires to the appropriate light fixture wires as shown

in thediagram 

Secure each pair of wires according to the diagram. Utilize a junction box or

similar device and take precautionary steps for weatherproofing all

connections if installed in a location where water may come in contact with the

unit. Ensure the unit is properly grounded and that wiring is done according to

all local and national electrical/building codes.

EPEXC-1C-10.3-GFI-50C-BCE

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com 2of 3

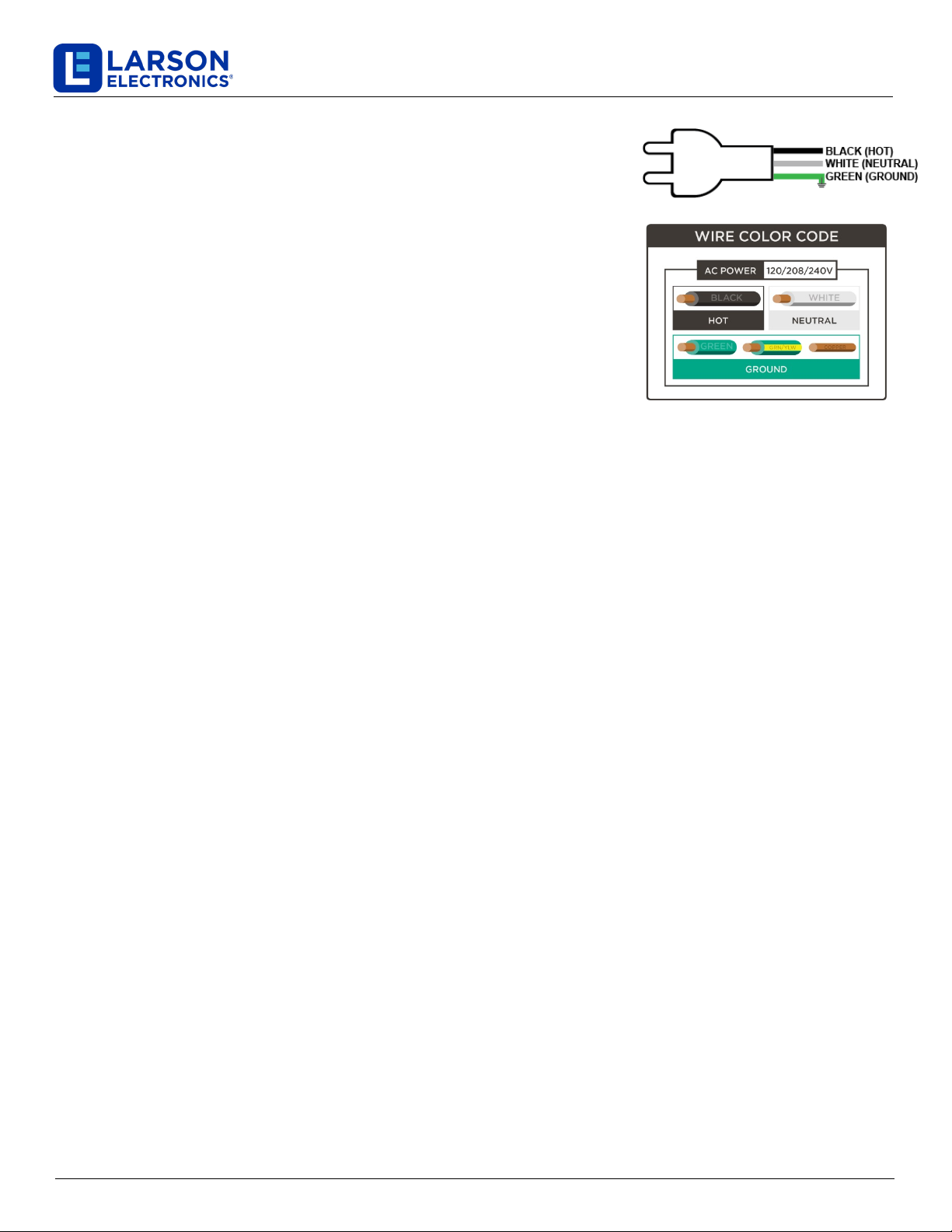

Exp Cord Cap

Position device near work area for operation. Run cable to nearby power

source. Insert and twist-lock explosion-proof plug into a compatible receptacle within

the hazardous environment. See plug operation below.

PLUG OPERATION

Electrical connection between plug and compatible receptacle is accomplished

after plug fully inserts into receptacle and rotated clockwise.

1. Lift receptacle door and locate polarization on mating plug pin and

receptacle face. Insert plug straight all the way into receptacle until it

cannot go further.

2. Rotate plug clockwise limit (37º), this closes internal contacts and

completes circuit. This also mechanically locks plug into receptacle so it

cannot be pulled out.

3. To remove plug, push plug inward and turn to counterclockwise, pull plug

straight out.

GROUND-FAULT CIRCUIT INTERRUPTER (GFCI)

In the event of a ground fault, a GFCI will trip and quickly stop the flow of electricity to prevent serious injury.

Definition of a ground fault:

Instead of following its normal safe path, electricity passes through a person's body to reach the ground. For example, a

defective appliance can cause a ground fault.

A GFCI receptacle does NOT protect against circuit overloads, short circuits, or shocks. For example, you can still be

shocked if you touch bare wires while standing on a non-conducting surface, such as a wood floor.

NOTE:

GFCI's contain a lockout feature that will prevent RESET if:

• There is no power being supplied to the GFCI.

• The GFCI is miswired due to reversal of the LINE and LOAD leads.

• The GFCI cannot pass its internal test, indicating that it may not be able to provide protection in the event of a ground

fault.

GFCI TEST

Use an approved GFCI tester or plug an electrical device, such as a lamp into the receptacle on which you are working.

Turn the lamp or device ON. Then, press the TEST button on the GFCI box and power should immediately be switched

off. If not, contact an electrician. Press the RESET button to restore power.

INTER-COMPATIBILITY

These cords use T style plugs and will work with non-explosion proof standard receptacles and plugs (NEMA 5-15R,

5-20R, or 6-20R) but will not work with standard 120V wall outlets. The included plug is cross-interchangeable with

Crouse Hind™ part# ENP5201 plugs and receptacles and Hubble-Killiark part# UGP-20231 ACCEPTOR® plugs and

receptacles. Any equipment requiring these C-H or H-B plugs should work with these cords. Due to possible

manufacturer changes we cannot guarantee interchangeability although we have made every effort to ensure cross

compatibility correctness.

MAINTENANCE

There are no serviceable parts inside the fixture. However, it is good practice to routinely clean and check the

fixture for proper function.

•Disconnect power running to the unit and be sure the fixture iscool to the touch.

•Use a non-abrasive glass cleaning solution to clean the lens.

EPEXC-1C-10.3-GFI-50C-BCE

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com 2of 3

USE AND CARE

Unauthorized modification may impair the function and/or safety of this device and could affect the life of the equipment.

Always check for damaged or worn out parts before using the device. Store it in a secure place out of the reach of

children when not in use.Inspect for good working condition prior to storage and before re-use.

REPLACEMENT PARTS

The EPEXC-1C-10.3-GFI-50C-BCE is designed to provide years of reliable performance. Should the need for

replacement parts arise, please contact Larson Electronics.

THESE INSTRUCTIONS MAY NOT COVER ALL DETAILS OR VARIATIONS OF THIS PRODUCT FOR YOUR EQUIPMENT OR INSTALLATION REQUIREMENTS.

SHOULD FURTHER INFORMATION NOT COVERED BY THESE INSTRUCTIONS BE REQUIRED, PLEASE CONTACT LARSON ELECTRONICS BY EMAIL AT

SALES@LARSONELECTRONICS.COM OR BY PHONE AT 1-800-369-6671 FOR FURTHER ASSISTANCE.

PLEASE VISIT LARSONELECTRONICS.COM FOR WARRANTY AND RETURN INFORMATION.
