150W Explosion Proof LED Light Fixture

17,500 Lumens - 150' Cord - Adjustable Magnet Base - 140°

Instruction Manual

This explosion proof light is designed for illumination of industrial locations. It uses the latest in

solid state lighting technology for long life, low maintenance and high efficiency.

The unique design focuses the light where it is needed, giving improved efficiency over a

conventional HID luminaire.

An internal, universal input, power-factor-corrected switch-mode supply allows it to be used from any

nominal 120-277V AC 50/60 Hz power supply without any variation in light output.

WARNING

To avoid the risk of fire, explosion or electric shock, this product should be installed, inspected

and maintained by a qualified electrician only, in accordance with all applicable electrical codes.

To avoid electric shock:

Be certain electrical power is OFF before and during installation and maintenance.

Luminaire must be connected to a wiring system with an equipment-grounding conductor.

To avoid explosion:

Make sure the supply voltage is within the luminaires’ voltage rating.

Ensure the marked T rating is less than the ignition temperature of the Hazardous

Atmosphere.

Do not operate in ambient temperatures above those indicated on the luminaire nameplate.

Do not operate if the lens is cracked or damaged. All fasteners should be properly seated.

For supply connections, use wire rated for at least 110°C

Recommended mounting height is 25-40 feet.

MAGNETIC MOUNTING

The magnetic mounting bracket includes eight 100lbs grip magnets for mounting to metal surfaces.

The magnets are arranged in groups of two via adjustable brackets allowing operators to match the

curvature of tank walls or other curved surfaces.

Simply adjust the magnets as needed and attach to a metal surface capable of holding the weight of

the light. The magnetic brackets can be loosened at the adjustment points for easier maneuvering

while mounting.

To adjust the light head vertically, loosen the hand screws on either side. Once the desired angle is

achieved, tighten both hand screws to secure the light in place.

This bracket system is constructed of non-sparking aluminum for light weight and durability. The

simple swing hinge design allows operators to easily adjust the lamp assembly to position the unit as

a pedestal lamp if desired.

Phone: 877-348-9680

EPL-AMB-150LED-150-140DB

Larson Electronics, LLC Fax: (903) 498-3364 www.larsonelectronics.com

2of 2

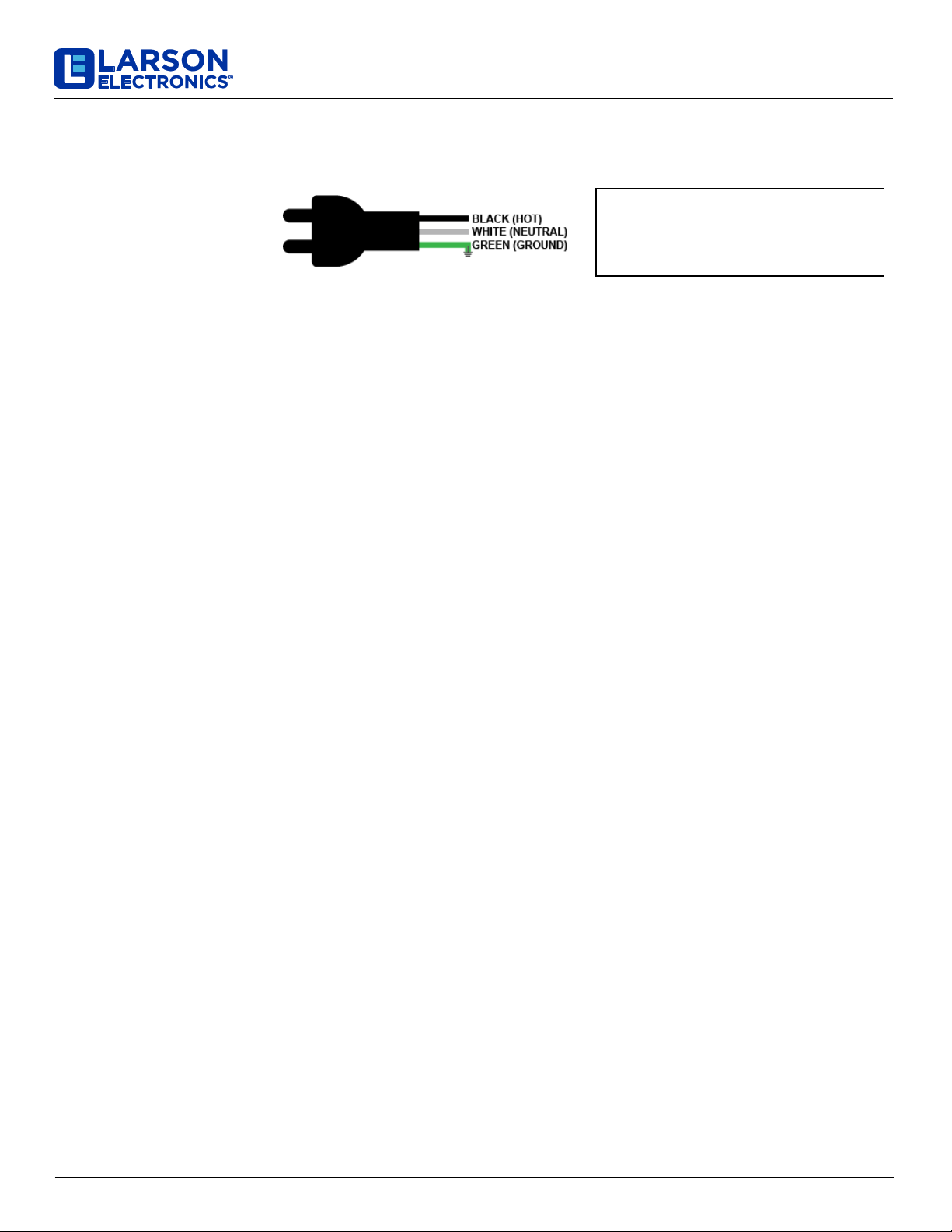

WIRING (see attached wiring diagram)

This unit comes preconfigured with selected cord cap, voltage, and beam angle. Once mounted, plug

cord into compatible receptacle with correct voltage as listed on fixture nameplate.

MAINTENANCE

Caution: To avoid personal injury, disconnect power to the light and allow the unit to cool

down before performing maintenance.

Warning: No user serviceable parts inside of fixture. Risk of electric shock. Removal of the lens

will void the warranty.

1. Perform visual, mechanical and electrical inspections on a regular basis. We recommend

routine checks to be made on a yearly basis. Frequency of use and environment should

determine this. It is recommended to follow an Electrical Preventive Maintenance Program

as described in NFPA 70B: Recommended practice for Electrical Equipment.

2. The lens should be cleaned periodically as needed to ensure continued photometric

performance. Clean the lens with a damp, non-abrasive, lint-free cloth. If not sufficient, use

mild soap or a liquid cleaner.

3. Inspect the cooking fins on the luminaire to ensure that they are free of any obstructions

or contamination (i.e. excessive dust build-up). Clean with a non-abrasive cloth if

needed.

4. Do not operate if the lens is cracked or damaged. All fasteners should be properly seated.

THESE INSTRUCTIONS MAY NOT COVER ALL DETAILS OR VARIATIONS OF THIS PRODUCT FOR YOUR EQUIPMENT OR INSTALLATION REQUIREMENTS. SHOULD FURTHER

INFORMATION NOT COVERED BY THESE INSTRUCTIONS BE REQUIRED, PLEASE CONTACT LARSON ELECTRONICS BY EMAIL AT SALES@LARSONELECTRONICS.COM OR BY PHONE AT

1-800-369-6671 FOR FURTHER ASSISTANCE.

PLEASE VISIT LARSONELECTRONICS.COM FOR WARRANTY AND RETURN INFORMATION.

WARNING: CHECK NAMEPLATE

FOR PROPER VOLTAGE. DAMAGE

FROM IMPROPER VOLTAGE WILL

VOID WARRANTY.
