Larson Electronics PTB-1-50FT Manuale utente

PTB-1-50FT

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

1of 8

Remote Controlled Pan Tilt Base Rotates and Tilts with Mounting

Plate

50FT Input Cable

Instruction Manual

Thank you for your purchase of the Larson Electronics PTB-1-50FT.

WARNING:

READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.

CRITICAL SAFETY INSTRUCTIONS:

•INSTALLATION SHOULD ONLY BECONDUCTED BY A QUALIFIED ELECTRICIAN IN ACCORDANCE WITH NEC AND ANY

RELEVANT LOCAL BUILDING CODES.

•RISK OFFIRE OR ELECTRIC SHOCK. FIXTURE INSTALLATION REQUIRES KNOWLEDGE OF FIXTURE'S ELECTRICAL

SYSTEMS. IFNOTQUALIFIED, CONTACT A QUALIFIED ELECTRICIAN.

•BE CERTAIN ELECTRICAL POWER IS OFF BEFORE AND DURING INSTALLATION AND MAINTENANCE.

•MAKE SURE THE SUPPLY VOLTAGE IS THE SAME AS THE FIXTURE'S RATED VOLTAGE.

•TO PREVENT WIRING DAMAGE OR ABRASION, DO NOT EXPOSE WIRING TO EDGES OF SHEET METAL OR SHARP

OBJECTS. SUITABLE FOR DAMP LOCATIONS.

IMPORTANT

READ CAREFULLY BEFORE INSTALLING THIS FIXTURE. SAVE THESE INSTRUCTIONS FOR FUTURE

REFERENCE. THE PTB-1-50FT MUST BE WIRED IN ACCORDANCE WITH NATIONAL

ELECTRICAL CODE AND ALL APPLICABLE LOCAL CODES. PROPER GROUNDING IS REQUIRED FOR SAFETY.

WE STRONGLY ENCOURAGE ONLY ALICENSED ELECTRICIAN INSTALL, OPERATE AND MAINTAIN THIS

PRODUCT. IF YOU ARE NOT QUALIFIED OR UNFAMILIAR WITH ANY ASPECT OF THIS INSTRUCTION SHEET,

CONSULT AN ELECTRICIAN. THERE ARE NO SERVICEABLE PARTS INSIDE.

WARNING: MAKE SURE POWER IS TURNED OFF BEFORE STARTING THE

INSTALLATION OR PERFORMING ANY MAINTENANCE.

RISK OF FIRE/ELECTRIC SHOCK –DISCONNECT POWER AT BREAKER BEFORE INSTALLING OR SERVICING. RISK

OF PERSONAL INJURY –FIXTURE MAY BECOME UNSTABLE OR DAMAGED IF NOTINSTALLED PROPERLY. RISK

OF BURN –ALLOW FIXTURE TO COOL BEFORE SERVICING.

WARNING:

The PTB-1-50FT industrial grade pan tilt base is designed to provide wireless and hard wired remote control of lights

and equipment. This remote control unit allows operators to rotate through from 0° to 355°, tilt from -60° to +30°, and

mount equipment weighing up to 100lbs.

USER SHOULD BE TRAINED IN THE PROPER USE AND MAINTENANCE OFTHIS DEVICE. THIS LINE

CORD IS INTENDED TO ALLOW OPERATORS TO EXTEND POWER TO EQUIPMENT WHEN STATIONARY OUTLETS ARE NOT

READILY AVAILABLE.

IMPROPER USE OFTHIS CORD, PLUG, AND RECEPTACLE CAN LEAD TO SERIOUS INJURIES ORDEATH TO

PERSONNEL.

PERIODIC INSPECTION OF THE CORD IS NECESSARY.

THE CORD MUST BE ROUTINELY CHECKED FOR CUTS, BREAKS, OR ANY SEVERE ABRASIONS, AND IF ANY ARE FOUND,

THE CORD MUST BEREPLACED BEFORE RESUMING USE.

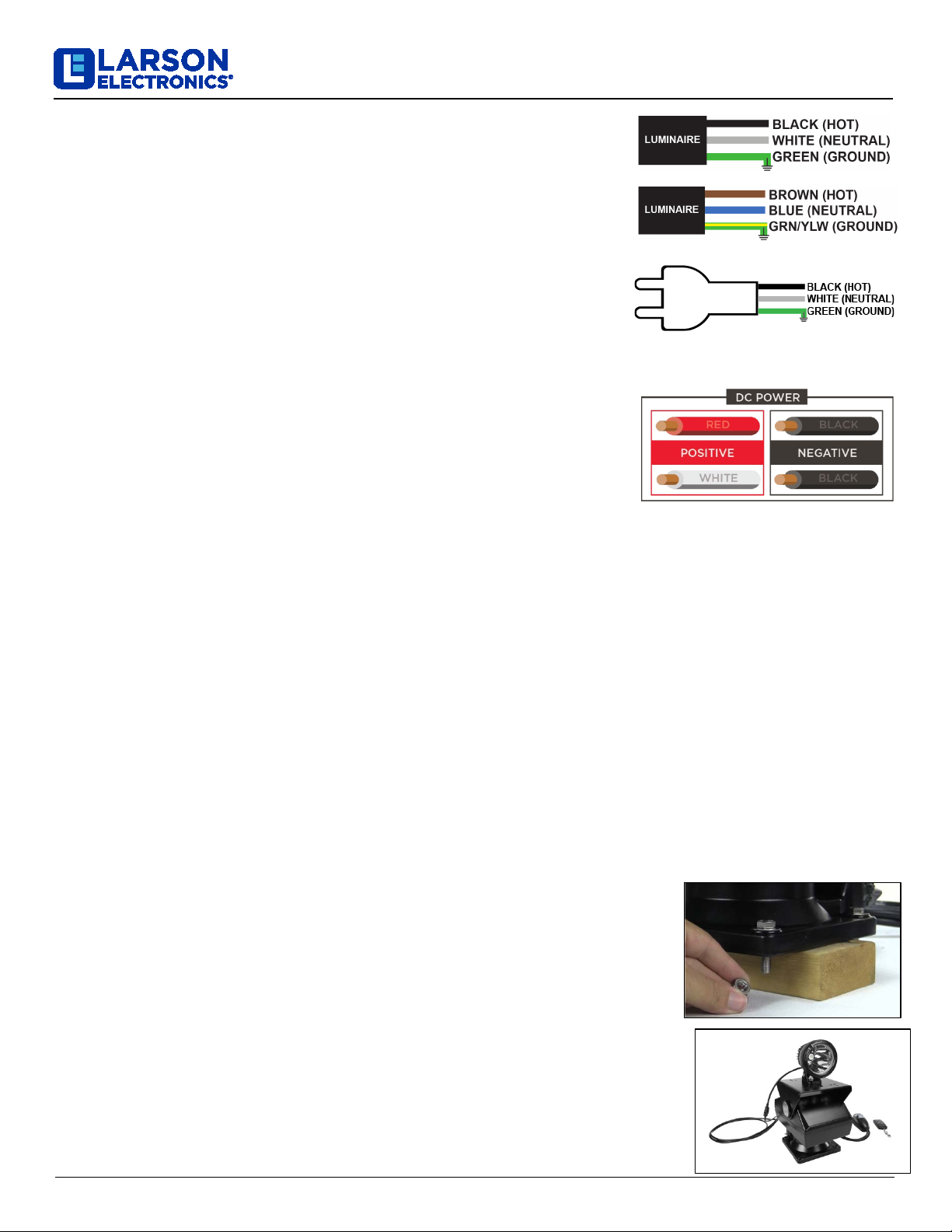

WIRING

Standard pigtail(flying leads) wiring

We strongly encourage alicensed electrician install this product,in all locations especially in outdoor

areas where weatherproofing may be required. Universal voltage driver permits operation at 12V or 24V DC.

Warning: Check product label for correct input voltage!

PTB-1-50FT

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

2of 8

•Cord is attached via a weatherproof 2-pin Deutsch connector.

•The cord is detachable by depressing the tab on the top of the connectors. This enables the

operator to remove and store the light while leaving the cord connected to the power source.

•Additional or replacement cords can be ordered from our website. Contact us or visit LarsonElectronics.com for more

information.

INSTALLATION NOTES

•Read this user’s manual thoroughly and retain it for future reference.

•Use a damp cloth to clean the unit.

•Never attach anything to this unit that could lead to danger.

•Do not install this unit to a surface that could become unstable such as a stand, tripod, shelf or table.

•Install the unit in an open area away from heat sources.

•Always use the voltage listed on the unit.

•Keep objects and cables away while the unit is in operation.

•Do not electrically overload this unit to prevent a risk of fire.

•Contact an electrician for installation if you are not familiar with electrical wiring.

How to Mount the Pan/Tilt Base

1. Determine the location you want tomount the base to.

2. Attach the pan/tilt base to your surface using the four corner thru-

holes at the base of the unit. Use the provided bolts to mount the base.

Be sure the unit will move freely and won’t contact the wall, ceiling

or pole during operation.

3. Bolt your device to the mounting plate on top of the unit and secure it tightly.

If necessary, usethe included 8x10” mounting plate.

Optional: Connect your device to one of the individual +/-leads on the base.

Seal off the additional wire if not used.

Attach supply line wires to the appropriate light fixture wires as shown in

thediagram 

Secure each pair of wires according to the diagram. Utilize ajunction box

or similar device and take precautionary steps for

weatherproofing all connectionsif installed in alocation where water may

come in contact with the unit. Ensurethe unit is properly grounded and that

wiring is done according to all local and national electrical/building codes.

Standard Cord Cap

This unit comes pre-wired from factory with the selected cord cap. Take

precautionary steps for weatherproofing all connections if installed in a

location where water may come in contact with the unit. All outdoor

installations and indoor installations near awet location require the use of a

GFCI device for safety, according to the National Electrical Code®(NEC).

Ensure the unit is properly grounded.

DETACHABLE CORDS

Low Voltage DC

Connect power to power supply outputting low voltage between 9-42Volts DC.

This variable voltage allows greater versatility without affecting light output. Ensure

deutsch connectors are properly connected (If applicable)

PTB-1-50FT

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

3of 8

4. Attach and run the power cables. Take the 50’cable

w/inline remote and securely attach the female connection

to the base.

5. Attach the hardwired remote tothe other end of the cable

by screwing the female end of the remote assembly to the

male end of the wire harness.

6. If your unit will be hardwired, keep the flying leads

attached to the remote and hardwire the unit. Use the pin

tab to remove the flying leads and attach the cigarette

plug adapter if needed.

7. Find a location to mount the base for the hardwired

remote. Use the two screws provided.

8. Apply power to the unit to ensure proper function.

PTB-1-50FT

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

4of 8

Remote Control

•ON/OFF – Power’s the unit on or off.

•UP DOWNLEFTRIGHT - Moves the pan/tilt base in the corresponding

direction.

LOCK Remote Functionality

Press the LEFT +RIGHT buttons on the

hardwired remote simultaneously or press the

/button on the wireless remote.

A BLUE backlight on the hardwired remote

indicates the remote functionality is LOCKED. A

RED backlight indicates the remote functionality

is UNLOCKED and both the wired and

hardwired remotes will function.

PTB-1-50FT

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

5of 8

HANDHELD WIRELESS REMOTE PROGRAMMING PROCESS:

1. Switch off DC power.

2. Make sure there is NO other transmitter operating at the same time.

3. Switch on DC power, within 5 seconds press the remote's up and down button

once at the same time.

4. Searchlight will flash to acknowledge the remote, connection has been made.

5. To program the second remote (up to 4 remotes may be used with the

searchlight, programming a fifth will replace the first), within five seconds, pres

the second remote's up and down button after the first remote is acknowledged

or repeat step 1.

PTB-1-50FT

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

6of 8

Specifications

Materials Aluminum die-casting/Aluminum Plate

Color Black

Rotating angle Pan 0˚to 355˚±5˚, Tilt -60˚to +30˚±5˚

Rotating speed Pan 6.2˚/sec ± 0.6˚, Tilt 3.1˚/sec ± 0.6˚

Loading weight 66 lbs. at 70mm from Tilt table surface to center gravity

Power Consumption Pan: 6W, Tilt: 15W

Operating Temperature -25°C to + 50˚C

Weight 24 lbs.

Dimensions 12" L x 10" H x 8" W

Rating IP54

PTB-1-50FT

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

7of 8

Command Protocols

No Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7

1Command FFh Receiver ID 00h 04h DATA1 DATA2 CHECKSUM

Description

2Command FFh Receiver ID 00h 02h DATA1 DATA2 CHECKSUM

Description

3Command FFh Receiver ID 00h 08h DATA1 DATA2 CHECKSUM

Description

4Command FFh Receiver ID 00h 10h DATA1 DATA2 CHECKSUM

Description

5Command FFh Receiver ID 00h 20h 00h 00h CHECKSUM

Description

6Command FFh Receiver ID 00h 40h 00h 00h CHECKSUM

Description

7Command FFh Receiver ID 01h 00h 00h 00h CHECKSUM

Description

8Command FFh Receiver ID 00h 80h 00h 00h CHECKSUM

Description

9Command FFh Receiver ID 00h 00h 00h 00h CHECKSUM

Description

10 Command FFh Receiver ID 00h 03h 00h PRESET ID CHECKSUM

Description

11 Command FFh Receiver ID 00h 05h 00h PRESET ID CHECKSUM

Description

12 Command FFh Receiver ID 00h 07h 00h PRESET ID CHECKSUM

Description

13 Command FFh Receiver ID 00h 0Fh 00h 00h CHECKSUM

Description

14 Command FFh Receiver ID 00h 09h 00h 01~02h CHECKSUM

Description

15 Command FFh Receiver ID 00h 0Bh 00h 01~02h CHECKSUM

Description

Command

PAN LEFT

DATA1:PAN SPEED(00~3Fh),DATA2:TILTSPEED(00~3Fh)

PAN RIGHT

TILT DOWN

DATA1:PAN SPEED(00~3Fh),DATA2:TILTSPEED(00~3Fh)

TILT UP

AUX OFF

AUX ON

ZOOM TELE

ZOOM WIDE

FOCUS NEAR

SETPRESET

PRESET ID=00~7Fh

FOCUS FAR

P/T/Z/F STOP

GOTO PRESET

PRESET ID=00~7Fh

CLEAR

PRESET PRESETID=00~7Fh

REMOTE

RESET

PTB-1-50FT

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

8of 8

MAINTENANCE

There are no serviceable parts inside the fixture. However, it is good practice to routinely clean and check the

fixture for proper function.

•Disconnect power running to the lamp and be sure the fixture is cool to the touch.

•Use a non-abrasive glass cleaning solution to clean the lens.

Note: It is notnecessary toopen the fixture and clean or touch the LED’s.

USE AND CARE

Unauthorized modification may impair the function and/or safety of this device and could affect the life of the equipment.

Always check for damaged or worn out parts before using the device. Store it in a secure place out of the reach of

children when not in use.Inspect for good working condition prior to storage and before re-use.

REPLACEMENT PARTS

The PTB-1-50FT is designed to provide years of reliable performance. Should the need for replacement parts arise,

please contact Larson Electronics.

THESE INSTRUCTIONS MAY NOT COVER ALL DETAILS OR VARIATIONS OF THIS PRODUCT FOR YOUR EQUIPMENT OR INSTALLATION REQUIREMENTS.

SHOULD FURTHER INFORMATION NOT COVERED BY THESE INSTRUCTIONS BE REQUIRED, PLEASE CONTACT LARSON ELECTRONICS BY EMAIL AT

SALES@LARSONELECTRONICS.COM OR BY PHONE AT 1-800-369-6671 FOR FURTHER ASSISTANCE.

PLEASE VISIT LARSONELECTRONICS.COM FOR WARRANTY AND RETURN INFORMATION.

Indice

Altri manuali Larson Electronics Attrezzatura di illuminazione

Larson Electronics

Larson Electronics EPLRL-50-16.4-HR-SWB Manuale utente

Larson Electronics

Larson Electronics EPL-FL1524-LED Series Manuale utente

Larson Electronics

Larson Electronics HL-85-LED-CPR-30-TRP Manuale utente

Larson Electronics

Larson Electronics HALD-48-1X4-2X50LED Manuale utente

Larson Electronics

Larson Electronics GAU-PT-150LTL-LED-480V Manuale utente

Larson Electronics

Larson Electronics GVP-48-2L-LED-48VDC-R2 Manuale utente

Larson Electronics

Larson Electronics VFD-1P-220.240-1HP-7A-DCM Manuale utente

Larson Electronics

Larson Electronics EPL-FL1524-100 Manuale utente

Larson Electronics

Larson Electronics EPL-HB-150LED-RT-DIMM Manuale utente

Larson Electronics

Larson Electronics EPL-AMB-150LED-50-140DB Manuale utente

Larson Electronics

Larson Electronics EPL-16C-150LED-RT Manuale utente

Larson Electronics

Larson Electronics EPL-HB-150LED-RT-480V-IBSC Manuale utente

Larson Electronics

Larson Electronics EPL-QP-1X150RT Manuale utente

Larson Electronics

Larson Electronics IND-LLP-UVC-KT.EV-R1-120V-0.75IN Manuale utente

Larson Electronics

Larson Electronics WAL-ML-2XM-3G Manuale utente

Larson Electronics

Larson Electronics EPL-QP-2X150RT Manuale utente

Larson Electronics

Larson Electronics RL-15-LED-CPR Manuale utente

Larson Electronics

Larson Electronics HALD-24-1X150LED-V3 Manuale utente

Larson Electronics

Larson Electronics LEDP5W-30-TP1-50CR Manuale utente

Larson Electronics

Larson Electronics EPL-HB-150LED-RT Manuale utente

Larson Electronics

Larson Electronics EPL-PM-50LED-100 Manuale utente

Larson Electronics

Larson Electronics GAU-HB-100LED-RT-UVA-10C Manuale utente

Larson Electronics

Larson Electronics GAU-HB-160LED Manuale utente

Larson Electronics

Larson Electronics LM-21-9.1-4S-EW Manuale utente

Manuali Attrezzatura di illuminazione popolari di altre marche

Brizo

Brizo 8SP-MU-4 Manuale utente

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuale utente

IKEA

IKEA BJÖRKSPIREA Manuale utente

Laserworld

Laserworld Evolution Series ES-400RGB Manuale utente

Alien

Alien RG STAR Manuale utente

EuroLite

EuroLite LED B-40 Manuale utente

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuale utente

Commercial Electric

Commercial Electric 54568141 Manuale utente

CREE LIGHTING

CREE LIGHTING 304 Series Manuale utente

Goobay

Goobay 49867 Manuale utente

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuale utente

Alkalite

Alkalite Krypton KT-81 Manuale utente

Clas Ohlson

Clas Ohlson GU10 Manuale utente

DTS

DTS DELTA 10 F Manuale utente

ring

ring Solar Steplight Manuale utente

One Stop Gardens

One Stop Gardens 57696 Istruzioni per il montaggio

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuale utente

SIREM

SIREM Swimeo A2 Manuale utente
