Laserworld Diode Series Manuale utente

Manual / Bedienungsanleitung / Mode d‘emploi

Diode Series

DS-1000RGB | DS-2000RGB | DS-3000RGB

DS-1800G | DS-3000G

DS-1600B | DS-5500B

Please spend a few minutes to read this manual fully

before operating this laser!

Bitte lesen Sie diese Bedienungsanleitung sorgfältig

vor Inbetriebnahme dieses Showlasersystems!

Avant d’utiliser cet appareil pour la première fois nous vous recommandons

de lire cette notice d’utilisation!

05/2019

English

Deutsch

Français

Manual: Diode Series

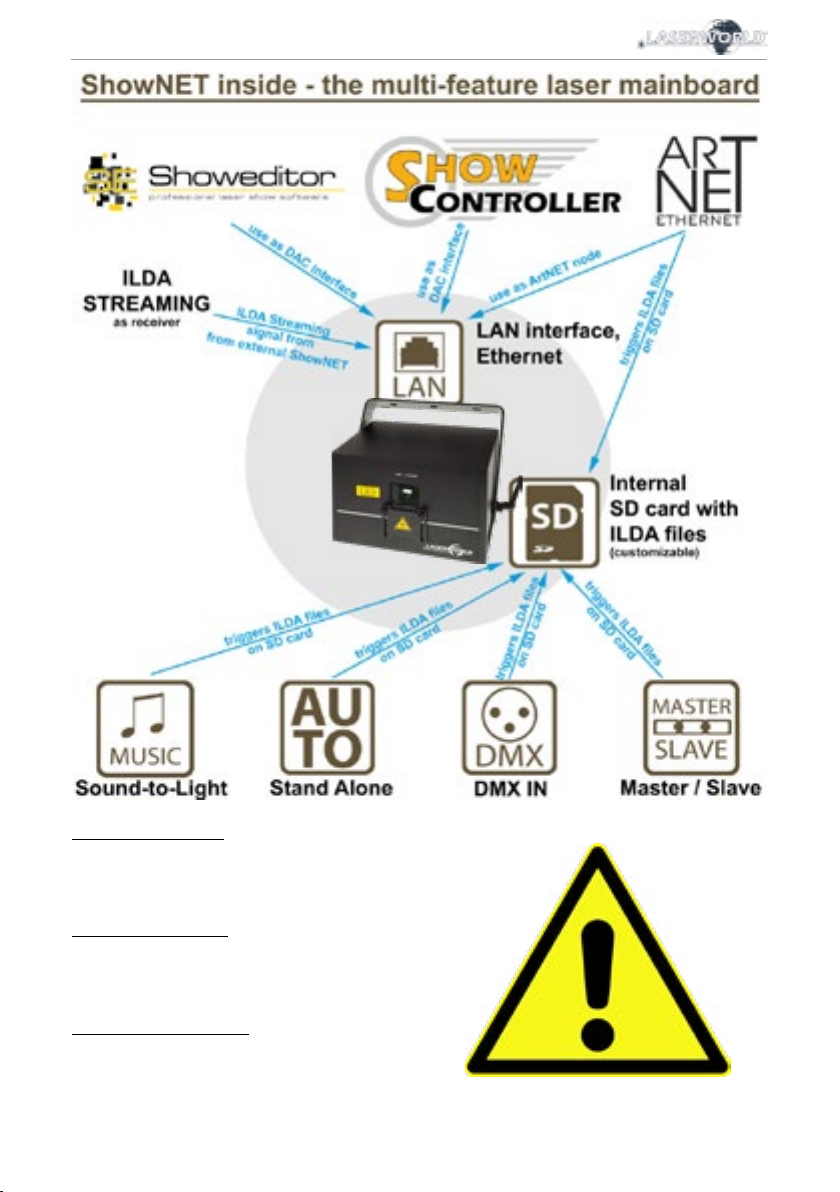

Network Control:

For network control (connecting the device

to a Computer) please have a look at chapter

9 „Operation Modes“ -> 4. „Network operation“

Netzwerkbetrieb:

Informationen zum Netzwerkbetrieb (Verbin-

dung mit dem Computer) nden Sie unter:

Kapitel 9 „Betriebsmodi“ -> 4. „Netzwerkbetrieb“

Contrôle du réseau :

Pour le contrôle du réseau (connexion du péri-

phérique à un ordinateur), veuillez consulter

chapitre 9 „Modes d’opérations“ -> 4. „Contrôle

via réseau“

Manual: Diode Series

Rechtlicher Hinweis:

Die Firma Laserworld (Switzerland) AG behält sich das Recht vor, Änderungen an ih-

ren Produkten vorzunehmen, die der technischen Weiterentwicklung dienen. Die-

se Änderungen werden nicht notwendigerweise in jedem Einzelfall dokumentiert.

Diese Betriebsanleitung und die darin enthaltenen Informationen wurden mit der

gebotenen Sorgfalt zusammengestellt. Die Firma Laserworld (Switzerland) AG über-

nimmt jedoch keine Gewähr für Druckfehler, andere Fehler oder daraus entstehende

Schäden. Die in dieser Bedienungsanleitung genannten Marken und Produktnamen

sind Warenzeichen oder eingetragene Warenzeichen der jeweiligen Titelhalter.

Legal notice:

Thank you for purchasing this Laserworld product. Due to continual product deve-

lopments and technical improvements, Laserworld (Switzerland) AG reserves the

right to make modications to its products. This manual and its content have been

made with due care but Laserworld (Switzerland) AG cannot however, take any res-

ponsibility for any errors, omissions or any resulting damages forthwith. The brands

and product names mentioned in this manual are trade marks or registered trade

marks of their respective owners.

Information juridique :

L’entreprise Laserworld (Switzerland) AG se réserve le droit d’eectuer des modica-

tions concernant leurs produits et ainsi de répondre au développement technique.

Ces modications ne seront pas nécessairement annoncées en tout cas spécique.

Ce mode d’emploi et les informations contenues dedans ont été établis avec le soin

minutieux qui s’impose dans ce cas.

Laserworld (Switzerland) AG ne pourra pas être tenue responsable pour d’éventuelles

erreurs d’impression ou dommages en résultants.

En cas de doutes, veuillez toujours contacter Laserworld (Switzerland) AG . Les noms

de marques et de produits utilisés dans ce mode d’emploi sont des marques de fab-

rique ou des marques déposées.

L’utilisation est réservée à un usage professionnel selon décret n°2007-665 du

2 mai 2007 relatif à la sécurité des appareils à laser sortant!

Article 4 bis :

« Les usages spéciques autorisés pour les appareils à laser sortant d’une classe su-

périeure à 2 sont les usages professionnels suivants :

(…)

9° Spectacle et achage :

Toutes les applications de trajectoire, de visualisation, de projection ou de reproduc-

tion d’images en deux ou trois dimensions. »

Manual: Diode Series

page 1 / 21

Content:

1. Product and package contents

2. Preliminary warning notices

3. Initial operations, safety instructions

4. Working on the device

5. Service notes

6. Warnings and other notices on the device

7. Device connections

8. General Operation

9. Operation Modes

10. FB4 version

Final statement

Technical data sheet

Laser specications

Manual: Diode Series

page 2 / 21

1. Product and package contents

Please check if all listed parts are included and undamaged. Included in delivery:

1 x laser projector 2 x keys 1 x manual

1 x power cable 1 x interlock bridge 1 x hex key

3. Initial operations, safety instructions

1. Make sure to use correct voltage; see in-

formation on device & in this manual.

2. Make sure that the device is not connec-

ted to mains during installation.

3. Installation has to be done by technical

experienced and qualied persons ac-

cording to safety regulations of the res-

pective country.

4. Always ensure that maximum permis-

sible exposure (MPE) is not exceeded

in areas accessible to the public or

members of sta.

5. In some countries an additional ins-

pection by technical control institutes

could be necessary.

6. Connect an easily accessible inter-

lock connector or circuit breaker

to the projector.

7. The power supply should be easily acces-

sible.

8. When installing the laser mount it with

a minimum distance of 15 cm from walls

and objects.

9. For safe setup e.g. on walls or ceilings

please use a safety cord. The safety cord

should be able to withstand tenfold the

weight of the device. Please follow the

accident prevention regulations of pro-

fessional associations and/or comparable

regulations for accident prevention.

2. Preliminary warning notices

1. Please use this device only according to these operating instructions.

2. Do not use the device if there are any visible damages on housing, connector panels,

power supplies or power cords.

3. This device must not be permanently connected to mains. Disconnect it from mains or use

the power button to switch if o if not in use.

4. Never look directly into the light source of a laser projector. Danger of damage to the

eyes or even blindness in extreme circumstances!

4. Do not operate the device at high humidity or in the rain or in dusty environments.

5. Protect device against dripping or splashing water. Do not place any liquid lled

containers near to this device.

Any warranty claims are void if the warranty label is removed or tampered

with in any way.

Manual: Diode Series

page 3 / 21

10. If the device has been exposed to great

temperature changes, do not switch it

on immediately. Condensation (or any

moisture/water formed) may damage

this device.

11. Never use dimmer, RC or other electroni-

cally switched sockets. Whenever possib-

le, do not use the laser projector together

with large appliances (especially fog ma-

chines) on the same mains!

12. Ensure sucient ventilation and do not

place the device on any warm or heat ra-

diating surface. Especially the ventilati-

on openings must not be covered!

13. Ensure that device does not get over-

heated. Make sure that the device is not

exposed to spotlights (especially moving

heads). Heat of spotlights could overheat

laser in a little while and leads to a degra-

dation of performance.

14. This unit is intended for indoor use only.

4. Working on the device

1. This product has no user serviceable parts inside and should

only be maintained and serviced by a qualied engineer.

2. Be sure that the mains plug is not connected to the power

supply while installing the device.

3. Take o all reecting things like rings, watches, etc.

before starting to work with or at the projector.

4. Only use non-reecting tools to work on device.

5. Wear protective clothing (like goggles, gloves etc.) according to laser power and wave-

length of the laser.

5. Service notes

• Moisture and heat can reduce lifetime of

the laser system dramatically and expires

any warranty claim.

• Quick on/o switching of this device will

reduce durability of the laser diode dra-

matically.

• Avoid sharp knocks and shocks to this

device an endsure sucient protection

during transportation. Look after your

Laserworld product.

• To increase durability of your laser,

protect device against overheating:

-Always ensure sucient ventilation.

-Do not face spotlights (especially mo-

ving heads) to the device.

-Check temperature after approx. 30

minutes with each new installation.

If necessary install the projector at a

place with dierent temperatures.

-Keep the device dry. Protect it from

moisture, rain and damp.

-Switch o device when it is not nee-

ded. Diodes are switched on and can

wear out even if there is no visible la-

ser output.

Manual: Diode Series

page 4 / 21

6. Warnings and other notices on the device

Laser radiation!

Avoid exposure

to beam.

Laser class 4

Caution of radi-

ation if cover is

removed Power supply &

consumption

Model type

Wavelength

Output power

Production year

Please read manual before operation

Use in enclosed spaces only!

• Please ensure the fans and heatsinks are

clear from dust and debris otherwise the

risk of overheating may occur. If the unit

and airways appear to be blocked then

please contact a qualied service engi-

neer to maintain and service the product.

• Removal of the warranty label as well

as damages to the device caused by

improper handling, neglect of the sa-

fety instructions and service notes will

void the warranty.

7. Device connections

DMX out

DIP switches

DMX in

ILDA in ILDA out

microphone

key switch

Interlock

Out

loop for

safety cord

On/O

switch

X / Y inversion

Scan Safety

microphone

sensitivity

Fuse

Color options

Interlock

power

connection

LAN / ShowNET

Manual: Diode Series

page 5 / 21

FB4 version

DMX out

power

connection

DMX in

ILDA in

ILDA out key switch

loop for

safety cord

On/O switch

Fuse

Interlock Scan Safety

RJ45 for LAN connection to

computer with Pangolin Software

DS-1000RGB

ILDA in ILDA outloop for

safety cord

Interlock

Interlock Out

DMX in

DMX out

Scan Safety

microphone

sensitivity

On/O switch DIP switches

key switch

LAN / ShowNET

power

connection

X / Y inversion microphone

Manual: Diode Series

page 6 / 21

8. General Operation

1. Power

Connect the power cord to the device and to the mains. Make sure that your device is pro-

vided with the correct voltage. Wrong voltage could lead to irreparable damages. Please

nd the correct voltage data in the synoptical table at the end of this manual. Make sure

that the device is not directed to people or inammable objects during installation. To

start the device, connect the interlock bridge, insert the key and switch it on, and switch

the device on. The“Emission - Laser on“ LED at the front side of the device begins to

light up when the device is ready for use.

2. Key Switch

There is a key switch at the back of the laser system. Please plug the key to the switch and

turn it on. The laser device only runs when the key is inserted and switched on. Prevent

misuse! Unplug the key when the laser is unattended to prevent misuse of the sys-

tem.

3. Fuse

There is a fuse at the back side of the device. If the fuse should blow, please exchange

it with a new one. If the problems recurs, please contact your dealer or the Laserworld

service department.

4. Safety Presets

This device has an integrated Scan Safety (SFS). Is the Scan Safety active (on), single be-

ams are prevented. If the Scan Safety is switched o, it is possible to create full power

single beams - be careful!

Operating the laser system with disabled SFS may not be allowed in some countries.

Always ensure that maximum permissible exposure (MPE) is not exceeded in areas

accessible to the public or members of sta.

5. X / Y Inversion

Use the X, Y, and/or X/Y buttons to invert the beams resp. patterns on the x-axis and/or

y-axis.

6. Microphone Sensitivity

Set the microphone sensitivity by the‚Sens‘ knob. This setting is needed for music mode

/ sound sensitive operation.

7. Colors (not available for DS-1000RGB)

Use the‚red‘,‚green‘ and‚blue‘ knobs to control the intensity per output color channel.

8. Modes / Functions

The dierent operation modes can be selected with using the DIP switches at the back of

the device. Any change of the operation mode requires a restart of the device (switch

the device o and on again or disconnect power and reconnect it again). Do not change

any DIP switch settings during operation. Random and dangerous laser output can occur.

Manual: Diode Series

page 7 / 21

9. Turn device o

To turn o the device, use the power button („OFF“), turn the key to ‚OFF‘ and disconnect

the power cable from the mains.

9. Operation Modes

(Firmware version: 20190520x - Admin tool: v1.33)

This laser system can be operated in many dierent operation modes. It is possible to

directly control the laser system via computer and laser show software as well as to trig-

ger eects stored to the internal SD card via DMX/ArtNet consoles, in stand-alone mode

or in sound-to-light mode. It is also possible to use the laser system as receiver for ILDA

streaming signals from external ShowNET interfaces.

1. Download admin tool

For testing the show laser system and for other purposes, like uploading ILDA les to the

integrated SD card, download the admin tool here:

https://www.laserworld.com/shownet_mainboard

Open the „ShowNET-Admin_Tool.exe“ whenever this manual refers to the admin

tool.

IMPORTANT: It‘s not possible to access the admin tool, when you are accessing the laser

system via software (Showeditor, Showcontroller, etc.). When opening the admin tool

while accessing the laser system in a non-direct-control operation mode, the admin tool

asks to press on a button to switch to network mode for manual control.

2. Direct computer control

a) ILDA control with external DAC interface

The laser system can be controlled via ILDA control signal. There are an ILDA-in (ILDA

input) and an ILDA-thropugh connector at the back side of the device. Connect the laser

system to the control interface (DAC) by using an ILDA cable. Do not connect the laser

to the standard parallel port at the computer, but always use an appropriate ILDA inter-

face. After that the laser can becontrolled by a show laser control software. Use the ILDA-

through connector to daisy-chain the ILDA signal to another laser system.

As this laser system has an integrated DAC interface as mainboard (ShowNET) it is pos-

sible to directly control the laser via LAN without the need of ILDA cables or an external

DAC interface.

b) Direct operation via laser show software, with LAN connection

(1) SHOWEDITOR - free laser show software

This laser system comes with an integrated network interface. The Showeditor laser soft-

ware is included with this ShowNET mainboard for free. It is a full feature laser control

software with LIVE and Timeline control mode and many free laser shows included in

delivery.

Use standard ethernet cable (RJ45 standard) to connect the LAN port of the show laser

system to the computer. Standard network switches can be used to connect multiple

laser systems at once.

Altri manuali per Diode Series

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Laserworld Attrezzatura di illuminazione

Laserworld

Laserworld Pro-150B-473 Manuale utente

Laserworld

Laserworld Club Series Manuale utente

Laserworld

Laserworld Evolution Series ES-400RGB Manuale utente

Laserworld

Laserworld Garden Star Series Manuale utente

Laserworld

Laserworld RS 400 G US Manuale utente

Laserworld

Laserworld LW-50k Manuale utente

Laserworld

Laserworld CS-8000RGB FX MK2 Manuale utente

Laserworld

Laserworld LED-18MH Manuale utente

Laserworld

Laserworld PL-18000RGB Manuale utente

Laserworld

Laserworld PL-1200RGB Manuale utente

Laserworld

Laserworld Ecoline Series Manuale utente

Laserworld

Laserworld PL-3000RGBNL Manuale utente

Laserworld

Laserworld GREEN-600 Manuale utente

Laserworld

Laserworld GREEN-150 Manuale utente

Laserworld

Laserworld Pro 700RGB MH Manuale utente

Laserworld

Laserworld PRO-1500R-658 Manuale utente

Laserworld

Laserworld Club Series Manuale utente

Laserworld

Laserworld GREEN-150E Manuale utente

Laserworld

Laserworld PL-1200G MH Manuale utente

Laserworld

Laserworld Ecoline EL-D100G Manuale utente

Laserworld

Laserworld PL-4000RGB Manuale utente

Laserworld

Laserworld SwissLas Purelight Series Manuale utente

Laserworld

Laserworld Ecoline Series Manuale utente

Laserworld

Laserworld Evolution ES-600B Manuale utente

Manuali Attrezzatura di illuminazione popolari di altre marche

Brizo

Brizo 8SP-MU-4 Manuale utente

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuale utente

IKEA

IKEA BJÖRKSPIREA Manuale utente

Alien

Alien RG STAR Manuale utente

EuroLite

EuroLite LED B-40 Manuale utente

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuale utente

Commercial Electric

Commercial Electric 54568141 Manuale utente

CREE LIGHTING

CREE LIGHTING 304 Series Manuale utente

Goobay

Goobay 49867 Manuale utente

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuale utente

Alkalite

Alkalite Krypton KT-81 Manuale utente

Clas Ohlson

Clas Ohlson GU10 Manuale utente

DTS

DTS DELTA 10 F Manuale utente

ring

ring Solar Steplight Manuale utente

One Stop Gardens

One Stop Gardens 57696 Istruzioni per il montaggio

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuale utente

SIREM

SIREM Swimeo A2 Manuale utente

Silvair

Silvair MESH-CEDRP Manuale utente
