Laserworld Diode Series Manuale utente

Manual / Bedienungsanleitung / Mode d‘emploi

Diode Series

DS-1000RGB

DS-1000RGB FB4

Please spend a few minutes to read this manual fully

before operating this laser!

Bitte lesen Sie diese Bedienungsanleitung sorgfältig

vor Inbetriebnahme dieses Showlasersystems!

Avant d’utiliser cet appareil pour la première fois nous vous recommandons

de lire cette notice d’utilisation!

11/2018

English

Deutsch

Français

Manual: DS-1000RGB, DS-1000RGB FB4

page 2 / 34

Rechtlicher Hinweis:

Die Firma Laserworld (Switzerland) AG behält sich das Recht vor, Änderungen an ih-

ren Produkten vorzunehmen, die der technischen Weiterentwicklung dienen. Die-

se Änderungen werden nicht notwendigerweise in jedem Einzelfall dokumentiert.

Diese Betriebsanleitung und die darin enthaltenen Informationen wurden mit der

gebotenen Sorgfalt zusammengestellt. Die Firma Laserworld (Switzerland) AG über-

nimmt jedoch keine Gewähr für Druckfehler, andere Fehler oder daraus entstehende

Schäden. Die in dieser Bedienungsanleitung genannten Marken und Produktnamen

sind Warenzeichen oder eingetragene Warenzeichen der jeweiligen Titelhalter.

Legal notice:

Thank you for purchasing this Laserworld

product. Due to continual product developments and technical improvements, La-

serworld (Switzerland) AG reserves the right to make modications to its products.

This manual and its content have been made with due care but Laserworld (Swit-

zerland) AG cannot however, take any responsibility for any errors, omissions or any

resulting damages forthwith. The brands and product names mentioned in this ma-

nual are trade marks or registered trade marks of their respective owners.

Information juridique :

L’entreprise Laserworld (Switzerland) AG se réserve le droit d’eectuer des modica-

tions concernant leurs produits et ainsi de répondre au développement technique.

Ces modications ne seront pas nécessairement annoncées en tout cas spécique.

Ce mode d’emploi et les informations contenues dedans ont été établis avec le soin

minutieux qui s’impose dans ce cas.

Laserworld (Switzerland) AG ne pourra pas être tenue responsable pour d’éventuelles

erreurs d’impression ou dommages en résultants.

En cas de doutes, veuillez toujours contacter Laserworld (Switzerland) AG . Les noms

de marques et de produits utilisés dans ce mode d’emploi sont des marques de fab-

rique ou des marques déposées.

L’utilisation est réservée à un usage professionnel selon décret n°2007-665 du

2 mai 2007 relatif à la sécurité des appareils à laser sortant!

Article 4 bis :

« Les usages spéciques autorisés pour les appareils à laser sortant d’une classe su-

périeure à 2 sont les usages professionnels suivants :

(…)

9° Spectacle et achage :

Toutes les applications de trajectoire, de visualisation, de projection ou de reproduc-

tion d’images en deux ou trois dimensions. »

Manual: DS-1000RGB, DS-1000RGB FB4

page 3 / 34

Content:

1. Product and package contents

2. Preliminary warning notices

3. Initial operations, safety instructions

4. Working on the device

5. Service notes

6. Warnings and other notices on the device

7. Device connections

8. Operation

Final statement

Technical data sheet

Laser specications

Manual: DS-1000RGB, DS-1000RGB FB4

page 4 / 34

1. Product and package contents

Please check if all listed parts are included and undamaged. Included in delivery:

1 x laser projector 2 x keys 1 x manual

1 x power cable 1 x interlock bridge

3. Initial operations, safety instructions

1. Make sure to use correct voltage; see in-

formation on device & in this manual.

2. Make sure that the device is not connec-

ted to mains during installation.

3. Installation has to be done by technical

experienced and qualied persons ac-

cording to safety regulations of the res-

pective country.

4. Always ensure that maximum permis-

sible exposure (MPE) is not exceeded

in areas accessible to the public or

members of sta.

5. In some countries an additional ins-

pection by technical control institutes

could be necessary.

6. Connect an easily accessible inter-

lock connector or circuit breaker

to the projector.

7. The power supply should be easily acces-

sible.

8. When installing the laser mount it with

a minimum distance of 15 cm from walls

and objects.

9. For safe setup e.g. on walls or ceilings

please use a safety cord. The safety cord

should be able to withstand tenfold the

weight of the device. Please follow the

accident prevention regulations of pro-

fessional associations and/or comparable

regulations for accident prevention.

2. Preliminary warning notices

1. Please use this device only according to these operating instructions.

2. Do not use the device if there are any visible damages on housing, connector panels,

power supplies or power cords.

3. Never look directly into the light source of a laser projector. Danger of damage to the

eyes or even blindness in extreme circumstances!

4. Do not operate the device at high humidity or in the rain or in dusty environments.

5. Protect device against dripping or splashing water. Do not place any liquid lled

containers near to this device.

Any warranty claims are void if the warranty label is removed or tampered

with in any way.

Manual: DS-1000RGB, DS-1000RGB FB4

page 5 / 34

10. If the device has been exposed to great

temperature changes, do not switch it

on immediately. Condensation (or any

moisture/water formed) may damage

this device.

11. Never use dimmer, RC or other electroni-

cally switched sockets. Whenever possib-

le, do not use the laser projector together

with large appliances (especially fog ma-

chines) on the same mains!

12. Ensure sucient ventilation and do not

place the device on any warm or heat ra-

diating surface. Especially the ventilati-

on openings must not be covered!

13. Ensure that device does not get over-

heated. Make sure that the device is not

exposed to spotlights (especially moving

heads). Heat of spotlights could overheat

laser in a little while and leads to a degra-

dation of performance.

14. This unit is intended for indoor use only.

4. Working on the device

1. This product has no user serviceable parts inside and should

only be maintained and serviced by a qualied engineer.

2. Be sure that the mains plug is not connected to the power

supply while installing the device.

3. Take o all reecting things like rings, watches, etc.

before starting to work with or at the projector.

4. Only use non-reecting tools to work on device.

5. Wear protective clothing (like goggles, gloves etc.) according to laser power and wave-

length of the laser.

5. Service notes

• Moisture and heat can reduce lifetime of

the laser system dramatically and expires

any warranty claim.

• Quick on/o switching of this device will

reduce durability of the laser diode dra-

matically.

• Avoid sharp knocks and shocks to this

device an endsure sucient protection

during transportation. Look after your

Laserworld product.

• To increase durability of your laser,

protect device against overheating:

-Always ensure sucient ventilation.

-Do not face spotlights (especially mo-

ving heads) to the device.

-Check temperature after approx. 30

minutes with each new installation.

If necessary install the projector at a

place with dierent temperatures.

-Keep the device dry. Protect it from

moisture, rain and damp.

-Switch o device when it is not nee-

ded. Diodes are switched on and can

wear out even if there is no visible la-

ser output.

Manual: DS-1000RGB, DS-1000RGB FB4

page 6 / 34

6. Warnings and other notices on the device

Laser radiation!

Avoid exposure

to beam.

Laser class 4

Caution of radi-

ation if cover is

removed Power supply &

consumption

Model type

Wavelength

Output power

Production year

Please read manual before operation

Use in enclosed spaces only!

• Please ensure the fans and heatsinks are

clear from dust and debris otherwise the

risk of overheating may occur. If the unit

and airways appear to be blocked then

please contact a qualied service engi-

neer to maintain and service the product.

• Removal of the warranty label as well

as damages to the device caused by

improper handling, neglect of the sa-

fety instructions and service notes will

void the warranty.

Manual: DS-1000RGB, DS-1000RGB FB4

page 7 / 34

DMX out

power

connection

DMX in

ILDA in

ILDA out

key switch

loop for

safety cord

On/O switch

Fuse

7. Device connections

DMX out

power

connection

Interlock

DMX in

ILDA in

ILDA out

key switch

Scan Safety

loop for

safety cord

DMX settings

On/O switch

X / Y inversion

Fuse

DS-1000RGB

DS-1000RGB FB4

Interlock Scan Safety

RJ45 for LAN connection to

computer with Pangolin Software

Manual: DS-1000RGB, DS-1000RGB FB4

page 8 / 34

8. Operation

1. Power

Connect the power cable to the device and to the mains. Make sure that your device is

provided with the correct voltage. Wrong voltage could lead to irreparable damages.

Please nd the correct voltage data in the synoptical table at the end of this manual.

It must be ensured that the device is not directed to people or inammable objects

during installation. To start the device, connect the interlock bridge, insert the key and

switch it on, and switch the device on. The“Emission - Laser on“ LED at the front side

of the device begins to light up when the device is ready for use.

2. ILDA in / ILDA out

The device can be controlled via ILDA control signal. There are an ILDA-in (ILDA input)

and an ILDA-out interface at the rear side of the device. Connect the laser system to the

control interface (DAC) by using an ILDA cable. Do not connect the laser to standard

parallel port at your computer, but always use an appropriate ILDA interface (usually is

sold together with the laser control software). After that you are able to control your

laser by a show laser control software (e.g. Laserworld Showeditor). Use the ILDA-out

interface to connect it to another device.

3. Fuse

There is a fuse at the rear side of the device. If the fuse should blow, please change it by

a new one. If the problems recurs, please contact your dealer or the Laserworld service

department.

4. Key Switch

There is a key switch at the back of the laser system. Please plug the key to the switch

and turn it on. The laser device only runs when the key is inserted and switched on.

Prevent misuse! Unplug the key when the laser is unattended to prevent misuse of

the system.

5. Safety Presets

This device has an integrated Scan Safety (SFS). Is the Scan Safety active (on), single

beams are prevented. If the Scan Safety is switched o always ensure that maximum

permissible exposure (MPE) is not exceeded in areas accessible to the public or

members of sta.

6. X / Y Inversion buttons (not available for FB4 version)

Use the X-Axis, Y-Axis, and/or X-/Y-Axis buttons to invert the beams resp. patterns on the

x-axis and/or y-axis.

Manual: DS-1000RGB, DS-1000RGB FB4

page 9 / 34

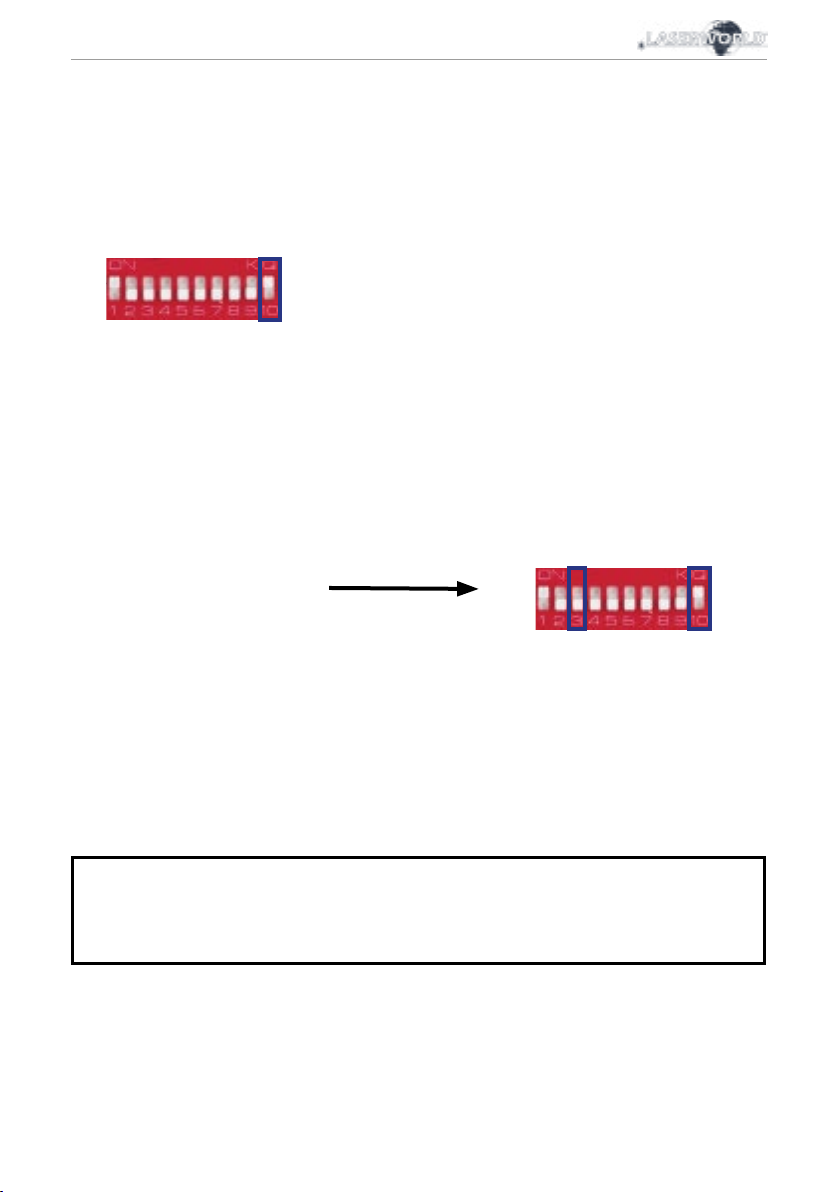

7. Modes (not available for FB4 version)

• Automatic mode (1, 10) Animation mode (1, 2, 10)

Your device runs in auto mode Your device runs in auto mode

(random playback of the preset patterns): (preset graphics):

• DMX mode (1)

Your device runs in DMX mode if ‘1‘ is switched on

(Attention! For output values on channel 2 and channel 3 must be >0!):

The DMX mode only works when a DMX controller is connected to the laser.

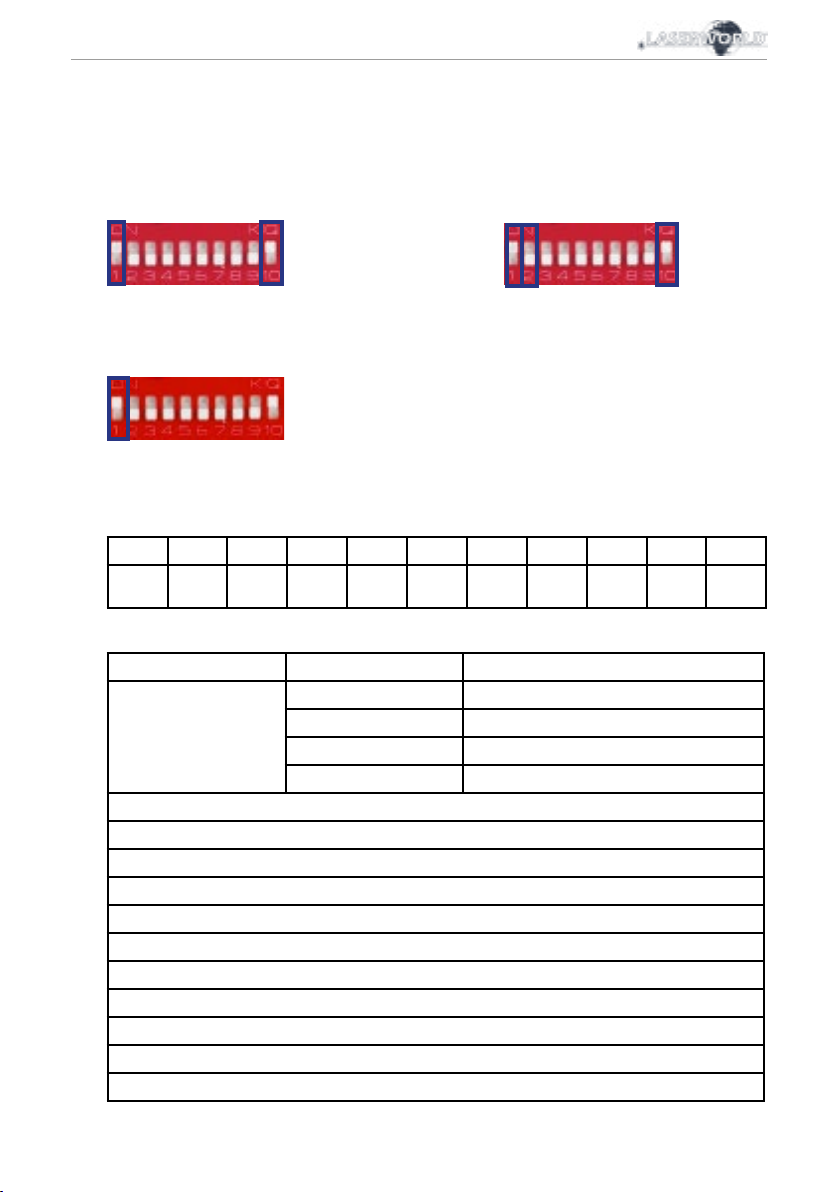

Use the switches 1 - 9 to set the DMX address of the laser. Each switch represents a num-

ber. To dene a number use the preceding number and multiply it by 2:

Switch 12345678910

Number 1 2 4 8 16 32 64 128 256 Mode

Switch

DMX The laser uses 11 DMX channels, which are explained in the following table.

Channel Value Function

1 Mode Select

0 - 63 Laser o

64 - 127 Sound mode

128 - 191 Auto mode

192 -255 DMX mode

2 Pattern Selection

3 Strobe Eect

4 Horizontal Movement

5 Vertical Movement

6 Zoom

7 Rotation y-axis

8 Rotation Xx-axis

9 Circular movement

10 Dot eect

11 Wave movement

12 Color selection

Manual: DS-1000RGB, DS-1000RGB FB4

page 10 / 34

Please note that not each pattern can be combined with each eect.

• ILDA control

Connect your device („ILDA IN“) via an ILDA cable to an interface / controller. ILDA mode

starts immediately. Use a laser control software, e.g. Laserworld Showeditor, to run the

device. Use „ILDA OUT“ to connect it to another device.

• Sound mode (10)

The device reacts to ambient noise:

• Master-Slave-Mode (3, 10)

To use the daisy chain / Master-Slave-Mode connect two (or more) laser projectors of the

same series via DMX cables:

Master projector (DMX out) -> DMX cable -> slave projector 1 (DMX in) ;

slave projector 1 (DMX out) -> DMX cable -> slave projector 2 ...etc.

To use this mode, DIP switches‘3‘ and

‘10‘ have to be switched on.

DMX cable Slave projectorMaster projector

Select auto or music mode

at the master projector

(see above)

8. Turn device o

To turn o the device switch it o („OFF“), turn the key ‚OFF‘ and disconnect the power

cable from the mains.

Important Note:

Operate scanners/galvos only at appropriate speed according to the res-

pective scan angle. Too high scan speed will damage the scanning system.

Altri manuali per Diode Series

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Laserworld Attrezzatura di illuminazione

Laserworld

Laserworld EL-60 G Manuale utente

Laserworld

Laserworld SwissLas Purelight Series Manuale utente

Laserworld

Laserworld PL-4500 RGB US Manuale utente

Laserworld

Laserworld BeamBar 10R-638 Manuale utente

Laserworld

Laserworld Pro-3500RGB Manuale utente

Laserworld

Laserworld GREEN-8000 Manuale utente

Laserworld

Laserworld PL-1200G MH Manuale utente

Laserworld

Laserworld EL-60 G Manuale utente

Laserworld

Laserworld Evolution Series ES-400RGB Manuale utente

Laserworld

Laserworld Evolution Series ES-800S RGB 3D Istruzioni per il montaggio

Laserworld

Laserworld Club Series Manuale utente

Laserworld

Laserworld Garden Star Series Manuale utente

Laserworld

Laserworld PL-18000RGB Manuale utente

Laserworld

Laserworld RTI-Piko Series Manuale utente

Laserworld

Laserworld Pro-6000 RGB Manuale utente

Laserworld

Laserworld GREEN-1000 Manuale utente

Laserworld

Laserworld Club Series Manuale utente

Laserworld

Laserworld CS-200RGY Manuale utente

Laserworld

Laserworld LW-50k Manuale utente

Laserworld

Laserworld SwissLas Purelight PL-8000G compact Manuale utente

Laserworld

Laserworld BLUE-3000-445 F Manuale utente

Laserworld

Laserworld GREEN-3000 Manuale utente

Laserworld

Laserworld Ecoline Series Manuale utente

Laserworld

Laserworld GREEN-4000 Manuale utente

Manuali Attrezzatura di illuminazione popolari di altre marche

Brizo

Brizo 8SP-MU-4 Manuale utente

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manuale utente

IKEA

IKEA BJÖRKSPIREA Manuale utente

Alien

Alien RG STAR Manuale utente

EuroLite

EuroLite LED B-40 Manuale utente

Qazqa

Qazqa Suplux SL 3 Black 103062 Manuale utente

Commercial Electric

Commercial Electric 54568141 Manuale utente

CREE LIGHTING

CREE LIGHTING 304 Series Manuale utente

Goobay

Goobay 49867 Manuale utente

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manuale utente

Alkalite

Alkalite Krypton KT-81 Manuale utente

Clas Ohlson

Clas Ohlson GU10 Manuale utente

DTS

DTS DELTA 10 F Manuale utente

ring

ring Solar Steplight Manuale utente

One Stop Gardens

One Stop Gardens 57696 Istruzioni per il montaggio

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manuale utente

SIREM

SIREM Swimeo A2 Manuale utente

Silvair

Silvair MESH-CEDRP Manuale utente
