LDARC FB156 Manuale utente
Version 210420
FB156 FLYBALL MANUAL
The company will not be responsible for any changes in the product, nor
can we actively inform consumers of any updates or changes. If there is
any change in the material, specification or contents of package, please
refer to LDARC.com!
This product is suitable for people aged 14 and above.
Version 210420
【Parameter configuration】
Wheelbase：87.5mm
Outer diameter：156mm
Motor：MISS 1203-6500KV
Propeller：GF2020-4blades
Receiver：NO RX/RX2A/AC900（optional）
FPV version weight：91g（without battery）
Racer version weight：79.7g（without battery）
FC+ESC：MR26-AIO-F411E25A
VTX+Camera：TINY ROCKET VTX+Nano2（only included in FPV version）
Battery：11.1V 600mAh（only included in RTF version）
【Remarks】
1. Racer version is for visual flight
2. FPV version includes VTX and camera
3. RTF version has added transmitter, battery, and handbag on basis of
racer version
4. RX2A adopts AFHDS 2A protocol transmitter (FLYSKY FS-I6, X6, etc.)
5. AC900 supports FUTABA S-FHSS and FRSKY D16
Note: The overall PNP configuration only supports 3S battery
voltage, and it is strictly forbidden to use higher voltage.
Version 210420
【Packing List】
1. Racer version：PNP*1
2. FPV version：PNP*1（added VTX and camera）
3. RTF version：PNP*1+X6*1+battery*1+RX2A receiver*1+handbag*1
【Racer version】 【FPV version】 【RTF version】
【Transmitter】
The green LED light always on indicates DISARM, and the red LED light always on
indicates ARM.
Click "Button 5" to DISARM/ARM
Version 210420
【Receiver wire definition】
White is S.BUS signal line, red is 5V, black is GND
【Battery description】
Please fix the balance head with rubber band first, and then put the
battery upright.
Version 210420

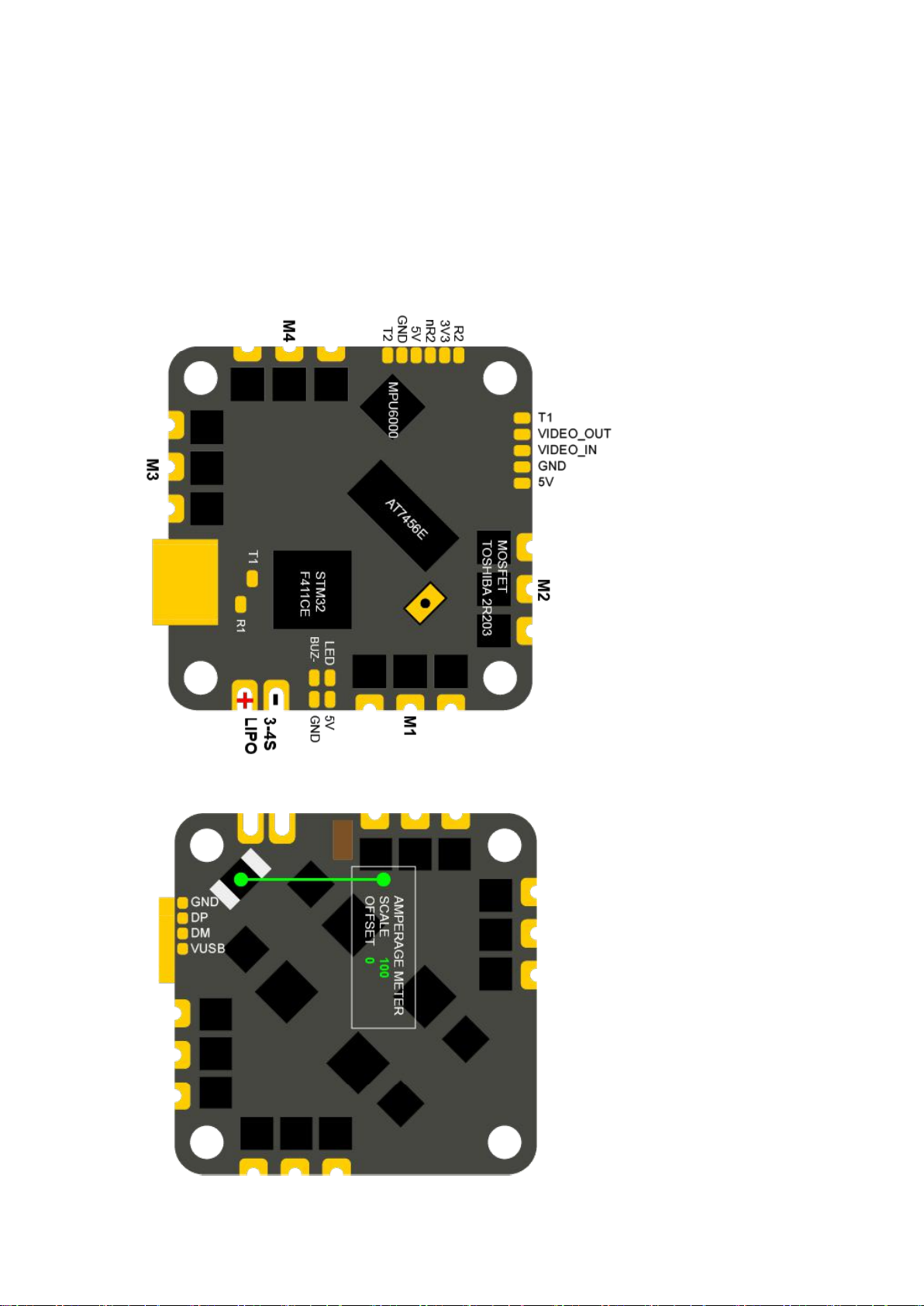

【FC】
FC target：LDARCF411
ESC target：g_H_30
Ammeter：100/0
Version 210420

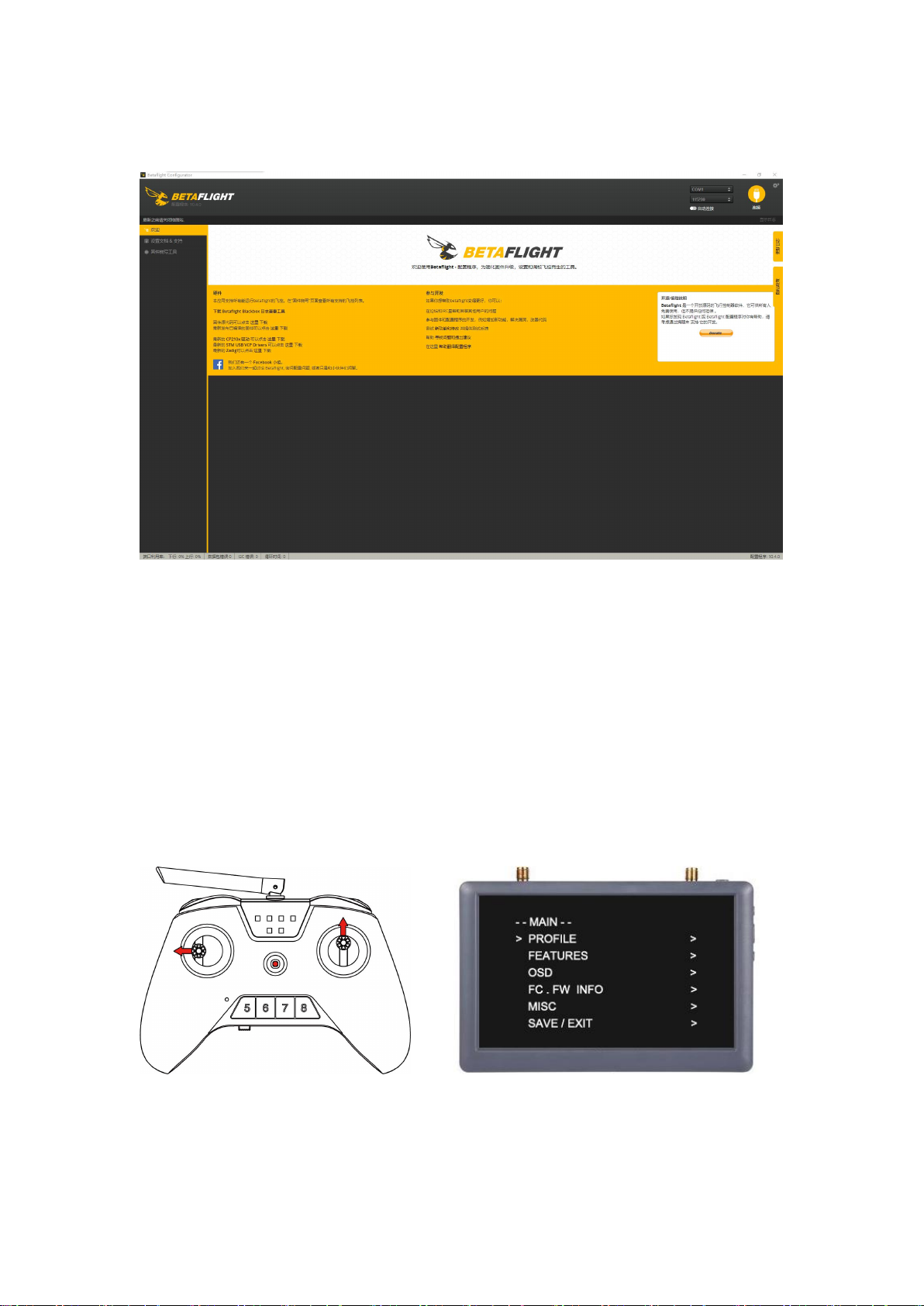

【BETAFLIGHT setting】
【OSD Setting Interface】
Center the throttle stick and push to the left, meanwhile pull up the pitch
stick to enter the OSD setting interface; push the pitch stick up or down
to select menu, and center the roll stick is to enter the submenu.
Version 210420

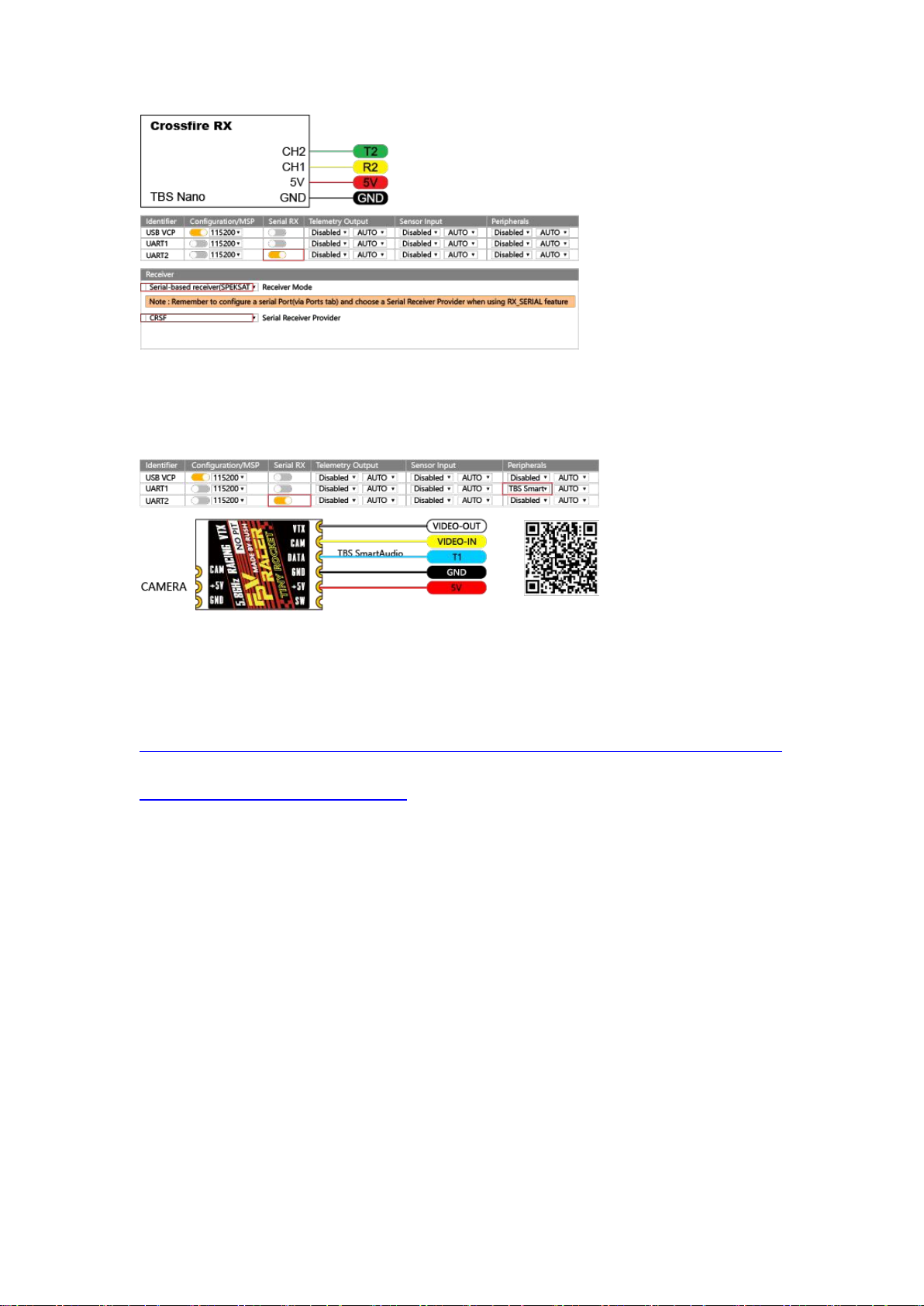

【Receiver】
1. Wires to S.BUS receiver is soldered by default: white is the S.BUS signal
wire, red is 5V, and black is GND.
2. For other types of receivers, please refer to the instructions to properly
solder their connecting wires.
Version 210420

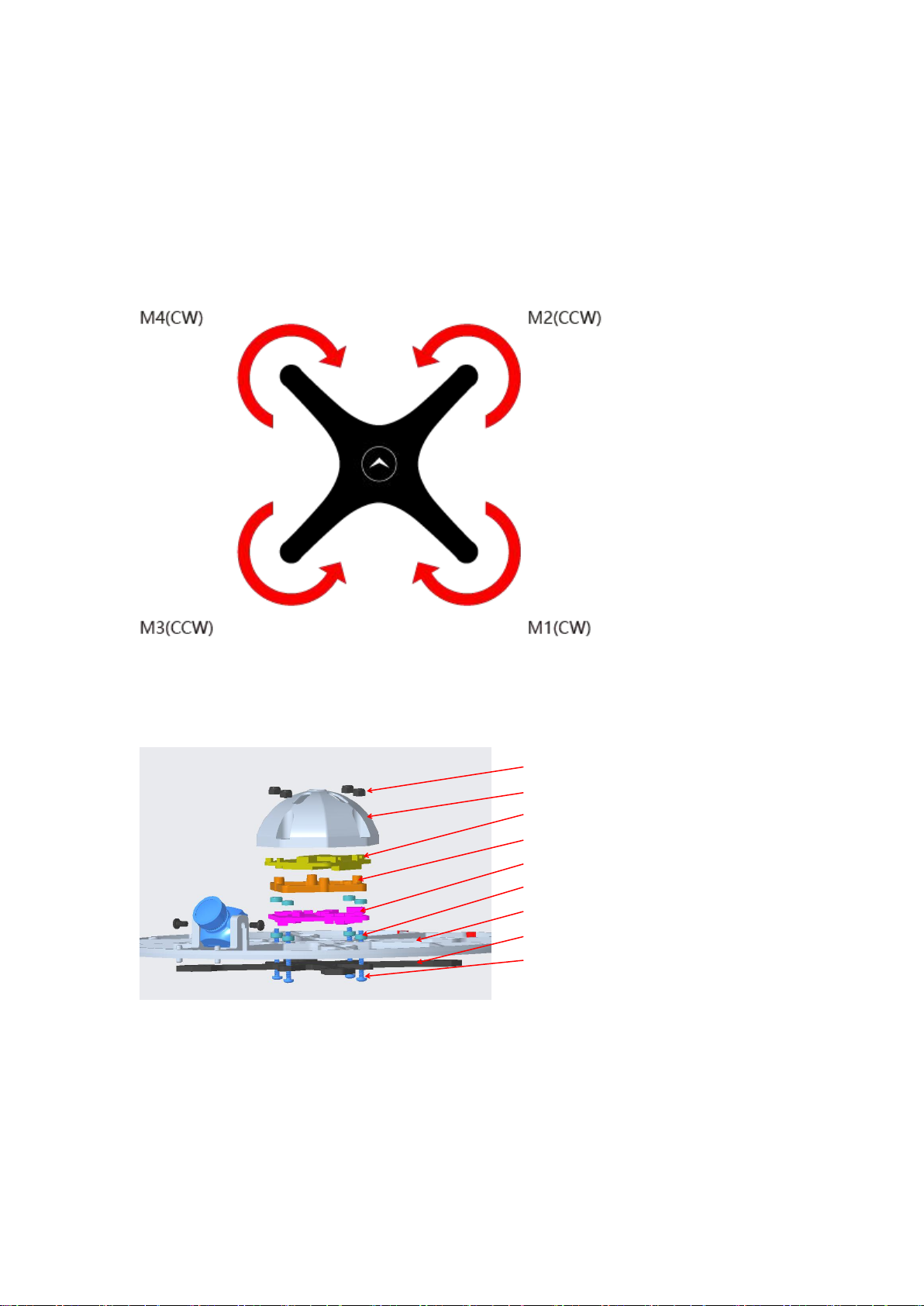

【Motor direction】
Pay attention to the direction of rotation of the motor and install the
propellers correctly
【Installation diagram】
M2 self-tightening nut
Canopy
VTX
Bracket
FC
M2 shock absorbing ball
Frame
Carbon plate
M2*18 Hex socket screw
Version 210420
【Product and Factory Code】
Name
Code
FB156 PNP Red Team
L01 0015
FB156 PNP Blue Team
L01 0016
FB156 RTF Red Team
L01 0018
FB156 RTF Blue Team
L01 0019
FB156 KIT
L02 0005
M2*5 screw
Frame
Carbon plate
Motor
Propeller
M2*6 screw
PA1.5*9
M2*9 screw
