LDR PDU6M Manuale utente

20106260 PDU6M, DMX512+ RDM

power distribution unit

istruzioni per l'uso

operating instructions

Bedienungsanleitung

instrucciones de manejo

mode d'emploi

gebruiksaanwijzing

Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 - fax +39 0376 772 140 - email [email protected]

PDU6M MANUAL V0.1

ENGLISH TABLE OF CONTENTS

ITALIANO INDICE

Important safety norms ………………………………………………........................ page 2

1. Check box content……………………………………………………….………. page 3

2. Weight and dimensions………………………………………………........... page 3

3. Features ……............................................…………………………….… page 4

4. Identifying the parts …………………………………………………………….. page 5

5. Description and functions of the parts………………………………….. page 6

6. Installation .............................................…………………………..…… page 8

7. Operation .……… …………………………………………………………….….…. page 8

7.1 Connect to power page 8

7.2 Select the working mode page 8

7.3 Xpress RDM system connection diagram page 9

7.4 Input signal connection page 9

7.5 Power and output signal connection page 10

7.6 Controllable units page 10

7.7 Scroller control cable page 11

8. Trouble shooting ..................…………….…………………………..…….. page 12

9. Related equipment .......... ……………………………………………………. page 12

10. Compatibility .......………………………………………………………………… page 12

Appendix: RDM E1.20-2006 positive signal timing……………… page 13

Standards compliance…………………………………………………………… page 14

Importanti norme di sicurezza………………………..…………………………………... pag. 15

1. Controllo del contenuto dell'imballo ………………………………….… pag. 16

2. Peso e dimensioni ……………………………………………………............. pag. 16

3. Caratteristiche ........................................…………………………….… pag. 17

4. Definizione dei componenti………………………………………………….. pag. 18

5. Descrizione e funzioni dei componenti………………………………….. pag. 19

6. Installazione ............................................…………………………..……pag. 21

7. Funzionamento .…………………………………………………………….….…. pag. 21

7.1 Connessione alla rete elettrica pag. 21

7.2 Selezione della modalità operativa pag. 21

7.3 Xpress RDM system - diagramma di connessione pag. 22

7.4 Connessione del segnale di ingresso pag. 22

7.5 Connessione dell’alimentazione e del segnale di uscita pag. 23

7.6 Numero di scroller controllabili pag. 23

7.7 Cavo di controllo dello scroller pag. 24

8. Soluzione dei problemi ..........…………….…………………………..…….. pag. 25

9. Strumenatzione correlata……………………………………………………. pag. 25

10. Compatibilità.......………………………………………………………………… pag. 25

Appendice: RDM E1.20-2006 positive signal timing……………… pag. 26

Conformità…......………………………………………………………… pag. 27

Certificate of conformity - Certificato di conformità page 28

Complaint form - Modulo di reclamo page 29

WEEE Directive - Direttiva RAEE page 30

Luci della Ribalta srl - Via Berna 14, Z.I. Bosco dell’Irta, 46042 Castel Goffredo MN, Italy

tel.+390376771777-fax+390376772140-emailinfo@ldr.it-webwww.ldr.it

Page 05 of 22ENGLISH

PDU6M MANUAL V0.1

Luci della Ribalta srl - Via Berna 14, Z.I. Bosco dell’Irta, 46042 Castel Goffredo MN, Italy

tel.+390376771777-fax+390376772140-emailinfo@ldr.it-webwww.ldr.it

ENGLISH

Thanks for having chosen Luci della Ribalta srl. We hope our products and services meet your

requirements, but should this not be the case, we kindly ask you to contact us directly to help us

supply you and all our customers with better and better quality. The product you purchased has

been manufactured with maximum care and selected components, but should you, for reasons

beyond our control, have received it damaged, we kindly ask you to contact the dealer who

supplied the product to you. To help you in this casualty, a form is supplied at the end of this manual.

Apart from the instructions given on this manual, all relevant safety and health standards of the

appropriate EU Directives must be complied with

Carefully read user's instructions before using this fixture

The instructions given here below ensure a safe and correct usage of this product. User's failure to

comply with the installation, operating, maintenance and safety procedures mentioned in this

manual, as well as those generally applicable to this equipment, may cause the fixture not to perform

as expected.

Luci della Ribalta accepts no liability for direct, indirect, incidental, special, or consequential damages

resulting from the customer's failure to follow the installation, operating, maintenance and safety

procedures in this manual or those generally applicable to this type of equipment.

The limitation extends to damages for personal injury, property damage, loss of operations, loss of

profits, loss of product or loss of time, whether incurred in by the customer, the customer's

employees or a third part.

* this product is designed for professional usage and can be operated by experts only.

* this product is rated IP 20 and is therefore designed for interior use and in dry environment only

(humidity < 90% - ambient temperature 0°C - 45°C , non condensing)

* do not install this product on or near flammable surfaces

* before installing this product make sure the structure you are fixing the product to can withstand its

load.

* make sure the unit is disconnected from the mains before starting any maintenance or repair

procedure

* fixing and replacement of any component of this product must be carried out exclusively by

professional personnel in conformity with and only with

original manufacturer's components.

* replacement of any part of the wiring system must be carried out exclusively by professional

personnel in compliance with the original wiring diagrams and with components identical or

IMPORTANT SAFETY NORMS

the relevant safety and health standards

Page 05 of 22ENGLISH

PDU6M MANUAL V0.1

personnel in compliance with the original wiring diagrams and with components identical or

compatible with those originally fitted.

* installation of this product must be exclusively carried out by professional personnel in compliance

with the safety norms in force in the country where the product is used.

Upon opening the packaging, please make sure it contains the following:

A. power distribution unit fitted with clamp

b. CE22 power cord

c. metal safety bond, fitted

Should one or more items miss, we kindly ask you to contact your dealer immediately.

Net weight: 5,5 kg, including safety bond and power cord

gross weight: 6,4 kg

packing dimensions: 34x38x24h cm

1. CHECK BOX CONTENT

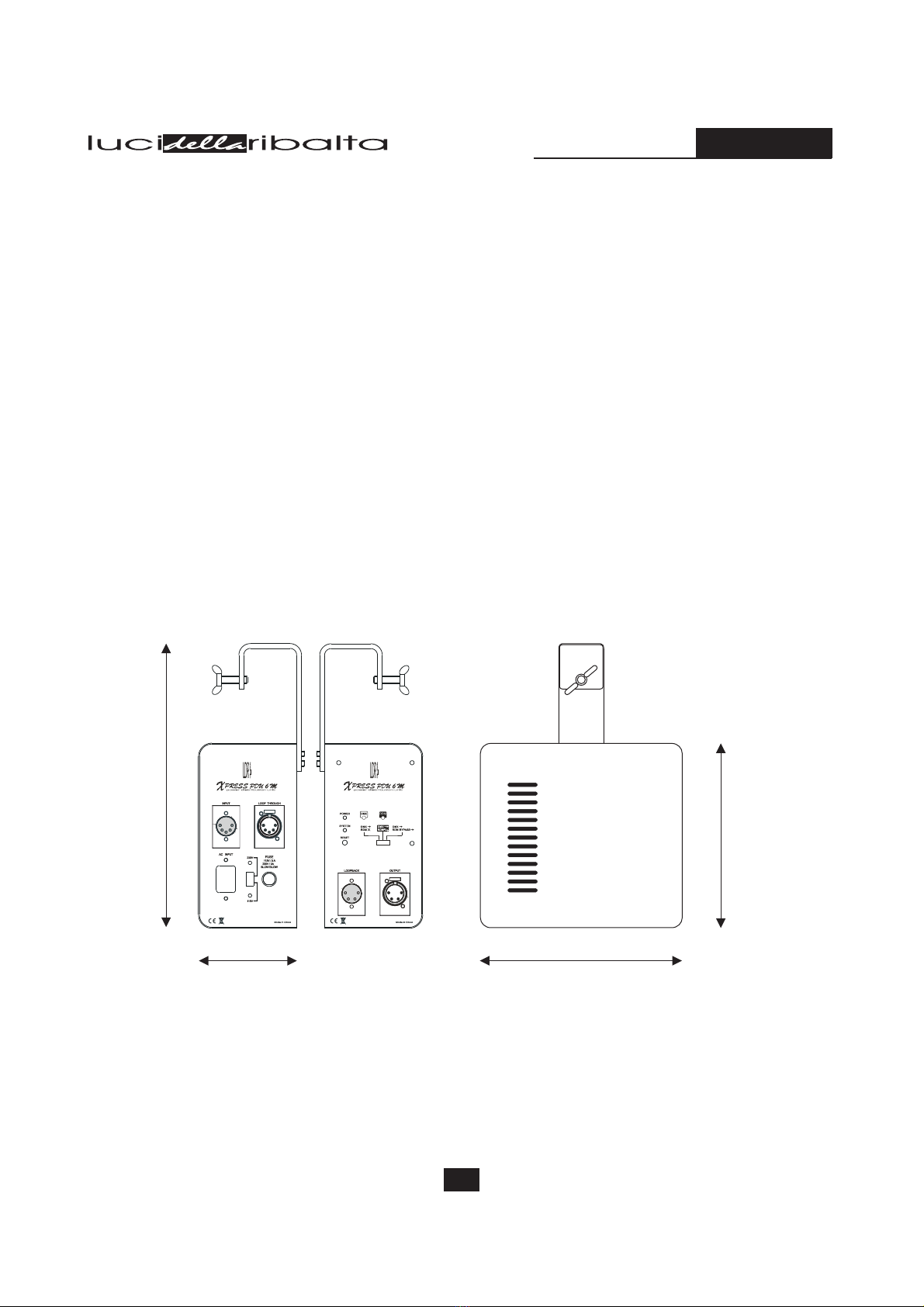

2. WEIGHT AND DIMENSIONS

Luci della Ribalta srl - Via Berna 14, Z.I. Bosco dell’Irta, 46042 Castel Goffredo MN, Italy

tel.+390376771777-fax+390376772140-emailinfo@ldr.it-webwww.ldr.it

Page 05 of 22ENGLISH

190mm

295mm

101mm 210mm

PDU6M MANUAL V0.1

3. FEATURES

NOTE: if you are working in a pure DMX512 signal environment, we strongly

recommend you ALWAYS select the BYPASS mode

THE PDU6M, Power and DMX512/RDM Signal Distribution Unit is an essential fixture of LDR

XPRESS intelligent colour scroller system. Main features of the PDU6M are the following:

- conforms to RDM E1.20-2006 standards (ANSI E1.20-2006 Entertainment Technology RDM

Remote Device Management Over DMX512 Network)

- compatible with traditional colour scroller systems

- compatible with other colour scroller systems based on RDM E1.20-2006

- XLR5F through connector, for connection with next PDU6M

- XLR4F signal + power connector, which supplies signal and power to colour scrollers

- power selection switch: allows selection between 230VAC and 115VAC

- slow blow fuse: it guarantees that the fixture can withstand the impact created by the

starting power of a number of scrollers

- 3-level switch to select the working mode: Normal, Filter and Bypass

all types of input signals can be transmitted,

only standard DMX512 signal can be transmitted, thus meeting the

requirements of some DMX512 signal-based fixtures. When transmitting the DMX512 signal,

transmission relay time is about 280

all types of input signals can be transmitted,with a transmission relay time of

5 . No feedback signal will be transmitted.

- power output for colour scroller: 150VA;

- signal and electrics are isolated, isolating voltage rating: 2500VRMS (60 sec.)

NOTE: make sure you select the desired working mode the PDU6M is connected to

power

NORMAL mode:

FILTER mode:

BYPASS mode:

before

the transmission relay time is

5µs (microseconds). If the signal conforms to RDM E1.20-2006, feedback signal will be

available with a transmission relay time of 5µs (microseconds)

µs (microseconds)

Page 05 of 22ENGLISH

Luci della Ribalta srl - Via Berna 14, Z.I. Bosco dell’Irta, 46042 Castel Goffredo MN, Italy

tel.+390376771777-fax+390376772140-emailinfo@ldr.it-webwww.ldr.it

PDU6M MANUAL V0.1 Page 06 of 22

4. IDENTIFYING THE PARTS

ENGLISH

Luci della Ribalta srl - Via Berna 14, Z.I. Bosco dell’Irta, 46042 Castel Goffredo MN, Italy

tel.+390376771777-fax+390376772140-emailinfo@ldr.it-webwww.ldr.it

1 hook clamp

2 butterfly bolt

3 safety bond

4 XLR4F : output signal and DC power. Connect to colour scroller

5 XLR4M (loop): output signal and DC power. Connect to colour scroller

6 XLR5M (Input): signal and feedback out. Connect to controller

7 XLR5F (through): signal through. Connect to the next PDU6M

8 power socket: connect to power supply

9 power selection switch: 230VAC and 115VAC available. Factory-set on 230VAC

10 working mode selection switch

11 fuse

12 LED status indicators

PDU6M MANUAL V0.1 Page 07 of 22ENGLISH

Luci della Ribalta srl - Via Berna 14, Z.I. Bosco dell’Irta, 46042 Castel Goffredo MN, Italy

tel.+390376771777-fax+390376772140-emailinfo@ldr.it-webwww.ldr.it

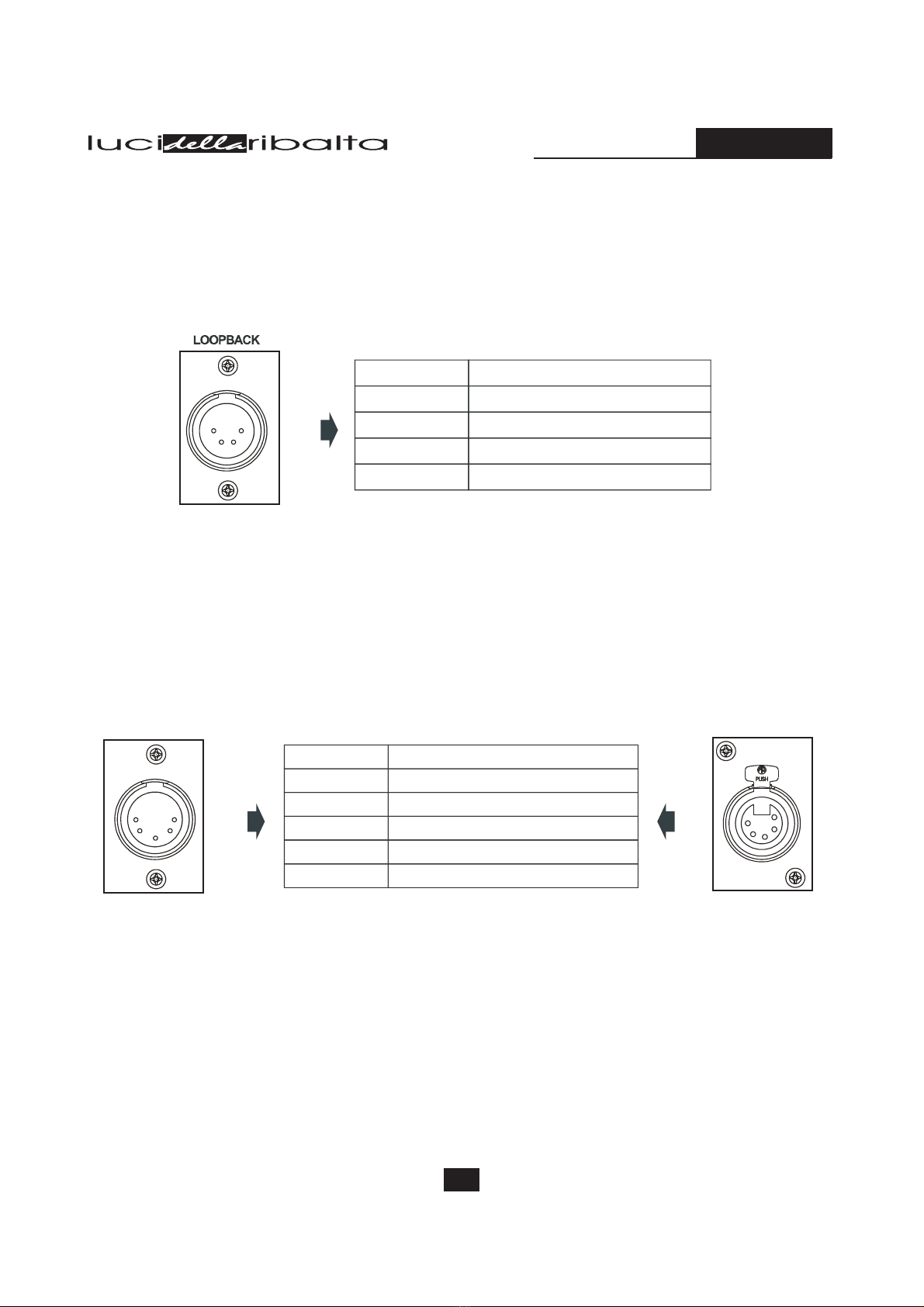

5. DESCRIPTION AND FUNCTIONS OF THE PARTS

5.1 XLR4M - part #5

Loopback connector for output signal and control power. Connect it to the colour scroller.

5.2 XLR5M INPUT - part #6

5.3 XLR5F LOOP THROUGH - part #7

Connector for signal in and feedback out. Connect it to the controller

Connector for signal through. Connect it to the next PDU6M

5.4 LED STATUS INDICATOR - part #12

POWER

SYSTEM

DMX

RDM

Power-Red.Indicatesthatpowerison

Working status- Yellow. It flashes when the PDU is properly operating

DMX signal transmission state - Green. It flashes (4Hz) when transmitting DMX

RDM signal transmission state - Green. It flashes (4Hz) when transmitting RDM

(2Hz)

Pin No. Definition

Signal and power COM

Signal DMX -

Signal DMX+

Power +

INPUT LOOP THROUGH

Definition

Pin No.

Signal COM

Signal DMX -

Signal DMX+

N.C.

PDU6M MANUAL V0.1 Page 08 of 22ENGLISH

Luci della Ribalta srl - Via Berna 14, Z.I. Bosco dell’Irta, 46042 Castel Goffredo MN, Italy

tel.+390376771777-fax+390376772140-emailinfo@ldr.it-webwww.ldr.it

5.5 WORKING MODE SELECTION SWITCH - part #10

This switch allows to select the desired working mode as follows:

Forfurtherdetailsontheworkingmodespleaseseepage4ofthismanual.

This fixture is fitted with a slow-blow fuse which allows it to stand the impact caused by the

starting power of a number of colour scrollers.

5.6 POWER SELECTION SWITCH - part #9

5.7 FUSE - part #11

This switch allows to select the correct voltage for the PDU you are operating between

230VAC and 115VAC. The fixture is factory-set for operation at 230V.

before operating the unit always make sure the selection switch is set to the

locally supplied voltage. Operating the unit under a wrong voltage may cause

serious damages. Also make sure the unit is fitted with the correct fuse (see

below).

CAUTION:

Type:20mm/3Aslowblow-for230Voperation,fitted

Type: 20mm /5A slow blow -for 115V operation, tobe installed in case you operateat115V

CAUTION: Replace the fuse only when power is disconnected

Make sure the new fuse you are installing is the correct type for the operating

voltage you have chosen

Switch position Mode Signal Feedback

Left

Middle

Right

DMX512

All types

RDM

FILTER

NORMAL

BYPASS

PDU6M MANUAL V0.1 Page 08 of 22ENGLISH

Luci della Ribalta srl - Via Berna 14, Z.I. Bosco dell’Irta, 46042 Castel Goffredo MN, Italy

tel.+390376771777-fax+390376772140-emailinfo@ldr.it-webwww.ldr.it

6. INSTALLATION

7. OPERATION

7.1 CONNECT TO POWER

7.2 SELECT THE WORKING MODE

Set the power selection switch to the locally supplied power and connect the power cable.

You can choose the desidered working mode according to the control signal type and the

colour scroller type. If the colour scroller has no limitations on the control signal, we

strongly recommend you select the NORMAL working mode.

For more details on the available options please go back to page 4 of this manual

ower cord is supplied with the PDU and is fitted with a CEE 22 socket at one end and

with a Schuko plug at the other end.

Note: the signal transmission state depends on the selected working mode

This unit can be installed either on a working surface or hanging from a trussing.

Before installing this product make sure the structure you are fixing the product to can

withstand its load and the total load of any other unit installed.

1. Hangtheunittothestructureandfirmlytightentheboltoftheclamp

2. Open the safety bond, secure it to the hanging bar and lock it back to the PDU

NOTE: make sure you select the desired working mode the PDU6M is connected to

power

before

PDU6M MANUAL V0.1

Luci della Ribalta srl - Via Berna 14, Z.I. Bosco dell’Irta, 46042 Castel Goffredo MN, Italy

tel.+390376771777-fax+390376772140-emailinfo@ldr.it-webwww.ldr.it

Page 08 of 22ENGLISH

7.3 XPRESS RDM SYSTEM CONNECTION DIAGRAM

NOTES TO THE DIAGRAM

1. The diagram only shows signal connections between equipments

The control cable (not supplied) should be a standard signal cable as per international

DMX512 standards. Belden 1420A, shielded 3 pairs twist cable is recommended.

7.4 INPUT SIGNAL CONNECTION

There is only one PDU6M chain in the diagram, more chains can be added.

3. If the system contains only one PDU6M chain, the input of the first PDU6M can be

directly connected to the output of a XPRESS controller (UDM- Box)

4. The DMX512 chain in the diagram supports normal DMX512-based devices

. The connector of control

cable to

The

control signal is sent to the input port of PDU6M (XLR5M) )

the input port of PDU6M is a 5-pin female XLR.

In In

Thru

Terminator

DMX 512

In Thru

DMX 512

In Thru

DMX 512

In Thru

OUT

XPRESS RDM

Out

Loop

Thru

PDU6M

Out

Loop

Thru

PDU6M

Out

Loop

Thru

PDU6M

XPRESS RDM XPRESS RDM

XPRESS RDM

Out 1

Out 2

Out 3

Out N

IDAxxMx

Out 1

Out 2

Out 3

Out N

IDAxxMx

Out 1

Out 2

Out 3

Out N

IDAxxMx

XPRESS

Software

USB

USB-DMX

UDM BOX

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Manuali Unità di distribuzione dell'energia popolari di altre marche

hager

hager SP 015 Manuale utente

Pakedge

Pakedge PowerPak 9 Manuale utente

Pts

Pts 9042 Series Manuale utente

Shure

Shure WA405 Manuale utente

CORNING

CORNING CCH 4U Manuale utente

Panamax

Panamax M4LT-EX Manuale utente

PANCONNECT

PANCONNECT FLAT 3M Manuale utente

Raytheon

Raytheon 138-118 Manuale utente

D&R ELECTRONICS

D&R ELECTRONICS PDU-6SS Manuale utente

Botex

Botex PSA 322-6 DL Manuale utente

GE QuiXtra 4000 Guida rapida

RDL

RDL EZ Series Manuale utente

StarTech.com

StarTech.com RKPW161915 Manuale del sistema

Vertiv

Vertiv Knürr DI-Strip Rack PDU Manuale utente

ABB

ABB PSBS0065 Manuale

Baumuller

Baumuller BFN 3-1-0007-001 Manuale

Eaton

Eaton StructuredWiringSolutions ESWT41600 Manuale

GE GEK-45404F Manuale utente
