Led2 SAFE ON ST Manuale utente

SAFE ON

The installation may only be carried out by a technician

Nur ein Techniker kann die Installation durchführen

Instalaci smí provʛHˏXTSYze technik

Inštaláciu môIZ]OSREMFEXIGLRMO

This product contains a light source of energy efficiency class F

Dieses Produkt enthält ein Leuchtmittel der Energieeffizienzklasse F

8IRXSZʴVSFIOSFWELYNIWZˏXIPRʴ^HVSNXʧH]IRIVKIXMGOʣʱ˃MRRSWti F

8IRXSZʴVSFSOSFWELYNIWZIXIPRʴ^HVSNXVMIH]IRIVKIXMGOINʱ˃MRRSWXM*

(EN) CAUTION!

Turn off the main power before proceeding with the installation in order to prevent possible shock. The installation may only be carried out by a technician or a qualified

person. If the lamp has a lampshade/diffuser, handle it carefully as it is fragile. With an integrated LED light source, only a technician or a qualified person can make the

replacement. The manufacturer is not responsible for the incorrect use and assembly of its products.

(DE) ACHTUNG!

Vor der Installation ist es notwendig, den Hauptstromkreis zu unterbrechen, um ein Stromschlag zu vermeiden. Die Installation darf nur von einem Techniker oder einer

qualifizierten Person durchgeführt werden. Wenn die Lampe einen Lampenschirm/Diffuser hat, gehen Sie vorsichtig damit um, da sie zerbrechlich ist. Mit einer

integrierten LED-Lichtquelle kann nur ein Techniker oder eine qualifizierte Person den Austausch vornehmen. Der Hersteller ist nicht verantwortlich für die fehlerhafte

Verwendung und Montage seiner Produkte.

(SK) UPOZORNENIE!

Pred inštaláciou je neZ]LRYXRʣ SHTSNM hlavný elektrický okruh, aby ste predišli zasiahnutiu elektrickým TVʱHSQ 1SRXʛ môe Z]OSRE iba kvalifikovaná osoba. V prípade,

e má svietidlo XMIRMHPSHMJʱzor, narábajte s ním opatrne, pretoe je krehkʣ Pri integrovanom LED svetelnom zdroji môe výmenu zrelizovE iba technik alebo

kvalifikovaná osoba. Výrobca nenesie zodpovIHRSW^ERIWTrávne zachádzanie s produktom.

(CZ) UPOZ362ˎ2ʌ

Ped instalací je RYXRʣ odpojit hlavní elektrický okruh, abyste pedešli zasaení elektrickým proudem. 1SRXʛ Qe provʛHˏX pouze kvalifikovaná osoba. V TʧTEHˏ e

má svítidlo stínidlo/difuzor, zacházejte s ním STEXVRˏ protoe je kehkʣ 4M integrovERʣQ LED svˏXIPRʣQ zdroji Qe ZʴQˏRY zrelizovE pouze technik nebo kvalifikovaná

osoba. Výrobce nenese odpovˏHRSWX^ERIWTráZRʣ^EGLʛzení s výrobkem.

www.led2.eu

1 Security related information

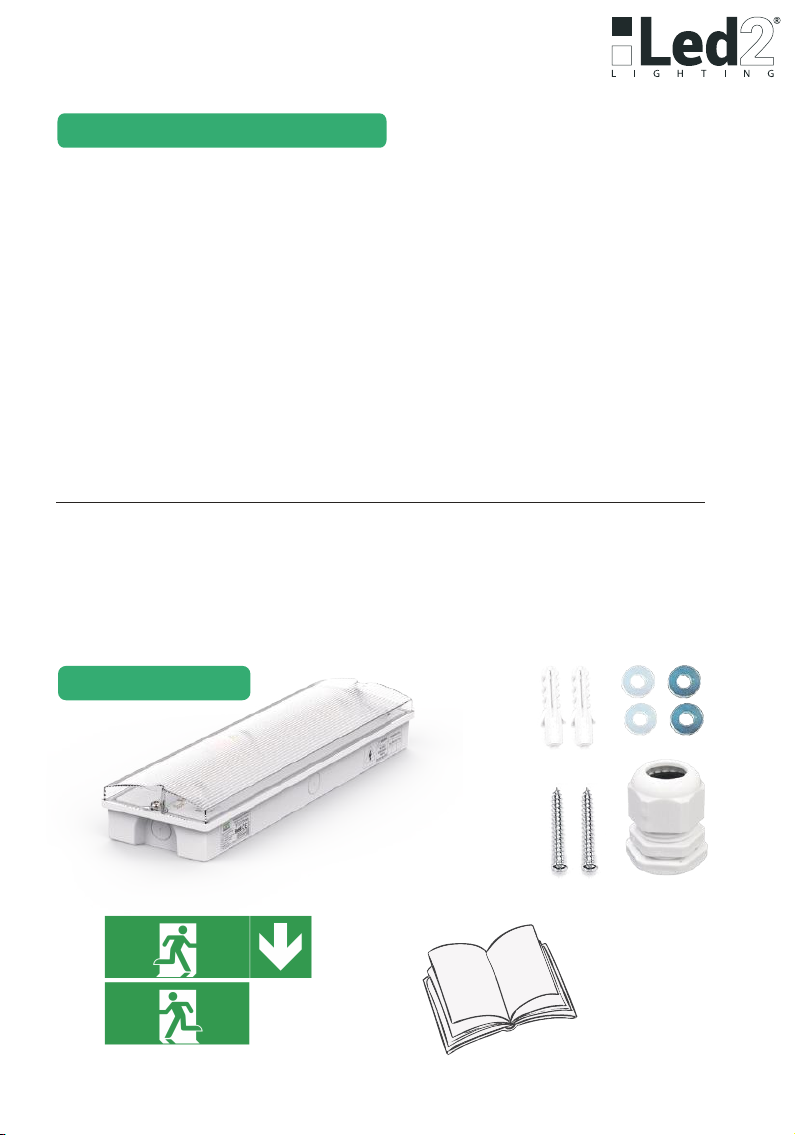

2 Packing list

• Installation should be carried out in accordance with the latest edition

of the I.E.E. Wiring regulations and taking into consideration the latest

building regulations.

• Ensure that all electrical connections are tight with no loose strands,

including factory made connections.

• Ensure there is adequate free air circulation of at least 100mm around

the luminaire. It is the installer’VUHVSRQVLELOLW\WRFRQVLGHU¿UHULVNand

take appropriate precautions.

•A seperate enclosure may be required if this unit is to be used in dusty

and wet environments.

Q.C. date label, installation in an improper working environment or installation not according

to the current edition of the I.E.E. Wiring Regulations . The guarantee is also invalidated if

the luminaire has been I.R. tested. Should this product fail during the guarantee period it will

be replaced free of charge, subject to correct installation and return of the faulty unit. We do

not accept responsibility for any installation costs associated with the replacement of this

SURGXFW<RXUVWDWXWRU\ULJKWVDUHQRWDIIHFWHG:HUHVHUYHWKHULJKWWRDOWHUVSHFL¿FDWLRQV

without prior notice.

The Lamp *1

User manual *1 Remote cotroller *1

The Legend *1 set

Installation pack *1

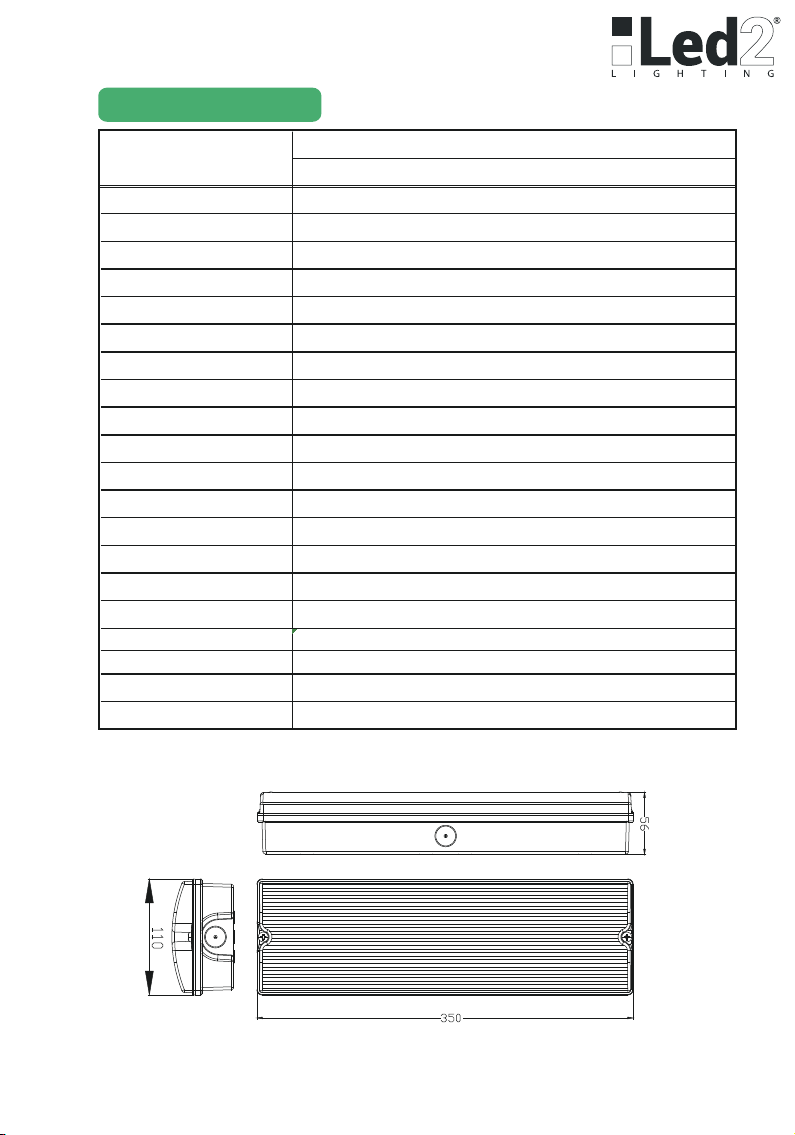

3 Basic Parmeters

Model SAFE ON

Material 100% polycarbonate

LED Chips 18pcs 2835

Input Volt age

Color Rendering Index >80

CCT 6000 K

Bat tery pack 3.6V 1.2Ah Ni- Cd

Degree of prtection IP65

Power factor 0.5

Warm up time <0.1S

LED lif espan 50,000 hrs

Bean angle 120°

Standard 60598- 2- 22:2021 & EN62034

Standard of Legend ISO7010 & ISO3864- 1/ 4

TEST manual test + self- test

Charging indicator Green

Faulty indicat or RED

Guarantee 5 Years

AC200- 240V 50/ 60HZ

Total Input Power 1.5W if non-maintained mode / 3.0W if maintained mode

Luminous Flux In AC mode OFF if non-maintained mode / 100Lm if maintained mode

Luminous Flux In EM mode 100Lm

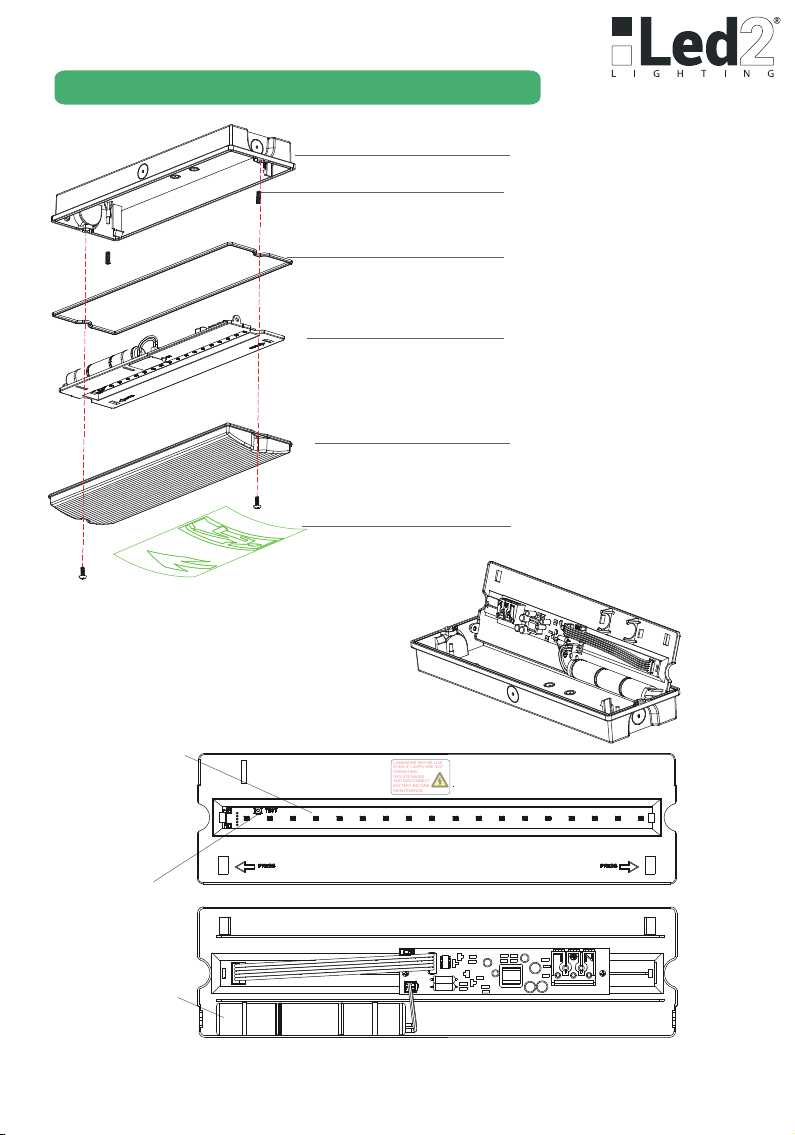

4 General construction

The polycarbonate base

The Spring

Inner Core PCB

The polycarbonate Cover

The direction Legend

The silcon ring

Red faulty indicator

Green charging indicator

LED Chips

TEST button

Battery Pack

LUMINIAIRE MAY BE LIVE

EVEN IF LAMPS ARE NOT

OPERATING.

ISOLATE MAINS

AND DISCONNECT

BATTERY BEFORE

MAINTENANCE

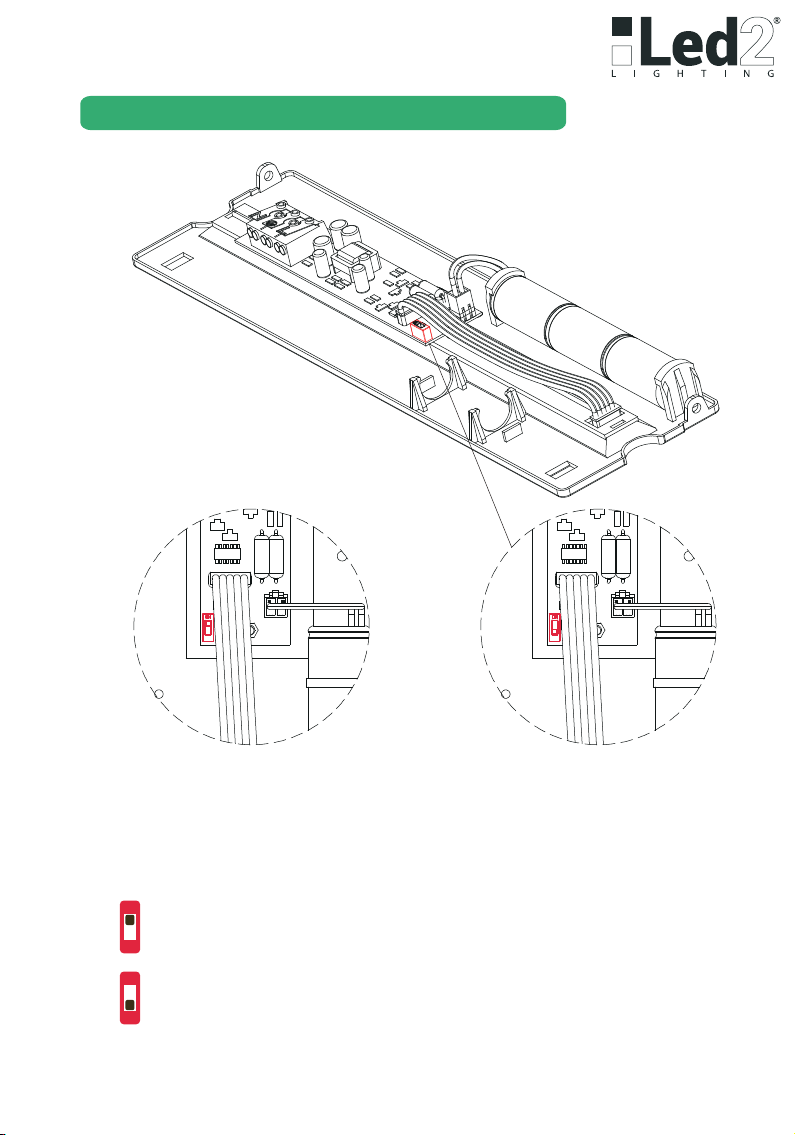

5 Maintained & non-maintained changeover

Maintained & Non-maintained work mode

a) Maintained b) Non-Maintained

The SAFE ON can work both in maintaied and

non-maintained mode.

a) Dip switch ON. It works in maintained mode;

b) Or it works in non-maintained mode.

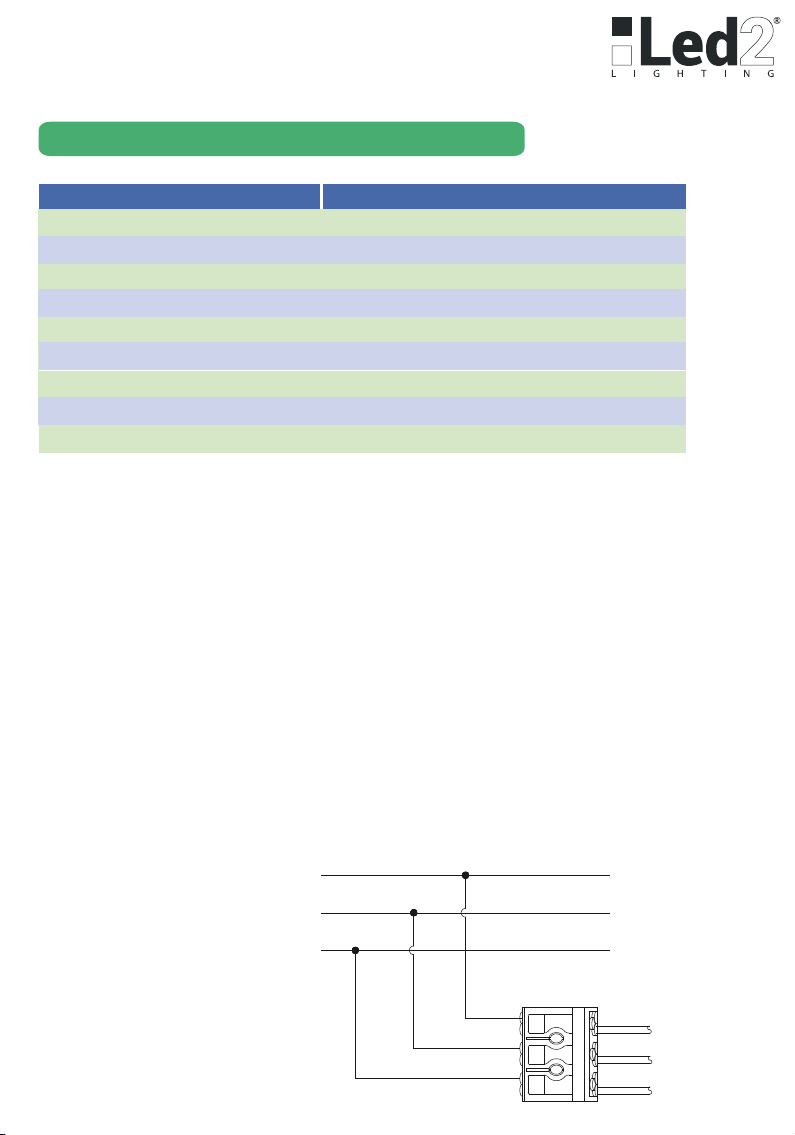

Emergency Technical Data

Battery Type

Battery Charging

Discharging

Test Button

Self-test

Ni-Cd 3,6V 1.2

60mA, Charging >90% in 24 hours

200mA, >3hours autonomy time

Included

Faulty Indicator

RED LED

Standard

IEC60598-2-22:2021

Remote test

Included

Charging Indicator

Green LED

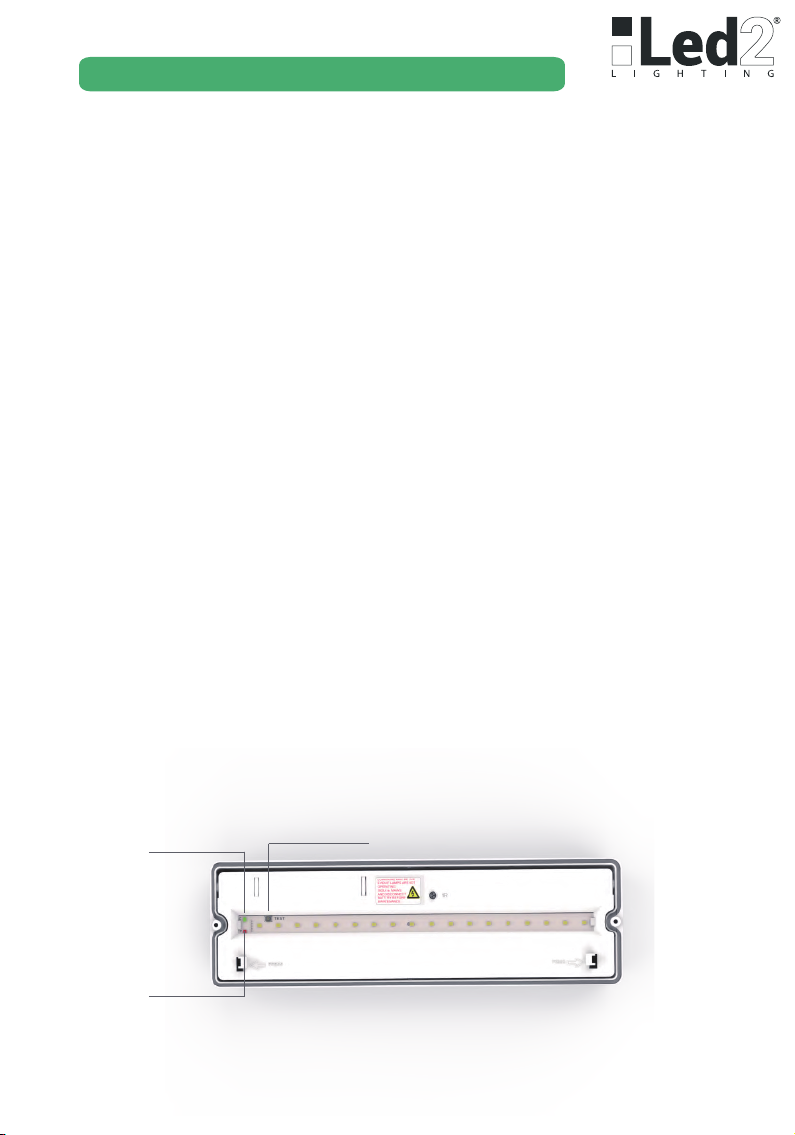

6 Emergency function

ADDITIONAL INFORMATION -

COMPONENT REPLACEMENT

Emergency function test before installation

1. Connect the AC cable according to the Dia 1. Keep the Switch

Live off, and battery plugged on.

(The green charging indicator on, Faulty indicator off)

2. Press the test button, The charging indicator off, and emergency

function actived

3. Unplugged the battery, charging indicator OFF, the faulty indicator flash in 1HZ.

Emergency Live

Earth

Dia.1

• The luminaire contains no user replaceable components other than

the battery pack contained in emergency versions.

• The battery has a 4 year service life provided it is operatedand &

maintained by regular testing, as detailed in this Usermanual. Failure

to maintain or change the battery may result in reduced duration in

emergency mode.

②Charging Ind.

③ Faulty Ind.

④ Test button

7 Self test system

7.1 Testing (If no failure)

7.1.3 Annual test.

Active the ④test button for 7 second;

Or the lamp installed every 180 days.

a) The ②Charging indicator will ﬂash in 2Hz for 3hours;

c) The lamp back to standby mode after test.

b) The charging will be cut oﬀ & emergency function on 3 hours;

7.1.1. Manual function test.

Active the ④test button.

a) The ②Charging indicator OFF.

b) The Emergency function ON.

c) The test will cut oﬀ the mains.

7.1.2 Monthly test.

Active the ④test button for 5 second;

Or the lamp installed every 30 days.

a) The ②Charging indicator will ﬂash in 1Hz for 128s;

b) The Emergency function ON;

7.2 Testing (If any failure)

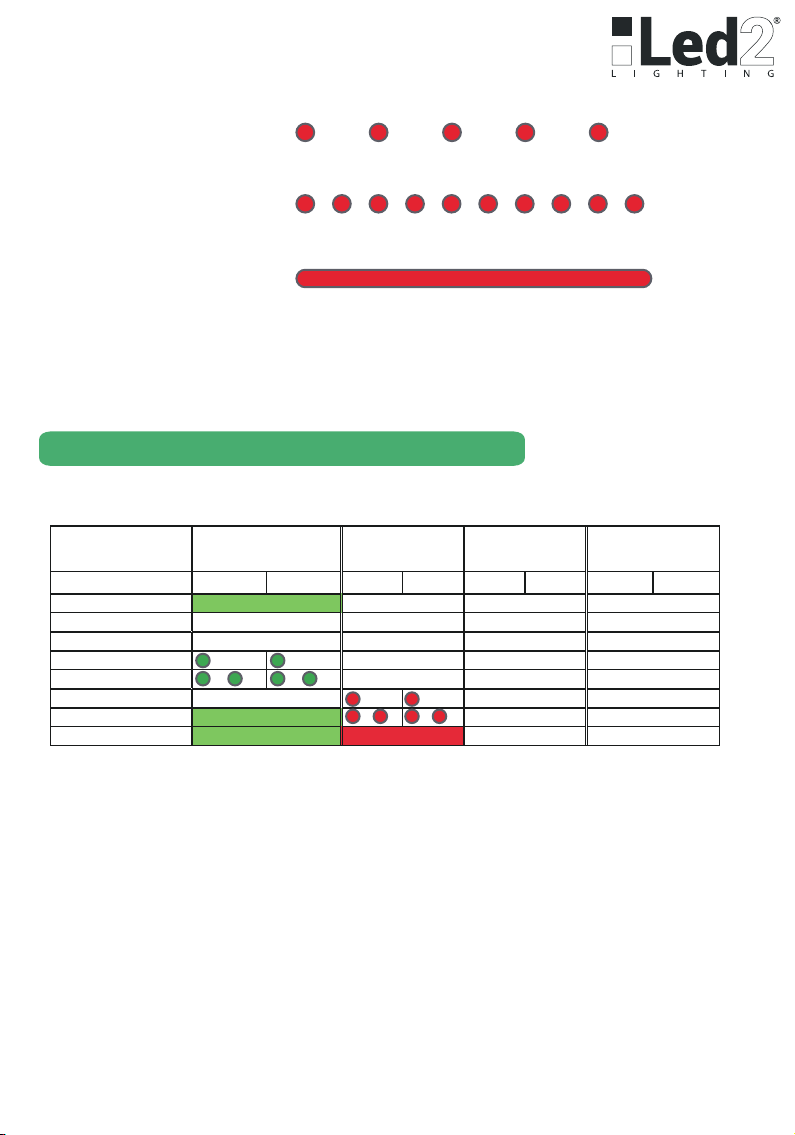

8 Emergency control logic

7.2.1 Battery failure:

Monitored constantly. The ③faulty indicator will ﬂash in 1 Hz if the

battery failure any time.

7.2.2 LED load failure:

If press test button, or the luminary self-monthly test. The ③faulty indicator

will ﬂash in 2 Hz if LED load failure.

7.2.3 Duration failure:

Only in Annual self-test. The ③faulty indicator will turn on constantly if the

Battery can not last 3 hours

The emergency function control logic

Operation Charging indicator

(Green)

Faulty Indicator

(RED)

Emergency LED

Maintained mode

Emergency LED

Time line

Normal charging Constantly on OFF Constantly on OFF

Normal AC Failure OFF OFF Constantly on Constantly on

Manual test OFF OFF Constantly on Constantly on

Monthly self-test OFF Constantly on Constantly on

Annual self-test OFF Constantly on Constantly on

Battery circuit failure OFF Constantly on OFF

Light source failure Constantly on OFF OFF

Duration test failure Constantly on Constantly on Constantly on OFF

Non-Maintained mode

1 Second 1 Second 1 Second 1 Second 1 Second 1 Second 1 Second 1 Second

1. All LED2 LED bulkheads are designed for projects. Only qualified electrician can install or maintain it.

ce.

3. Keep the product far from heat sources and in a well ventilated area.

9 Installation guide

10 EM inspection record table

month Test

First Year

Second Year

Third Year

Fourth Year

Fifth Year

Signed

Date

Signed

Date

Signed

Date

Signed

Date

Signed

Date

Functional

1 hour

Functional

3 hours

Luminaire emergency inspection record
