LEDLight 45167W Manuale utente
Page 1
Instruction Manual
Retrofit: LED High Bay Lamp
Model NO: 45167W
Page 2
Product specification
lBeam Angle：120°
lColor Rendering Index(CRI):70
lWeight:11.2(Kg)
lHeat sink : Extruded Aluminum
lBase: Plug

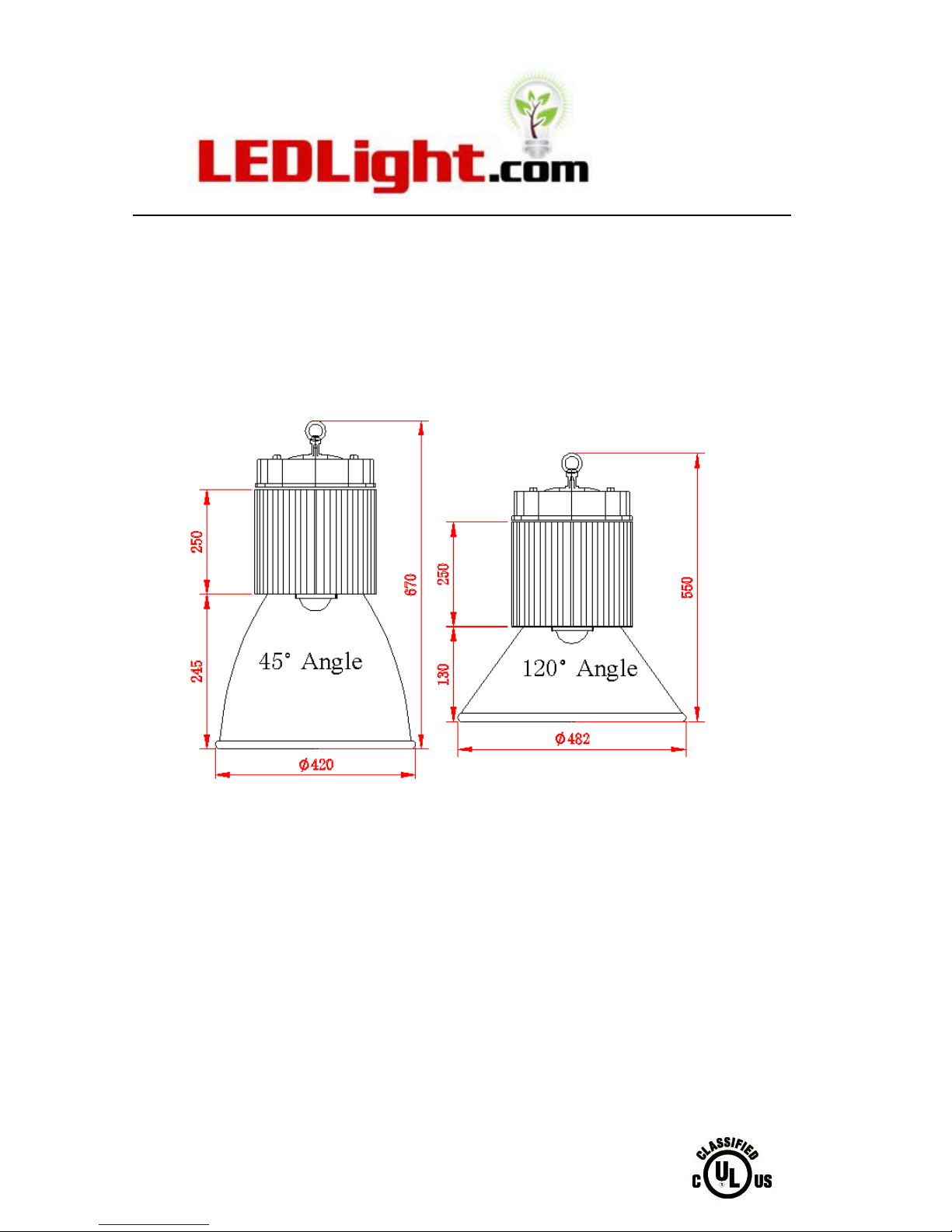

lDimension： （mm）
lReplaced By: 500W Halogen Bulb
lDimmability: Not Dimmable
Electrical Specification
lInput Voltage：AC100~277V
lPower Consumption：200W
lPower Factor: 0.96
Optical Specification
lChip manufacturer: Bridgelux 45mil
lLuminous Flux：21907.8Lm
lCorrelated Color Temp：4000-4100K
Page 3

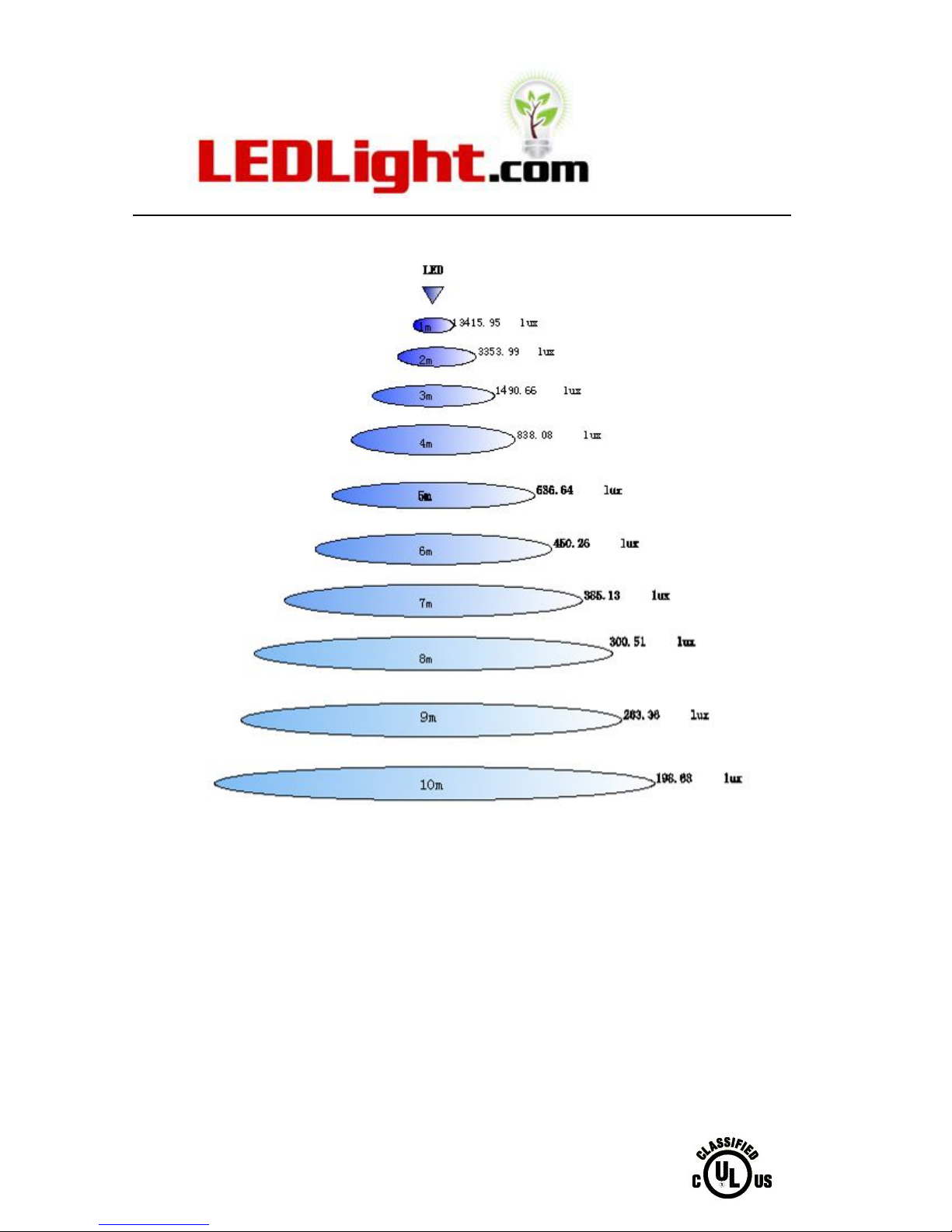

lIlluminance (center point)
Warranty:
lSee Website Details page for information.
Environment Specification
lOperating Temp:-20℃-45℃
lEnvironmental Humidity:10%-90%
lIP Protection Degree: IP65
Regulation:
lCertification: UL CB TUV CE ROHS
Page 4
Characteristics:
a .Long lifespan
b. Notable energy-saving
c. Convenient installation
d. Healthy Ray, NO UV or IR radiation
e. High CRI
f. High safety Factor
g. Extensive Ranges of Applications
h. Efficient constant current driver
i. Single integrated high power LED light source
Installation instructions
1.
2.
Page 5
3.
4.
LED
High
Bay
Light
Page 6
5.
Page 7
Applications:
Apply to the workshop, the factory, toll station, gas stations, large supermarket,
the exhibition hall, the stadium and other places of need illume.
Packaging:
lRadiator packaging information：
Quantity: 1 Pcs radiator per carton.
Packing material: K353K+EPE+PE
Gross weight: 11.6Kg/Carton.
Net weight: 10.6Kg/Carton.
Carton size: L300X W 300XH448 ( mm).
lPackaging method：
Page 8
lReflector packaging information：
Quantity: 10 Pcs reflector per carton.
Packing material: K353K+EPE+PE
Gross weight: 7Kg/Carton.
Net weight: 6Kg/Carton.
Carton size: L504X W 504XH350 ( mm).
lPackaging method：
Page 9
Use Notice
Warning for applications:
1. No ballast is needed. Any ballast should be removed before installation!
2. The socket temperature peak is 60°, do not touch the aluminum or any part
while working.
3. The product cannot be discarded into garbage can directly, necessary
measures should be done for full recycling.
4. Ensure that installed firmly
Website: www.LEDLight.com
Email: sales@LEDLight.com
Tel: (001)‐877‐283‐5060
Fax: (001)‐602‐861‐4088
