Ledon Multivippe Manuale utente

Multivippe

Assembly instructions • Montageanleitung • Montagevejledning

7 H

MAX

100 cm 1 - 12 312 x 115 x 100 cm

LxBxH

2Indholdsfortegnelse

Gode råd og vink ................................................................................. 3

Komponentorientering ............................................................................ 4

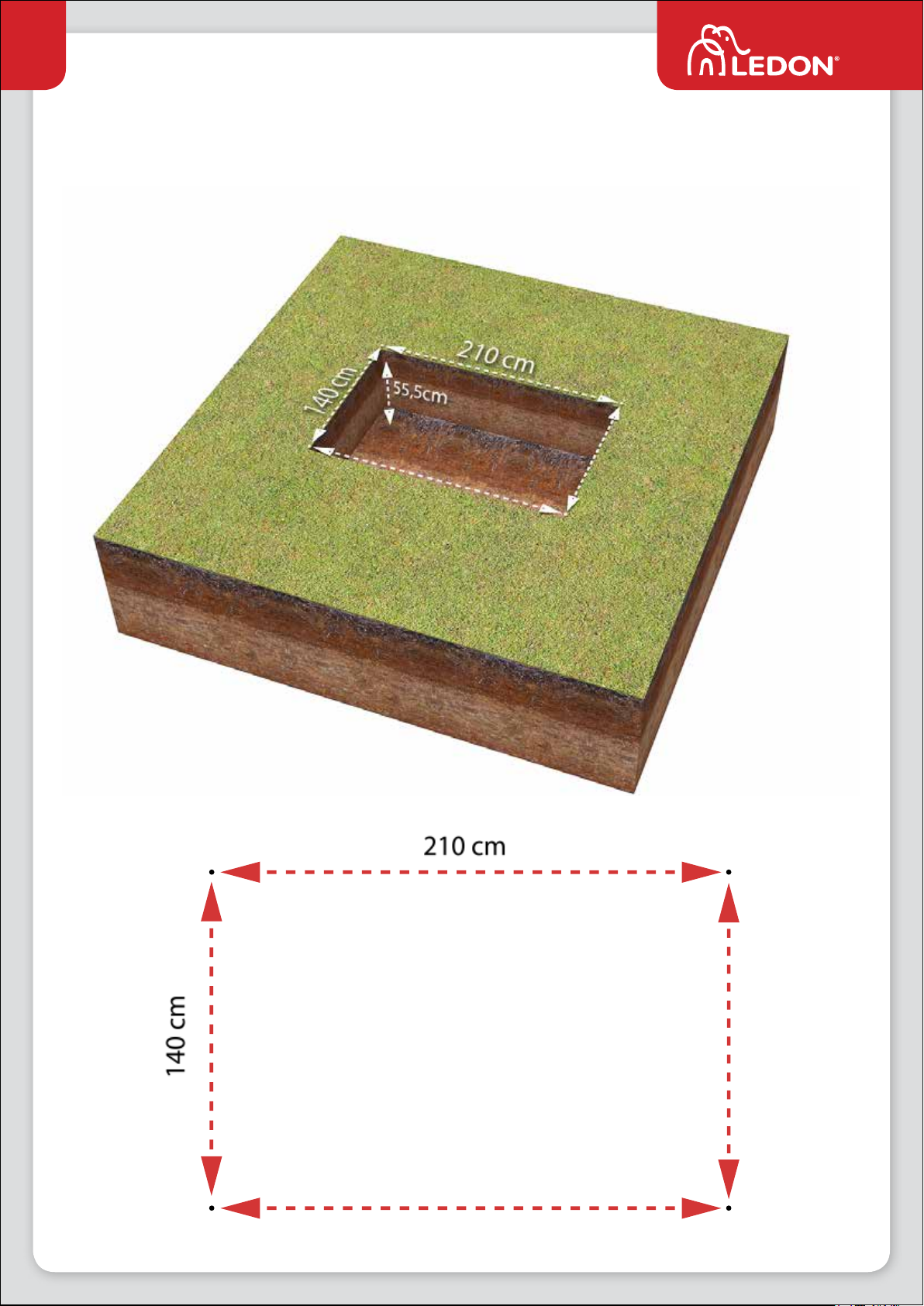

Gravedybde .................................................................................... 5

Fjeder montage .................................................................................. 6

Vippe montage .................................................................................. 7

Finish........................................................................................... 13

Some good advice and tips . ........................................................................ 3

Components overview ............................................................................ 4

Digging depth .................................................................................... 5

Spring assembly .................................................................................. 6

Seesaw assembly ................................................................................. 7

Finish........................................................................................... 13

Ein paar gute Ratschläge und Tipps ................................................................... 3

Bauteileübersicht ................................................................................. 4

Grabtiefe ....................................................................................... 5

Feder montage ................................................................................... 6

Wippe montage 3 ................................................................................ 7

Finish........................................................................................... 13

3Gode råd og vink

1. Tag komponenterne af pallen og læg dem på jorden

2. Check efter komponentlisten om alle er med

3. Vær omhyggelig med afstande generelt

4. Pak én komponent ud af gangen og gør denne færdig

5. Vær omhyggelig med brug af vatterpas

6. Faldunderlag etableres til allersidst sammen med påsætning af mærkning med producent

Some good advice and tips

1. Take all components from the pallet and place them on the ground

2. Compare with components list – is everything there?

3. Be at all times precise when measuring

4. Unpack one component at a time and assemble it

5. Usage of a water-level will increase precision

6. Fall protection is the very last thing to be installed – along with the producer’s label

Ein paar gute Ratschläge und Tipps

1. Alle Bauteile von der Palette nehmen und auf den Boden legen.

2. Anhand der Bauteileliste überprüfen, ob alle Teile vorhanden sind

3. Beim Abmessen generell präzise arbeiten

4. Ein Bauteil nach dem anderen auspacken und montieren

5. Die Benutzung einer Wasserwaage erleichtert die Montage

6. Die Fallschutzunterlage wird erst ganz zum Schluss verlegt – dann, wenn das Produzentenetikett angebracht wird

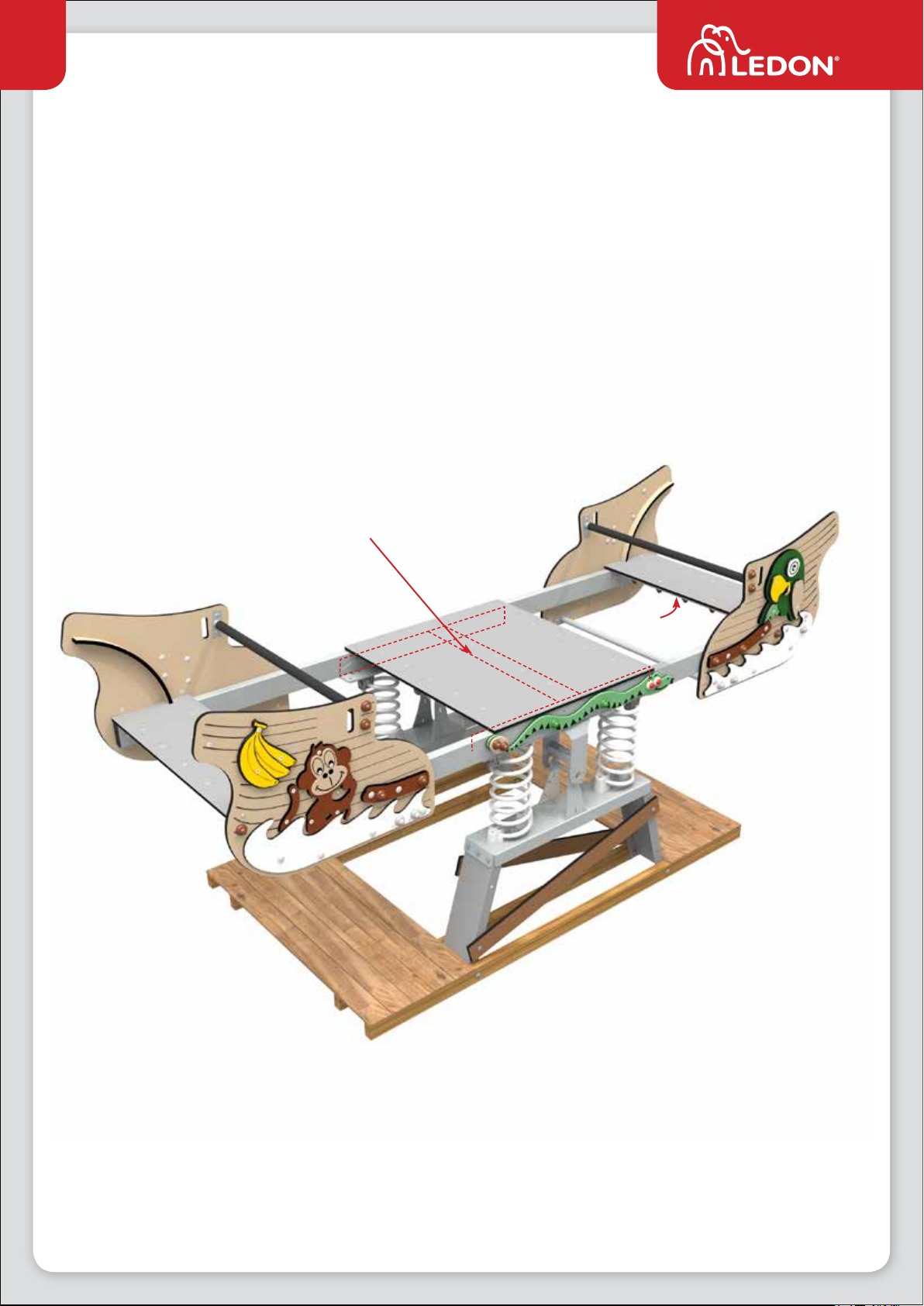

4Komponentorientering • Components overview •

Bauteileübersicht

74232

74235

74231

74233

74237

74244

74236

74243

74241

74234

74242

74237

74240

5Montage 1 • Assembly 1 • Montage 1

10 x 60 MB + LM

10 x 25 MB + LM

X 2

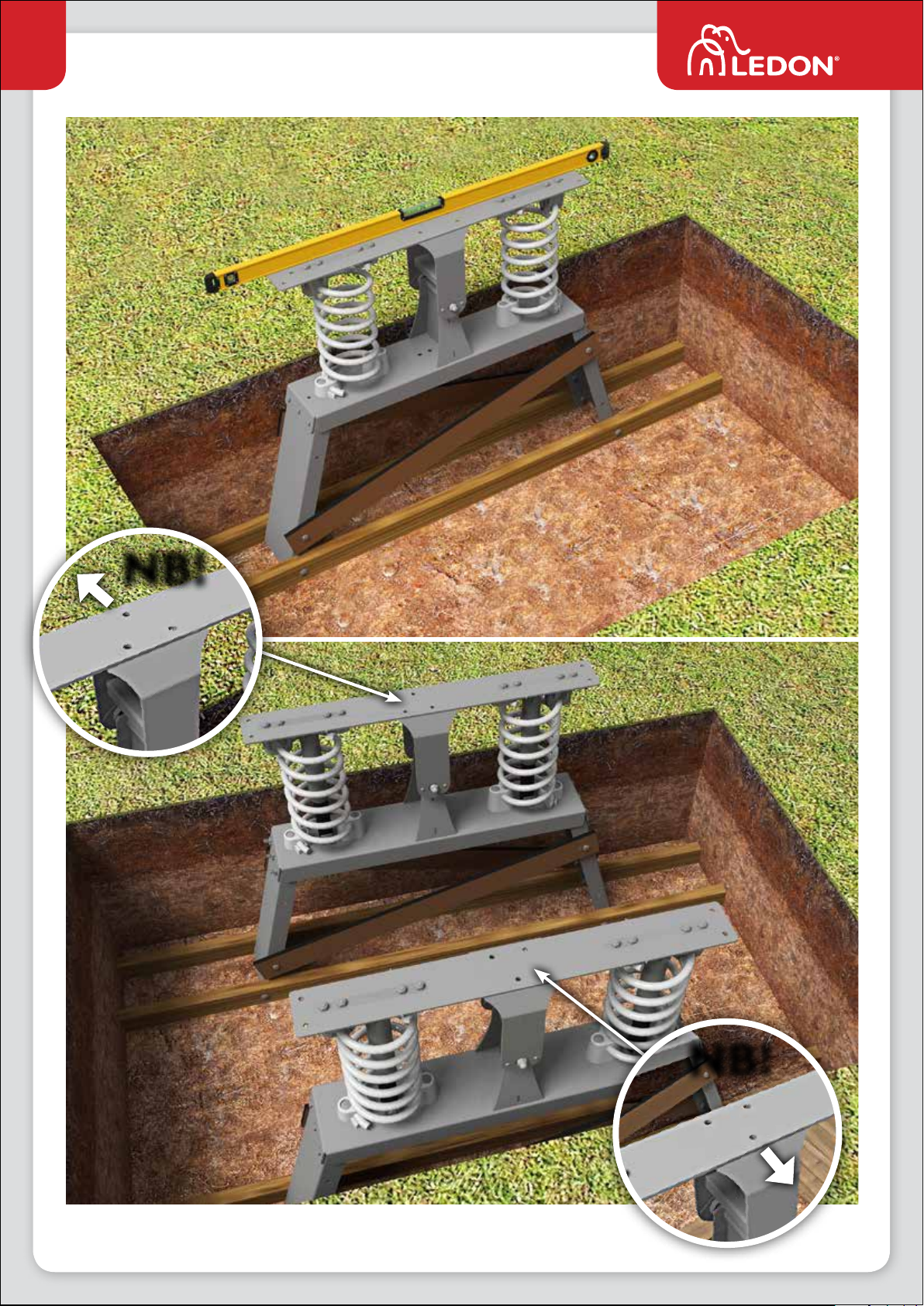

Montage 2 • Assembly 2 • Montage 2

74232

10 x 30 MB + LM

NB!

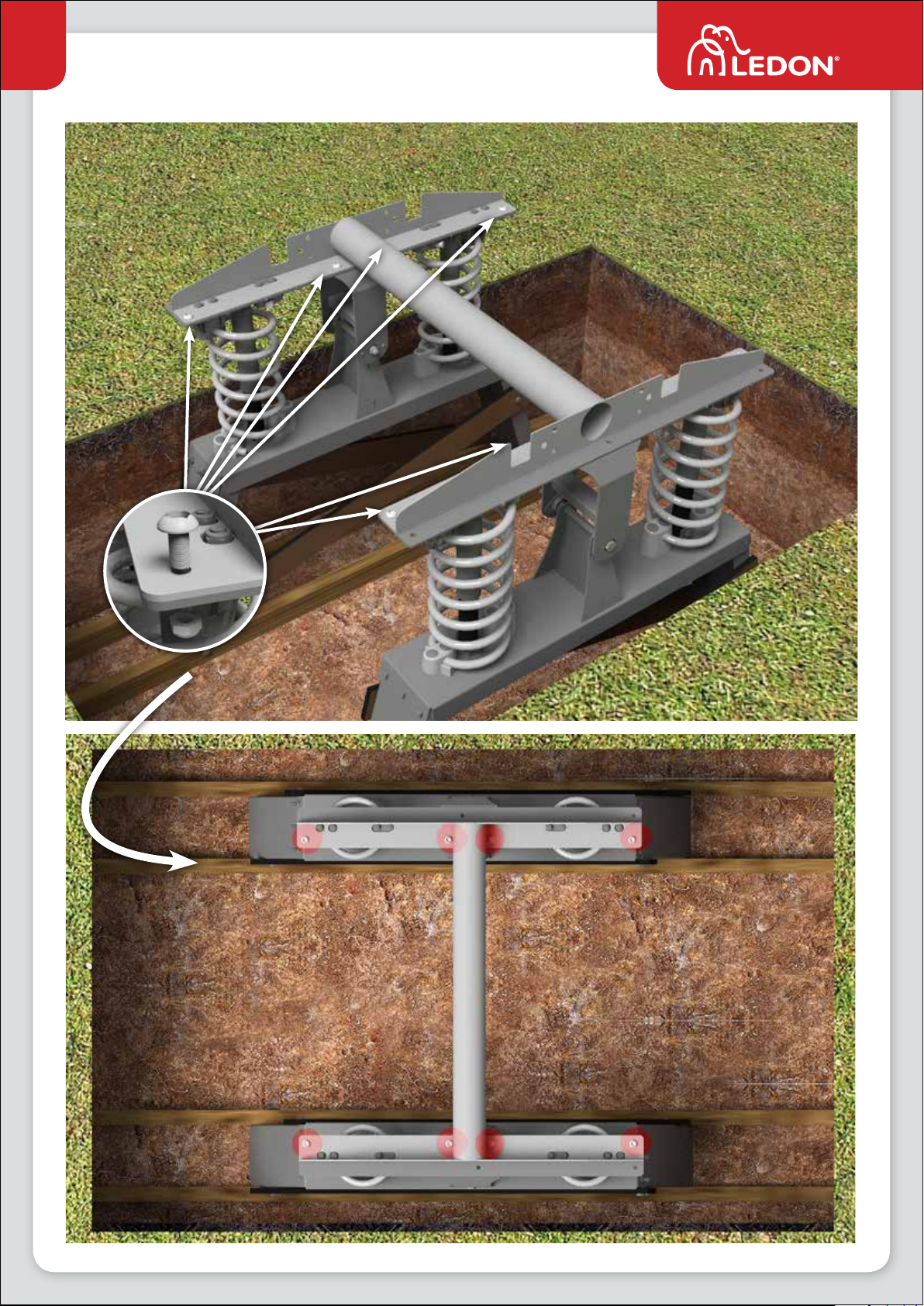

Montage 3 • Assembly 3 • Montage 3

74232

8Montage 4 • Assembly 4 • Montage 4

10 x 20 BH

74231

9Montage 5 • Assembly 5 • Montage 5

3,1 x 70 VFZ

X 5

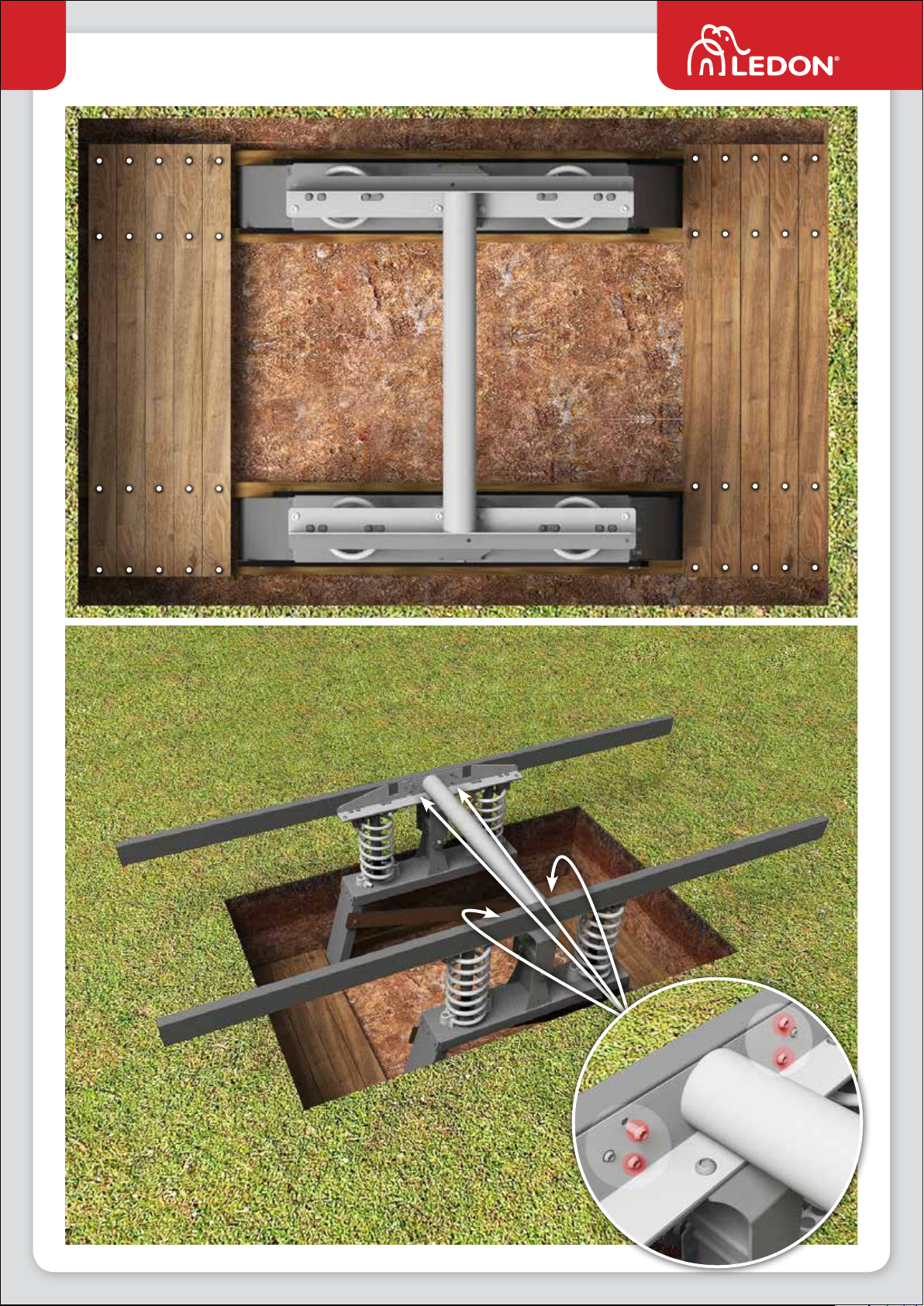

10 Montage 6 • Assembly 6 • Montage 6

10 x 30 BH

74235
