OWNER’S MANUAL
INDASH AM/FM MPX CAR RADIO
WITH CASSETTE PLAYER
LEGACY ®
LR127SX
7
24
651 3
CONTENTS
Control Operation......................................................................................................2
Wire Connection ........................................................................................................4
Installation ..................................................................................................................4
Specification................................................................................................................4
2
1098

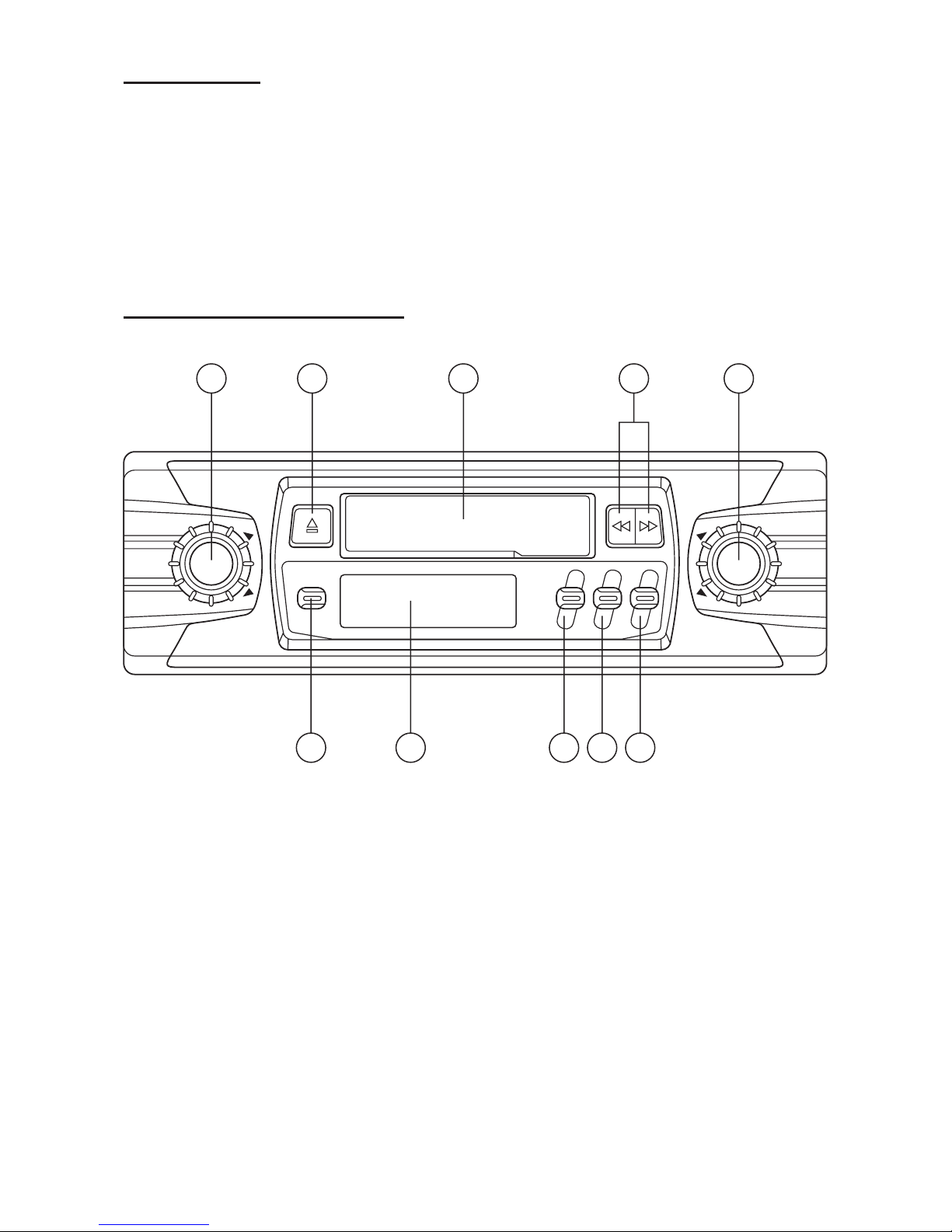

CONTROL OPERATION
1. POWER ON/VOLUME
Rotate the knob to right for turning on the unit and increasing the degree of sound.
2. FREQUENCY DISPLAY
The display shows the frequency of the broadcasting station being received.
3. TUNING KNOB
Rotate this knob to select the desired station.
4. BAND SELECTOR
Push this button to select AM band. Push and release the button to UP position to select
FM band.
5. EJECT BUTTON
Push down to eject the cassette tape.
6. FAST FORWARD/REWIND/PROGRAM BUTTON
• Fast Forward/Rewind: Press the button with the double arrows pointing the same
direction to fast forward. Press the other button in the opposite direction to rewind.
• Program: Push down both buttons together to play the other side of the tape.
7. CASSETTE COMPARTMENT
Hold the cassette lengthwise and insert it into the compartment to start cassette playing.
8. BALANCE CONTROL
Slide the control upward or downward to adjust the sound balance between right and left
speakers.
9. BASS CONTROL
Slide the control upward or downward to adjust the bass level.
10. TREBLE CONTROL
Slide the control upward or downward to adjust the treble level.
3
WIRE CONNECTION
INSTALLATION
SPECIFICATIONS
AUDIO & GENERAL
Supply Voltage 11 - 14 volts D.C.
Frequency Response 100 - 10,000 Hz
Dimensions 178 mm (W) x 110 mm (D) x 44 mm (H)
Weight 0.8 KG
CASSETTE SECTION
Tape Speed 4.75 cm/sec
Wow and Flutter Less than 0.4% r.m.s.
RADIO SECTION
Stereo Separation Better than 25 dB
Stereo Sensitivity Better than 30 µV
FM
Tuning Range 88 - 108 MHz
Sensitivity Better than 6 µV
AM
Tuning Range 530 - 1710 KHz
Sensitivity Better than 30 µV
FIG. 1
2
3
4
5
6
7
8
10
9
1
11
12
POWER
ANTENNA
BLUE
FUSE
IGNITION
B(+)
RED
LEFT
SPEAKER
WHITE GREY
RIGHT
SPEAKER
MAIN UNIT
BLACK
GROUND/SPK.COMMON
ANTENNA CONNECTOR
+
+
1. Machine Screw
2. Rear Support Strap
3. Radio Opening
4. Control Shaft Opening
5. Flat Washer
6. Hex Nut
7. Front Knob
8. Trim Plate
9. Instrument Panel
10. Flat Washer
11. Hex Nut Spacing
12. Control Shaft
www.legacycaraudio.com 88-P0913-03
