LEGRAND 5 742 54 Manuale utente
Connected mobile power outlet
5 742 54
LE11949AA
Before you start:
To control a power outlet, only use the following products:
This pack is a connected accessory which requires you to buy and install a "... with
Netatmo" connected starter pack first.
Pack contents:
Connected mobile power outlet
Safety instructions
This product should be installed in compliance with installation rules, preferably by a qualied electrician.
Incorrect installation and/or incorrect use can lead to risk of electric shock or re.
Before carrying out the installation, read the instructions and take account of the product’s specic
mounting location.
Do not open up, dismantle, alter or modify the device except where specically required to do so by the
instructions. All Legrand products must be opened and repaired exclusively by personnel trained and
approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights
to replacement and guarantees. Use only Legrand brand accessories.
x1 x1
or several
Wireless switches (peripherals) for all control
points (not included in this pack)
x1
or several
Connected mobile power outlet 16A - 230V~
3680 W max.
Frequency bands: 2.4 - 2.4835 GHz
Power level: < 100 mW
AND AND/OR
ON/OFF switch button
and LED indicator

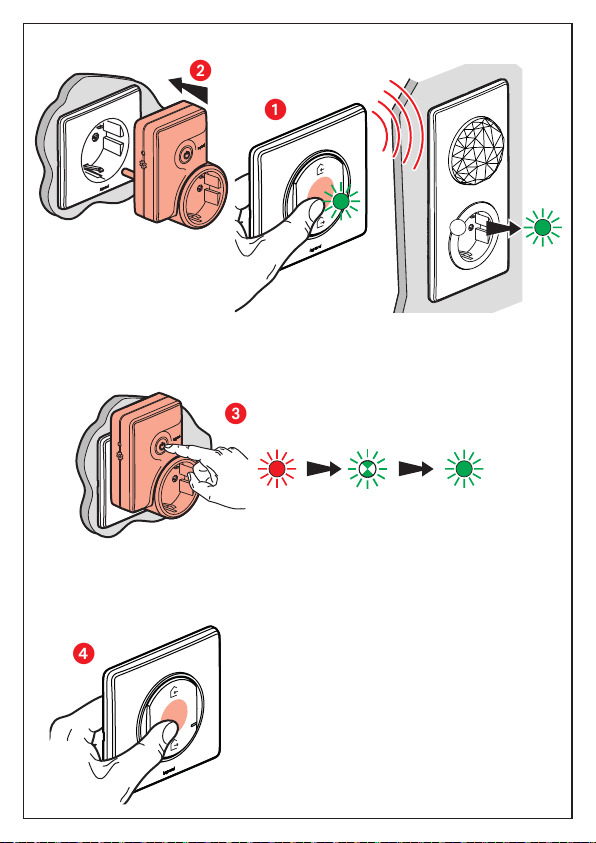

Configure the connected mobile power outlet
1
Press the centre of the wireless master switch
until the indicator lights up in green, release
and the indicator will go off
*(not included in this pack)
2
Plug the connected
mobile power outlet
3
The indicator of the ON/OFF button on the connected mobile power outlet initially lights
up in red. Press the button until the indicator flashes in green, then wait for the indicator to
light up steady in green: configuration is complete.
4
Short press on the wireless master switch to finalise
the installation.
The indicator on the connected mobile power outlet
goes off.
Open the Legrand Home + Control application and
follow the instructions.
*
*
LEGRAND - Pro and Consumer Service - BP 30076
87002 LIMOGES CEDEX FRANCE • www.legrand.com
www.legrand.fr/reference/574254
SIMPLIFIED EU DECLARATION OF CONFORMITY
The undersigned,
Legrand
declares that the radio-electric equipment refered to in these instructions
complies with directive 2014/53/EU.
The full text of the EU declaration of conformity
is available on the following website:
www.legrandoc.com
:
“…with Netatmo”
:
/ .
.
Legrand .
.
.Legrand
.
. Legrand
x 1
1 x
) ( ) )
1 x
16A - 230V~
3680 W
2,4 à 2,4835 Ghz :
100 mW< :
5 742 54
LED ON/OFF
2
3
ON/OFF .
4
.
.
Legrand Home+Control .
1
* *
LEGRAND - Pro and Consumer Service - BP 30076
87002 LIMOGES CEDEX FRANCE • www.legrand.com
www.legrand.fr/reference/574254
SIMPLIFIED EU DECLARATION OF CONFORMITY
The undersigned,
Legrand
declares that the radio-electric equipment refered to in these instructions
complies with directive 2014/53/EU.
The full text of the EU declaration of conformity
is available on the following website:
www.legrandoc.com
