Wireless and batteryless Wake Up/Sleep control
Fiche technique : S000113317EN-00 Mise à jour le : Créée le : 07/10/2020
Catalogue number(s) : 0 648 84L/85L - 0 677 886L
0 770 57L - 6 000 91L
5 742 87/93 - 5 743 22 - 5 748 36
7 418 03L/33L/63L
128, av. du Maréchal-de-Lattre-de-Tassigny - 87045 LIMOGES Cedex
Tel : 0 (+33) 5 55 06 87 87 Fax : 0 (+33) 5 55 06 88 88
www.legrand.com
1. USE
Wireless, batteryless control for lighting scenes fonction.
Controls the connected lighting micromodules, socket-outlets, dimmer-
switches and roler shutters.
• Can be fixed directly to a wall, screwed to an electric flush mounting
box or placed on a cabinet.
• Can be combined in multigangs with other wiring devices except in
Arteor.
• Can control up to 20 connected products
2. RANGE
Delivered without plate.
Equipped with a button used to configure the product.
Repositionable self-adhesive stickers (x2 supplied)
RANGE COLOR CAT. NUMBER
CELIANE White 0 648 84L
CELIANE Titanium 0 648 85L
CELIANE Graphite 0 677 86L
MOSAIC White 0 770 57L
DOOXIE White 6 000 91L
ARTEOR Aluminium 5 742 93
ARTEOR White 5 742 87
ARTEOR Champagne 5 748 36
ARTEOR Magnesium 5 743 22
VALENA NEXT White 7 418 03L
VALENA NEXT Aluminium 7 418 33L
VALENA NEXT Black 7 418 63L

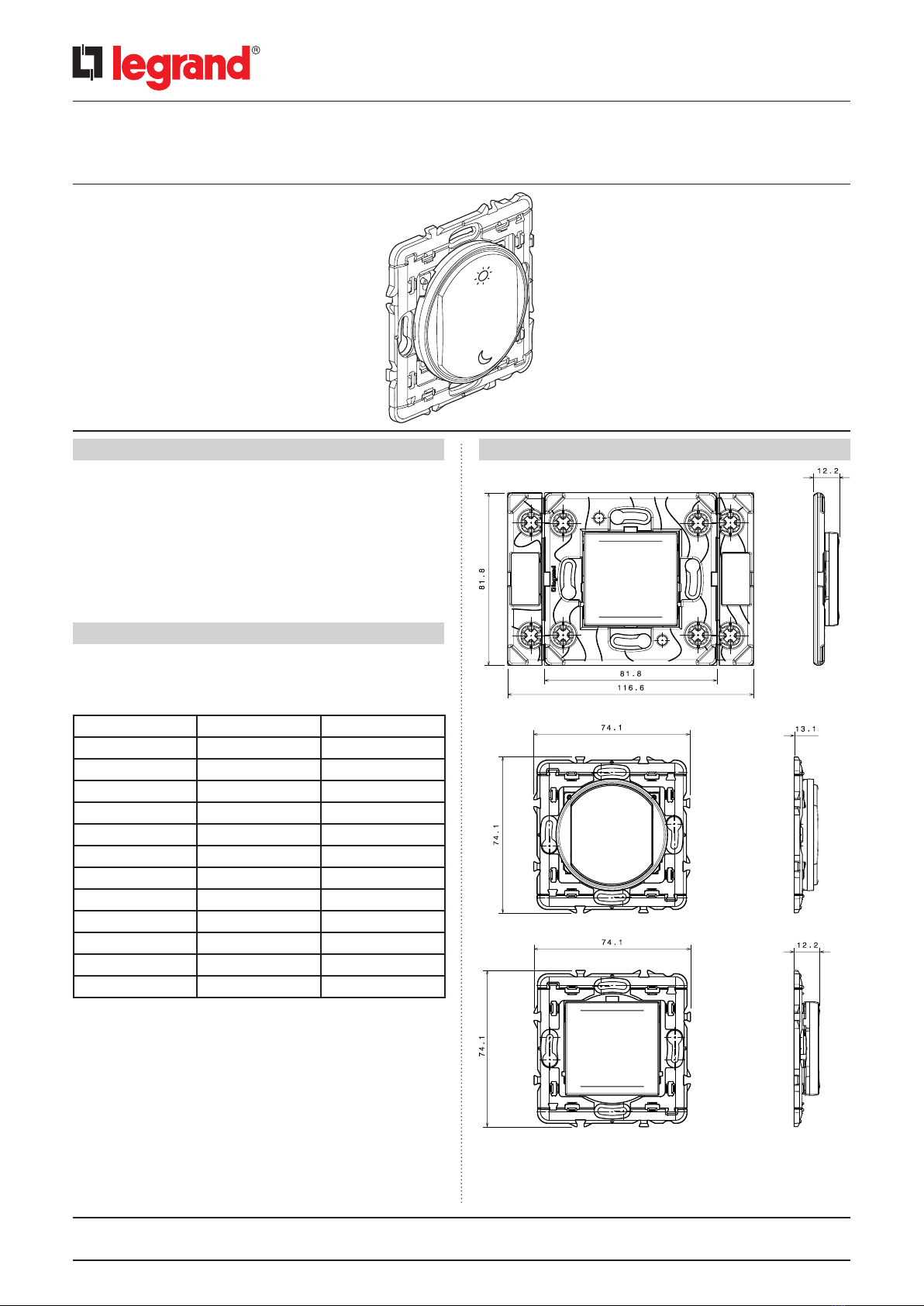

3. DIMENSIONS (MM)
ARTEOR
CELIANE
MOSAIC/VALENA NEXT
2/3
SOMMAIRE
Wireless and batteryless Wake Up/Sleep control
Fiche technique : S000113317EN-00 Mise à jour le : Créée le : 07/10/2020
Catalogue number(s) : 0 648 84L/85L - 0 677 886L
0 770 57L - 6 000 91L
5 742 87/93 - 5 743 22 - 5 748 36
7 418 03L/33L/63L
DOOXIE
4. OPERATION
C
onguration button
Sleep
Wake up
5. TECHNICAL CHARECTERISTICS
5.1 Mechanical characteristics
Impact protection : IK 02
Protection again solid/liquid bodies : IP 20 without plate
IP 40 assembled product
5.2 Caractéristiques matières
Rocker :
white : ABS
Color : ABS + paint
Mechanism box with support : Charged PC 10 % fiberglass
Halogen free
UV resistant
Self-extinguishing : 650° C / 30 s
5.3 Electrical characteristics
Self powered
Radio technology zigbee frequence 2,4 GHz to 2,4835 GHz
RADIO Performance : Minimum range 150 m in point-to-point link and
free field
Power level : < 20 mW
Zigbee Canal by default : 11
Technology: Zigbee PRO Certified, Green Power feature (bidirectional
communication : not supported).
5.4 Climatic characteristics
Use temperature : + 5° C to + 45° C
Storage temperature : 0° C to + 45° C
6. PROGRAMMATION
6.1 ASSOCIATION
+
+
or
While holding the «setup» button on the wireless, batteryless control, briefly
press the «Sleep» or «Wake Up» button on the wireless batteryless control.
6.2 CHANNEL CHANGE
+
While holding the «setup» button on the wireless, batteryless control, press the
lower button on the wireless batteryless control for 5 seconds.
Details and order of channel changes : (FACTORY : 11) 15, 20, 25, 12, 13, 14, 16,
17, 18, 19, 21, 22, 23, 24, 26, 11, 15, 20, ...
3/3
SOMMAIRE
Wireless and batteryless Wake Up/Sleep control
Fiche technique : S000113317EN-00 Mise à jour le : Créée le : 07/10/2020
Catalogue number(s) : 0 648 84L/85L - 0 677 886L
0 770 57L - 6 000 91L
5 742 87/93 - 5 743 22 - 5 748 36
7 418 03L/33L/63L
6.3 BACK IN FACTORY MODE (DISASSOCIATION + BACK ON
CHANNEL 11)
+
While holding the «setup» button on the wireless, batteryless control,
press the upper button for 5 seconds.
Check that your control is correctly reset by making an «Wake Up» com-
mand, then «Sleep».
Additional Zigbee documentation is available at «developer.legrand.
com».
7. CARE
Clean the surface with a cloth.
Do not use acetone, tar-removing cleaning agents or trichloroethylene.
Resistant to the following products: Hexane (EN 60669-1), methylated
spirit, soapy water, diluted ammonia, bleach diluted to 10%, window-clea-
ning products, pre-impregnated wipes.
Caution : Always test before using special cleaning products, a prior
test is required
Must not be painted.
8. ACCESSORIES
0 648 71: Repositionable adhesive for wireless control
9. STANDARDS AND APPROVALS
The undersigned, LEGRAND, declares that the radio-electric equipment
type (0 648 84L/85L - 0 677 886L - 0 770 57L - 6 000 91L - 5 782 87/93 - 5
743 22 - 5 748 36 - 7 418 03L/33L/63L) complies with directive 2014/53/
EU.
The full text of the EU declaration of conformity is available on the fol-
lowing website: www.legrandoc.com
Model : ZLGP16
