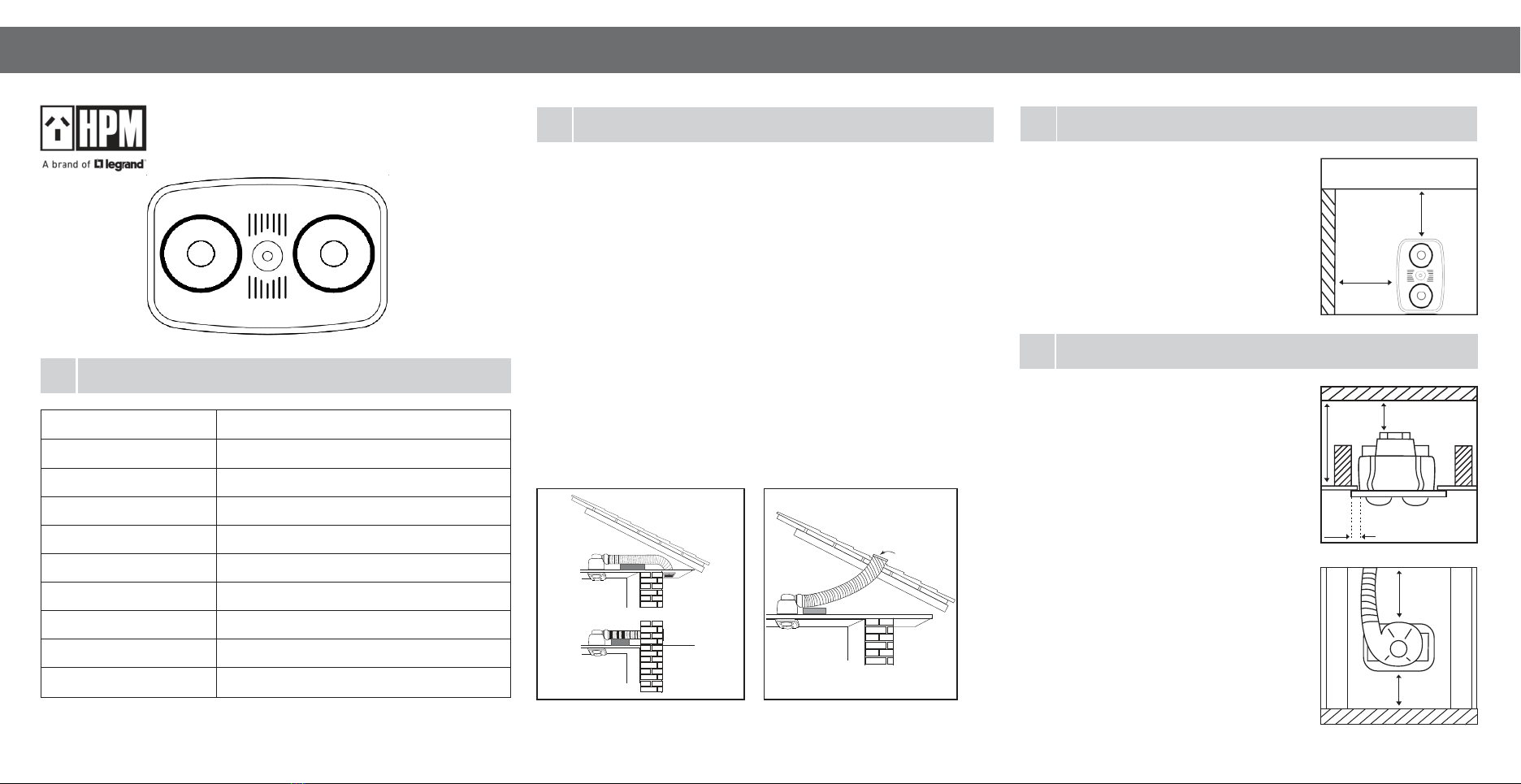

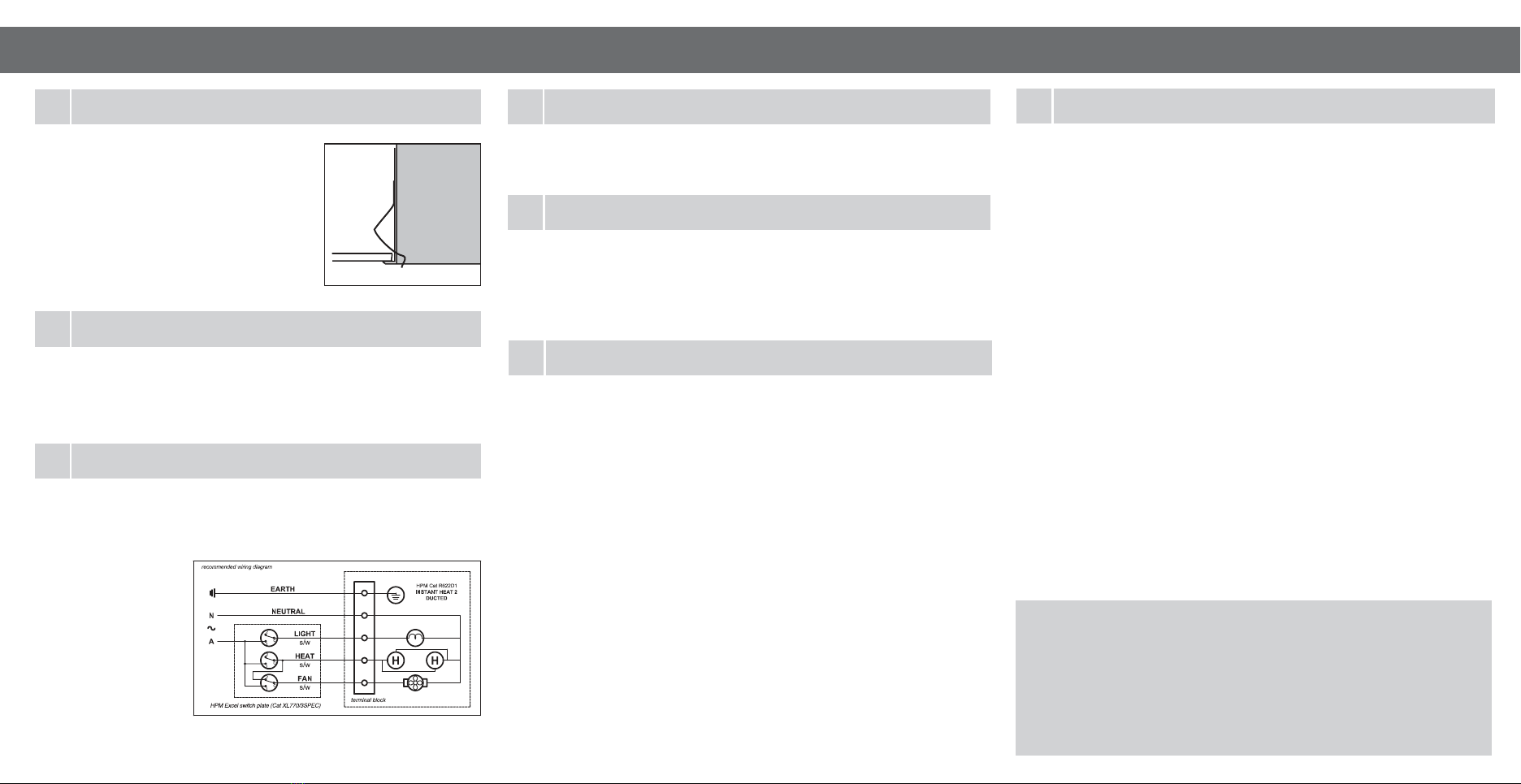

Remove all lamps. Check the fan for freedom of
rotation. Push the Instant Heat 2 Ducted body into
the opening allowing the springs to snap open.
To secure, push the lower ends of the springs
apart (Fig.6).
5 Fixing to ceiling
Instant Heat 2
Ducted Body
Fig.6
Three switches on an Excel wall plate are supplied. Snap the switches into the plate.
Do not use with any solid state speed control. Wall plate should be located so
that the switches are not within reach of a person in a bath or shower. Wiring
connection is as per Fig.7.
This product must be
installed by a licensed
electrical contractor or
similarly qualied person.
For information on switch
locations, refer to Wiring
Rules AS/NZS 3000
7 Wiring
Check that the power to the unit is o. Position the lamp cover on the unit with
four springs inside. Insert the three lamps into the sockets, tightening well to
ensure good electrical contact and long life. Wipe the surround and the bulbs
clean. Connect the power and check all functions.
6 Final assembly
8
9
Cleaning
Replacement Parts
Isolate the Instant Heat from the 240V supply. Ensure the lamps are cool to touch
before handling. Wipe lamps and fascia with care using soft cloth with a neutral detergent.
Heat Lamp: L275HLES or 275W max
Light Lamp: MXMUSHR60F or 60W max
Switch Wall Plate: XL770/3SPEC
Replacement of any lamp other than that specied above may cause damage
to the product and void the warranty.
10 Getting the most from your Instant Heat 2 Ducted
Heat Lamps: The HPM Instant Heat lamps have no warm-up period because the infrared
lamps provide instantaneous heat, and are designed to heat you and not the bathroom – that’s
the efficient way infrared heat works.To get the full benefit of Instant Heat’s infrared warmth,
stand directly under the heat lamps. HPM’s clear heat lamps have been designed specifically
for this application, and concentrate their heat for maximum effectiveness.
WARNING: Do not look directly into bulbs when in use.
Make sure you have the Instant Heat model that suits your bathroom ceiling height.The
Instant Heat 2 Ducted is manufactured to offer peak performance with bathroom ceiling
heights up to 2.4m (8 ft).
N.B.The Instant Heat 2 is not a tanning lamp.
Ventilation: To ensure optimum performance of the ducted exhaust fan, it is essential that you
provide a generous air flow into your bathroom to help Instant Heat’s powerful and efficient
exhaust fan to quickly suck out steam while you shower.Your Instant Heat 2 Ducted works
by drawing steam-laden air from the room and as with all exhaust fans it is essential that
sufficient air inlets are provided. Ensure adequate inlets exist through windows, vents or under
the door. The air flow path from inlet to fan should ideally pass over the steam source.
Centre light: The centre 60 watt light in this Instant Heat model is designed to provide general
illumination in your bathroom. For specific tasks like shaving or putting on make up, you
may need extra lighting to suit individual needs.The heat lamps can also be used to provide
additional bright illumination for your bathroom. Lighter coloured walls and décor also help
brighten your bathroom by reflecting more light.
Warranty
Legrand will honour all statutory guarantees that you
as a consumer are entitled to rely upon under the
Australian and New Zealand Consumer Laws against
a manufacturer, including a guarantee that this
product is of acceptable quality.
To make a claim under any statutory guarantee you
should rst contact the supplier, or retailer from
whom you purchased this product.
LE09475AAC 06/2020
a. This product must be installed and used as per these instructions.
b. A switch disconnection must be incorporated in the xed wiring in accordance with the
Wiring Rules.
c. This product is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for their
safety. Children should be supervised to ensure that they do not play with the appliance.
d. This product is intended for household use and similar purposes. It is not suitable for use in and
environment heavily laden with dust. Under these conditions the life of the fan motor can be
signicantly reduced.
e. WARNING:The Instant Heat is not equipped with a thermostat to control the room temperature.
Do not use the Instant Heat in small rooms when they are occupied by persons not capable of
leaving the room on their own unless constant supervision is provided.
f. This product should not be enclosed in thermal insulation as it may cause the unit to overheat.
g. This product has been designed to operate in ambient temperatures 0°C to 40°C.
h. This product contains no serviceable parts and no attempt should be made to repair it. If the
product is faulty it should be discarded.
i. Airows listed in this product indicate the product performance. Refer to the BCA (Building Code
of Australia), or similar, for the appropriate airow required for a particular installation.
j. Ventilation products must have an adequate source of external air to ensure correct performance.
k. Consideration must be taken in the installation of ducts to ensure that condensation that will
form in the duct will not run back into the fan housing.
l. Precautions must be taken to avoid the back-ow of gases into the room from the open ue of
gas or other fuel-burning appliances.
m. This product has been designed for domestic or similar uses and is not suitable for a commercial
installation.
n. This product is not suitable for installation in hazardous and/or corrosive areas.
o. Extended exposure to UV rays (such as exposure to direct sunlight) may cause discolouration of
this product.
p. The material in this product may vary in colour from batch to batch. Colour matching from one
batch to another cannot be guaranteed.
q. This product utilises intellectual property in the form of registered designs, trademarks, and/or
patents. Such intellectual property remains the property of Legrand in all cases.
r. Legrand reserves the right to modify the specication of this product at any time.
11 Disclaimers
Customer Service
For all Customer Service and Technical Support
please call Monday to Friday during business hours.
Legrand Australia
1300 369 777
www.hpm.com.au
Legrand New Zealand
0800 476 009
www.hpm.co.nz
ABN: 31 000 102 661
