LEGRAND ECONOMY EXIT SIGN ER2 Manuale utente

Speciﬁcations:

Cat No. 684447, 684449, 684454,

684474, 684478, 684480

Supply Voltage 230-240V a.c.

Frequency 50Hz

Power Input Watts (max)

Watts (low rate charge)

Application:

This product is designed and tested to comply with AS2293.3

(2005) Appendix C (Photometric) and Appendix D (thermal) as an

Emergency Exit sign for single or double-sided applications. It

is a single-point unit for non-network applications. Selection of

mounting location, height and spacings should be undertaken

in accordance with the requirements of relevant local codes and

standards. Emergency classification can be determined from

Legrand literature web-site and product labelling. This sign is

suited to Maintained or Non-Maintained operation, according to

input connections.

ER2 ECONOMY EXIT SIGN

INSTALLATION INSTRUCTIONS

Dimensions:

Product preparation

Wall-mounted

Ceiling-mounted

24m

legrand

Mounting holes

292mm

94mm

mm 50

180mm

377mm 180mm

178mm

50mm

377mm

Single sided (wall mount) Double sided (ceiling mount)

ER2 ECONOMY EXIT SIGN

INSTALLATION INSTRUCTIONS

Repair & Upgrade:

ER2 is designed to be upgraded in the future by replacement of the

Battery Pack, LED light engine or Power Supply as required.

Due to ongoing improvements in technology, the components

available may change. For current information, please consult the

HPM Legrand website or an authorised maintenance provider.

Replacements Parts:

686240 Battery Pack AA4LNICD

686260 LED replacement strip

Main supply connection

Warranty

HPM will honour all statutory guarantees that you as a consumer

are entitled to rely upon under the Australian Consumer Law

against a manufacturer including a guarantee that this product is

of acceptable quality.

To make a claim under any statutory guarantee you should first

contact the supplier, or retailer from whom you purchased the

Product.

Customer Service

For all Customer Service and Technical Support enquires please

call Monday to Friday during business hours.

HPM Legrand Australia

1300 369 777

www.hpmlegrand.com.au

HPM Legrand New Zealand

0800 476 009

www.hpmlegrand.co.nz

ABN: 31 000 102 661

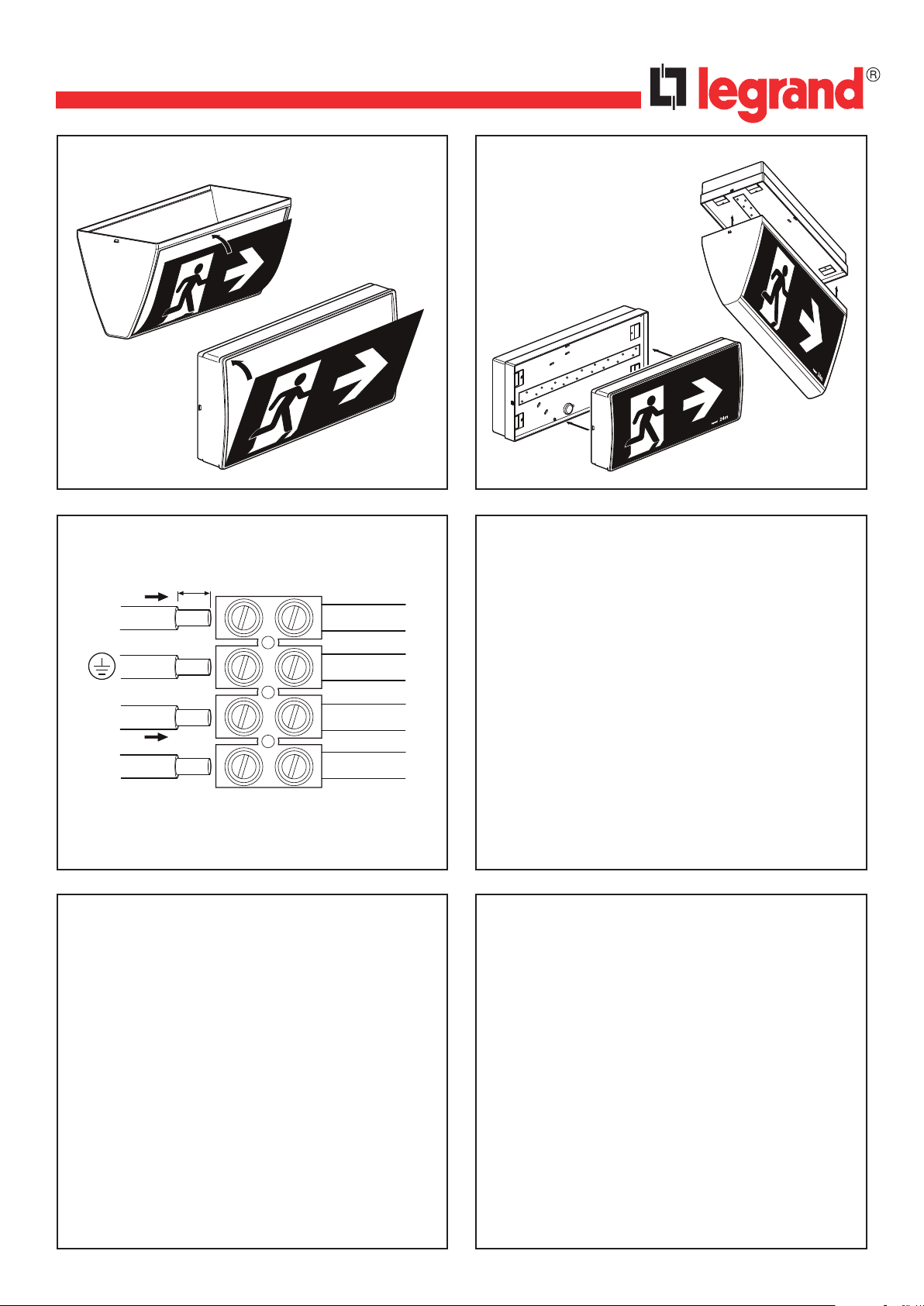

Diffuser sheet installation

24m

legrand

24m

legrand

Diffuser mounting

Unswitched

active

Neutral

Earth

Brown

Black

Active

Green/Yellow

Red

10mm

!Active and unswitched active must be on same phase

‘Maintained’ operation, link switched active with unswitched active
