4 Port Desktop N-Wireless Router

(P/N DA2154)

User’s Guide

1308210 REV. A

Page ii

(800)-321-2343 www.onqlegrand.com

Compliance

FCC Notice –FCC ID:YV8-DA2154V1

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

Canadian Department of Communications –IC:9922A-DA2154V1

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the

following two conditions: (1) this device may not cause interference, and (2) this device must accept any

interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

Page iii

(800)-321-2343 www.onqlegrand.com

TABLE OF CONTENTS

1.0 Introduction ................................................................................................................1

1.1 Overview of the Router...........................................................................................1

1.2 Main Features.........................................................................................................1

1.3 Panel Layout...........................................................................................................2

1.3.1 The Front Panel..............................................................................................2

1.3.2 The Rear Panel ..............................................................................................3

2.0 Connecting the Router...............................................................................................4

2.1 System Requirements.............................................................................................4

2.2 Installation Environment Requirements...................................................................4

2.3 Connecting the Router............................................................................................4

3.0 Quick Installation Guide ............................................................................................6

3.1 TCP/IP Configuration..............................................................................................6

3.2 Quick Installation Guide..........................................................................................7

4.0 Configuring the Router............................................................................................13

4.1 Login.....................................................................................................................13

4.2 Status....................................................................................................................14

4.3 Quick Setup ..........................................................................................................14

4.4 WPS......................................................................................................................14

4.5 Network.................................................................................................................17

4.5.1 WAN.............................................................................................................18

4.5.2 MAC Clone...................................................................................................28

4.5.3 LAN ..............................................................................................................28

4.6 Wireless................................................................................................................29

4.6.1 Wireless Settings..........................................................................................30

4.6.2 Wireless Security..........................................................................................33

4.6.3 Wireless MAC Filtering.................................................................................35

4.6.4 Wireless Advanced.......................................................................................37

4.6.5 Wireless Statistics.........................................................................................38

4.7 DHCP....................................................................................................................39

4.7.1 DHCP Settings .............................................................................................39

4.7.2 DHCP Client List...........................................................................................40

4.7.3 Address Reservation ....................................................................................41

4.8 Forwarding............................................................................................................42

4.8.1 Virtual Servers..............................................................................................42

4.8.2 Port Triggering..............................................................................................44

4.8.3 DMZ..............................................................................................................46

4.8.4 UPnP............................................................................................................46

4.9 Security.................................................................................................................47

4.9.1 Basic Security...............................................................................................47

4.9.2 Advanced Security........................................................................................49

4.9.3 Local Management.......................................................................................50

4.9.4 Remote Management...................................................................................51

4.10 Parental Control..................................................................................................52

4.11 Access Control ....................................................................................................54

Page iv

(800)-321-2343 www.onqlegrand.com

4.11.1 Rule ............................................................................................................55

4.11.2 Host ............................................................................................................60

4.11.3 Target..........................................................................................................61

4.11.4 Schedule.....................................................................................................63

4.12 Advanced Routing...............................................................................................65

4.12.1 Static Routing .............................................................................................65

4.12.2 System Routing Table.................................................................................66

4.13 Bandwidth Control...............................................................................................67

4.13.1 Control Settings..........................................................................................67

4.13.2 Rules List....................................................................................................67

4.14 IP & MAC Binding ...............................................................................................69

4.14.1 Binding Settings..........................................................................................69

4.14.2 ARP List......................................................................................................70

4.15 Dynamic DNS .....................................................................................................71

4.15.1 Comexe.cn DDNS ......................................................................................72

4.15.2 Dyndns.org DDNS......................................................................................73

4.15.3 No-ip.com DDNS........................................................................................74

4.16 System Tools.......................................................................................................75

4.16.1 Time Settings..............................................................................................75

4.16.2 Diagnostic...................................................................................................77

4.16.3 Firmware Upgrade......................................................................................78

4.16.4 Factory Defaults..........................................................................................79

4.16.5 Backup & Restore.......................................................................................80

4.16.6 Reboot........................................................................................................80

4.16.7 Password....................................................................................................81

4.16.8 System Log.................................................................................................81

4.16.9 Statistics .....................................................................................................83

Appendix A: FAQ............................................................................................................85

Appendix B: Configuring the PC...................................................................................91

Appendix C: Specifications...........................................................................................94

Appendix D: Glossary....................................................................................................95

Page 1

(800)-321-2343 www.onqlegrand.com

1.0 Introduction

1.1 Overview of the Router

The Legrand DA2154-V1 Desktop 300Mbps Wireless N Router integrates a 4-port Switch, Firewall,

NAT-Router and Wireless Access Point to fullymeet the need of Small Office/Home Office (SOHO)

network users demanding higher networking performance. It provides a wireless connection up to

300Mbps with other 802.11n wireless clients, whilestill being compatible with all IEEE 802.11g and IEEE

802.11b products.The DA2154-V1 provides security features such as SSID broadcast control, wireless

LAN 64/128/152-bit WEP encryption, WiFi protected Access (WPA2- PSK, WPA- PSK), as well as

advanced Firewall protection for complete data privacy. It also supports flexible access control, Virtual

Server and DMZ host for Port Triggering, and allows for remote management.

1.2 Main Features

Complies with IEEE 802.11n to provide a wireless data rate of up to 300Mbps.

One 10/100M Auto-Negotiation RJ45 WAN port and four 10/100M Auto-Negotiation RJ45 LAN

ports, supporting Auto MDI/MDIX.

Provides WPA/WPA2, WPA-PSK/WPA2-PSK authentication and TKIP/AES encryption security.

Supports Dynamic IP/Static IP/PPPoE Internet access.

Supports Virtual Server and DMZ host.

Supports UPnP, Dynamic DNS and Static Routing.

Provides Automatic-connection and Scheduled (time-based) Connection to the Internet

Built-in NAT and DHCP server supporting static IP address distributing.

Supports Parental Control and Access Control.

Connects Internet on demand and disconnects from the Internet when idle for PPPoE.

Provides 64/128/152-bit WEP encryption security and wireless LAN ACL (Access Control List).

Supports Flow Statistics.

Supports firmware upgrades and web management.

Page 2

(800)-321-2343 www.onqlegrand.com

1.3 Panel Layout

1.3.1 The Front Panel

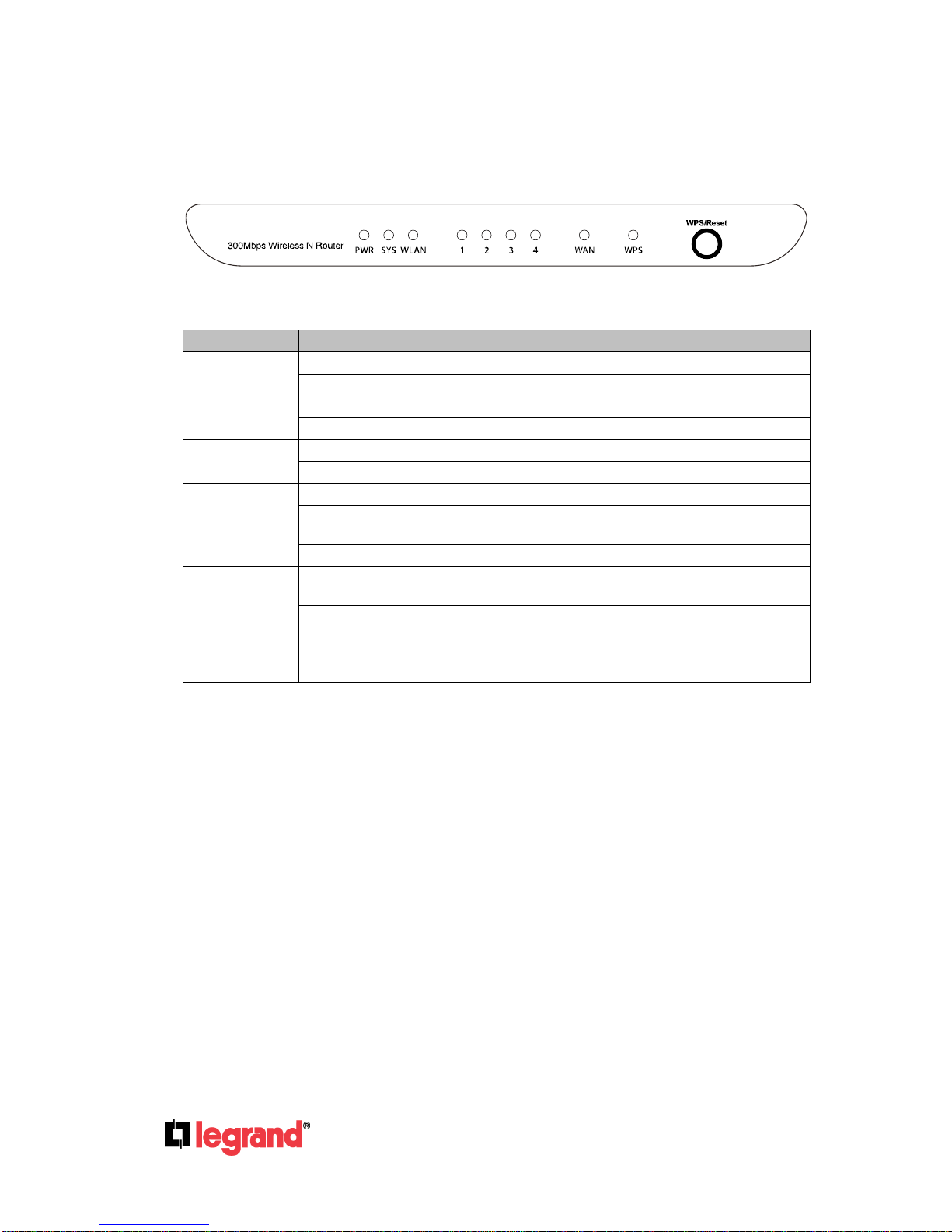

Figure 1-1 Front Panel sketch

The Router’s LEDs are located on the front panel (View from left to right).

Name

Status

Indication

PWR

Off

Power is off.

Power is on.

SYS

Flashing

The Router is working properly.

On /Off

The Router has a system error.

WLAN

Off

The Wireless function is disabled.

Flashing

The Wireless function is enabled.

WAN /LAN 1-4

Off

There is no device linked to the corresponding port.

There is a device linked to the corresponding port but there

is no activity.

Flashing

There is an active device linked to the corresponding port.

WPS

Slow Flash

A wireless device is connecting to the network by WPS

function. This process will last in the first 2 minutes.

A wireless device has been successfully added to the

network by WPS function.

Quick Flash

A wireless device failed to be added to the network by WPS

function.

Table 1-1 The LEDs Description

Note:

1. After a device is successfully added to the network by WPS function, the WPS LED will

stay on for about 5 minutes and then turn off.

2. Press and hold the WPS/Reset button for more than 5 seconds, to reset the router.

DA2154-V1

Page 3

(800)-321-2343 www.onqlegrand.com

1.3.2 The Rear Panel

Figure 1-2 Rear Panel sketch

The following parts are located on the rear panel (View from left to right).

POWER: The Power socket is where you will connect the power adapter. Please use the power

adapter provided with this product.

ON/OFF: The switch for the power.

4,3,2,1 (LAN): These ports (4,3,2,1) connect the Router to the local devices (ie.PCs).

WAN: This WAN port is where you will connect the DSL/Cable Modem, or Ethernet.

Wireless antenna: To receive and transmit the wireless data.

Page 4

(800)-321-2343 www.onqlegrand.com

2.0 Connecting the Router

2.1 System Requirements

Broadband Internet Access Service (DSL/Cable/Ethernet)

One DSL/Cable Modem that has an RJ45 connector (which is not necessary if the Router is

connected directly to the Ethernet.)

PCs with a working Ethernet Adapter and an Ethernet cable with RJ45 connectors

TCP/IP protocol on each PC

Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari

2.2 Installation Environment Requirements

Place the Router in a well ventilated place far from any heater or heating vent

Avoid direct sunlight

Keep at least 2 inches (5 cm) of clear space around the Router

Operating Temperature: 0°C~40°C (32°F~104°F)

Operating Humidity: 10%~90%RH, Non-condensing

2.3 Connecting the Router

Before installing the Router, make sure your PC is able to be connected to the Internet through the

broadband service successfully. If there is any problem, please contact your ISP. After that, please

install the Router according to the following steps. Don't forget to pull out the power plug and keep

your hands dry.

1. Power off your PC, Cable/DSL Modem, and the Router.

2. Locate an optimum location for the Router. The best place is usually at the center of your wireless

network.

3. Adjust the direction of the antenna. Normally, upright is a good direction.

4. Connect the PC(s) and each Switch/Hub in your LAN to the LAN Ports on the Router, shown in

Figure 2-1. (If you have the wireless NIC and want to use the wireless function, you can skip this

step.)

5. Connect the DSL/Cable Modem to the WAN port on the Router, shown in Figure 2-1.

Page 5

(800)-321-2343 www.onqlegrand.com

6. Connect the power adapter to the power socket on the Router, and the other end into an electrical

outlet. The Router will start to work automatically.

7. Power on your PC and Cable/DSL Modem.

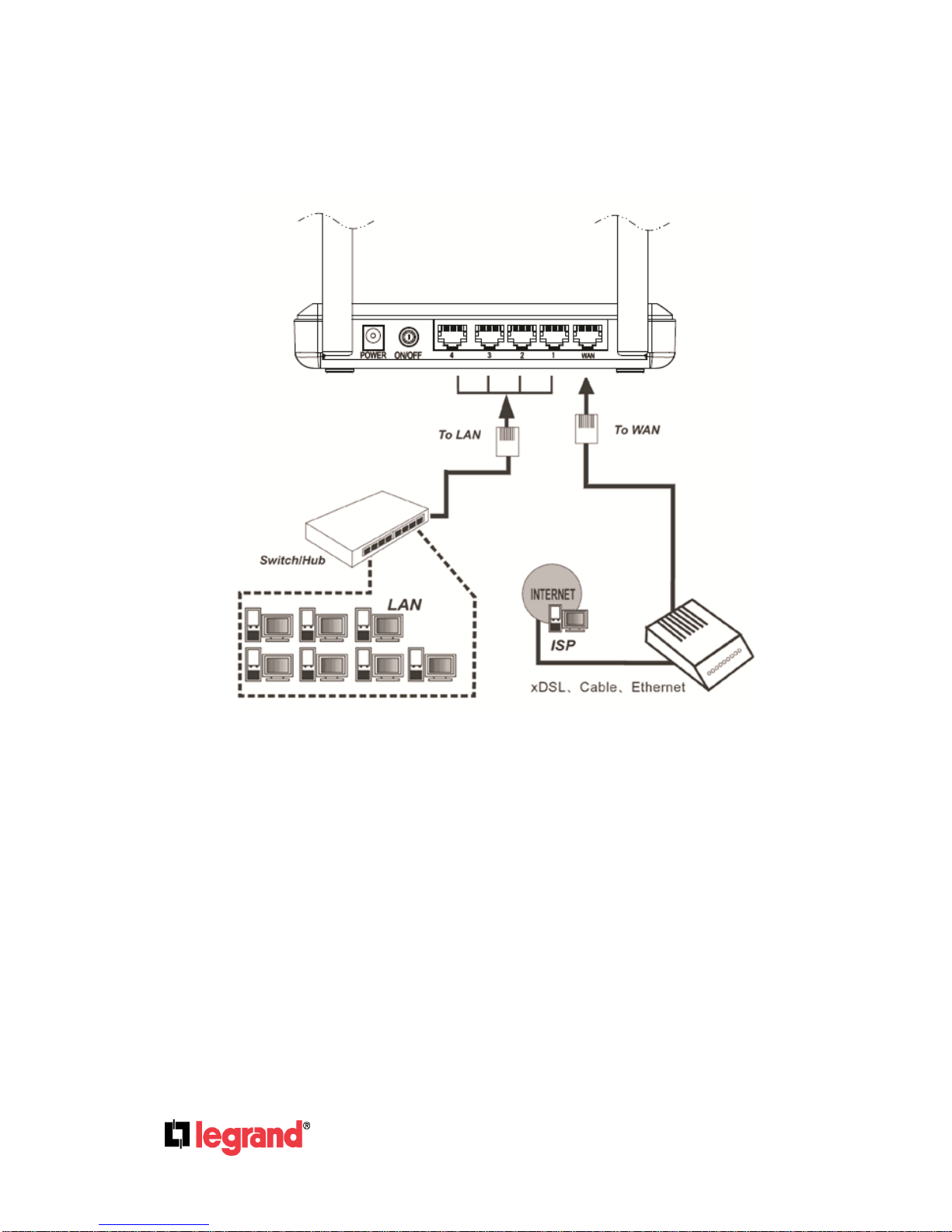

Figure 2-1 Hardware Installation of the DA2154-V1 Desktop Router

Page 6

(800)-321-2343 www.onqlegrand.com

3.0 Quick Installation Guide

This chapter will show you how to configure the basic functions of your DA2154-V1 Desktop Router

using the Quick Setup Wizard within minutes.

3.1 TCP/IP Configuration

The default IP address of the DA2154-V1 is 192.168.40.254, and the default Subnet Mask is

255.255.255.0. These values can be changed as you desire.

Connect a local PC to a LAN port of the Router. And then you can configure the IP address for your

PC in the following two ways.

Configure the IP address manually

1) Set up the TCP/IP Protocol for your PC. If you need instructions as to how to do this, please

refer to Appendix B: "Configuring the PC".

2) Configure the network parameters. The IP address is 192.168.40.xxx ("xxx" is any number

from 1 to 250), Subnet Mask is 255.255.255.0, and Gateway is 192.168.40.254 (The

Router's default IP address)

Obtain an IP address automatically

1) Set up the TCP/IP Protocol in "Obtain an IP address automatically" mode on your PC. If

you need instructions as to how to do this, please refer to Appendix B: "Configuring the PC”.

2) Then the built-in DHCP server will assign IP address for the PC.

Now, you can run the Ping command in the command prompt to verify the network connection

between your PC and the Router. The following example is in Windows 2000 OS.

Open a command prompt, and type ping 192.168.40.254, and then press Enter.

If the result displayed is similar to the Figure 3-1, it means the connection between your PC and

the Router has been established well.

Figure 3-1 Success result of Ping command

Pinging 192.168.40.254 with 32 bytes of data:

Reply from 192.168.40.254: bytes=32 time<1ms TTL=64

Ping statistics for 192.168.40.254:

Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),

Approximate round trip times in milli-seconds:

Minimum = 0ms, Maximum = 0ms, Average = 0ms

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali LEGRAND Router wireless

LEGRAND

LEGRAND DA2154-V1 Manuale utente

Manuali Router wireless popolari di altre marche

Milesight

Milesight UG67 Manuale utente

Airlogic

Airlogic AirSync Class 1 Manuale del proprietario

Samsung

Samsung WCH730B Manuale utente

TELEFONICA

TELEFONICA USB Adapter Manuale utente

NETGEAR

NETGEAR PowerLINE WiFi 1000 Series Manuale utente

Askey

Askey RAC2V1K Manuale utente

Alloy

Alloy WLF2454AP-S Manuale utente

TP-Link

TP-Link TL-WR542G Manuale utente

NETGEAR

NETGEAR WNR2000v4 Manuale utente

Hama

Hama 53120 Manuale utente

Intellinet

Intellinet 524582 Manuale utente

Asus

Asus RT-N10P Manuale utente

D-Link

D-Link DIR-506L Manuale utente

Sapido

Sapido GR297n Manuale utente

Asus

Asus DSL-N55U Manuale utente

AMTC

AMTC WR7502 Manuale utente

Compaq

Compaq CP-2W - iPAQ Connection Point Manuale utente

SMC Networks

SMC Networks WBR14-N2 FICHE Manuale utente
