LENCO DVD-205 Manuale utente
OWNER’S MANUAL
Mobile Video System
• Digital Audio Out-Coaxial
• Multi-subtitle Languages Function
• Multi-audio Languages Function
• Multi-angle Function
• Parental Control
• Remote Control
DVD205
FEATURES
Compatible with PAL DVD (Video
CD) and NTSC DVD (Video CD)
This player can play discs recorded in
either PAL or NTSC format.
• A single LSI chip now integrates all
major DVD playback circuit functions
including MPEG2 decoder, video D/A
converter, and audio decoders.
• L/R stereo analog audio outputs for
connection to existing head unit aux
inputs. Video output is composite
video.
• Supplied remote handles
multi-function software (multi-language
audio-track/subtitle, multi-angle, multi-
story, etc.), plus all basic functions.
USE THIS PRODUCT SAFELY
When Driving
Keep the volume level low enough to be
aware of road and traffic conditions.
When Car Washing
Do not expose the product to water or
excessive moisture. This could cause
electrical shorts, fire or other damage.
When Parked
Parking in direct sunlight can produce
very high temperatures inside your
vehicle. Give the interior a chance to
cool down before starting playback.
Use the Proper Power Supply
This product is designed to operate with
a 12 volt DC, negative ground battery
system (the regular system in a North
American car).
Protect the Disc Mechanism
Avoid inserting any foreign objects into
the slot of this player.
Failure to observe this may cause
malfunction due to the precise
mechanism of this unit.
Use Authorized Service Centres
Do not attempt to disassemble or adjust
this precision product. Please refer to
the Service Centre list included with this
product for service assistance.
For Installation
The unit should be installed in a
horizontal position with the front end up
at a convenient angle, but not more than
30°.
GB-2
CONTENTS
Safety Information ........................................................................................4
Disc Notes .....................................................................................................5
The Player......................................................................................................6
Front View ...............................................................................................................6
Back View ...............................................................................................................7
Installation .....................................................................................................8
Electric Connection ......................................................................................9
Remote Control...........................................................................................10
Location and Function of Keys.............................................................................10
Preparing the Remote Control..............................................................................12
Loading a Disc ......................................................................................................12
Ejecting a Disc ......................................................................................................13
Operation .....................................................................................................13
Basic Play .............................................................................................................13
On-Screen Display Function.................................................................................15
Multi-audio Language Function............................................................................16
Menu Function .....................................................................................................16
Title Menu Function ..............................................................................................16
Subtitle Language Function..................................................................................16
Multi-angle Function .............................................................................................17
MP3 Disc Play.......................................................................................................17
Setup ............................................................................................................18
Initial Setup ...........................................................................................................18
General Setup.......................................................................................................18
Speaker Setup ......................................................................................................20
Audio Setup ..........................................................................................................21
Preferences Setup ................................................................................................22
Defaults Table .......................................................................................................23
Specifications..............................................................................................24
GB-3
CAUTION:
MOBILE DVD PLAYER IS A CLASS I
LASER PRODUCT. HOWEVER THIS
MOBILE DVD PLAYER USES A
VISIBLE/INVISIBLE LASER BEAM
WHICH COULD CAUSE HAZARDOUS
RADIATION EXPOSURE IF DIRECTED.
BE SURE TO OPERATE THE MOBILE
DVD PLAYER CORRECTLY AS
INSTRUCTED.
USE OF CONTROLS OR
ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND - DO NOT
REPAIR YOURSELF. REFER SERVICING
TO QUALIFIED PERSONNEL.
WARNING:
•TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR
MOISTURE.
•TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, AND ANNOYING
INTERFERENCE, USE ONLY THE
RECOMMENDED ACCESSORIES.
•THIS DEVICE IS INTENDED FOR
CONTINUOUS OPERATION.
This product incorporates copyright
protection technology that is protected
by method claims of certain U.S. patents
and other intellectual property rights
owned by Macrovision Corporation and
other rights owners. Use of this
copyright protection technology must be
authorized by Macrovision Corporation,
and is intended for home and other
limited viewing uses only unless
otherwise authorized by Macrovision
Corporation. Reverse engineering or
disassembly is prohibited.
SAFETY INFORMATION
Region Management Information
Region Management Information:
This Mobile DVD Player is designed and
manufactured to respond to the Region
Management Information that is recorded
on a DVD disc. If the Region number
described on the DVD disc does not
correspond to the Region number of this
Mobile DVD Player, this Mobile DVD
Player cannot play this disc.
GB-4
DISC NOTES
Disc formats supported by this player
DVD
12 cm disc
(Single-sided disc only)
Video CD
12 cm disc
CD
12 cm disc
MP3
12 cm disc
Discs which cannot be played with this
player
•DVD-ROM
•DVD-R/DVD-RAM
•CDV
•CD-G
Handling and Cleaning
•Dirt, dust, scratches and warping disc
will cause misoperation.
•Do not place stickers or make
scratches on discs.
•Do not warp discs.
•A disc should always be kept in its
case when not in use to prevent from
damaging.
•Do not place discs in the following
places:
1. Direct sunlight
2. Dirty, dusty and damp areas
3. Near car heaters
4. On the seats or dashboard
Disc Cleaning
Use a dry soft cloth to wipe the surface.
If the disc is quite dirty, use a soft cloth
slightly moistured with isopropyl (rubbing)
alcohol. Never use solvents such as
benzine, thinner or conventional record
cleaners as they may mar the surface of
the disc.
Note:
A disc may become somewhat scratched
(although not enough to make it
unusable) depending on your handle it
and conditions in the usage environment.
Note these scratches are not an
indication of any problem with the player.

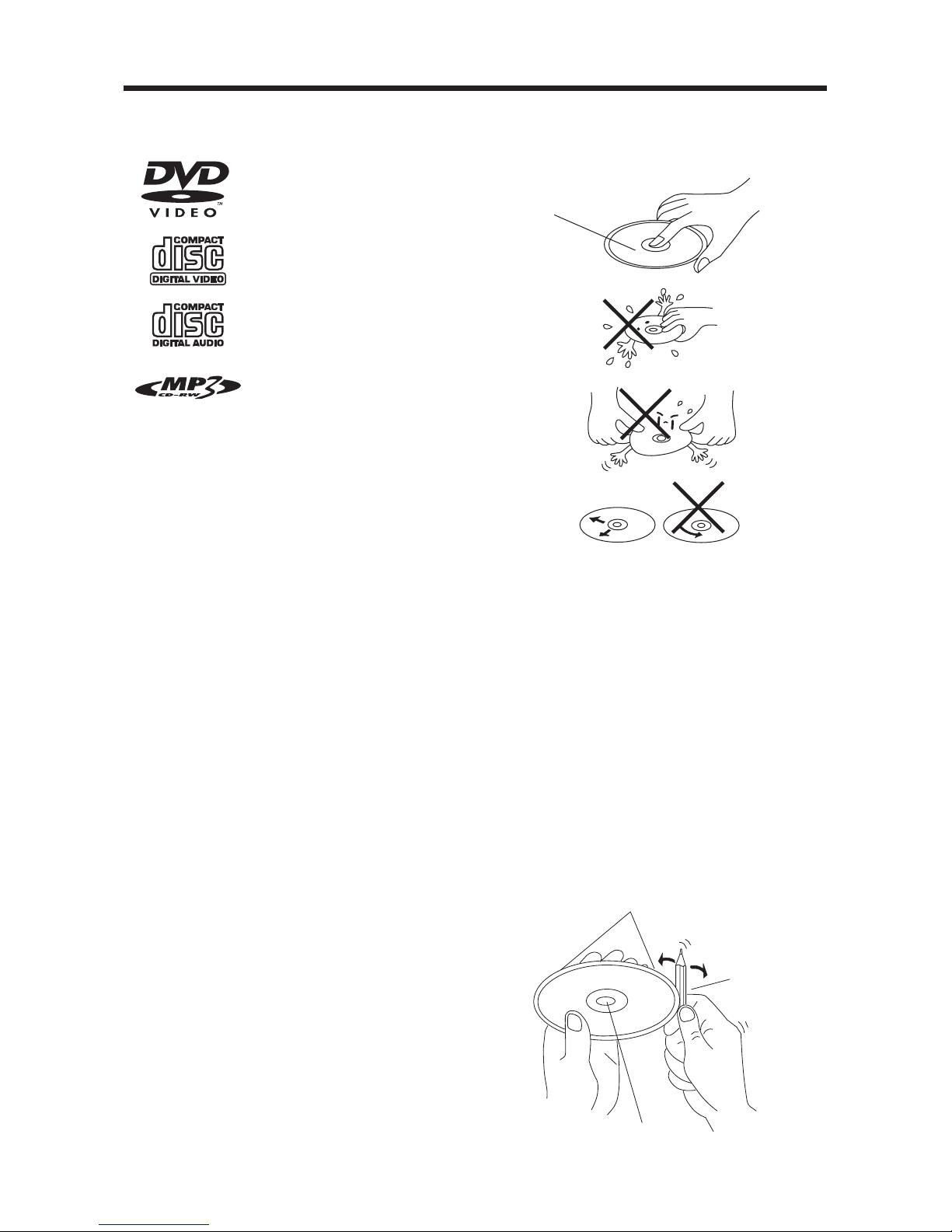

Preparing New Discs with Rough
Spots
A new disc may have rough edges on its
inside and outside edges. If a disc with
rough edges is used, the proper setting
will not be performed and the player will
not play the disc. Therefore, remove the
rough edges in advance by using a ball
point pen or pencil as shown on the right.
To remove the rough edges, press the
side of the pen or pencil against the
inside and outside edges of the disc.
Rough spots
on inside edge
Ball point pen
or pencil
Rough spots on
outside edge
Label side up
Do not touch
the underside
of the disc
Do not bend
Wipe the disc from center
toward the outside edge
GB-5
THE PLAYER
1. POWER ( )
2. EJECT ( )
3. SETUP
4. AUD
5. SOURCE
6. Disc Slot
7. PLAY/PAUSE ( II )
8. STOP ( )
9. PREVIOUS ( )
10. NEXT ( )
11. VOLUME
12. VOLUME
13. / , / cursor buttons
14. ENTER
15. Indicator Light for DVD
14. Indicator Light for AV INPUT 1
15. Indicator Light for AV INPUT 2
16. VIDEO IN 1
17. AUDIO IN 1 L
18. AUDIO IN 1 R
21. IR
22. Reset button
115 16 17 9 5 76 8 10 221
201918141332212114

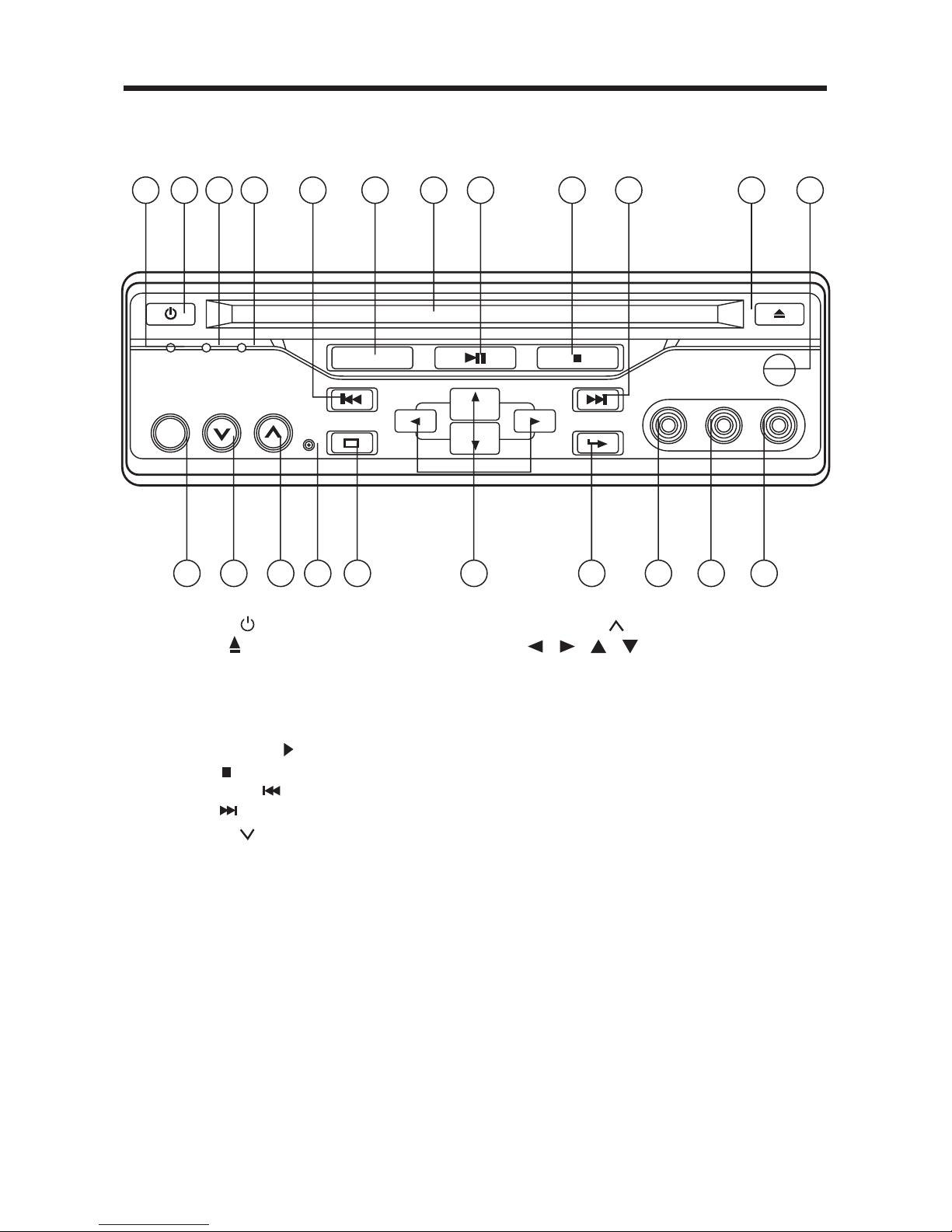

FRONT VIEW
GB-6
THE PLAYER
23. VIDEO 2 INPUT
24. AUDIO 2 L INPUT
25. AUDIO 2 R INPUT
26. REMOTE Socket
27. DIGITAL AUDIO
28. VEDIO 1 OUTPUT
29. VEDIO 2 OUTPUT
30. 14IN SOCKET
31. SUB. WOOFER OUTPUT

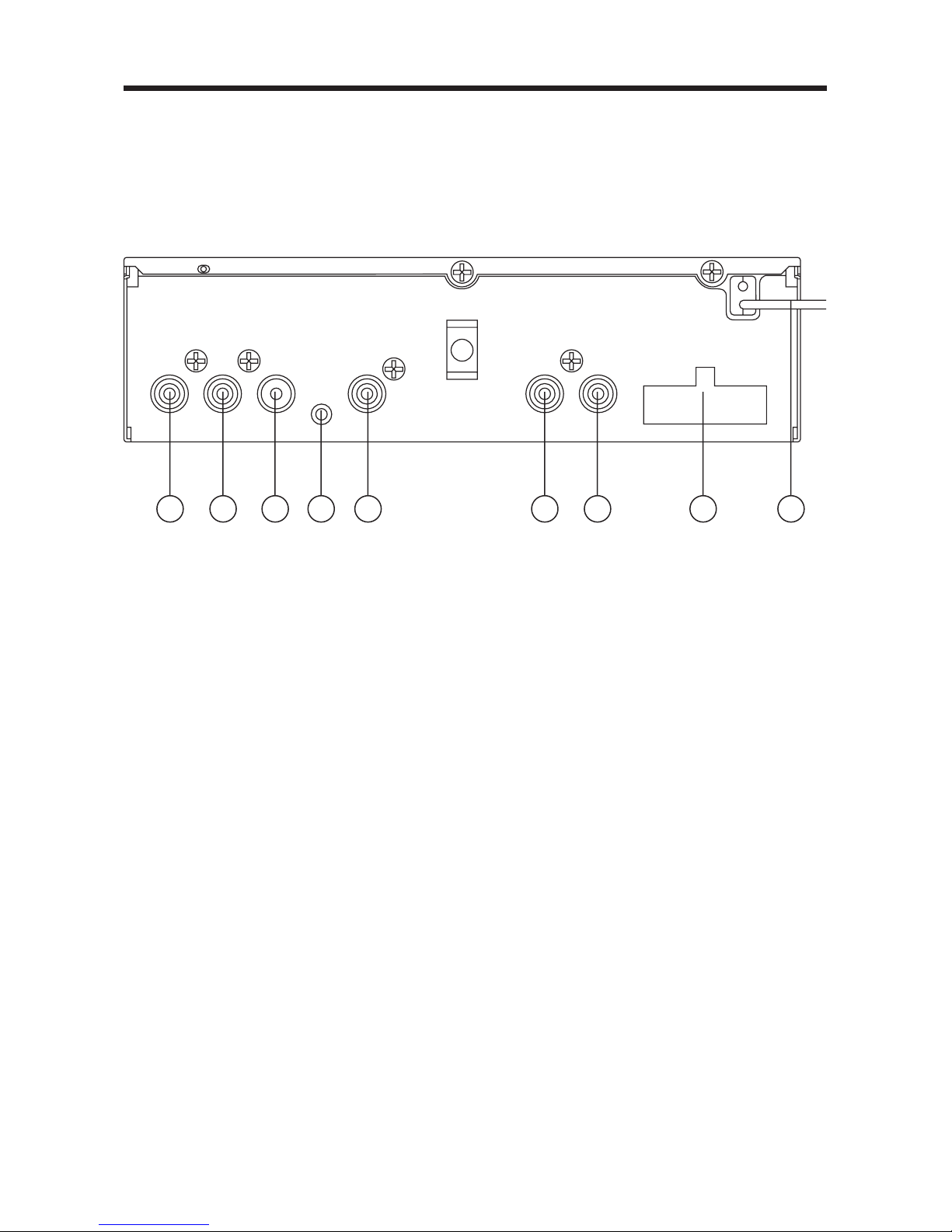

BACK VIEW
23 24 25 26 27 28 29 30 31
GB-7

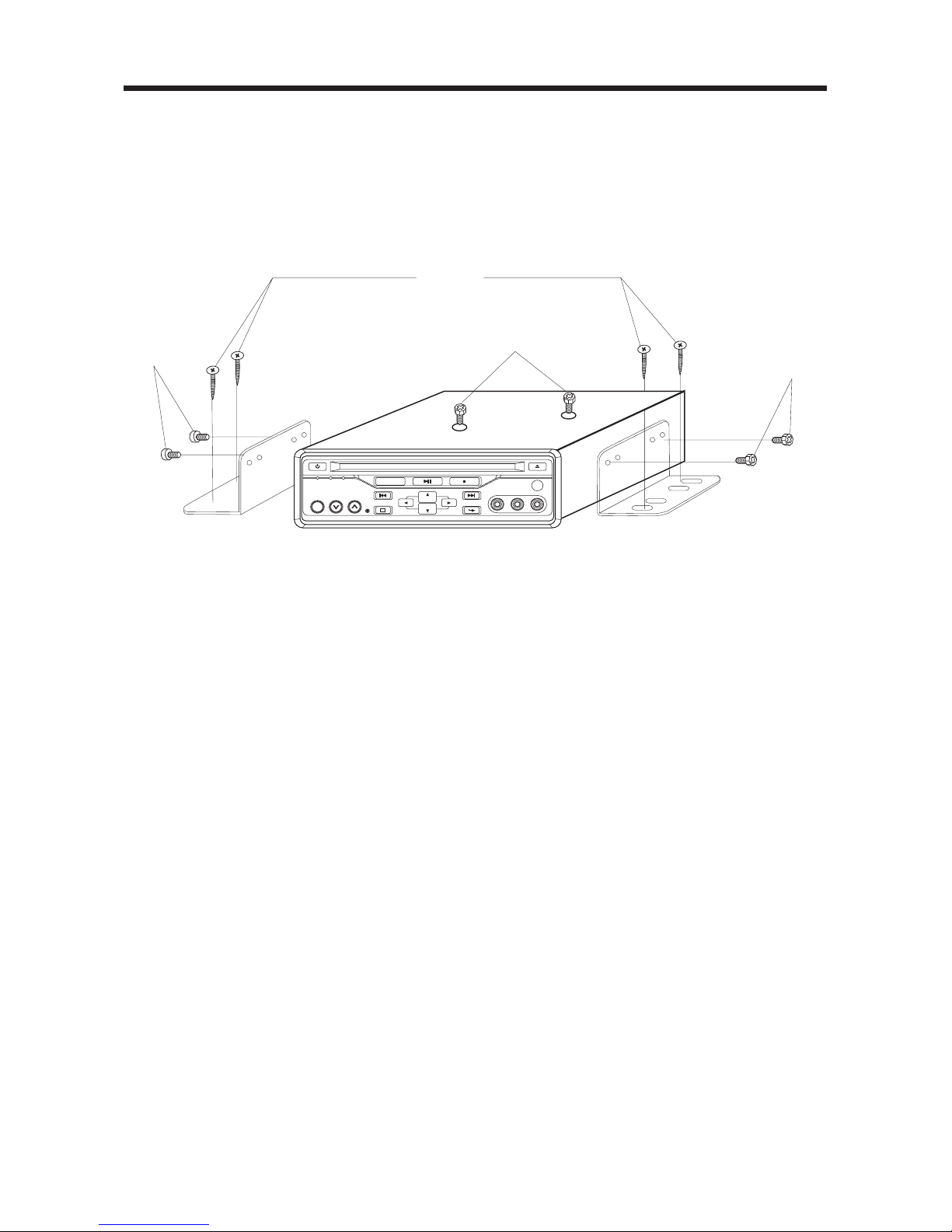

INSTALLATION
NOTE:
1. First remove the two screws that locket the unit core, then attach the brackets on
both sides of unit with screws (M4x5), last install the unit with screws (M5x25).
3. When fix the unit, you can slide the screw (M5x25) to left side or right side to meet
your needed position. In FIG.2, select two holes among the positions that marked
1,2,3 and 4 to fix the bracket.
GB-8
FIG.2
SCREW
M5X25
SCREW
M4X5 SCREW
M4X5
SCREW LOCKED THE UNIT CORE
VIDEO 2 OUT
AC/DC
ADAPTOR
CIGARETTE LIGHTER
REMOTE CONTROL RECEIVER
VIDEO 2 IN
AUDIO 2 R IN
AUDIO 2 L IN
WHITE
RED
YELLOW
DC 12V IN
REMOTE
INPUT OUTPUT
VIDEO L/R
A/V 2 INPUT DIGITAL
AUDIO
A/V OUTPUT
VIDEO 1 VIDEO 2L/R
DIGITAL AUDIO
VIDEO 1 OUT
AUDIO R OUT
AUDIO L OUT
WHITE
RED
YELLOW
YELLOW

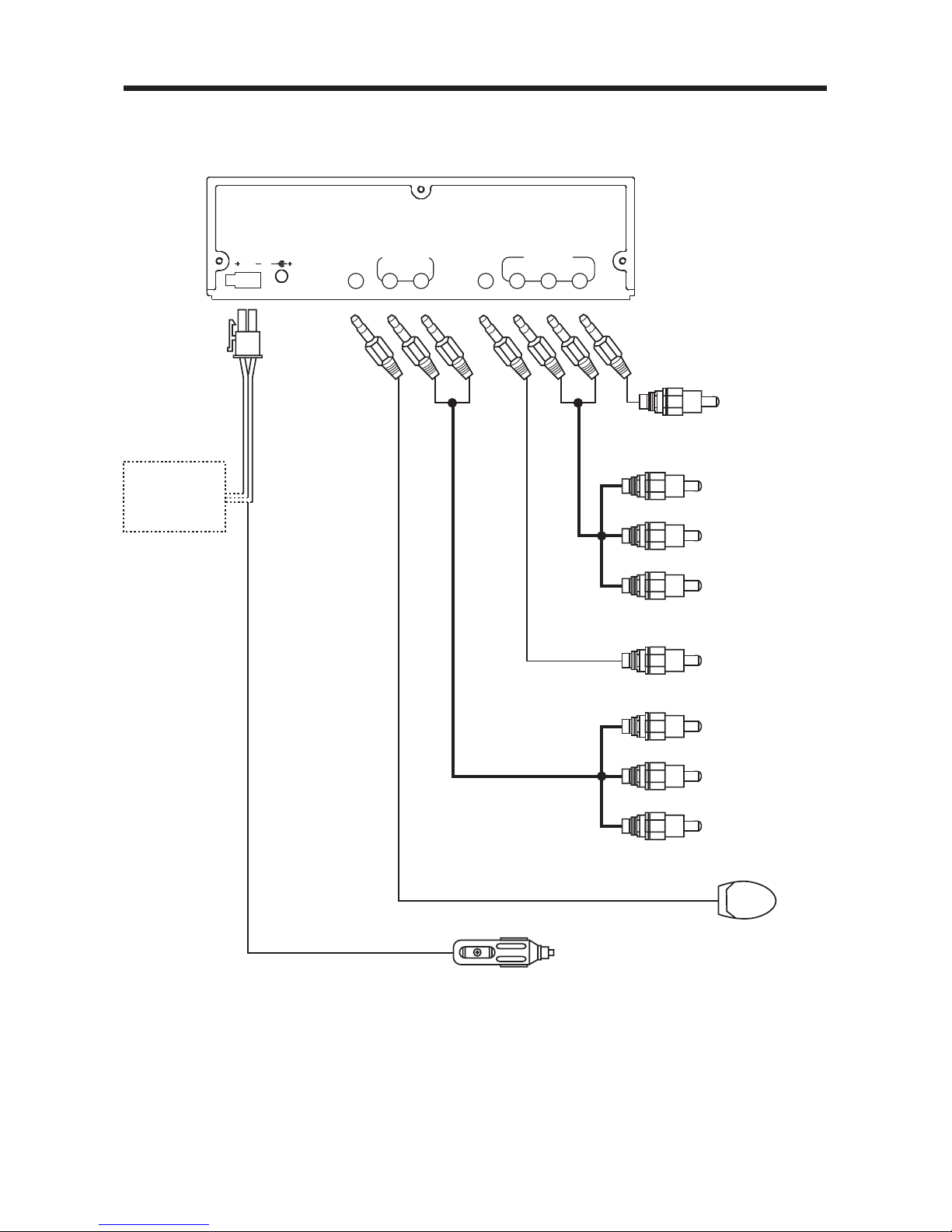

ELECTRIC CONNECTION
GB-9

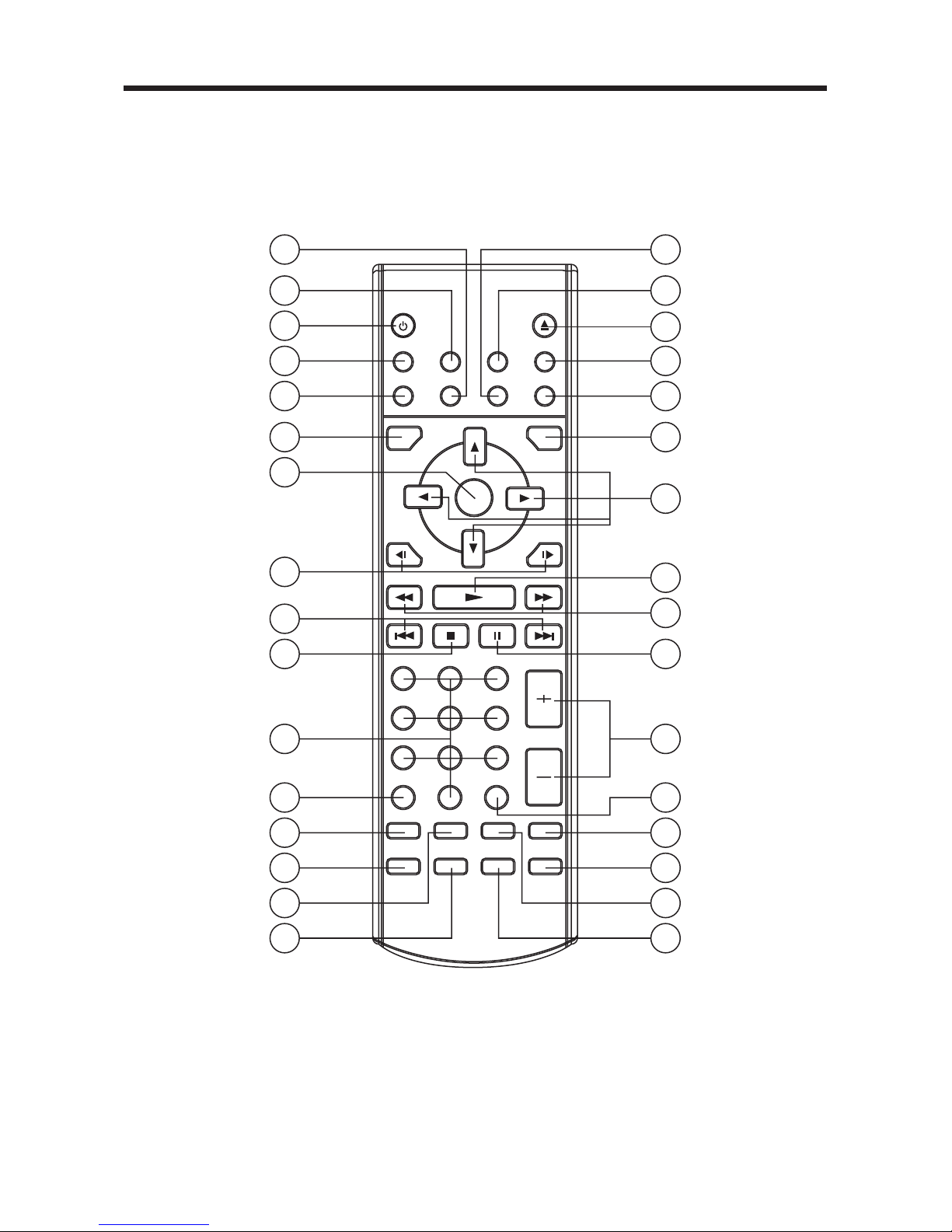

REMOTE CONTROL
6
1
3
7
11
4
8
10
5
9
12
13
14
16
15
17
20
18
19
2421
28
22
32
23
25
29
2726
3130
2
GB-10
