LENCO XEMIO-119 Manuale utente

Instruction Manual

Xemio-119/129/139

Notice

: Thank you for choosing our product! Please read the user's manual

carefully to ensure proper operation.

Content

Precautions

System requirement

1. Installation instruction

1.1 Installing the driver

1.2 Installing the battery

2. Connecting/ downloading

2.1 Connecting to PC

2.2 Removing USB device

3. Basic operation

3.1 Buttons and functions

3.2 Power on/off

3.3 Main menu setup

4. MP3 Player Operation

4.1 Playing music

4.2 Playing voice files

4.3 Function Setting

4.3.1 Setting EQ mode

4.3.2 Setting Play mode

4.3.3 Setting Contrast

4.3.4 Setting Backlight

4.3.5 Setting Power set

4.3.6 Setting Recording

4.3.7 Setting Language

4.3.8 Exit

4.4 Preview function

4.5 About

4.6 Folder function

4.7 Exit

5. Recording function

6. A-B loop playing

7.Lock function

Lyric sync

USB mode

FAQ

Technical specifications

Precautions

1) Never use the player during driving or operating other vehicles to avoid

traffic accident, which is also restricted by the law in some districts. Even on

foot, it is still dangerous to listen to extremely high volume levels, especially

when crossing the street. Whenever your surroundings require alertness,

please stop using the player for safety purposes.

2) Please connect the earphones before you switch on the player. This not

only avoids damaging the earphones, but also helps to keep the player in

good condition.

3) Keep the player clean and away from heat sources or direct sunlight, dirt,

high humidity and rain.

4) If the surface is dirty, please clean it carefully with a damp soft cloth or soft

abluent. Never clean the case with alcohol or diluents.

5) Never use the player in rather dry environment to avoid static.

6) Never disconnect the player from PC abruptly during downloading,

uploading and formatting to avoid application failure.

7) When the player is used as removable disk, please follow the proper file

download and upload procedures. Our company resumes no responsibility for

any file lost due to improper operation.

You can res

by removing the AAA

batteries.

System requirement

System requirement of MP3 player:

Microsoft Windows 98

/2000/Me/XP

Pentium 200MHZ or above.

USB port

120MB hard disk space

Mouse installed

CD-ROM drive

1. Installation instruction

1.1Installing driver for Windows 9

8se

(not required for Windows ME or above)

a. Connect the MP3 Player to the USB port of a PC, "Find new hardware"

appears on the screen, then click "Search latest driver for this device" and

insert the driver CD into CD-ROM, and then click "Next".

b. Select "Look in" to direct the installation directory to the "Drivers" files in

the driver CD, then click Yes.

c. PC will install the driver for Windows 98

automatically.

1.2 Installing battery

Install one

AAA

alkaline battery properly upon indicator on the play.

Press

button to power the player on and enter the MP3 standby mode.

2. Connecting and downloading

2.1 Connecting a PC as USB

Before operation, please verify the player is powered on with one end of the

USB cable came with the system inserted into PC and another end into the

MP3 player.

Data transferring

Reminder:

Due to computer capability issue, please turn on your MP3 Player before

connecting to the USB port !

2.2Removing the USB device

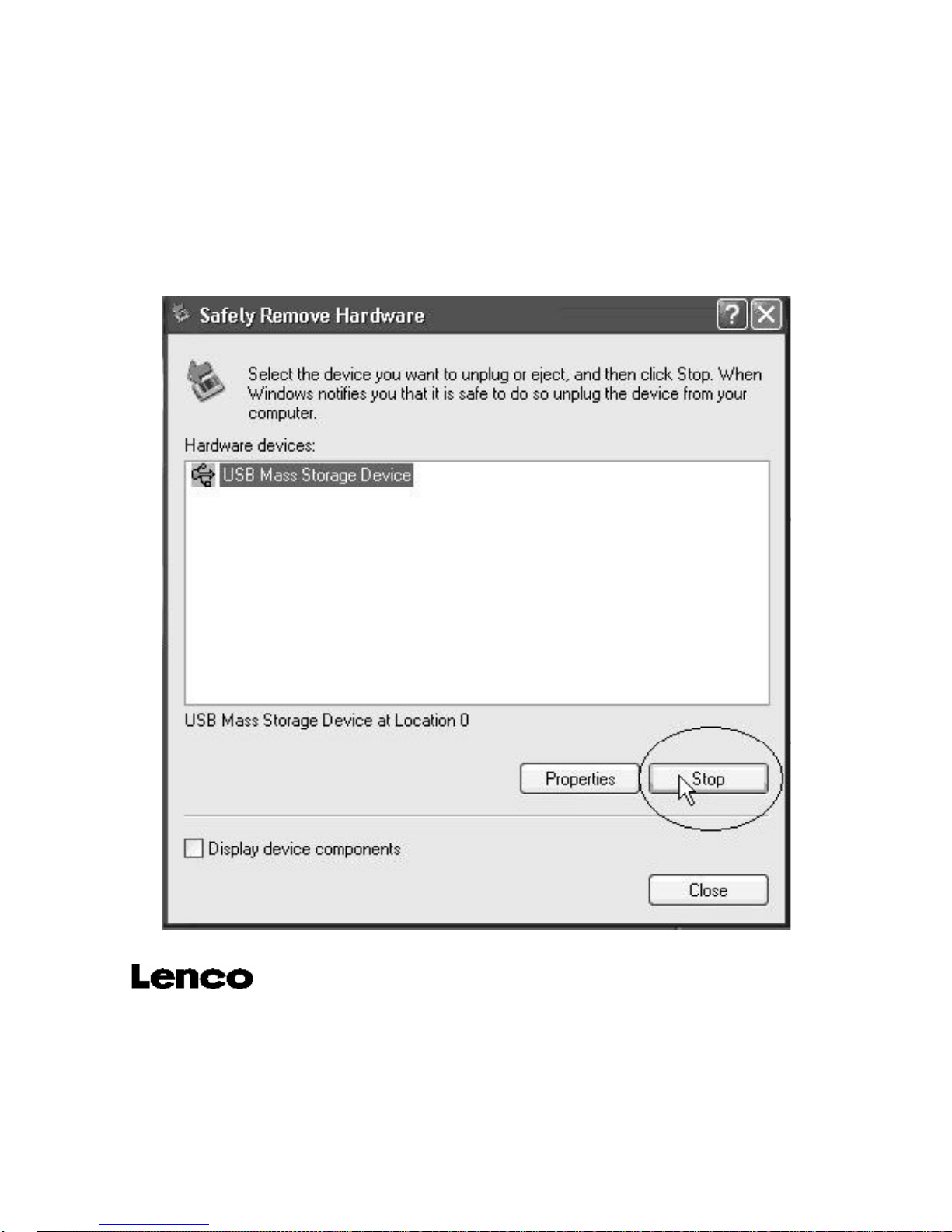

a.Double click the Safely Remove Hardware icon in taskbar:

b.From Safely Remove Hardware screen, highlight "USB Mass Storage

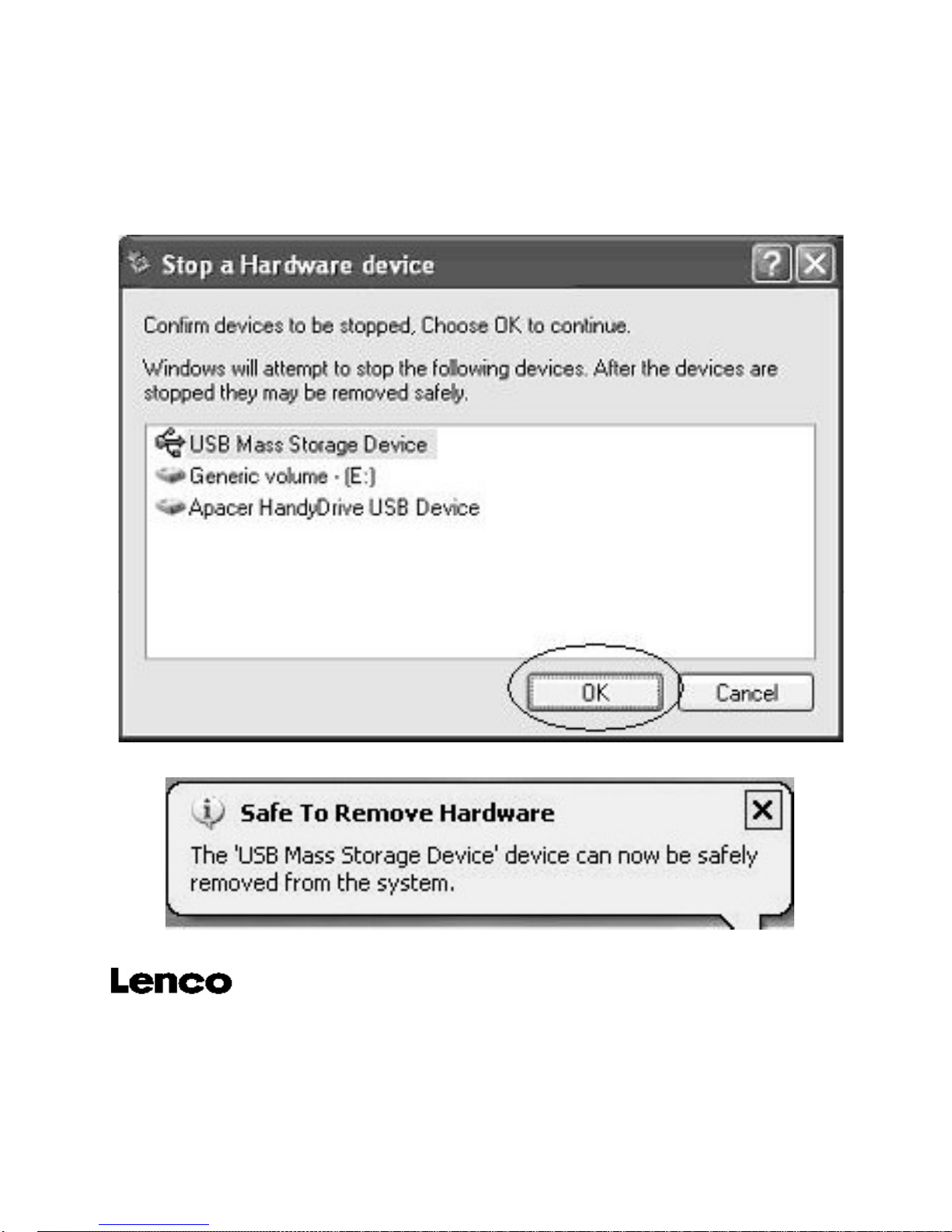

Device" item, and then click "Stop" button. "Stop to Hardware Device"

window appears on the screen as shown in the picture below.

player can be disconnected from PC safely.

Notice:

Never unplug the USB cable when transmitting data with PC to avoid

damaging the Player; after data transmitting, please do not disconnect the player

from PC until "Device now be safely removed" appears; while using USB function,

all other buttons will be nonfunctional. Any application lost or I/O error and power

on issues caused by improper operations, please refer to FAQ.

3. Basic operation

3.1 Buttons and functions

1) Earphone jack 2) Next

3) VOL- 4) Microphone

5) VOL+ 6)

Play/Pause/Stop

7) LCD display

8) A-B/REC 9) Last

10) Menu 11) Hold
