XP13 Heat Pump ◆Up to 15.50 SEER and 8.50 HSPF

The XP13 heat pump proves that home comfort and environmental

responsibility can go hand in hand. Engineered with the chlorine-free

R410A refrigerant, the XP13 provides exceptional comfort and is

environmentally responsible. This refrigerant meets the EPA’s

strictest standards for ozone and climate protection.

THE IDEAL CHOICE FOR YOUR HOME ENVIRONMENT

AND GLOBAL ENVIRONMENT

Designed to deliver more comfort for your energy dollar,

the XP13 has efficiency ratings of up to 15.50 SEER and 8.50 HSPF. At

the heart of the system is a scroll compressor, which provides smooth,

efficient and reliable operation.

Efficient design can result in

significant energy savings

Dependable scroll compressor

provides smooth, efficient and

reliable operation

Ozone-responsible

R410A meets the EPA’s

(Environmental Protection

Agency) most stringent

environmental guidelines

SmartHinge™louvered access

panels provide improved coil

protection and fast, efficient

servicing

Compatible with the exclusive

Humiditrol®whole-home

dehumidification system

ENERGY STAR®qualified

Elite®Series XP13 Heat Pump

Innovation never felt so good.

™

EFFICIENCY RATING

Up to 15.50 SEER (Seasonal

Energy Efficiency Ratio) and

8.50 HSPF (Heating Season

Performance Factor).

WARRANTY*

10-year limited warranty

on the compressor.

5-year limited warranty

on all remaining covered

components.

Efficient Compared

to an older heat pump, the

XP13 heat pump can save you

hundreds of dollars each year

The XP13 heat pump provides

cooling efficiencies of up to 15.50

SEER and heating efficiencies of

up to 8.50 HSPF. The higher the

efficiency rating, the higher your

energy savings. In the case of the

XP13 heat pump, those savings

can translate to hundreds of dollars

each year.

*Applies to residential applications only.

See actual warranty certificate for details.

This chart compares the 5-year savings you can expect from

a 15 SEER heat pump vs. units with lower efficiency

ratings. The regions used to calculate household fuel and

utility costs reflect a cross-section of cities in the U.S. using

2006 Department of Energy national average energy rates.

In addition to geography, cooling costs are based on 3-ton

capacity specifications, with 1,600 cooling hours per year.

Your actual costs will vary depending on the weather, local

fuel rates, systems settings and your personal lifestyle.

seer

15.00 vs. 10.0 15.00 vs. 13.00

$1200

$1000

$800

$600

$400

15.00 SEER XP13 heat pump,

compared to older, less efficient units

5-YEAR COOLING SAVINGS

$1055

$325

INNOVATIVE FEATURES FOR ENHANCED COMFORT AND EFFICIENCY

Elite®Series XP13 Specifications

XP13 018 024 030 036 037 042 048 060

SEER Up to 15.50 Up to 15.50 Up to 15.00 Up to 14.00 Up to 15.00 Up to 14.50 Up to 14.00 13.00

HSPF Up to 7.70 Up to 8.50 Up to 8.00 Up to 8.50 Up to 8.50 Up to 8.20 Up to 8.20 Up to 7.70

Sound Rating – dB 74 74 76 76 76 76 76 76

Dimensions HxWxD (in.) 31 x 27 x 28 31 x 27 x 28 31 x 27 x 28 35 x 27 x 28 35 x 30-1/2 x 35 35 x 30-1/2 x 35 35 x 30-1/2 x 35 45 x 30-1/2 x 35

HxWxD (mm) 787 x 686 x 711 787 x 686 x 711 787 x 686 x 711 889 x 686 x 711 889 x 775 x 889 889 x 775 x 889 889 x 775 x 889 1143 x 775 x 889

Note: Due to Lennox’ ongoing commitment to quality, all specifications, ratings and dimensions are subject to change without notice.

13.00-15.50

22.0

THIS MODEL

XP13

Up to 15.50 SEER

Up to 8.50 HSPF

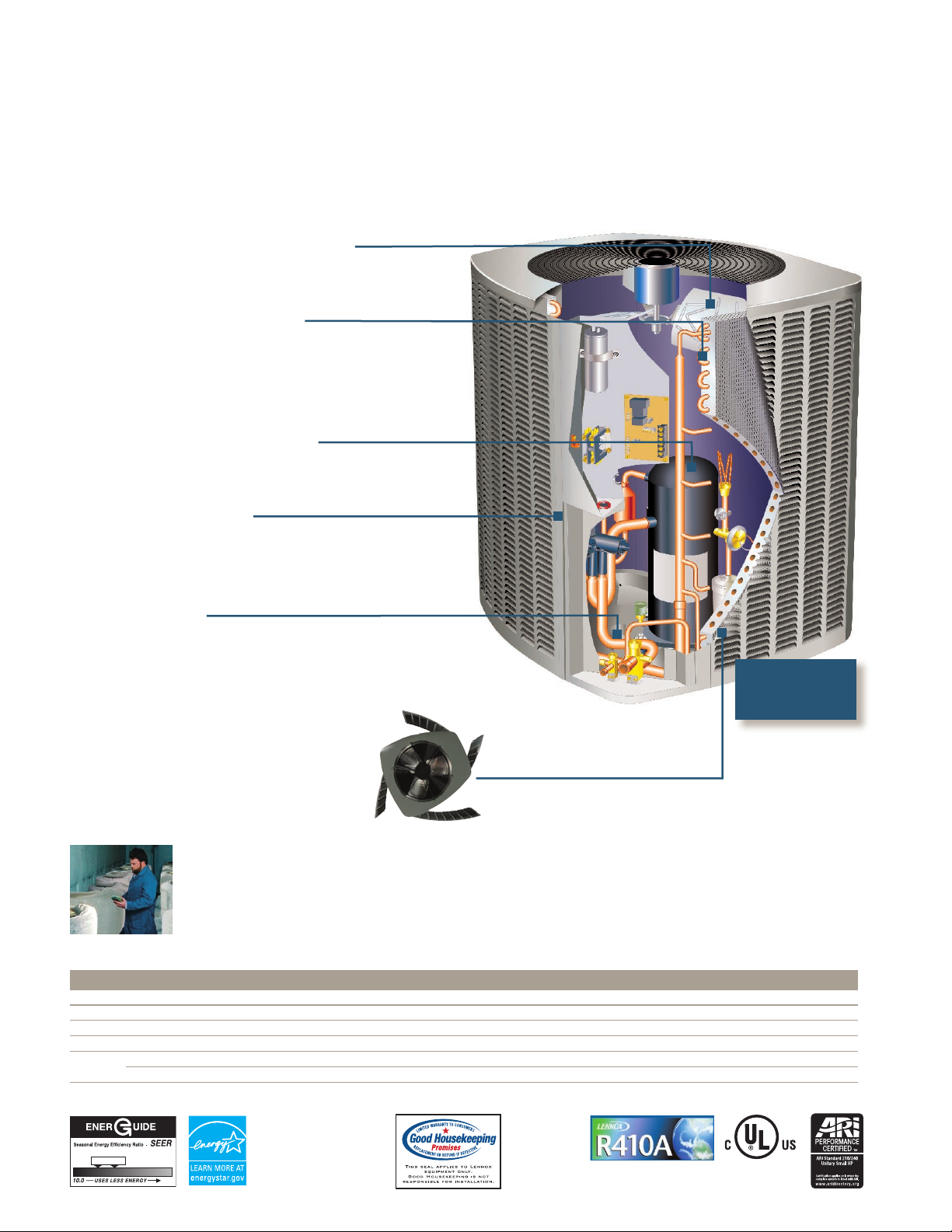

Precision-Balanced Direct-Drive Fan –

Provides a quieter environment outside your home.

High-Efficiency Outdoor Coil –

Provides exceptional heat transfer and

low air resistance for high-efficiency operation

that can lower your cooling bills.

Dependable Scroll Compressor –

Provides smooth, efficient and reliable operation.

Durable Steel Cabinet –

Made to last with an attractive,

high-quality textured paint finish.

Drainage Holes –

Prevent damaging moisture from collecting

inside the basepan, ensuring longer product life.

SmartHinge™Louvered Coil Protection –

Allows quick, easy access to interior

components from all sides, so the unit can be

serviced in minimal time, saving you money.

Quality you can trust.

Constructed of heavy-gauge, pre-painted steel

and tested in the most extreme environments

to ensure maximum durability.

Lennox is proud of the

fact that these products

have earned the Good

Housekeeping Seal.

Proper sizing and installation of equipment

is critical to achieve optimal performance.

Split system air conditioners and heat

pumps must be matched with appropriate

coil components to meet ENERGY STAR®

criteria. Ask your Lennox dealer for details,

or visit www.energystar.gov.

(94M63) XP13 04/08

Visit us at www.lennox.com, or contact us at 1-800-9-LENNOX. PC53870

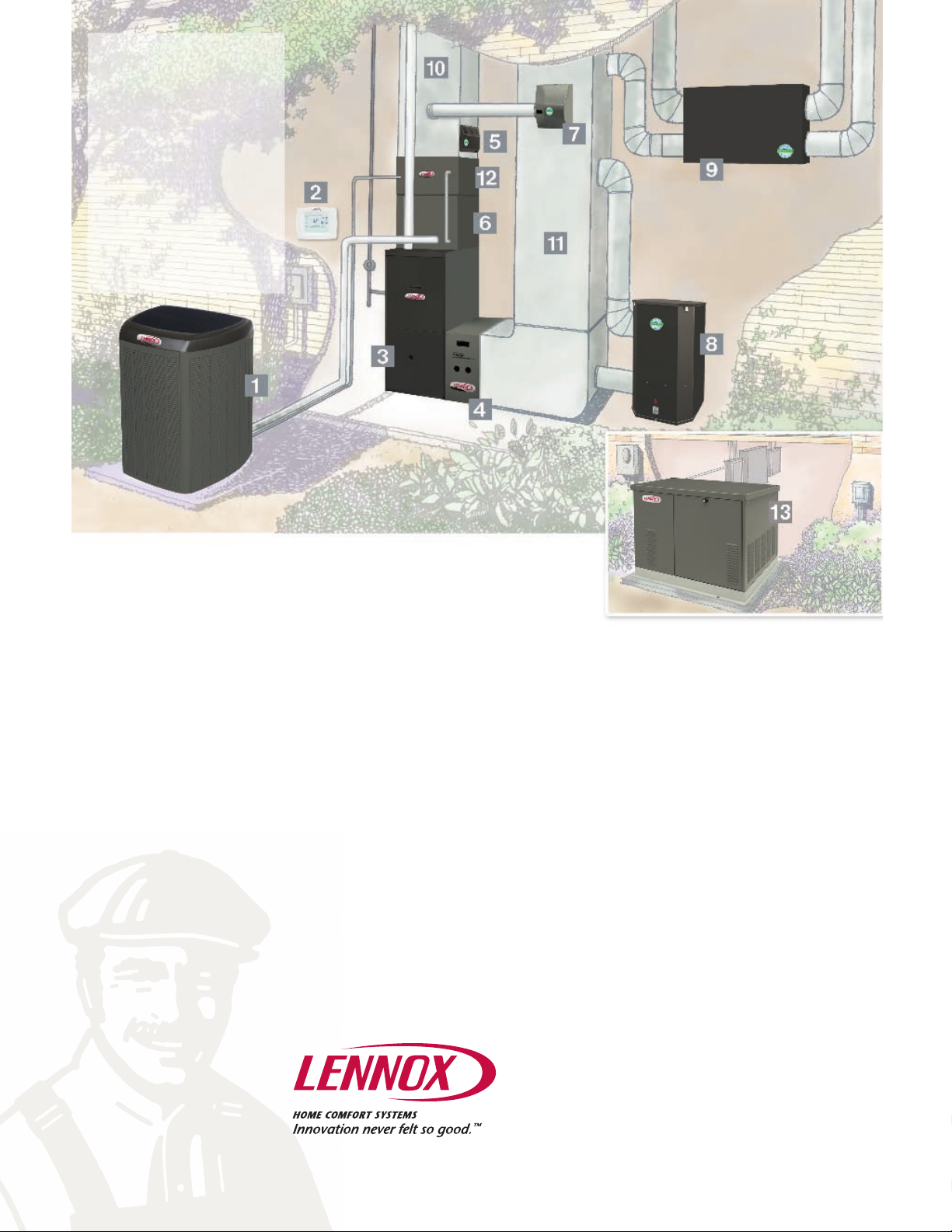

1Air conditioner or heat pump

2Thermostat

3Furnace or air handler

4Filtration device

5Germicidal light

6Indoor coil

7Humidifier

8HEPA bypass filtration system

9Energy recovery ventilator

 Supply duct

 Return duct

 Dehumidifier system

 Residential generator

CUSTOMIZE YOUR COMFORT

Lennox®heating, cooling and indoor air quality products are designed to

provide efficient, economical comfort—not only as individual units, but also

together as an integrated system. This combined network of products delivers

on every comfort count, from consistent temperatures and balanced humidity to improved indoor air quality. Lennox

also offers a line of residential generators, which provide safe, reliable standby power in the event of outages.

DEALERS YOU CAN COUNT ON

Choosing the right dealer for your home’s heating, cooling and air quality needs is every bit as important as choosing the

right brand. We think you’ll agree our independent dealers are a big reason you can count on quality customer service

whenever you call. Your Lennox dealer’s dedication to quality shows in his knowledge, training and expertise in designing

the right system for your home, installing it properly and keeping it running perfectly for many years to come.
