Lenovo IdeaCentre C100 7869 Manuale utente
Version 1.0 2009.8
User Guide
3000 C100 Series
3000 C100
31039405
31039405_3000 C100_UG_FM_EN_V1.01 1 2009.8.4 4:59:59 PM
Important Safety Information
Before using this manual, it is important that you read and understand all of the
related safety information for this product. Refer to the Safety and Warranty Guide
that you received with this product for the latest safety information. Reading and
understanding this safety information reduces the risk of personal injury or damage
to your product.
Danger: Be aware of extremely hazardous or lethal situations.
Attention: Be aware of possible damage to programs, devices, or data.
Note: Pay attention to this important information.
© Copyright Lenovo 2009.
31039405_3000 C100_UG_EN_V1.0.in1 1 2009.8.4 5:03:40 PM
31039405_3000 C100_UG_EN_V1.0.in2 2 2009.8.4 5:03:40 PM
1
Contents
Contents
Important Safety Information
Chapter 1 Using the Computer Hardware.............................. 1
1.1 Front view................................................................................2
1.2 Rear view ................................................................................2
1.3 Computer stand .....................................................................3
1.4 Connecting your computer ......................................................4
1.5 Computer instruction ...............................................................8
1.6 Keyboard and Mouse (wired) .................................................10
Chapter 2 Using the Rescue System .................................... 11
2.1 Installing Drivers and Software Shipped with Your Computer ...12
2.2 OneKey Recovery..................................................................13
2.3 File Management ...................................................................14
2.4 OneKey Antivirus ...................................................................16
Chapter 3 Using the Computer Software ............................. 19
3.1 Power2Go — Burning Discs .................................................20
3.2 WinDVD.................................................................................21
3.3 Trend Micro Internet Security .................................................22
Chapter 4 System Maintenance and Recovery.................... 23
4.1 Restoring the System ............................................................24
4.2 Backup status and configuration ...........................................24
4.3 Cleaning Up the Disk .............................................................24
4.4 Checking For, and Correcting Disk Errors ..............................25
4.5 Defragmenting the Disk(s)......................................................25
4.6 Performing Daily Maintenance Tasks......................................25
31039405_3000 C100_UG_EN_V1.0.in1 1 2009.8.4 5:03:40 PM
2Contents
Chapter 5 Troubleshooting and Confirming Setup.............. 27
5.1 Troubleshooting Display Problems .........................................28
5.2 Troubleshooting Audio Problems ...........................................29
5.3 Troubleshooting Software Problems.......................................29
5.4 Troubleshooting Problems with Optical Drives and
Hard Disks.............................................................................30
5.5 Special considerations for troubleshooting Windows .............31
31039405_3000 C100_UG_EN_V1.0.in2 2 2009.8.4 5:03:40 PM
1
2
3
4
5
Chapter
This chapter contains the following
topics:
ÿComputer hardware introduction
ÿInformation on computer connections
Note: The descriptions in this chapter might
vary from your computer, depending on
computer models and configurations.
User Guide 1
Using the Computer Hardware
31039405_3000 C100_UG_EN_V1.0.in1 1 2009.8.4 5:03:42 PM
2User Guide
1.1 Front view
1 2 3
4
5
8
7
6
Brightness up button Camera
Brightness down button Optical drive slot
LCD On/Off USB ports (2)
Power button Built-in microphone
1.2 Rear view
12
14
13
10 11
9
31039405_3000 C100_UG_EN_V1.0.in2 2 2009.8.4 5:04:28 PM
3
User Guide
Power connector Ethernet connector
PS/2 Keyboard connector Microphone connector
USB ports (2) Headphone connector
1.3 Computer stand
54˚
35˚
Use the stand to position the display to your preference. It can be rotated
between 35º and 54º from the chassis.
The stand provides stability to the computer; it is not a removable part.
Attention:
1. The computer stand must remain installed at all times to ensure maximum
system stability.
2. Make sure the angle of the stand is at least 35 degrees from the chassis.
otherwise the computer will be unstable and could fall over.
31039405_3000 C100_UG_EN_V1.0.in3 3 2009.8.4 5:04:30 PM
4User Guide

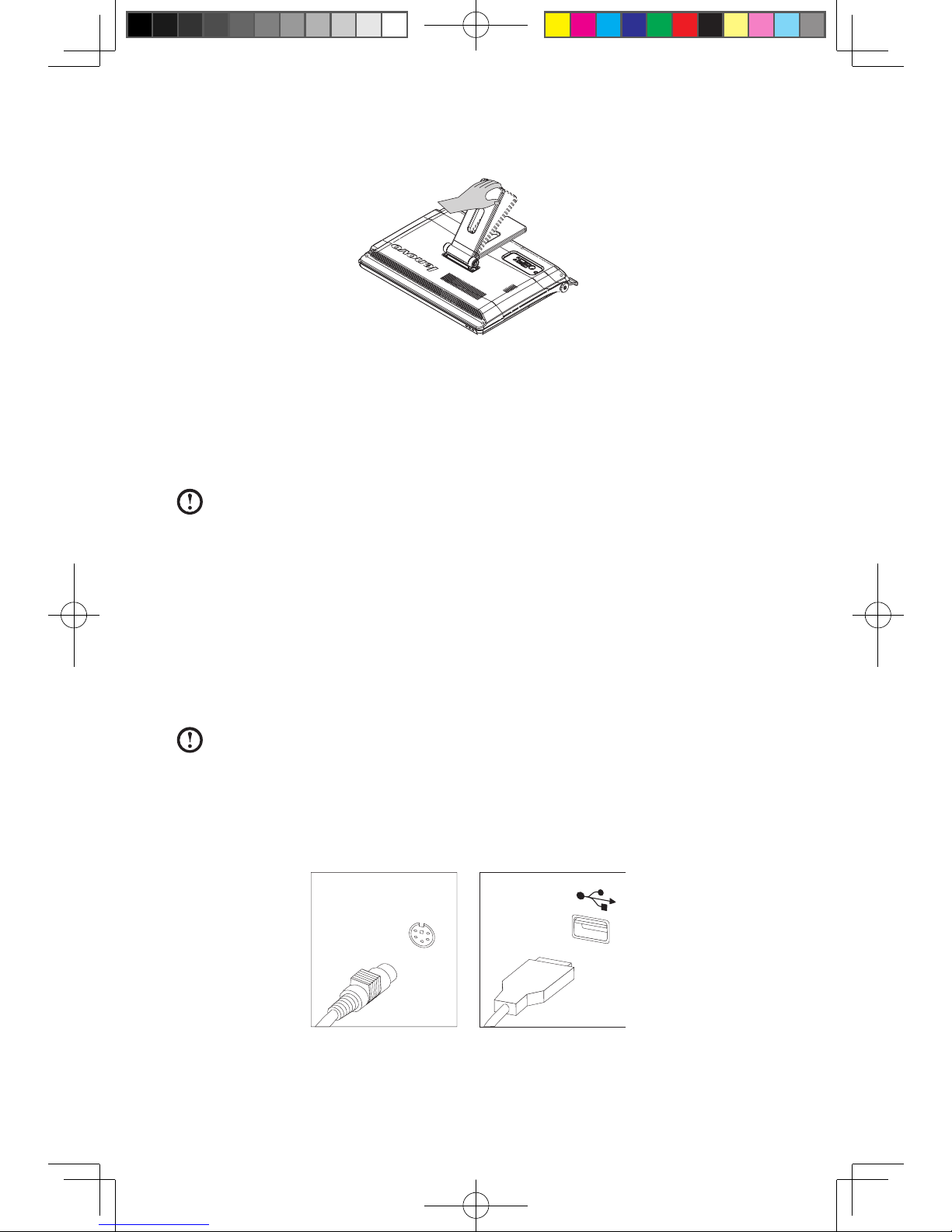

To open the computer stand, do the following:
1.4 Connecting your computer
Use the following information to connect your computer:
• Look for the small connector icons on the back of your computer. Match the
connectors to the icons.
Note: Your computer might not have all of the connectors that are
described in this section.
1.4.1 Check the voltage rating before you connect the
equipment to an electrical outlet to ensure that the
required voltage and frequency match the available
power source.
If your computer uses an AC adapter:
Note: Use only the Lenovo provided AC adapter approved for use with this
device. Use of another AC adapter may cause a fire or explosion.
1.4.2 Connect the keyboard cable to the appropriate keyboard
connector (PS2 connector or USB connector).
31039405_3000 C100_UG_EN_V1.0.in4 4 2009.8.4 5:04:31 PM
5
User Guide
1.4.3 Connect the mouse cable to the appropriate mouse
connector (USB connector).
1.4.4 If you have audio devices, attach them using the
following instructions:
1 2
Microphone Use this connector to attach a microphone (purchased separately)
to your computer when you want to record sound or if you use
speech-recognition software.
Headphone Use this connector to attach headphones (purchased separately)
to your computer when you want to listen to music or other
sounds without disturbing anyone.
1.4.5 If you have powered speakers with an adapter:
(This picture is only a sketch print, it does not show the actual figure of the speaker)
31039405_3000 C100_UG_EN_V1.0.in5 5 2009.8.4 5:04:32 PM
