Lenovo IdeaCentre K220 Hardware Manuale utente

www.lenovo.com

Version 3.0 2008.11

IdeaCentre K User Guide

31035995

31035995_UG_FM_EN_V3.0.indd 1 2008.10.21 11:00:55 AM

Danger: Watch out for high risks

Caution: Watch out for medium risks

Attention: Pay attention to low risks

Prohibition: Dangerous operations

Recommendation: Helpful tips

Key to signs used in this manual

31035995_IdeaCentre K UG_EN_V3.0.indd 1 2008.10.20 2:11:40 PM

Notes

• Before using this information and the product it supports, be

sure to read the Safety and Warranty Guide that came with

this product.

• The software, include in this computer, do not support multi-

user level. During switching user, close all existing software

in order to avoid program run-time error.

31035995_IdeaCentre K UG_EN_V3.0.indd 2 2008.10.20 2:11:40 PM

Contents

Key to signs used in this manual

Chapter 1 Instructions for using computer hardware ........... 1

1.1 Front view of the Chassis .........................................................2

1.2 Rear view of the chassis ..........................................................3

1.3 Speaker (some models equipped with Speaker) ......................6

1.4 Notes on computer cabling and installation .............................7

1.5 Keyboard .................................................................................8

Chapter 2 Rescue System Operation Instruction .................. 9

2.1 Installing Drivers and Software Shipped with Computer .........10

2.2 OneKey Recovery ..................................................................11

2.3 File Management ..................................................................12

2.4 OneKey Antivirus ...................................................................13

Chapter 3 Using the software ................................................ 17

3.1 Power2Go — Burning Discs .................................................18

3.2 DVD MovieFactory ................................................................19

3.3 WinDVD ...............................................................................20

3.4 Lenovo Healthcare Software .................................................21

3.5 Trend Micro Internet Security .................................................24

3.6 Lenovo Media Studio ............................................................. 25

3.7 Veriface .................................................................................26

Chapter 4 System maintenance and recovery ..................... 29

4.1 Restoring the system .............................................................30

4.2 Cleaning up the disk ..............................................................30

4.3 Checking for, and correcting disk errors .................................31

4.4 Defragmenting the disk(s) ......................................................31

4.5 Performing daily maintenance tasks .......................................31

31035995_IdeaCentre K UG_EN_V3.0.indd 1 2008.10.20 2:11:40 PM

2Contents

Chapter 5 Troubleshooting and Conﬁrming Setup .............. 33

5.1 Troubleshooting display problems ..........................................34

5.2 Troubleshooting audio problems ............................................34

5.3 Troubleshooting software problems .......................................35

5.4 Troubleshooting problems with optical drives and hard disks ...36

31035995_IdeaCentre K UG_EN_V3.0.indd 2 2008.10.20 2:11:40 PM

Chapter

Instructions for using computer

hardware

This chapter is organized under

the following topics:

These topics describe some of the operations

commonly performed during routine use of the

computer, including the proper connection of

components. Please read it carefully.

Note: The conﬁguration of your computer

model may vary slightly from the illustrations

used in this document.

User Guide 1

31035995_IdeaCentre K UG_EN_V3.0.indd 1 2008.10.20 2:11:15 PM

2User Guide

1.1 Front view of the Chassis

Instructions for the use of buttons and function keys that are located

the front of the computer.

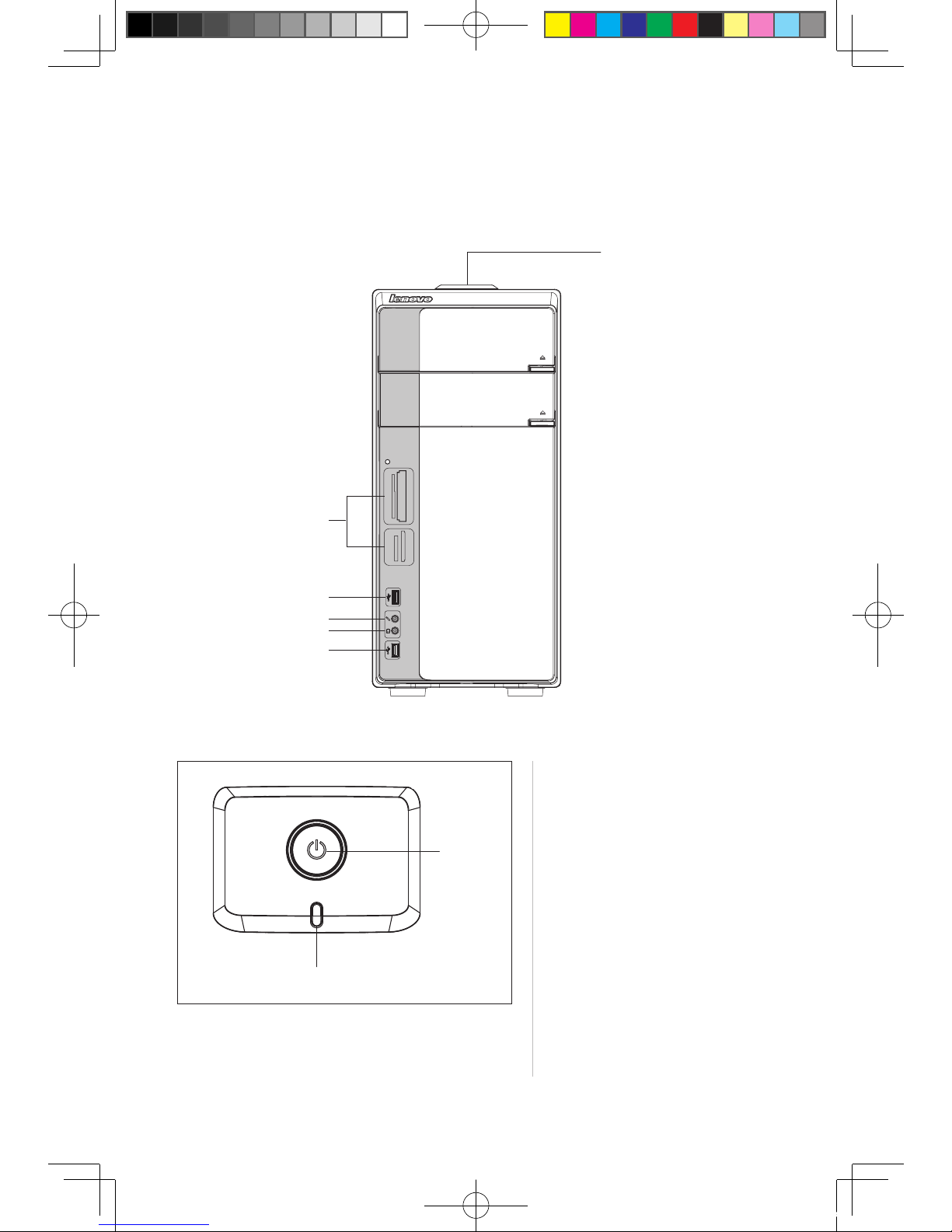

F-1

D-1

MS/Pro/Duo/Pro Duo

CF/I/II/MD

SD/Mini/HC/Min iHC

MMC/RS/Plus/Mo b

D-2

D-3

D-4

D-2

F-1 Top Mounted Buttons: Including power switch.

[1-1] Power switch: Press

this button to turn the

computer on or off, or,

if the Power Option in

the Control Panel has

been set to allow it, to

hibernate or wake up

the computer.

[1-2] Hard Disk Drive

Indicator: Indicates the

read/write operations of

the hard disk.

[1-1]

[1-2]

31035995_IdeaCentre K UG_EN_V3.0.indd 2 2008.10.20 2:11:16 PM

User Guide

D-1 Memory card reader Connector: Able to read/write data from Memory Stick

/Memory Stick Pro/ Memory Stick Duo /Memory Stick Pro Duo

SD/Mini SD/SD High Capacity /Mini SD High Capacity/ MMC/ RS-MMC/MMC

plus/MMC mobile

CF I/CF II/ MD.

D-2 USB Connectors: To connect USB devices.

D-3 Microphone Connector: To connect the microphone and pass the

microphone audio input to the computer.

D-4 Speakers/Headphones Connector: To connect headphones. If external

speakers are used, they can be connected to the Audio Line-out Connector

on the back of the machine.

1.2 Rear view of the chassis

Instructions for the use of all I/O interfaces on the rear panel of the

computer.

The following illustrations show connections located at the rear of some computer

models. The locations of connectors on your computer will be similar to, but

possibly not identical to these. Following the illustrations is a key that explains the

symbol callouts used in the ﬁgures.

31035995_IdeaCentre K UG_EN_V3.0.indd 3 2008.10.20 2:11:16 PM

4User Guide

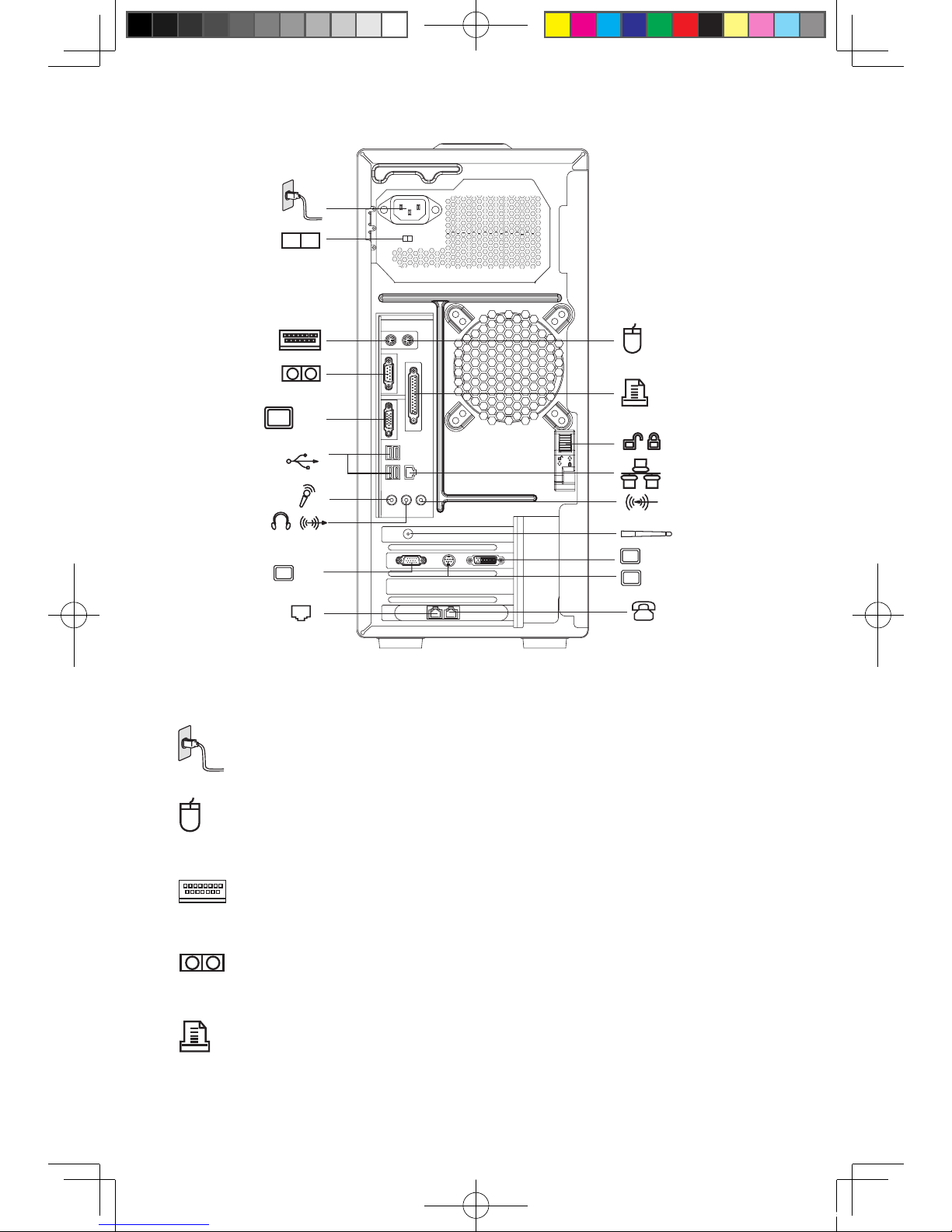

X-1

X-2 S-1

DVI

Key to symbols used in the above illustrations of the rear of the

chassis:

——— Power Connector: To supply power to the computer.

———— PS/2 Mouse Connector: To connect a mouse having a PS/2

connector.

—— PS/2 Keyboard Connector: To connect a keyboard having a PS/2

connector.

—— Serial Connector: To connect devices requiring a serial connection

(COM Connector ).

——— Parallel Connector: To connect devices requiring a parallel

31035995_IdeaCentre K UG_EN_V3.0.indd 4 2008.10.20 2:11:17 PM

User Guide

connection.

X-1 —— On-board VGA Card Connector: To connect with the signal cable

of a monitor. On computer models that have an external graphics

card, on-board graphics card signals are shielded and there are

no VGA signal outputs. (some models are equipped with this

connector.)

——— USB Connector: To connect USB devices.

—— Ethernet Connector: To connect LAN or broadband network

devices.

X-2 —— External VGA Card Connector: To connect with the signal cable

of a monitor. It connects with the data cable of the monitor. (Some

models are equipped with this connector.)

DVI —— External DVI Card Connector: To connect to the data cable of the

DVI connector. (Some models are equipped with this connector)

S-1 —— S Video Connector: To connect the data cable of the S video. (Some

models are equipped with this connector.)

——— Chassis Side Lock: After installing the side panel of the chassis,

push the lock upward to lock the side panel in place. To remove the

side panel, depress the lock ﬁrst.

——— Audio Line-in Connector: To connect audio input to the computer.

— Audio Line-out Connector: To connect to the speakers or

headphones.

—— WiFi antenna connector: To connect the computer to a wireless

network.(This connector only equipped on the model with WiFi

card. For more information about this connector, see WM600-B-LO

Wireless 802. 11b/g Wireless PCI-E Adapter Card User Manual.)

———— Microphone Jack: To connect to audio input from a microphone.

———— Used to attach your computer to a telephone line for modem use.

(some models equipped with this connector)

31035995_IdeaCentre K UG_EN_V3.0.indd 5 2008.10.20 2:11:19 PM
