Lenovo ThinkCentre M90n-1 Manuale utente

Setup Guide

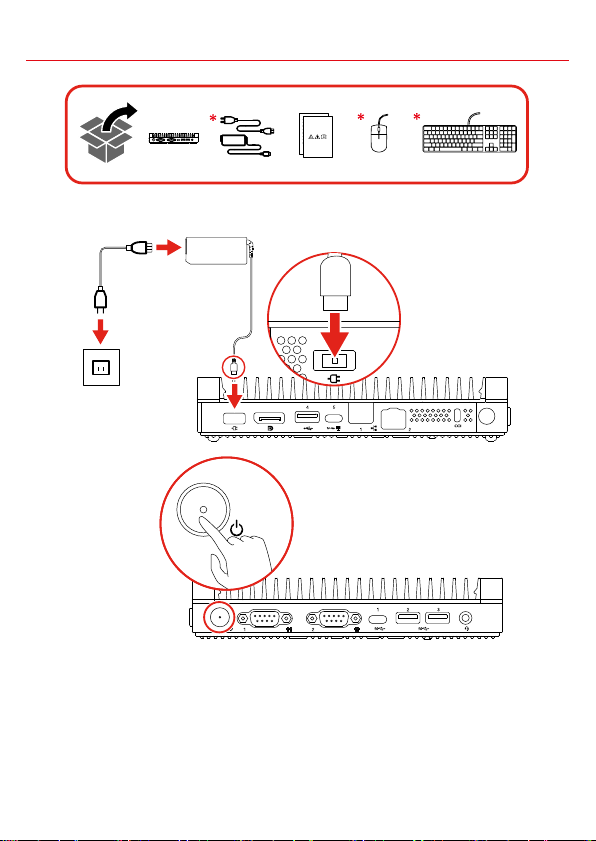

Initial Setup

*For selected models

Overview

7 9 10 11 12 13814

2 4 5 63

1. ThinkCentre

LED

2. Power button

3. Serial connectors (2)

4. USB-C™ connector (USB 3.1 Gen 2)

5. USB 3.1 connectors Gen 2 (2)

6. Headset connector

7. Power adapter connector

8. DisplayPort®1.2 out connector

9. USB 2.0 connector/USB 3.1 connector

Gen 2

10. USB-C connector (USB 3.1 Gen 2)

*11. Ethernet connector

12. Ethernet connector

13. Security-lock slot

*14. Wi-Fi antenna slot

*15. Wireless WAN antenna slot

* For selected models

Read the statement on USB transfer rate in the User Guide. Refer to the Safety and Warranty Guide

for accessing the User Guide.

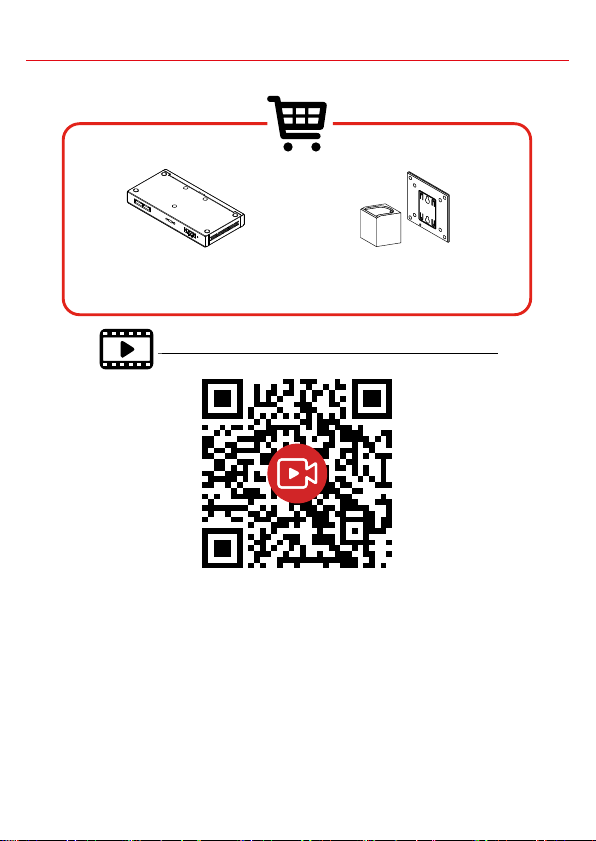

More Accessories

ThinkCentre

Nano IoT IOBOX

ThinkCentreTiny/Nano

Monitor Clamp II

https://support.lenovo.com/solutions/nanofeaturevideo

*For selected models

Customer Replaceable Units (CRUs)

• Bottom cover

*• DIN rail bracket kit

*• Heat sink cover

*• I/O box

*• Keyboard

• M.2 solid-state drive

*• Mouse

*• Power adapter

*• Power adapter bracket kit

*• Power cord

*• Rear Wi-Fi antenna

*• VESA mount bracket kit

*• Wi-Fi card

*• Wireless WAN antenna

*• Wireless WAN card

Refer to the User Guide for CRU definition.

Additional information

European Union — compliance with the

Radio Equipment Directive

Hereby, Lenovo (Singapore) Pte. Ltd., declares that

the radio equipment type ThinkCentre M90n-1 is in

compliance with Directive 2014/53/EU.

The full text of the system EU declaration of

conformity is available at the following Internet

address:

https://www.lenovo.com/us/en/compliance/eu-

doc

This radio equipment operates with the following

frequency bands and maximum radio-frequency

power:

Technology

Frequency

band [MHz]

Maximum

transmit

power

WLAN

802.11b/g/n

2400 - 2483.5 < 20 dBm

WLAN

802.11a/n/ac

5150 - 5725 < 23 dBm

WLAN

802.11a/n/ac

5725 - 5875 < 13.98 dBm

Bluetooth

BR/EDR/LE

2400 - 2483.5 < 20 dBm

WWAN

UMTS

1/8 < 24.5 dBm

WWAN LTE

1/3/7/8/20/28

< 24 dBm

Usage of all the radio devices is limited to indoor in

the band 5150 MHz to 5350 MHz (channels 36, 40,

44, 48, 52, 56, 60, 64).

E-manual

Third Edition (May 2020)

LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a

General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to

restrictions set forth in Contract No. GS-35F-05925.

Reduce I Reuse I Recycle
