Lenovo ThinkCentre M90p Manuale utente

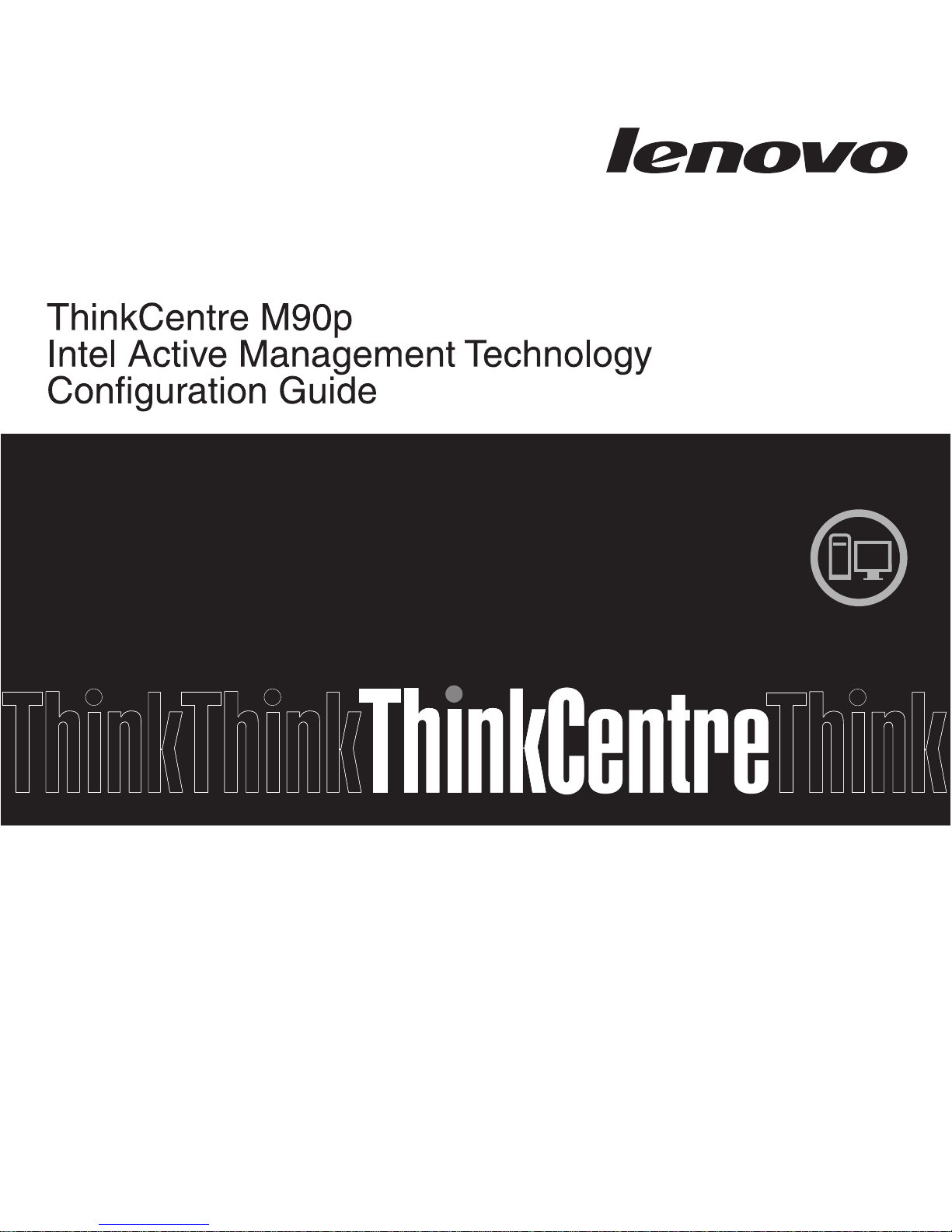

ThinkCentre M90p with

Intel Active Management Technology

Configuration Guide

First Edition (January 2010)

LENOVO products, data, computer software, and services have been developed exclusively at private expense and

are sold to governmental entities as commercial items as defined by 48 C.F.R. 2.101 with limited and restricted

rights to use, reproduction and disclosure.

LIMITED AND RESTRICTED RIGHTS NOTICE: If products, data, computer software, or services are delivered

pursuant a General Services Administration ″GSA″contract, use, reproduction, or disclosure is subject to restrictions

set forth in Contract No. GS-35F-05925.

Contents

About this document .........v

Chapter 1. Introduction to Intel vPro and

Intel AMT ..............1

Acronyms ...............1

Chapter 2. Features and benefits of Intel

AMT................3

Features and benefits ...........3

Chapter 3. Introduction to ISV

applications .............5

Chapter 4. Main features of computers

built with Intel AMT ..........7

CIRA .................7

KVM redirection .............8

Chapter 5. Intel AMT setup and

configuration on Lenovo ThinkCentre

M90p desktop computers .......9

Intel AMT configuration settings in Setup Utility . . 9

Intel MEBx setup and configuration ......10

Entering the MEBx configuration user interface 11

Intel(R) ME General Settings........11

Intel(R) AMT Configuration ........19

Intel(R) Quiet System Technology Configuration 20

Driver description ............20

MEI................20

LMS................21

SOL................21

Chapter 6. Web user interface .....23

Accessing the Web user interface .......23

Provisioning the Intel AMT computer ....23

Logging on to the client .........24

Functions in the Web user interface ......24

Appendix A. Examples of configuring

Intel AMT in manual and automatic

setup and configuration modes ....25

Configuring Intel AMT in manual setup and

configuration mode............25

Configuring Intel AMT in automatic setup and

configuration mode............25

ZTC provisioning ...........25

USB provisioning ...........26

Appendix B. Factory default settings

for the Intel MEBx ..........27

Appendix C. Notices .........29

Trademarks ..............30

iv ThinkCentre M90p with Intel AMT Configuration Guide

About this document

This document provides information about Intel®Active Management Technology

(Intel AMT) for Lenovo®ThinkCentre®M90p desktop computers. This document

provides step-by-step instructions on how to use Intel AMT.

This document is intended for trained IT professionals or those responsible for

configuring computers throughout their organizations. The readers should have

basic knowledge of network and computer technology, and be familiar with the

terms TCP/IP, DHCP, IDE, DNS, Subnet Mask, Default Gateway, Domain Name,

and so on.

This document provides information about the following topics:

Chapter 1, “Introduction to Intel vPro and Intel AMT,” on page 1: This chapter

provides a general introduction to Intel vPro™and Intel AMT.

Chapter 2, “Features and benefits of Intel AMT,” on page 3: This chapter

introduces the features and benefits of Intel AMT.

Chapter 3, “Introduction to ISV applications,” on page 5: This chapter provides a

general introduction to ISV applications.

Chapter 4, “Main features of computers built with Intel AMT,” on page 7: This

chapter introduces the main features of Intel AMT built-in computers.

Chapter 5, “Intel AMT setup and configuration on Lenovo ThinkCentre M90p

desktop computers,” on page 9: This chapter provides detailed instructions on how

to configure Intel AMT settings on Lenovo ThinkCentre M90p desktop computers.

Chapter 6, “Web user interface,” on page 23: This chapter provides instructions on

how to access the Intel AMT Web user interface.

vi ThinkCentre M90p with Intel AMT Configuration Guide

Chapter 1. Introduction to Intel vPro and Intel AMT

Intel vPro is a business computer platform that provides business computers with

enhanced remote management capabilities. For computers built with Intel vPro, IT

administrators can use a third party software to remotely collect inventory

information, diagnose problems, and provide various services regardless of the

computer power state or the operating system state. IT administrators can also

isolate and protect individual computers and the network from threats.

As a feature of Intel vPro, Intel AMT is designed to provide remote management

of computers regardless of the computer power state or the operating system state

as long as the computers are connected to an electrical outlet and a network.

Acronyms

The following table lists and explains some acronyms used in this document.

Acronym Description

ACL Access Control List

AMT Active Management Technology

ASF Alert Standard Format

CIRA Client Initiated Remote Access

DHCP Dynamic Host Configuration Protocol

DNS Domain Name Server

FQDN Fully Qualified Domain Name

FW Firmware

HECI Host Embedded Controller Interface

IDE-R Integrated Device Electronics - Redirection

IP Internet Protocol

ISV Independent Software Vendor

KVM Keyboard-Video-Mouse

LMS Local Manageability Service

ME Management Engine

MEBx Management Engine BIOS Extension

MEI Management Engine Interface

NVM Nonvolatile memory

OEM Original Equipment Manufacturer

OOB Out-of-band

PID/PPS Provisioning ID and Provisioning Pre-shared Key

PKI Public Key Infrastructure

PRTC Protected Real Time Clock

PSK Pre-shared Key

PXE Preboot Execution Environment

SHA Secure Hash Algorithm

SMB Small and Medium Businesses

SOL Serial-over-LAN

TCP Transmission Control Protocol

TLS Transport Layer Security

WOL Wake on Lan

ZTC Zero Touch Configuration
