Lenovo ThinkStation P340 Manuale utente

Printed in China

PN: SPXXXXXXXX

Setup Guide

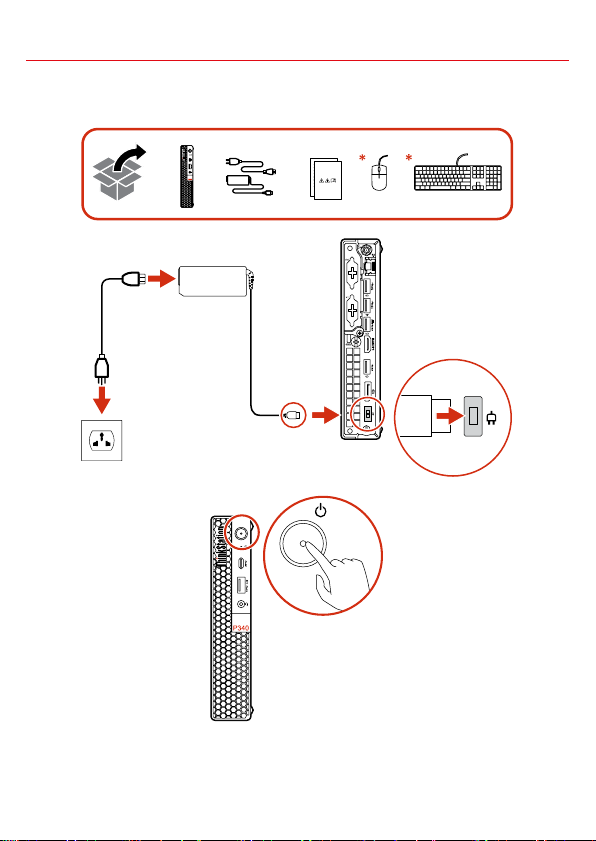

Initial Setup

*For selected models I For visse modeller I Tietyissä malleissa I Utvalgte modeller I Vissa modeller

Overview

1. System status indicator

2. Power button

3. Storage drive activity indicator

4. USB-C™ (3.2 Gen 1) connector

5. Always On USB 3.2 connector Gen 2

6. Headset connector

7. Security-lock slot

*8. Optional connectors

*9. Wi-Fi antenna slot

10. Ethernet connector

11. USB 3.2 connectors Gen 2

12. USB 3.2 connector Gen 1 (with smart

power-on)

13. HDMI™ 1.4 out connector

14. USB 3.2 connector Gen 1

15. DisplayPort 1.4 out connector

16. Power cord connector

Read the statement on USB transfer rate in the User Guide. Refer to the Safety and Warranty Guide for

accessing the User Guide.

*For selected models I For visse modeller I Tietyissä malleissa I Utvalgte modeller I Vissa modeller

Customer Replaceable Units (CRUs)

• ac power adapter

• Power cord

*• Keyboard

*• Mouse

*• Vertical stand

*• Rear Wi-Fi antenna

*• VESA mount bracket

*• External optical drive

*• External optical drive box

*• Power adapter bracket

*• Dust shield

• Computer cover

• Internal speaker

• Bottom cover

• M.2 solid-state drive

• Memory module

• System fan

• Coin-cell battery

*• PCIe card

*• PCIe converter

*• Wi-Fi card

*• Wi-Fi card shield

Refer to the User Guide for CRU definition.

Additional information

European Union — compliance with the

Radio Equipment Directive

Hereby, Lenovo (Singapore) Pte. Ltd., declares that

the radio equipment type ThinkStation P340 Tiny is

in compliance with Directive 2014/53/EU.

The full text of the system EU declaration of

conformity is available at the following Internet

address:

https://www.lenovo.com/us/en/compliance/eu-doc

This radio equipment operates with the following

frequency bands and maximum radio-frequency

power:

Technology

Frequency

band [MHz]

Maximum

transmit

power

WLAN

802.11b/g/n/ax

2400 - 2483.5 < 20 dBm

WLAN

802.11a/n/ac/ax

5150 - 5725 < 23 dBm

WLAN

802.11a/n/ac/ax

5725 - 5875 < 13.98 dBm

Bluetooth

BR/EDR/LE

2400 - 2483.5 < 20 dBm

Usage of all the radio devices is limited to indoor in

the band 5150 MHz to 5350 MHz (channels 36, 40,

44, 48, 52, 56, 60, 64).

E-manual

First Edition (June 2020)

LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a

General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to

restrictions set forth in Contract No. GS-35F-05925.

Reduce I Reuse I Recycle
