Lenovo V30a-22IML Manuale utente

Printed in China

PN: SPXXXXXXXX

Lenovo

V30a-22IML

V30a-24IML

Setup Guide

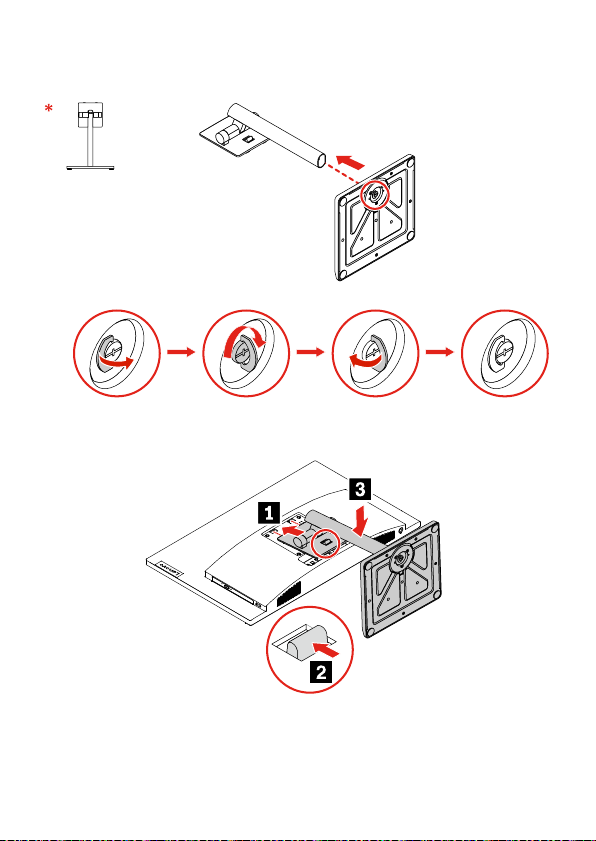

Unpack

*For selected models

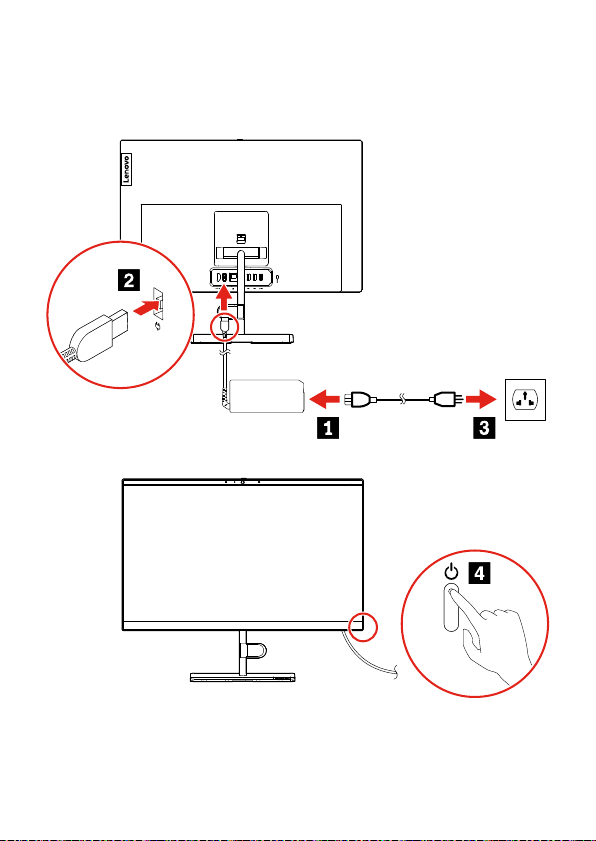

Initial Setup

*For selected models

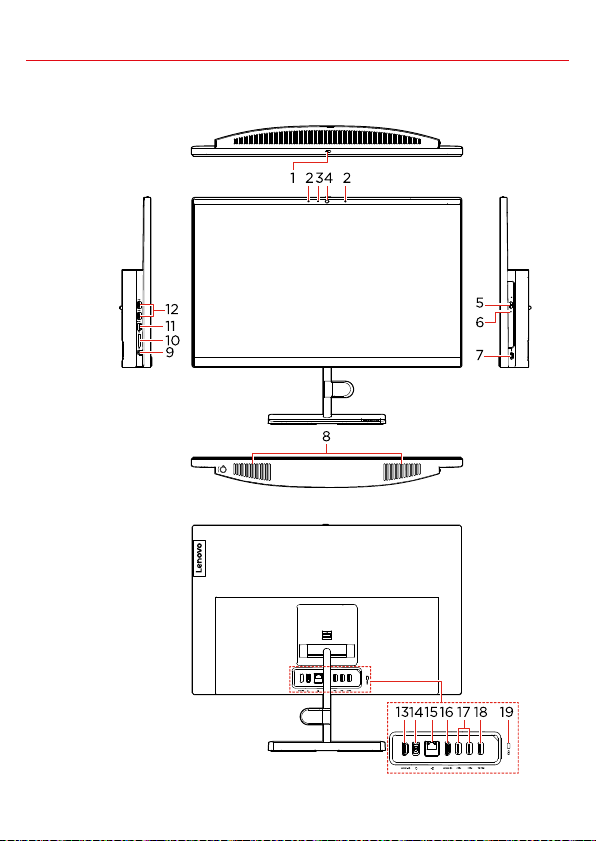

Overview

*For selected models

*1. Integrated camera shield

*2. Integrated microphones

*3. Integrated camera activity

indicator

*4. Integrated camera

*5. Optical drive eject button

*6. Optical drive activity indicator

7. Power button

8. Internal speakers

9. Headset connector

10. SD-card slot

11. USB 3.2 connector Gen 2

12. USB 2.0 connectors

13. HDMITM in connector

14. Power adapter connector

15.Ethernet connector

16.HDMI out connector

17. USB 2.0 connectors

18. USB 3.2 connector Gen 2

19. Security-lock slot

Read the statement on USB transfer rate in the User Guide. Refer to the Safety and Warranty Guide for

accessing the User Guide.

*For selected models

Customer Replaceable Units (CRUs)

• Computer cover

*• Computer stand bar

*• Computer stand base

• Internal speakers

*• Keyboard

*• Mouse

• Power adapter

• Power cord

• Storage drive

Refer to the User Guide for CRU definition.

*For selected models

Additional information

European Union — compliance with the

Radio Equipment Directive

Hereby, Lenovo (Singapore) Pte. Ltd., declares that

the radio equipment type Lenovo V30a-

22IML/V30a-24IML is in compliance with Directive

2014/53/EU.

The full text of the system EU declaration of

conformity is available at the following Internet

address:

https://www.lenovo.com/us/en/compliance/eu-

doc

This radio equipment operates with the following

frequency bands and maximum radio-frequency

power:

Technology

Frequency

band [MHz]

Maximum

transmit

power

WLAN

802.11b/g/n

2400 - 2483.5 < 20 dBm

WLAN

802.11a/n/ac

5150 - 5725 < 23 dBm

WLAN

802.11a/n/ac

5725 - 5875 < 13.98 dBm

Bluetooth

BR/EDR/LE

2400 - 2483.5 < 20 dBm

Usage of all the radio devices is limited to indoor in

the band 5150 MHz to 5350 MHz (channels 36, 40,

44, 48, 52, 56, 60, 64).

E-manual

Manuel en ligne | E-Handbuch | Manuale elettronico | E-handleiding | Manual

eletrónico

First Edition (April 2020)

LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a

General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to

restrictions set forth in Contract No. GS-35F-05925.

Reduce I Reuse I Recycle
