Chapter 1. Getting to know your computer

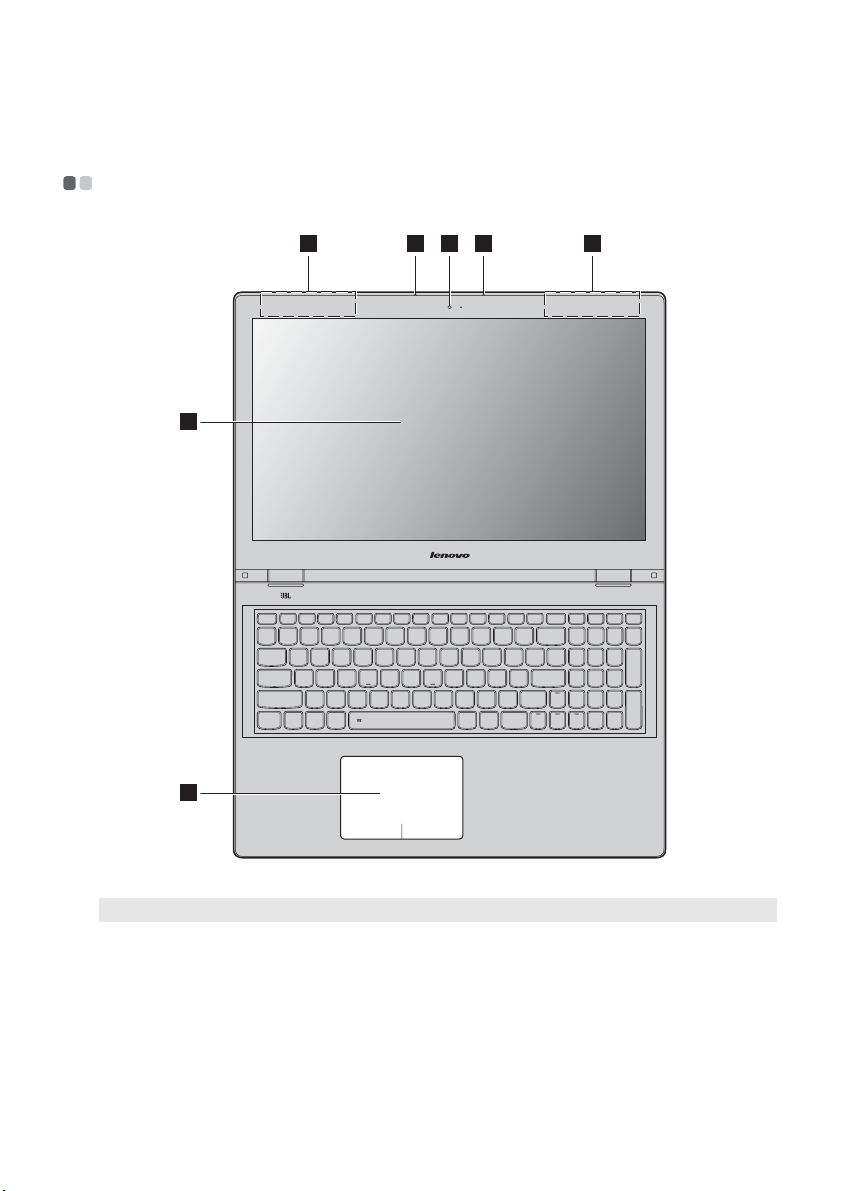

Top view ---------------------------------------------------------------------------------------------------------------------------

 Attention:

•When closing the display panel, be careful not to leave pens or any other objects in between the display

panel and the keyboard. Otherwise, the display panel may be damaged.

Note: The dashed areas indicate parts that are not visible externally.

1 33 22

Chapter 1. Getting to know your computer

aIntegrated camera Use the camera for video communication.

bWireless LAN antennas

Connect to a wireless LAN adapter to send and receive wireless radio signals.

cBuilt-in microphone Captures sound which can be used for video conferencing, voice

narration, or audio recording.

Note: Select models may have only one microphone, please refer to the actual product.

dMulti-touch screen The LCD display with LED backlight provides brilliant visual output.

Multi-touch function is available on this display.

eTouchpad The touchpad functions as a conventional mouse.

Touchpad: To move the pointer on the screen, slide your fingertip over

the pad in the direction in which you want the pointer to move.

Touchpad buttons: The functions of the left/right side correspond to

that of the left/right mouse button on a conventional mouse.

Note: You can enable/disable the touchpad by pressing F6 ( ).

Chapter 1. Getting to know your computer

Using the keyboard

Numeric keypad

The keyboard has a separate numeric keypad. To enable or disable the numeric keypad, press

the Num Lock key.

Function key combinations

Through the use of the function keys, you can change operational features instantly. To use this

function, press and hold Fn ; then press one of the function keys .

The following describes the features of each function key.

Fn + Home: Activates the pause function.

Fn + End: Activates the break function.

Fn + PgUp: Enables/disables the scroll lock.

Fn + PgDn: Activates the system request.

Fn + Space

(on select models): Adjusts the keyboard backlight (off dim bright off).

a b

Chapter 1. Getting to know your computer

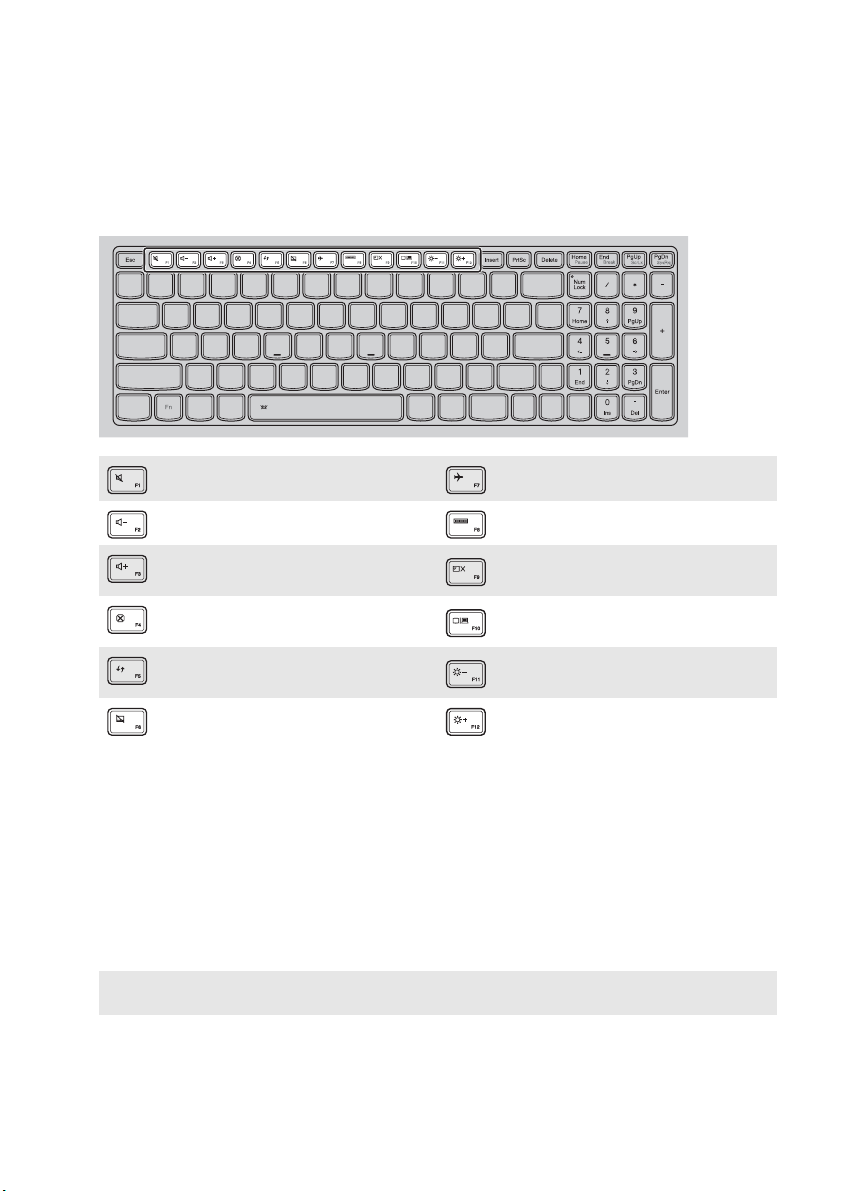

Hotkeys

You can access certain system settings quickly by pressing the appropriate hotkeys.

Setting hotkey mode

By default, the hotkey functions are accessible by pressing the appropriate hotkey. However,

you can disable the hotkey mode in the BIOS setup utility.

To disable the hotkey mode:

1Shut down the computer.

2Press the Novo button and then select BIOS Setup.

3In the BIOS setup utility, open the Configuration menu, and change the setting of HotKey

Mode from Enabled to Disabled.

4Open the Exit menu, and select Exit Saving Changes.

:Mutes/unmutes the sound. :Enables/disables Airplane mode.

: Decreases the volume level. : Displays all currently active apps.

:Increases the volume level. :Turns on/off the backlight of the

LCD screen.

Closes the currently active window.

:Toggles the display between the

computer and an external device.

:Refreshes the desktop or the

currently active window. :Decreases the display brightness.

: Enables/disables the touchpad. : Increases the display brightness.

Note: When hotkey mode is disabled, press the Fn key and the appropriate hotkey to access the

corresponding hotkey function.

Chapter 1. Getting to know your computer

Left-side view--------------------------------------------------------------------------------------------------------------

aKensington lock slot Attach a security lock (not supplied) here to help protect your computer

from theft and unauthorized use. You can attach a security lock to your

computer to help prevent it from being removed without your

permission. For details on installing the security lock, please refer to the

instructions shipped with the security lock that you have purchased.

Notes:

•Before purchasing any security product, verify that it is compatible with this type of security keyhole.

•You are responsible for evaluating, selecting, and implementing the locking devices and security

features. Lenovo offers no comment, judgment, or warranty regarding the function, quality, or

performance of locking devices and security features.

bAC power adapter jack Connects to the AC power adapter.

cUSB 2.0 port Connects to USB devices.

Note: For details, see “Connecting USB device” on page 8.

dMemory card slot Insert memory cards (not supplied) here.

Note: For details, see “Using memory cards (not supplied)” on page 6.

eCombo audio jack Connects to headsets.

Notes:

•The combo audio jack does not support conventional microphones.

•The recording function might not be supported if third-party headphones or headsets are connected,

due to different industry standards.

fRotation lock button Keeps the screen locked in portrait or landscape orientation. Locking the

screen rotation will disable the gravity sensing function, thereby

preventing the screen from changing its orientation automatically

depending upon the angle at which it is held.

Note: The screen rotation lock button will be disabled in notebook mode.

gVolume down button Decreases the volume level.

hVolume up button Increases the volume level.

1 2 3 54 6 7 8

Chapter 1. Getting to know your computer

Using memory cards (not supplied)

Your computer supports the following types of memory cards:

• Secure Digital (SD) card

• Secure Digital High Capacity (SDHC) card

• Secure Digital eXtended Capacity (SDXC) card

• MultiMediaCard (MMC)

Inserting a memory card

Insert the memory card until it touches the bottom of the slot.

Removing a memory card

Gently pull the memory card out of the memory card slot.

Notes:

•Insert only one card in the slot at a time.

•This card reader does not support SDIO devices (e.g., SDIO Bluetooth, etc.).

Note: Before removing the memory card, disable it by using the Windows safely remove hardware and eject

media utility to avoid data corruption.
