Lenovo ThinkPad A285 Manuale utente

A285

Setup Guide

设置指南

設定手冊

セットアップ・ガイド

설치 설명서

Printed in China

PN: SP40Q52216

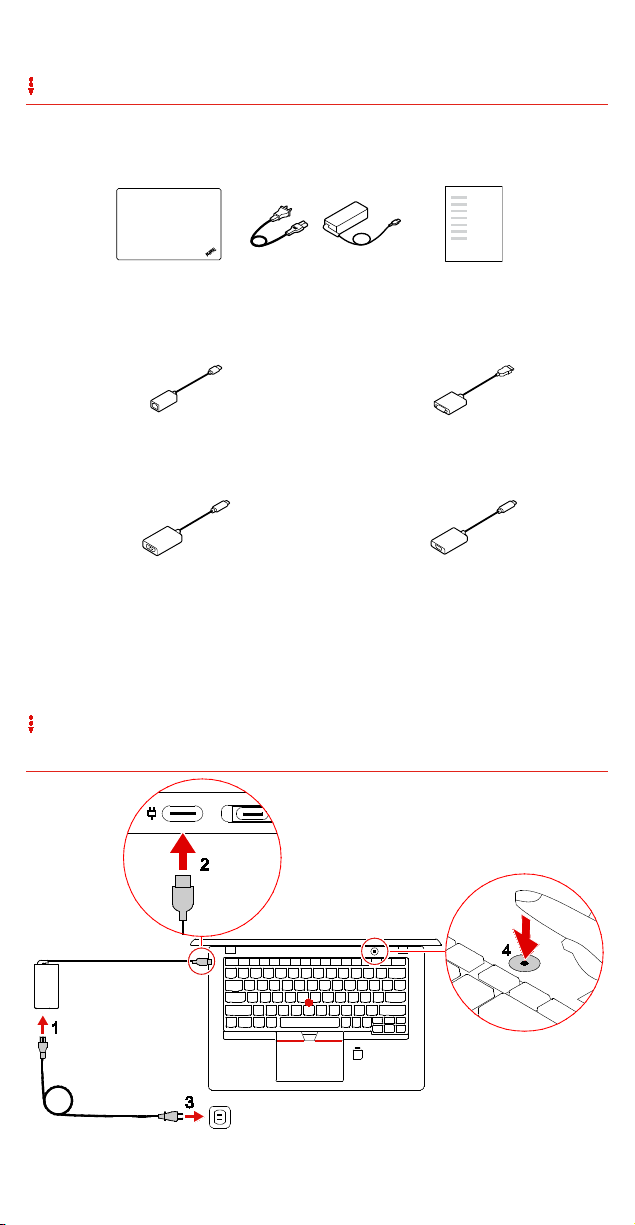

Unpack | 打开包装 | 打開包裝 | 開梱 | 패키지 내용물

Standard items | 标准物品 | 標準項目 | 標準品目 | 기본 항목

Optional accessories | 可选附件 | 選購配件 | オプションのアクセサリー | 옵션

액세서리

ThinkPad Ethernet Extension Adapter

Gen 2＊

Lenovo HDMI to VGA Adapter＊

Lenovo USB-C to VGA Adapter＊

Lenovo USB-C to DisplayPort

Adapter＊

＊Available on some models | 某些型号配备 | 選配 | 一部のモデルで使用可能 |

일부 모델에서 사용 가능

Initial setup | 初始安装 | 首次安裝 | 初期セットアップ |

초기 설정

E-manual | 电子手册 | 電子手冊 |E マニュアル | 전자

문서

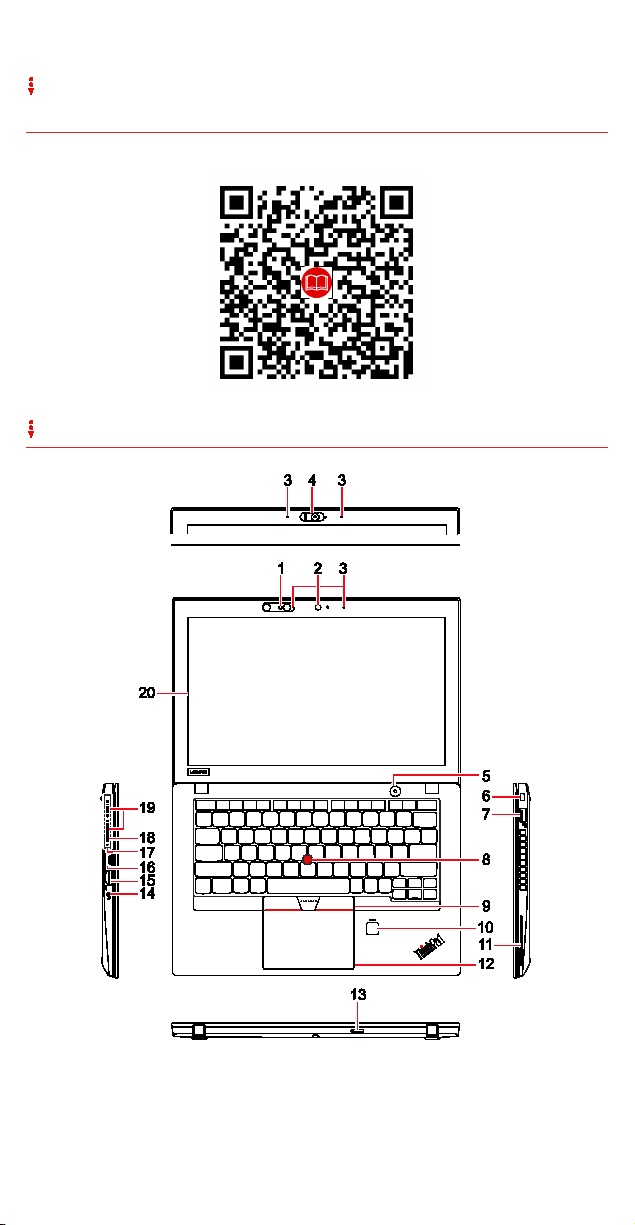

Overview | 概述 | 概觀 | 概要 | 개요

[English]

1. Infrared camera＊2. Conventional camera (available

on models with the infrared

camera)

＊

3. Microphones 4. Conventional camera with

ThinkShutter

＊

5. Power button

6. Mini security-lock slot

7. Always On USB 3.1 connector

Gen 1

8. TrackPoint®pointing stick

9. TrackPoint buttons

10. Fingerprint reader

＊

11. Smart-card slot

＊

12. Trackpad

13. Nano-SIM-card and microSD-

card slot

14. Audio connector

15. HDMI™ connector

16. USB 3.1 connector Gen 2

17. Docking-station connector 18. Ethernet extension connector

Gen 2

19. USB-C™ connectors / power

connectors

20. Multi-touch screen＊

＊Available on some models

[简体中文]

1. 红外摄像头＊2. 传统摄像头（带红外摄像头的型

号上配备）＊

3. 麦克风 4. 带ThinkShutter 的传统

摄像头＊

电源按钮

微型安全锁插槽

7. Always On USB 3.1

接口

Gen 1

8. TrackPoint

指点杆

9. TrackPoint

按钮

10.

指纹读取器＊

11.

智能卡插槽＊

12.

轨迹板

13. Nano-SIM

卡和

MicroSD

卡插槽

14.

音频接口

15. HDMI™接口 16. USB 3.1 接口 Gen 2

17.

扩展坞接口

18.

以太网扩展接口

Gen 2

19. USB-C™接口/电源接口 20. 多点触控式屏幕＊

＊某些型号配备

[繁體中文]

1. 紅外線攝影機＊2. 傳統攝影機（適用於配備紅外線

攝影機的型號）＊

3. 麥克風 4. 配有 ThinkShutter 的傳統攝影機

＊

電源按鈕

迷你安全鎖插槽

7. Always On USB 3.1

接頭

Gen 1

8. TrackPoint

指標按桿

9. TrackPoint 按鈕

10.

指紋辨識器＊

11.

智慧型卡片插槽＊

12.

軌跡板

13. Nano-SIM 卡和 microSD 卡片插

槽

14. 音訊接頭

15. HDMI™

接頭

16. USB 3.1

接頭

Gen 2

17.

擴充基座接頭

18.

乙太網路擴充接頭

Gen 2

19. USB-C™ 接頭/電源接頭

20.

多點觸控螢幕＊

＊選配

[日本語]

1. 赤外線カメラ＊2. 従来型カメラ (赤外線カメラ付

きモデルで使用可能

)

＊

3. マイクロホン 4. ThinkShutter 搭載の従来型カメ

ラ＊

5. 電源ボタン 6. ミニ・セキュリティー・ロッ

ク・スロット

7. Always On USB 3.1 コネクター

Gen 1

8. TrackPoint®ポインティング・

スティック

9. TrackPoint

ボタン

10.

指紋センサー＊

11. スマート・カード・

スロット＊

12. トラックパッド

13. Nano-SIM カードおよびマイク

ロ

SD-

カード・スロット

14. オーディオ・コネクター

15. HDMI™

コネクター

16. USB 3.1

コネクター

Gen 2

17. ドッキング・ステーション・コ

ネクター

18. イーサネットの拡張コネクター

Gen 2

19. USB-C™ コネクター / 電源コネ

クター

20. マルチタッチ・スクリーン＊

＊一部のモデルで使用可能

[한국어]

1. 적외선 카메라＊2. 일반적인 카메라(적외선

카메라가 있는 모델에서 사용

가능

)

＊

3. 마이크 4. ThinkShutter 가있는 일반적인

카메라＊

전원

버튼

미니

보안

잠금

장치

슬롯

7. Always On USB 3.1 커넥터 Gen

8. TrackPoint®포인팅 스틱

9. TrackPoint

버튼

10.

지문

판독기＊

11.

스마트

카드

슬롯＊

12.

트랙

패드

13. Nano-SIM 카드 및microSD

카드

슬롯

14. 오디오 커넥터

15. HDMI™

커넥터

16. USB 3.1

커넥터

Gen 2

17.

도킹

스테이션

커넥터

18.

이더넷

확장

커넥터

Gen 2

19. USB-C™

커넥터

전원

커넥터

20.

멀티

터치

화면＊

＊일부 모델에서 사용 가능

European Union conformity

EU contact: Lenovo (Slovakia), Landererova 12, 811 09

Bratislava, Slovakia

Compliance to Directives for Information Technology

Equipment (ITE) and Radio Equipment

EMC Directive Statement: This product is in conformity

with the protection requirements of EU Council Directive

2014/30/EU on the approximation of the laws of the

Member States relating to electromagnetic compatibility.

The full compliance statement is located in the User

Guide.

Models with a radio device:

Compliance with the Radio Equipment Directive

Hereby, Lenovo (Singapore) Pte. Ltd., declares that the

radio equipment type ThinkPad A285 is in compliance

with Directive 2014/53/EU.

The full text of the system EU declaration of conformity

and the EU wireless module declarations are available at

the following Internet addresses:

•For notebook computers:

https://www.lenovo.com/eu-doc-notebooks

•For tablets:

https://www.lenovo.com/eu-doc-tablets

This radio equipment operates with the following

frequency bands and maximum radio-frequency power:

Technology Frequency

band [MHz]

Maximum

transmit

power

WLAN

802.11b/g/n

2400 -

2483.5

< 20 dBm

WLAN

802.11a/n/ac

5150 - 5725 < 23 dBm

WLAN

802.11a/n/ac

5725 - 5875 < 13.98 dBm

Bluetooth

BR/EDR/LE

2400 -

2483.5

< 20 dBm

WWAN UMTS

1/8

< 24.5 dBm

WWAN LTE

1/3/7/8/20/28

< 24 dBm

Note: The list of wireless modules used in this product is

available in the Regulatory Notice. You can download the

latest Regulatory Notice for this product from the Lenovo

Support Web site:

https://support.lenovo.com

Second Edition (December 2018)

LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General Services

Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract

No. GS-35F-05925.
